Program Global Area (PGA)

Program Global Area (PGA)
- a memory heap that contains session-dependent variables required by a dedicated or shared server process.
- memory specific to an operating process or thread that is not shared by other processes or threads on the system.
- Because the PGA is process-specific, it is never allocated in the SGA.
- 存储进程需要的变量, 进程独享, 不在 SGA
DBA can use an initialization parameter to set a target maximum size of the instance PGA.
- Individual PGAs can grow as needed up to this target size.
- 可以设置最大值
- PGA_aggregate_limit: a limit on the aggregate PGA memory consumed by the instance. (hard limit)
- PGA_aggregate_target: the target aggregate PGA memory available to all server processes attached to the instance.

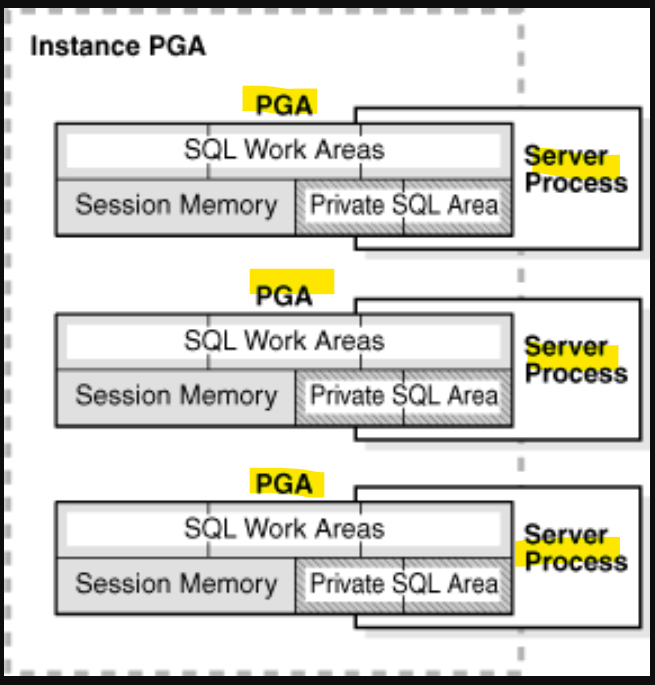

instance PGA
- a collection of all PGAs
- used for an instance that is not configured for shared servers.

Instance_PGA

show parameter pga_aggregate_limit
show parameter PGA_aggregate_target

select value from v$parameter where name = 'pga_aggregate_limit';
select value from v$parameter where name = 'PGA_aggregate_target';

ALTER SYSTEM SET pga_aggregate_limit = 2G SCOPE=both;
ALTER SYSTEM SET PGA_AGGREGATE_TARGET = 1024M SCOPE=both;
# SCOPE=both part ensures that the change takes effect immediately and is persistent across both the current session and future sessions.

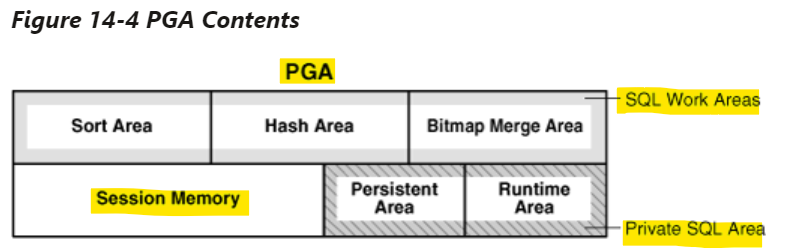

Contents of the PGA

PGA Contents
- Private SQL Area
  - Persistent Area
  - Runtime Area
- SQL Work Area
  - Sort Area
  - Hash Area
  - Bitmap Merge Area
- Session Memory

PGA_Contents

Memory allocation

PGA memory allocation depends on whether the database uses dedicated or shared server connections.

Memory Area	Dedicated Server	Shared Server
Nature of session memory	Private	Shared
`persistent area`	PGA	SGA
`run-time area` for DML and DDL statements	PGA	PGA

Dedicated mode:
- bind vairable and session are not shared
  - Session is private.
  - persistent area in PGA.
Run-time area always in PGA.

`V$PGASTAT` - PGA statistics

V$PGASTAT
- a dynamic performance views to display PGA memory usage statistics

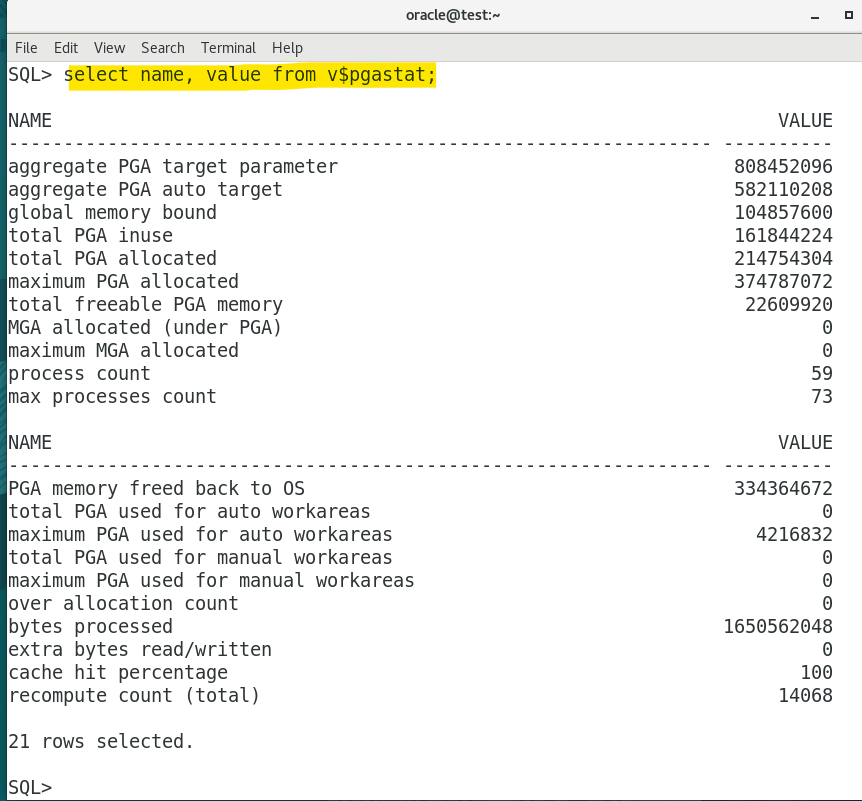

select name, value from v$pgastat;

pga_v$pgastat

`Private SQL Area` - `Cursor`

Private SQL Area
- A private SQL area holds information about a parsed SQL statement and other session-specific information for processing.
When a server process executes SQL or PL/SQL code, the process uses the private SQL area to store bind variable values, query execution state information, and query execution work areas.

Private SQL Area vs shared SQL area

	`Private SQL Area`	`shared SQL area`
Memory Structure	PGA	SGA
Store Info	a parsed SQL statement + session-specific	stores execution plans

Multiple private SQL areas in the same or different sessions can point to a single execution plan in the SGA.
The private SQL areas for each execution are not shared and may contain different values and data.

`run-time area`

run-time area
- One area in private SQL area
- contains query execution state information.
  - e.g.: the run-time area tracks the number of rows retrieved so far in a full table scan.
- the first step of an execute request = the creation of run-time area.
  - For DML statements, the run-time area is freed when the SQL statement is closed.

`persistent area`

persistent area
- contains bind variable values.
bind variable value
- supplied to a SQL statement at run time when the statement is executed.
- The persistent area is freed only when the cursor is closed.

Cursor

cursor

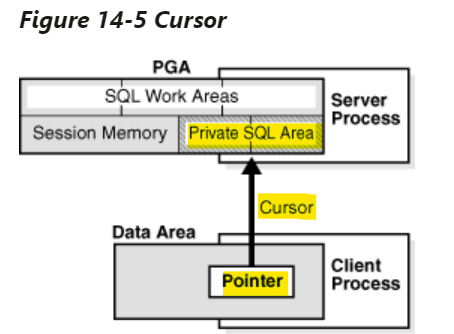

- a name or handle to a specific private SQL area.
- a cursor
  - as a pointer on the client side
  - as a state on the server side.
the terms are sometimes used interchangeably:
- cursor = private SQL areas

cursor

The client process is responsible for managing private SQL areas.
- The allocation and deallocation of private SQL areas depends largely on the application
In general, applications should close all open cursors that will not be used again to free the persistent area and to minimize the memory required for application users.
initialization parameter: OPEN_CURSORS
- The maximum number of private SQL areas that a client process can allocate.

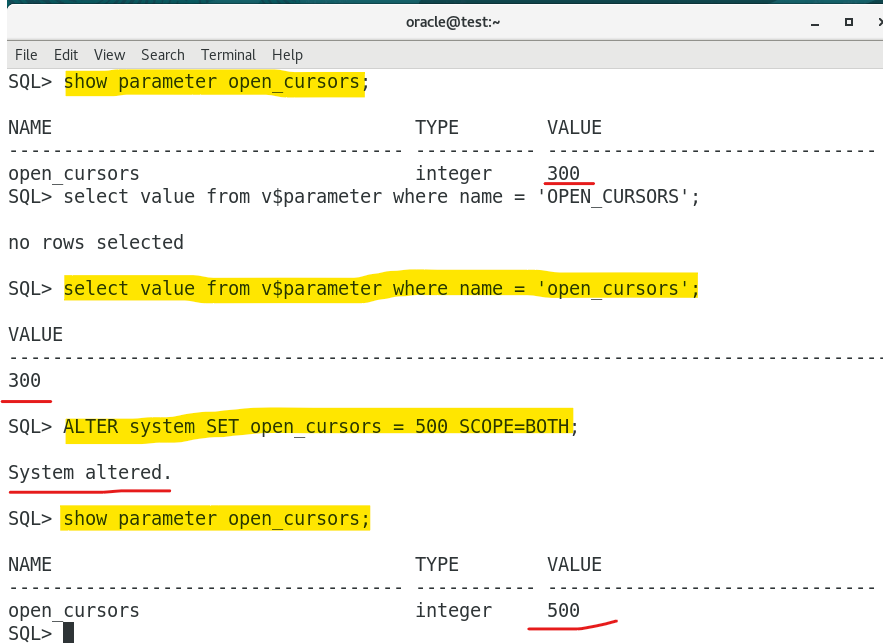

SHOW PARAMETER OPEN_CURSORS;
SELECT value
FROM v$parameter
WHERE name = 'open_cursors';

ALTER SYSTEM SET OPEN_CURSORS = 500 SCOPE=both;

pga_private_SQL_area_cursor

Example: `Private SQL area` & `Cursor`

DECLARE
  CURSOR c_employee (dept_id NUMBER) IS
    SELECT employee_name
    FROM employees
    WHERE department_id = dept_id;
  v_employee_name VARCHAR2(50);
  v_department_id NUMBER := 10; -- Bind Variable
BEGIN
  OPEN c_employee(v_department_id); -- Bind variable value supplied at runtime
  LOOP
    FETCH c_employee INTO v_employee_name; -- Interacts with private SQL area (run-time area)
    EXIT WHEN c_employee%NOTFOUND;
    -- Process the current row (v_employee_name)
    DBMS_OUTPUT.PUT_LINE('Employee Name: ' || v_employee_name);
  END LOOP;
  CLOSE c_employee; -- Deallocates private SQL area (run-time area) and persistent area
END;

Execution Details:

Parse Phase:
- Oracle parses the PL/SQL block and identifies the cursor declaration CURSOR c_employee.
Compile Phase:
- Oracle generates an execution plan for the SQL statement associated with the cursor.
- The execution plan includes considerations for the bind variable dept_id.
Bind Variable:
- v_department_id is a bind variable initialized with the value 10.
- The bind variable allows for dynamic customization of the SQL statement.
Open Cursor:
- The OPEN c_employee(v_department_id); statement is executed.
- A private SQL area (run-time area) is allocated at runtime to manage the SQL statement execution.
- The bind variable value (10) is stored in the persistent area.
Fetch Loop:
- The LOOP begins, and the FETCH c_employee INTO v_employee_name; statement interacts with the private SQL area (run-time area).
- Each fetch operation uses the bind variable value stored in the persistent area and runtime area to retrieve rows dynamically.
Exit Loop:
- The loop continues fetching rows until the condition EXIT WHEN c_employee%NOTFOUND; is met.
Close Cursor:
- The CLOSE c_employee; statement is executed.
- The private SQL area (run-time area) and the associated persistent area are deallocated, freeing resources.

`SQL Work Areas`

SQL Work Areas
- a private allocation of PGA memory used for memory-intensive operations.
  - e.g.:
    - a sort operator uses the sort area to sort a set of rows.
    - a hash join operator uses a hash area to build a hash table from its left input
    - a bitmap merge uses the bitmap merge area to merge data retrieved from scans of multiple bitmap indexes.
When automatic PGA memory management is enabled, DB automatically tunes work area sizes
- Optional, manually control and tune the size of a work area.
Performance:
- Generally, larger work areas can significantly improve performance of an operator at the cost of higher memory consumption. 一般, 大 size 提高性能.
- Optimally, the size of a work area is sufficient to accommodate the input data and auxiliary memory structures allocated by its associated SQL operator. 最优, 大小充分
- If not, response time increases. 太小, 相应时间提高, 因为缓存到硬盘
  - because part of the input data must be cached on disk.
  - if too small, DB must perform multiple passes over the data pieces, dramatically increasing response time.
Parameter:

Parameter	Desc
`SORT_AREA_SIZE`	size of the memory allocated for sorting operation
`HASH_AREA_SIZE`	size of the memory allocated for hashing operation

# HASH_AREA_SIZE
SHOW PARAMETER HASH_AREA_SIZE;
SELECT value
FROM v$parameter
WHERE name = 'hash_area_size';
ALTER SYSTEM SET hash_area_size = <new_size> SCOPE=both;

SHOW PARAMETER SORT_AREA_SIZE;
SELECT value
FROM v$parameter
WHERE name = 'sort_area_size';
ALTER SYSTEM SET sort_area_size = <new_size> SCOPE=both;

Example

SELECT *
FROM   employees e JOIN departments d
ON     e.department_id=d.department_id
ORDER BY last_name;

/* query plan */
--------------------------------------------------------------------------------
#| Id| Operation           | Name        | Rows  | Bytes | Cost (%CPU)| Time    |
--------------------------------------------------------------------------------
#| 0 | SELECT STATEMENT    |             |   106 |  9328 |    7  (29)| 00:00:01 |
#| 1 |  SORT ORDER BY      |             |   106 |  9328 |    7  (29)| 00:00:01 |
#|*2 |   HASH JOIN         |             |   106 |  9328 |    6  (17)| 00:00:01 |
#| 3 |    TABLE ACCESS FULL| DEPARTMENTS |    27 |   540 |    2   (0)| 00:00:01 |
#| 4 |    TABLE ACCESS FULL| EMPLOYEES   |   107 |  7276 |    3   (0)| 00:00:01 |
--------------------------------------------------------------------------------

the run-time area tracks the progress of the full table scans.
The session performs a hash join in the hash area to match rows from the two tables.
The ORDER BY sort occurs in the sort area.
