DBA - SGA: Shared Pool

Back

• DBA - SGA: Shared Pool
  • Shared Pool
    • Library Cache
      • Shared SQL Areas
    • Data Dictionary Cache
    • Server Result Cache
    • Reserved Pool

---

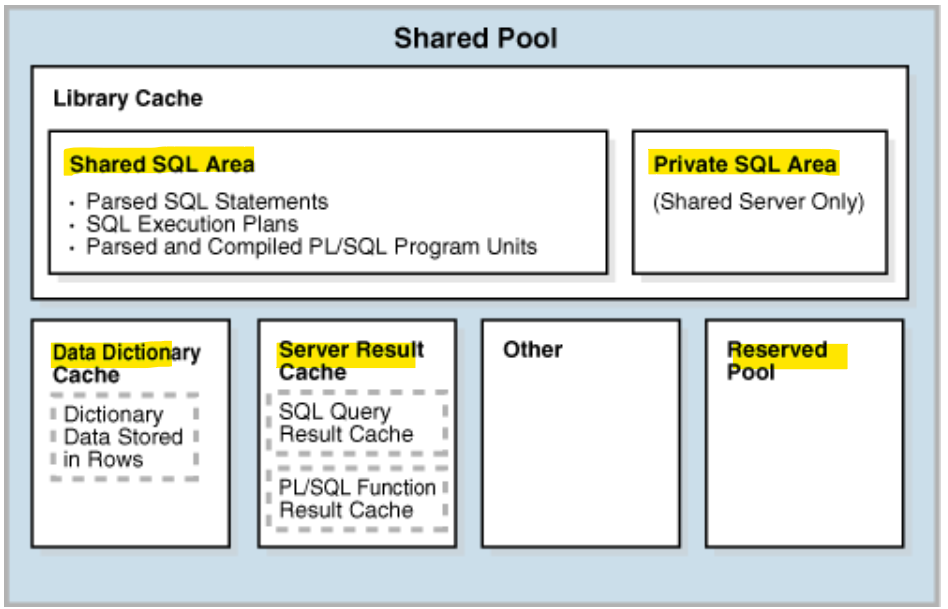

Shared Pool

• shared pool

  • caches various types of program data.
  • e.g., stores parsed SQL, PL/SQL code, system parameters, and data dictionary information.
  • involved in almost every operation that occurs in the database.

---

Library Cache

• library cache

  • a shared pool memory structure that stores executable SQL and PL/SQL code.
  • contains
    • the shared SQL and PL/SQL areas
    • control structures such as locks and library cache handles.

• In a shared server architecture, the library cache also contains private SQL areas.

• When a SQL statement is executed, the database attempts to reuse previously executed code.

  • soft parse / library cache hit
    • If a parsed representation of a SQL statement exists in the library cache and can be shared, then the database reuses the code.
  • hard parse / library cache miss
    • Otherwise, the database must build a new executable version of the application code.

---

Shared SQL Areas

• shared SQL area

  • used to process the first occurrence of a SQL statement.
  • accessible to all users
  • contains the statement parse tree and execution plan.

• SQL Statement vs area

  • Only one shared SQL area exists for a unique statement.
  • Each session issuing a SQL statement has a private SQL area in its PGA.

• private sql area vs shared sql area

  • Each user that submits the same statement has a private SQL area pointing to the same shared SQL area.
  • Thus, many private SQL areas in separate PGAs can be associated with the same shared SQL area.多对一

• execution steps:

  • 1. Checks the shared pool to see if a shared SQL area exists for a syntactically and semantically identical statement:
       • If an identical statement exists, then the database uses the shared SQL area for the execution of the subsequent new instances of the statement, thereby reducing memory consumption.
       • If an identical statement does not exist, then the database allocates a new shared SQL area in the shared pool. A statement with the same syntax but different semantics uses a child cursor.
       • In either case, the private SQL area for the user points to the shared SQL area that contains the statement and execution plan.
  • 1. Allocates a private SQL area on behalf of the session
       • The location of the private SQL area depends on the connection established for the session.与连接类型有关
         • If a session is connected through a shared server, then part of the private SQL area is kept in the SGA.

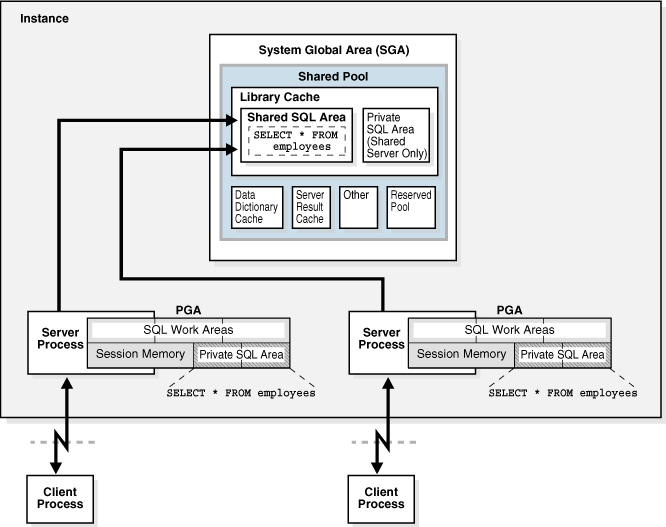

a dedicated server architecture in which two sessions keep a copy of the same SQL statement in their own PGAs. In a shared server, this copy is in the UGA, which is in the large pool or in the shared pool when no large pool exists.

---

Data Dictionary Cache

• data dictionary

  • a collection of database tables and views containing reference information about the database, its structures, and its users.

• Special memory locations are designated to hold dictionary data:

  • Data dictionary cache / row cache

    • holds information about database objects.

  • Library cache

• All server processes share these caches for access to data dictionary information.

---

Server Result Cache

• server result cache
  • a memory pool within the shared pool.
  • holds result sets and not data blocks.
  • contains the SQL query result cache and PL/SQL function result cache, which share the same infrastructure.

---

Reserved Pool

• reserved pool

  • a memory area in the shared pool that Oracle Database can use to allocate large contiguous chunks of memory.

• Chunking分块

  • allows large objects (over 5 KB) to be loaded into the cache without requiring a single contiguous area.
  • DB allocates memory from the shared pool in chunks.
    • DB reduces the possibility of running out of contiguous memory because of fragmentation.目的: 减少缺少连续内存的可能.

---
