Moving Data Between PDBs

Back

Moving Data Between PDBs
- Lab: Moving Data Between PDBs

Lab: Moving Data Between PDBs

Requirements

We have 2 pluggable databases
- 1. pdbx1 which contains schema called x1
    - x1 schema contain some objects like tables and views
- 2.pdbx2, am empty pdb
Task:
- we need to move the schema x1 from pluggable pdbx1 to pluggable database pdbx2
- Note: we will change the schema x1 to be x2 in the pluggable pdbx2

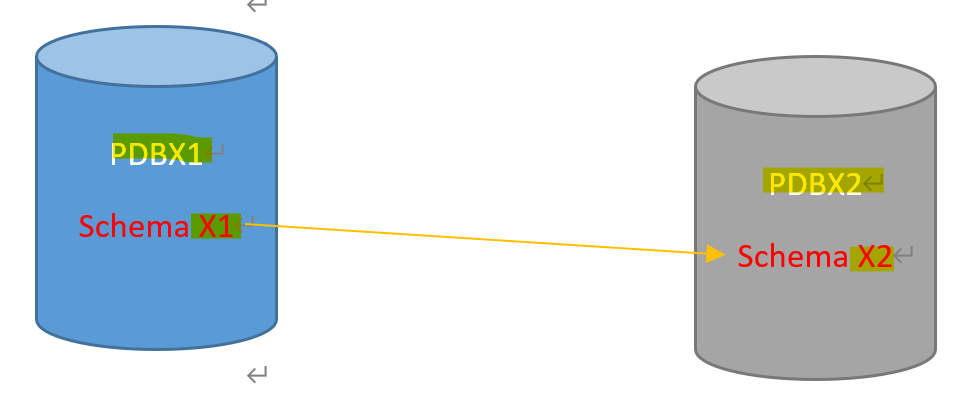

Using Data Pump

diagram_lab

Create Source PDB

Create pluggable pdbx1 using DBCA from seed
- make the admin user pdbx1_admin
Grant admin DBA role

sqlplus / as sysdba

show user
--USER is "SYS"
show con_name
--CON_NAME
--------------------------------
--CDB$ROOT

-- verify creation
show pdbs
-- 8 PDBX1                          READ WRITE NO

alter session set container=pdbx1;
show con_name
--CON_NAME
--------------------------------
--PDBX1

-- gran privilege
grant create session, dba to pdbx1_admin;

Update the Tnsnames file and test the connection

vi $ORACLE_HOME/network/admin/tnsnames.ora

# add:
PDBX1 =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = test.com)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = pdbx1.com)
    )
  )

Verify tnsname

sqlplus pdbx1_admin@pdbx1

show user
show con_name

Create user called x1
- Grant him some privileges

create user x1 identified by x1;
grant create session, create view, create table, unlimited tablespace to x1;

connect x1/x1@pdbx1
show user
show con_name

Create some objects

create table emp (id number primary key, name varchar2(100));
Insert into emp values (1, ' khaled');
Insert into emp values (2, ' ahmed');
Commit;

Create table dept ( deptno number primary key , name varchar2(100 ) );
Insert into dept values (1, ' sales dept ');
Commit;

-- verify
SELECT count(*) FROM emp;
-- 2
SELECT count(*) FROM dept;
-- 1

Create Target PDB

Create pluggable pdbx2 using DBCA from seed
- make the admin user pdbx2_admin
Grant him DBA role

sqlplus / as sysdba
show user
show con_name

-- verify pdb creation
show pdbs

alter session set container=pdbx2;
show con_name
grant create session, dba to pdbx2_admin;

update the Tnsnames file and test the connection

vi $ORACLE_HOME/network/admin/tnsnames.ora

# add:
PDBX2 =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = test.com)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = pdbx2.com)
    )
  )

create user called x2
- grant him some privileges

sqlplus pdbx2_admin/pdbx2_admin@pdbx2

create user x2 identified by x2;
grant create session, create view, create table, unlimited tablespace to x2;

connect x2/x2@pdbx2
show user
show con_name

Create Directory in Source PDB

Create physical direcotry in OS

mkdir /home/oracle/move_pdb

create logical directory in pdbx1 ( for exporting the dmp file )

connect pdbx1_admin@pdbx1;
CREATE DIRECTORY d_pdbx1
AS '/home/oracle/move_pdb';

GRANT read, write ON DIRECTORY d_pdbx1 TO x1;
exit

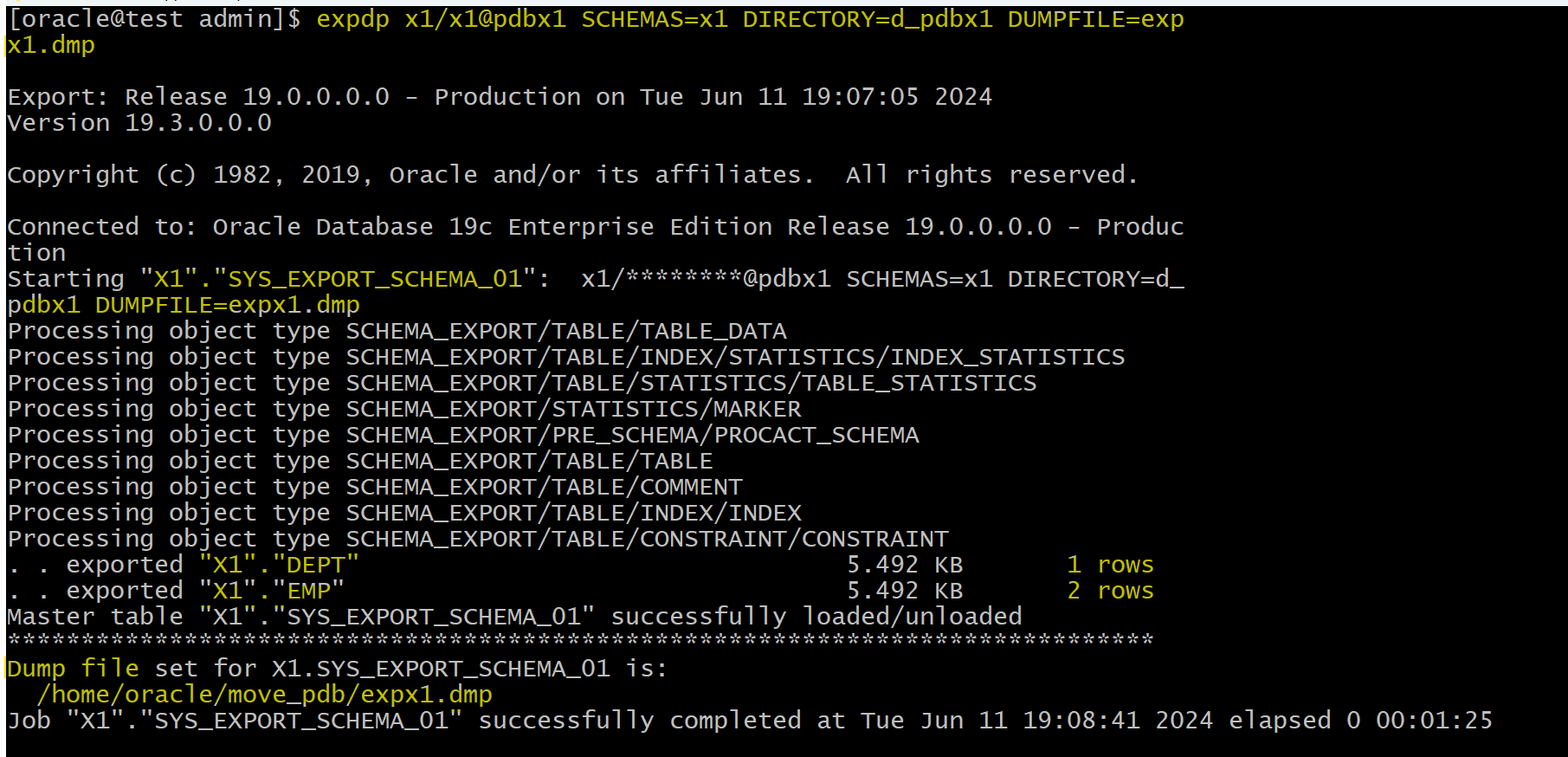

Export Data from Source PDB to a Dump File

# in terminal
# expdb: a utility of data pump to export database
#   with X1 connection
#   schema: x1
#   directory: use dir to export
#   dumpfile: specify the file name for export
expdp x1/x1@pdbx1 SCHEMAS=x1 DIRECTORY=d_pdbx1 DUMPFILE=expx1.dmp

lab_move_data_pdb

The dump file is binary file

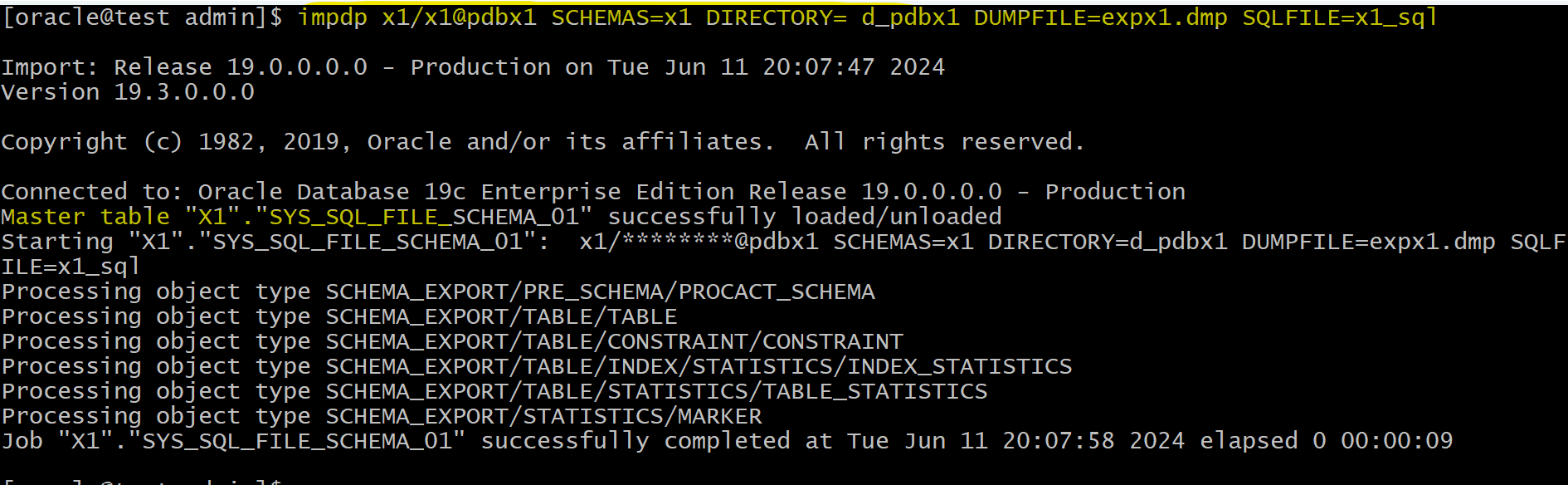

- to understand the file, can Generate a SQL script from the dump file

# in terminal
# import the dmp file then output the sql file containing DDL helps in understanding the data in the dmp file
impdp x1/x1@pdbx1 SCHEMAS=x1 DIRECTORY= d_pdbx1 DUMPFILE=expx1.dmp SQLFILE=x1_sql

lab_move_data_pdb

note:

All DDL statements are read from the dump file ( not the DML )

DDL does not include creation of user/schema, x1.

This is why must create the schema in target pdb.

The reason for this is that this dump file is created by x1, the schema which created by sys. So x1’s file cannot include the sql to create its owner.

Import the dump file into Target PDB

Import the x1 Schema Into pdbx2 By Using Data Pump Import
- Note: we will map the schema x1 to x2 inside the pdbx2;

# import from dump file
# remap to tell oracle to convert schema
impdp pdbx2_admin/pdbx2_admin@pdbx2 REMAP_SCHEMA=x1:x2 DIRECTORY= d_pdbx1 DUMPFILE=expx1.dmp
# ORA-39002: invalid operation
# ORA-39070: Unable to open the log file.
# ORA-39087: directory name D_PDBX1 is invalid

No such file or directory due to there is no directory created in the target PDB.

Create directory in target PDB

sqlplus pdbx2_admin/pdbx2_admin@pdbx2;

CREATE DIRECTORY d_pdbx1
AS '/home/oracle/move_pdb';

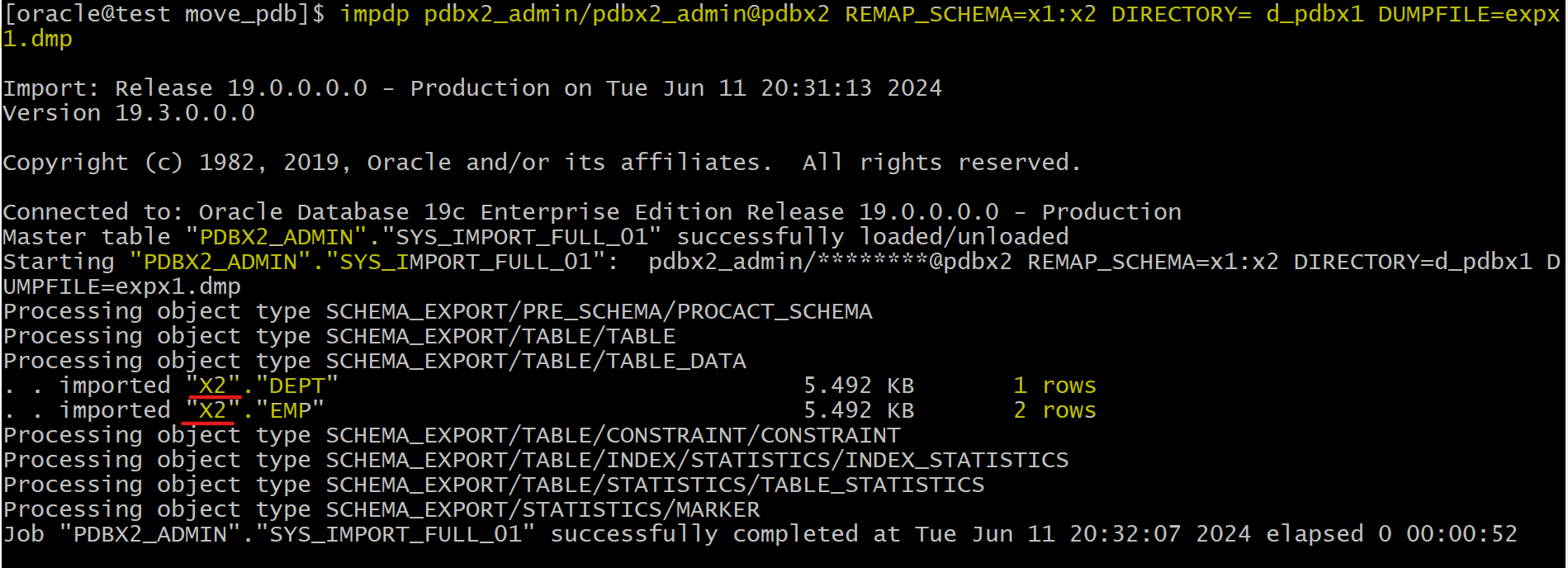

Import data

# in terminal
# import data from a dump file
impdp pdbx2_admin/pdbx2_admin@pdbx2 REMAP_SCHEMA=x1:x2 DIRECTORY= d_pdbx1 DUMPFILE=expx1.dmp

lab_move_data_pdb

Verify in target pdb

sqlplus x2/x2@pdbx2

-- verify
SELECT count(*) FROM emp;
-- 2
SELECT count(*) FROM dept;
-- 1

Option: Export schema using user with DBA roles

In the above steps, schema is export using x1, a user without DBA role. Therefore, x1 has not privilege to create user.
The following is on top of the above lab, but focus on the exporting schema in the source PDB.

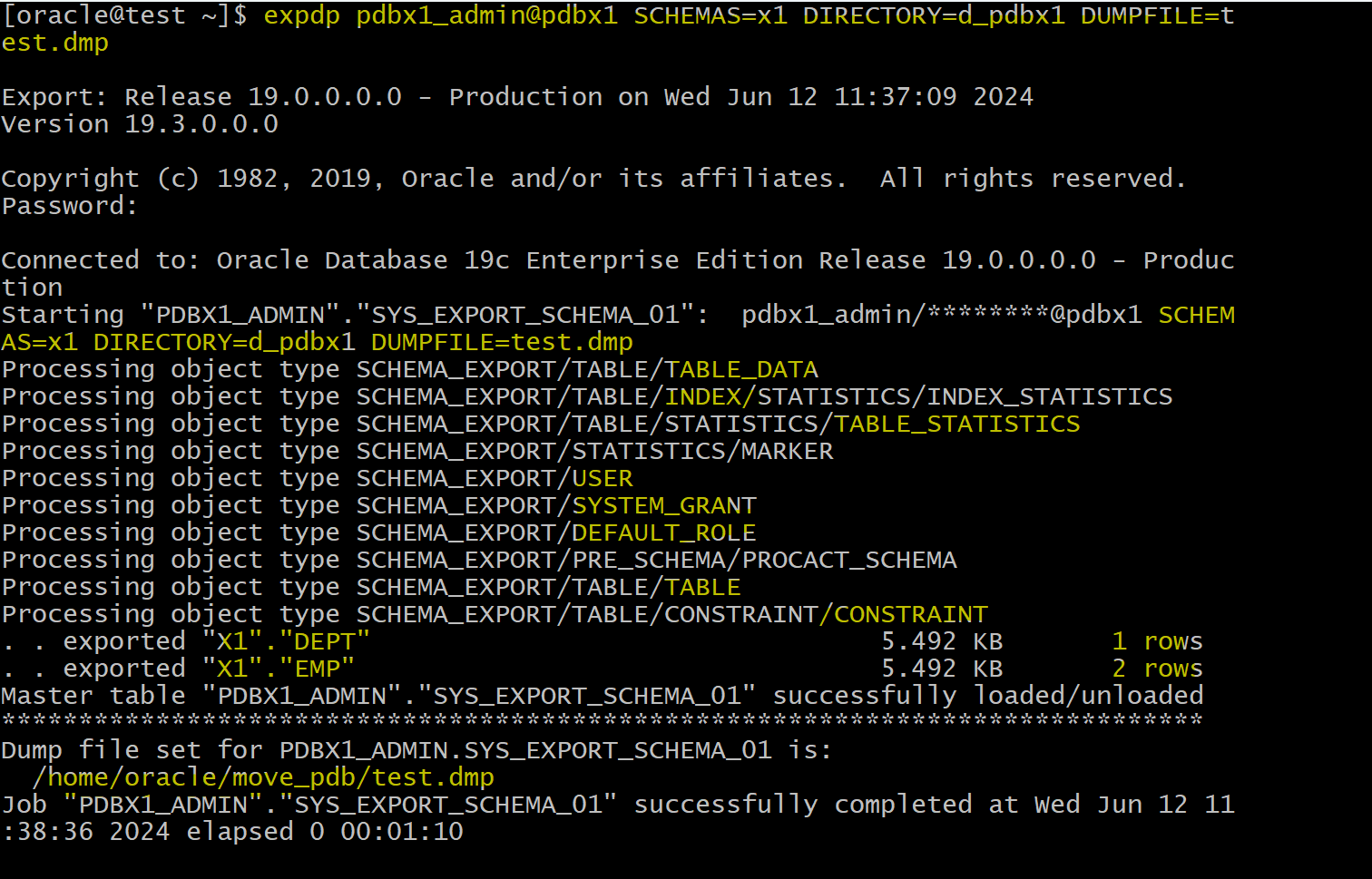

# using pdbx1_admin with DBA role
expdp pdbx1_admin@pdbx1 SCHEMAS=x1 DIRECTORY=d_pdbx1 DUMPFILE=test.dmp

lab_move_data_pdb

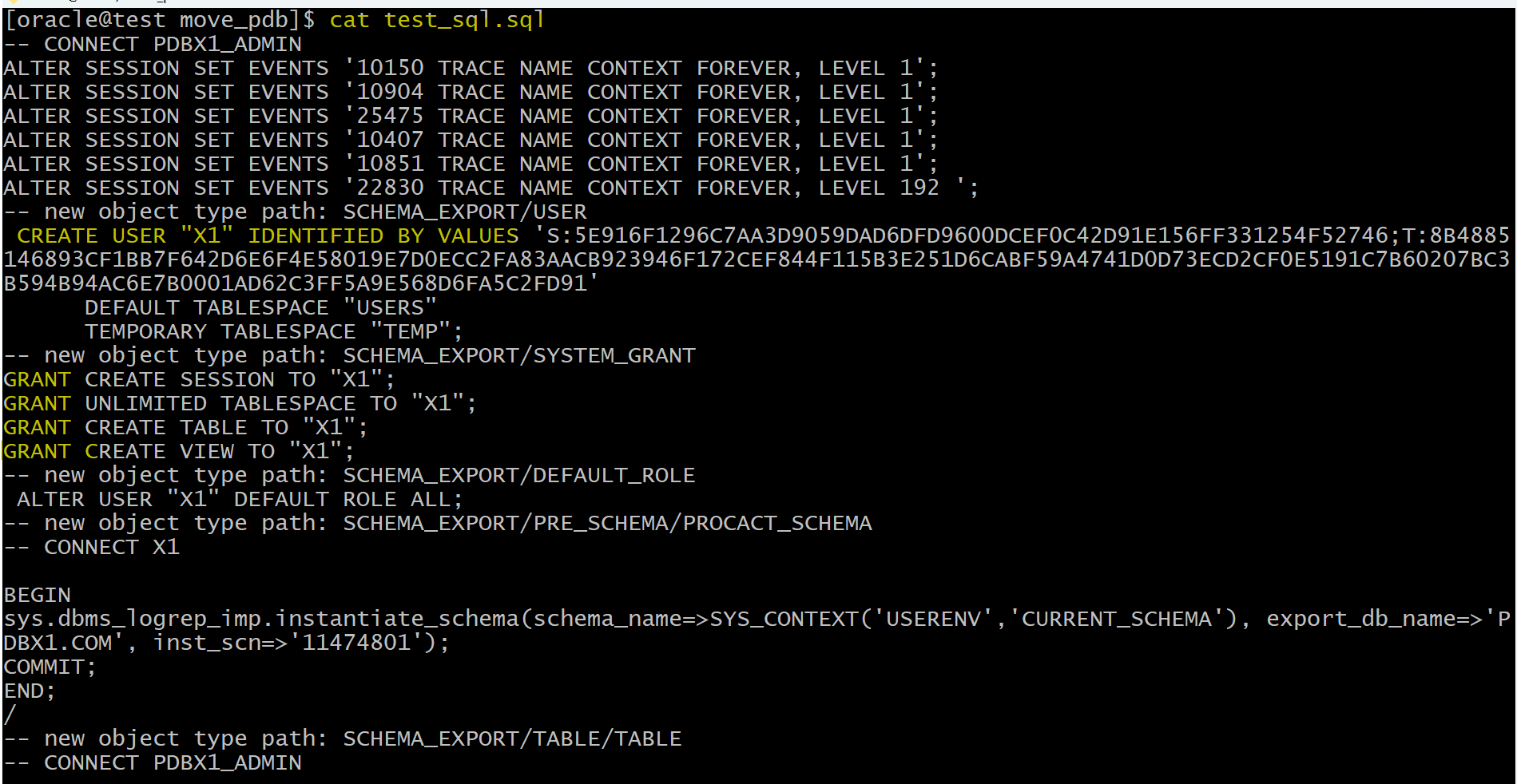

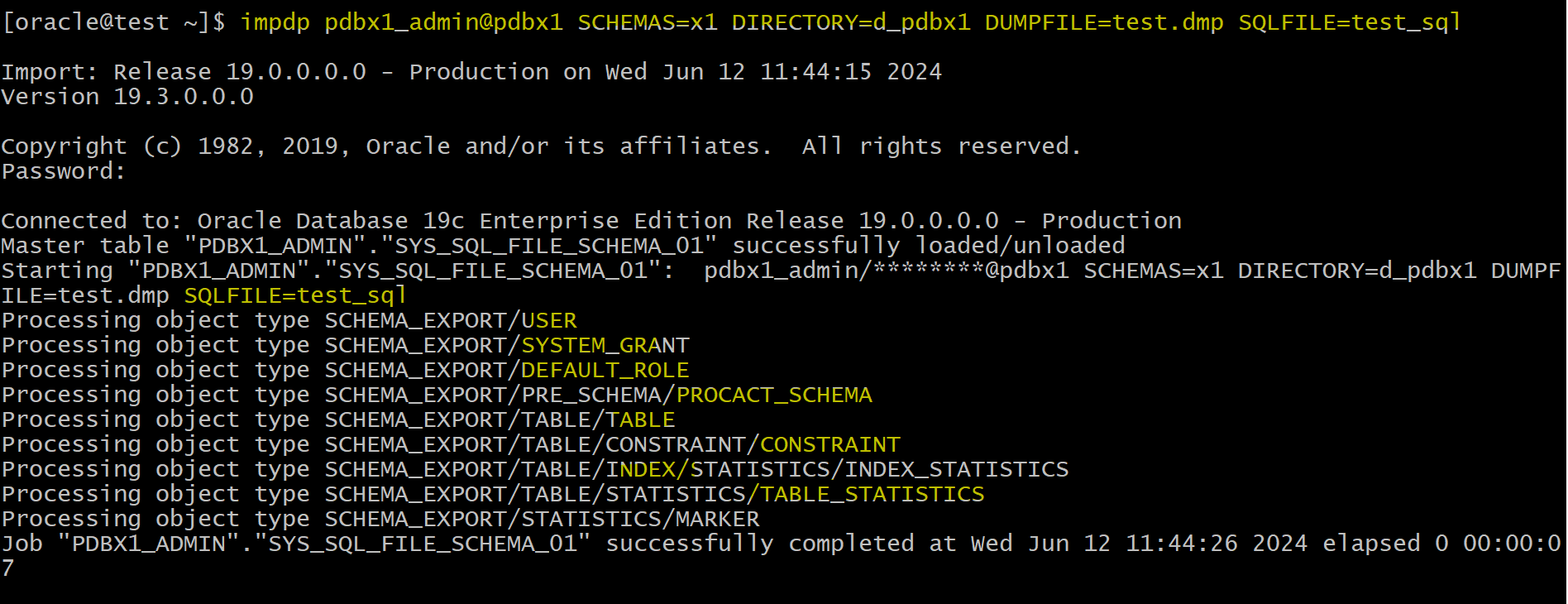

To understand the dump file:

# generate the sql file
impdp pdbx1_admin@pdbx1 SCHEMAS=x1 DIRECTORY=d_pdbx1 DUMPFILE=test.dmp SQLFILE=test_sql

lab_move_data_pdb

the sql includes the statement to create user and grant privileges.

Import schema in the target

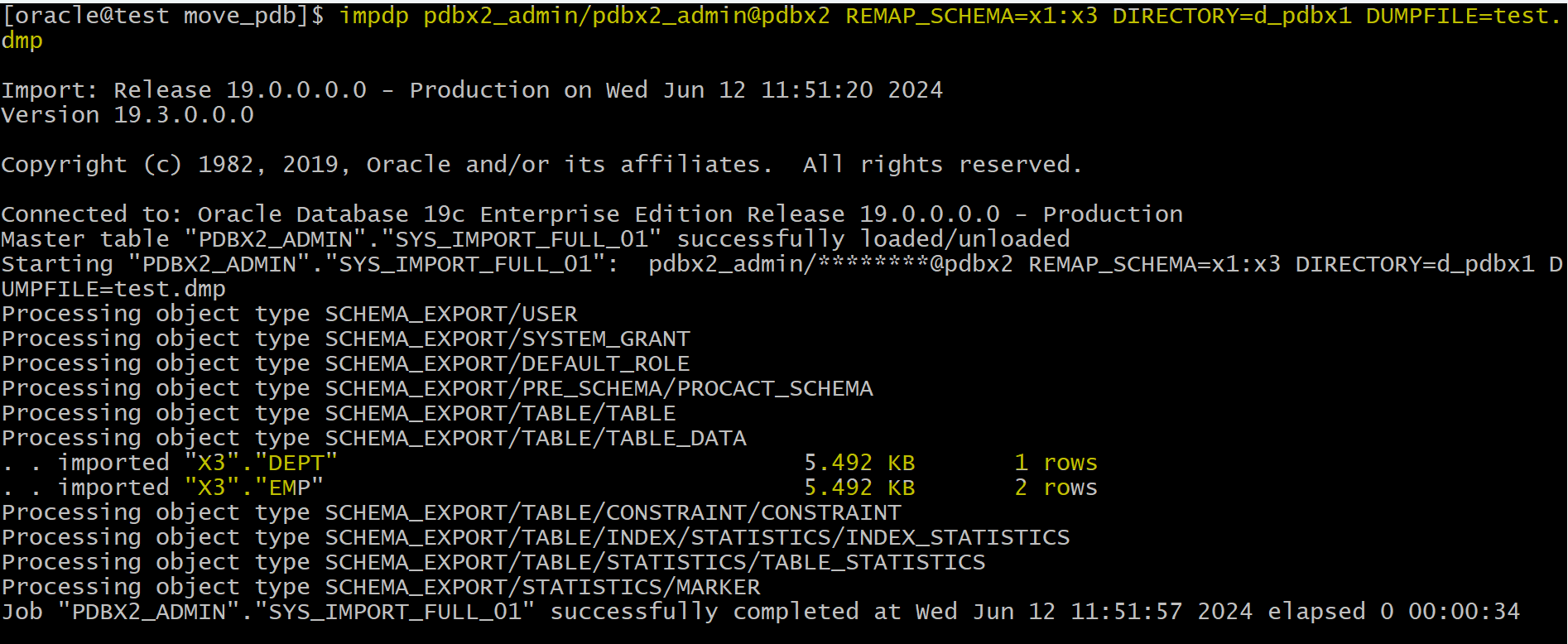

impdp pdbx2_admin/pdbx2_admin@pdbx2 REMAP_SCHEMA=x1:x3 DIRECTORY=d_pdbx1 DUMPFILE=test.dmp

lab_move_data_pdb

target pdb automatically create user x3

Verify

sqlplus pdbx2_admin@pdbx2
show con_name
show user

select count(*) from x3.dept;
-- 1
select count(*) from x3.emp;
-- 2

Comparison:

When using a user without DBA role, the target pdb must create a schema first.
When using a user with DBA role, the target pdb can skip creation of schema beforehand.
