DBA Net Service - Database Link

Back

• DBA Net Service - Database Link
  • Database Link
    • Lab: Create Database Link

---

Database Link

• Database Link:

  • a schema object in one database that enables you to access objects in another database.

• The other database need not be an Oracle Database system.

  • However, to access non-Oracle systems you must use Oracle Heterogeneous Services.

• private database link:

  • only the owner can use this link

• public database link

  • everyone can user this link

• Prerequisites:

  • To create a private database link, you must have the CREATE DATABASE LINK system privilege.
  • To create a public database link, you must have the CREATE PUBLIC DATABASE LINK system privilege

• refer to tables, views, and PL/SQL objects in the other database:

  • appending @dblinkname to the table, view, or PL/SQL object name.

• Statement:

CREATE DATABASE LINK <database_link_name>
CONNECT TO <user> IDENTIFIED BY <pwd>
USING '<connect_string_for_remote_db>';
# connect_string_for_remote_db:  tnsname entry

• Dict for db link: dba_db_links

---

Lab: Create Database Link

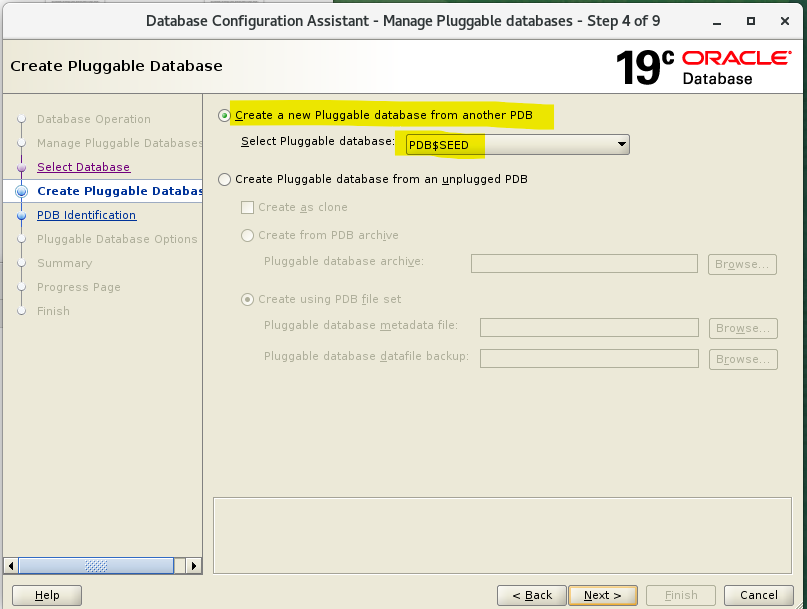

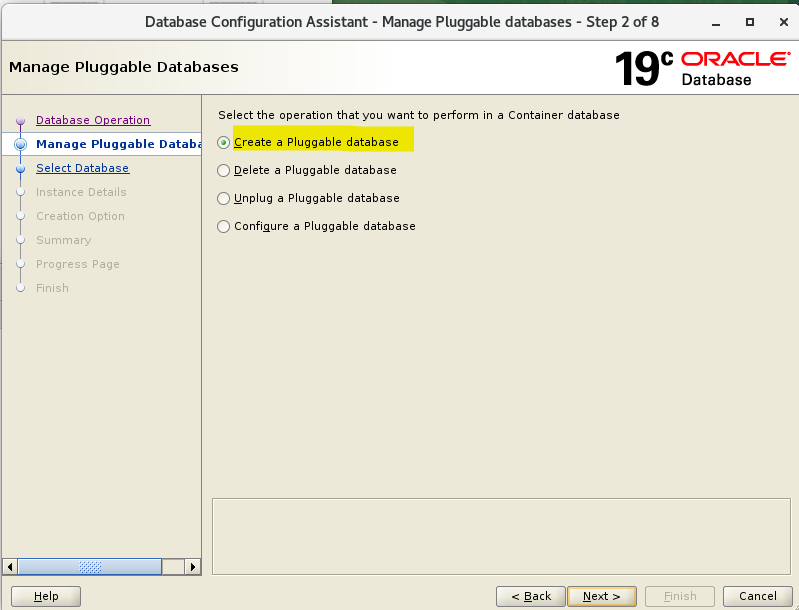

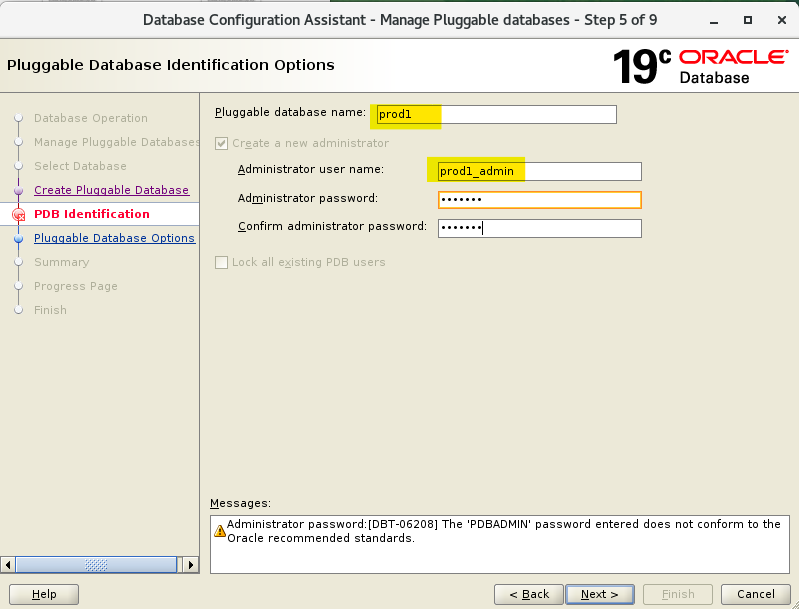

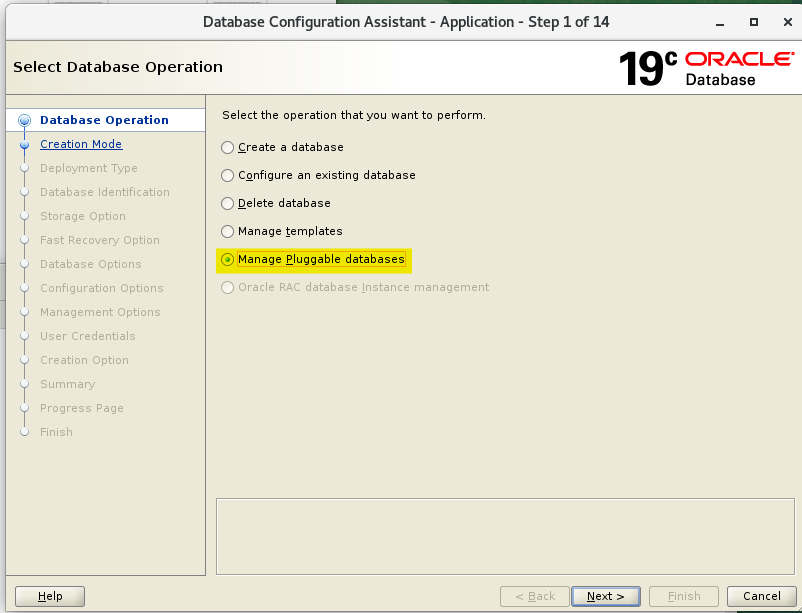

• Create 1st pdbs using dbca

• In sqlplus

# confirm pdb creation
select name, open_mode from v$pdbs;

alter session set container=prod1;
show con_name;

# grant dba role to pdb admin
grant dba to prod1_admin;

---

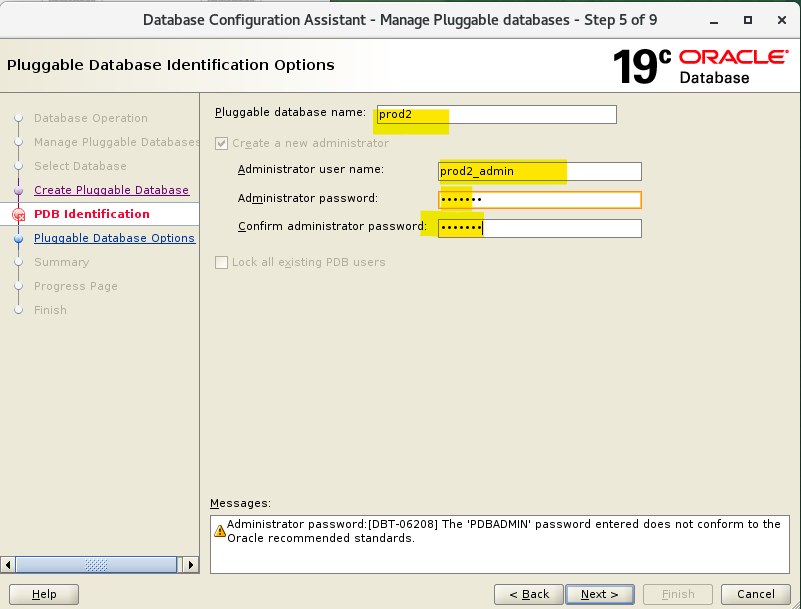

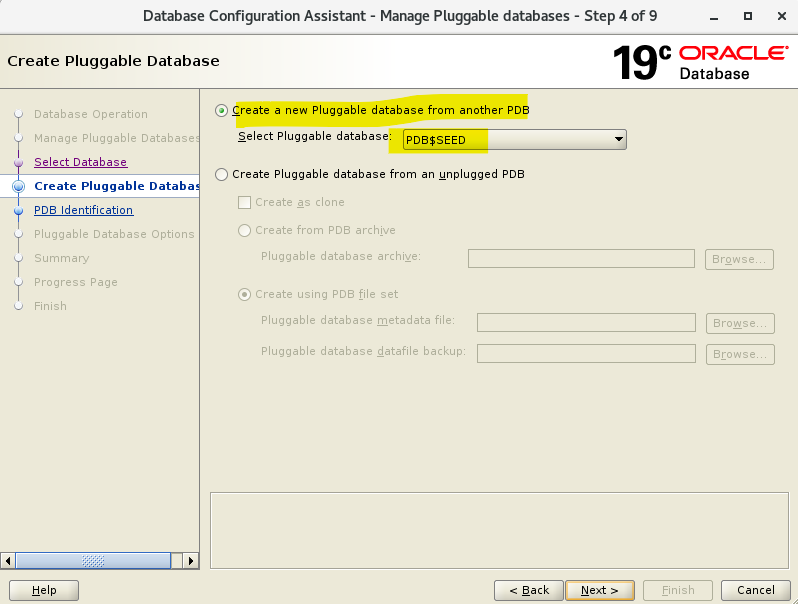

• Create 2nd pdbs using dbca

• In sqlplus

# confirm pdb creation
select name, open_mode from v$pdbs;

alter session set container=prod2;
show con_name;

# grant dba role to pdb admin
grant dba to prod2_admin;

---

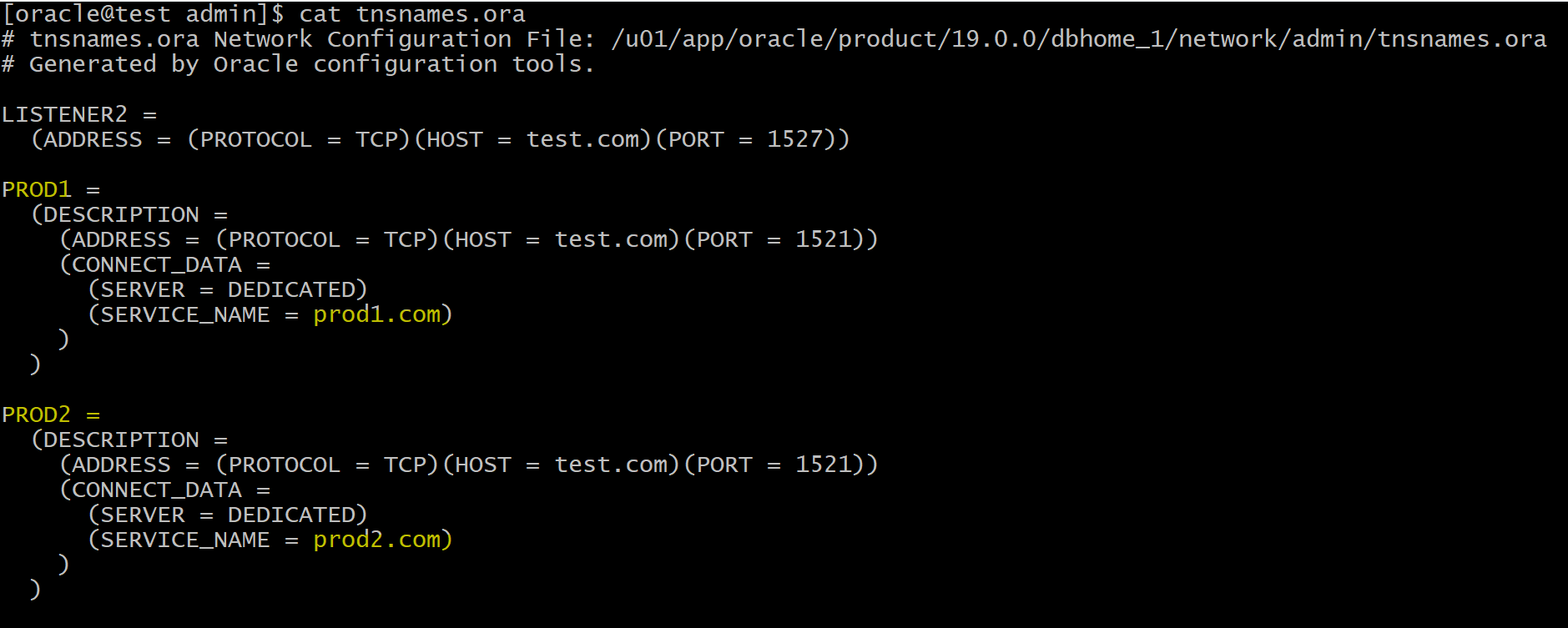

• create entry in tnsname.ora
  • since db link required tnsname entry

PROD1 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = test.com)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = prod1.com)
    )
  )

PROD2 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = test.com)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = prod2.com)
    )
  )

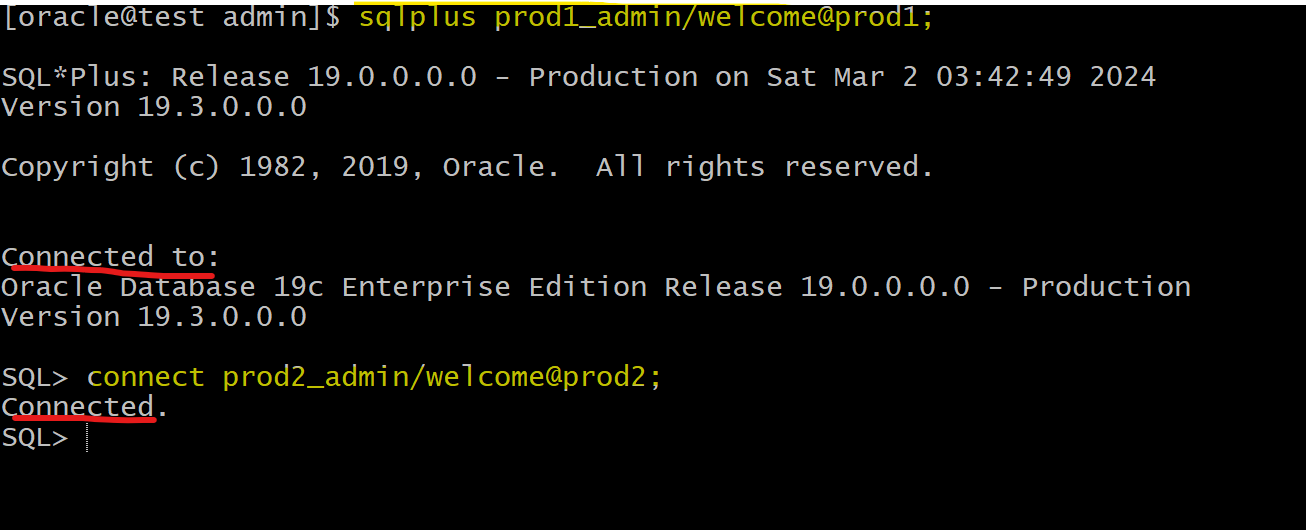

• Test connection

---

• Create table in the target pdb, prod2
• insert a record

show con_name;
create table employees (id number, name varchar2(100));
insert into employees values (1, 'adam');
commit;
select * from employees;

---

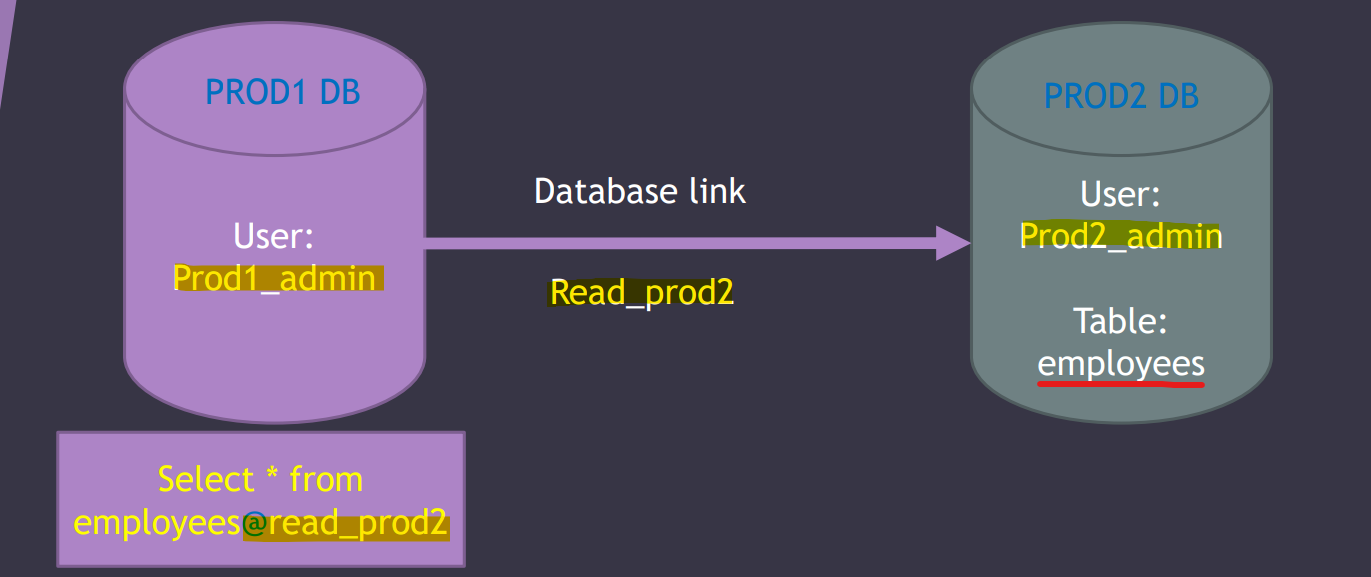

• Create db link in source pdb, prod1

connect prod1_admin@prod1;
show con_name;
show user;

# create a private database link
create database link read_prod2
connect to prod2_admin identified by welcome
using 'prod2';

# query using db link
select * from employees@read_prod2;
#         ID NAME
# ---------- ------------------------------
#          1 adam

---

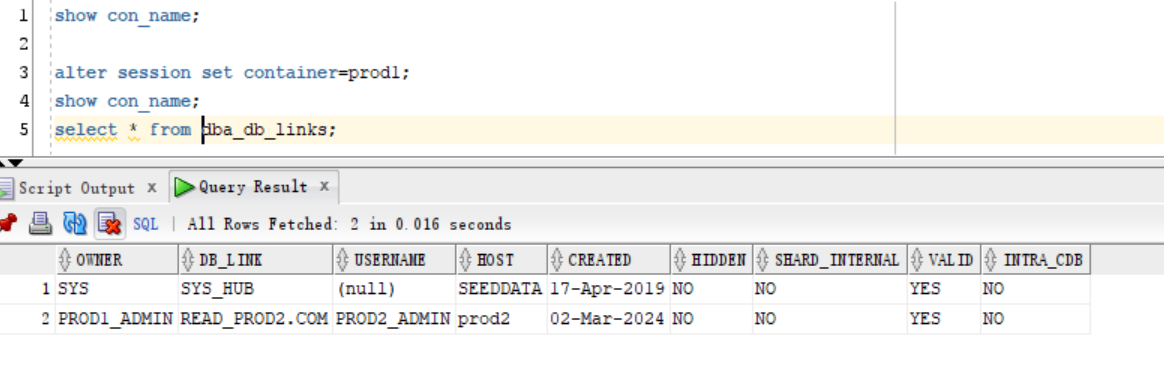

• query info about this db_link

---
