DBA - Net Service

Back

• DBA - Net Service
  • Oracle Net
  • Establishing a Connection and Session
  • Database Identification
    • Instance Name
    • Services Name
    • Instance Name vs Service Name
    • Service Name \& Net service
  • Connecting to a Database Service
    • Connect descriptor
    • Naming Methods
      • Types of Naming Methods
      • Choosing a Naming Method
      • Configuration Steps
      • Connection process
      • Local Naming: tnsnames.ora
  • Localized Management

---

Oracle Net

• Oracle Net

  • a software layer that resides on the client and on the Oracle Database server.
  • used to establish and maintain the connection between the client application and server, as well as exchanging messages between them, using industry-standard protocols.

• Oracle uses 2 main files for network confguration:

  • listener.ora: which defines listeners.
  • tnsname.ora: which defines the Net service names.

---

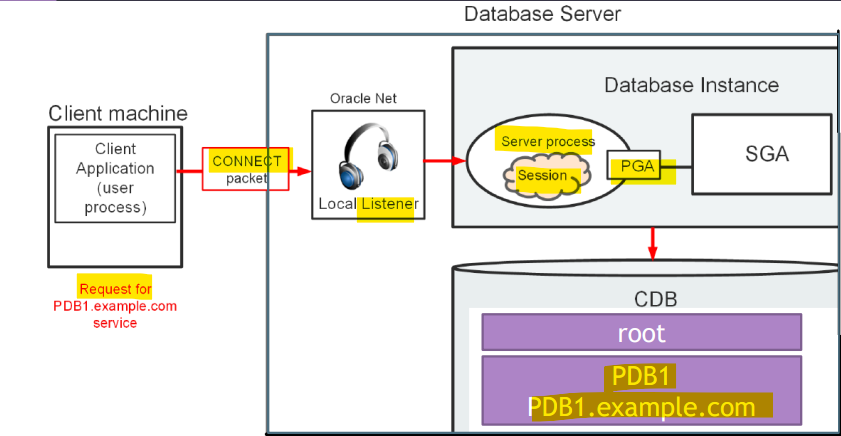

Establishing a Connection and Session

• 1. the listener receives connect packet.
• 1. if the service name is valid then the Listener create Dedicated SP, else it will be Error. 监控只会检查服务名.
• 1. the listener connect to the SP and pass the initialization info to it.
     • initialization info includes user name and pwd for authentication.
• 1. the SP check the authentication , if ok Then it create session. 是 sp 认证
• 1. now the SP is acting like Agent.

---

Database Identification

• Understand how databases are identified.

Instance Name

• Instance Name:

  • used to identify instance
  • specified by the INSTANCE_NAME initialization parameter.

• Default value:

  • Oracle system identifier (SID) of the database instance

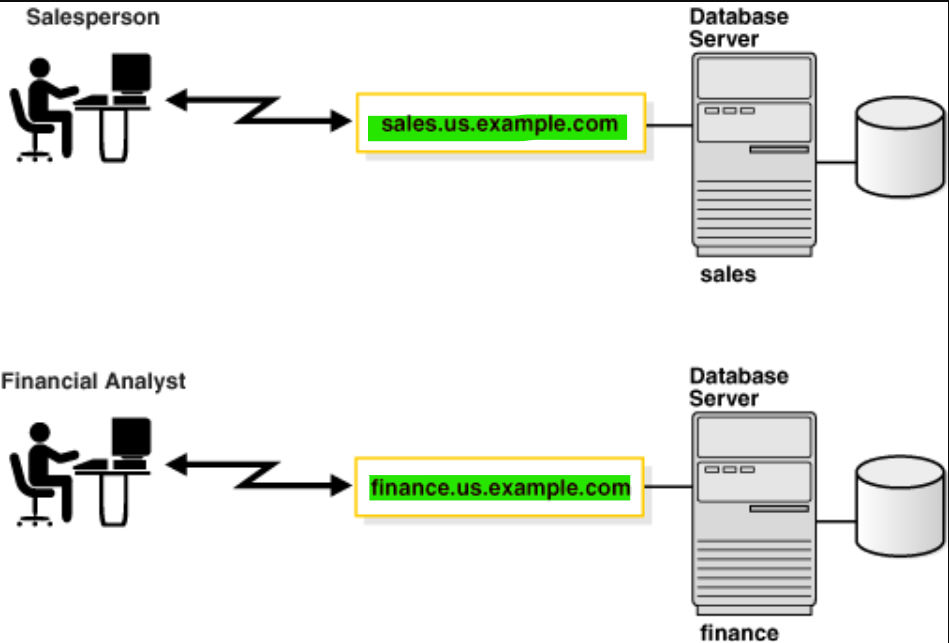

• e.g.: sales and finance. (us.example.com is the hostname)

• A running database has at least one instance.
  • has at least one instance name.
  • can have multiple instance name.
  • The combination of DB_NAME and INSTANCE_NAME forms a unique identifier for an instance within a database.

---

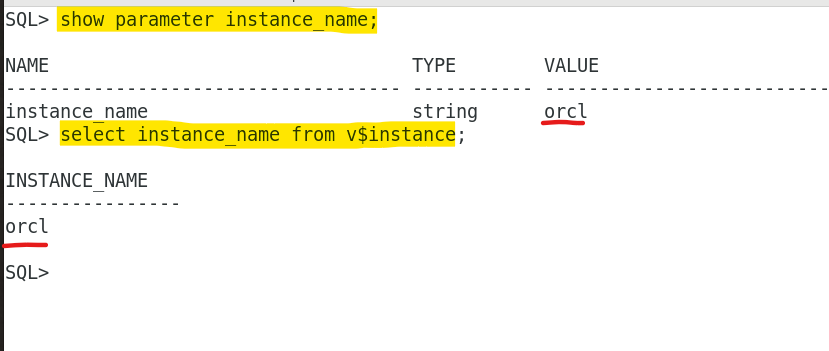

• Command to return instance name

SHOW PARAMETER INSTANCE_NAME;
SELECT instance_name FROM v$isntacnes;

---

• multiple computers to share access architectures

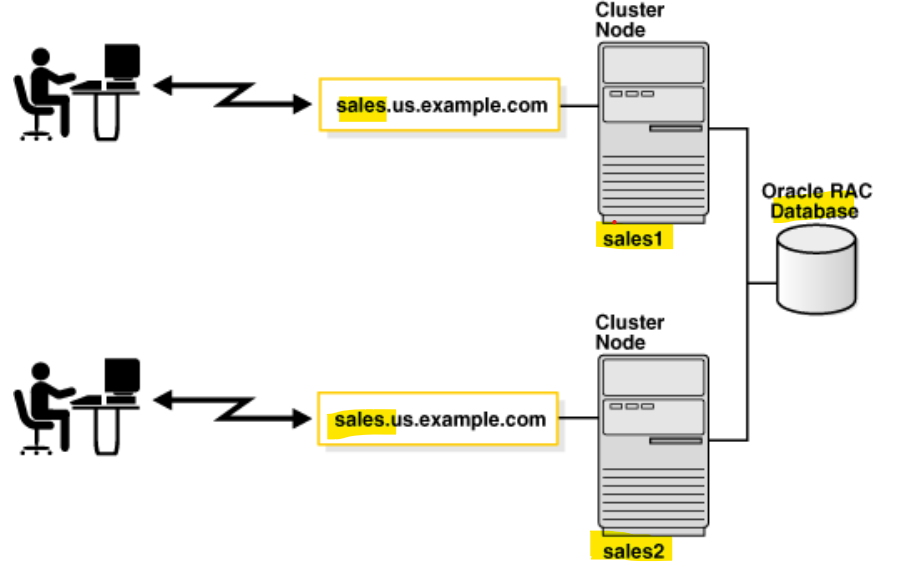

  • Oracle Real Application Clusters (Oracle RAC) allow multiple instances on different computers that share a single physical database.
  • e.g.: two instances, sales1 and sales2, are associated with one database service, sales.us.example.com.

---

Services Name

• Database Services

  • An Oracle database represented to clients. 从用户的角度: db = service.
  • A database can have one or more services associated with it.一个 DB 有多个服务.

• service name

  • a logical representation of a database.
  • specified by the SERVICE_NAMES initialization parameter in the server parameter file.
  • Defaults value:
    • the global database name, a name comprising
      • database name (DB_NAME initialization parameter)
      • domain name (DB_DOMAIN initialization parameter).
• A database can have multiple service names.

• Associating multiple services with one database enables the following functionality:

  • A single database can be identified different ways by different clients.
  • A database administrator can limit or reserve system resources.
    • This level of control enables better allocation of resources to clients requesting one of the services.
• For an instance:
  • When an instance starts, it registers itself with a listener using one or more service names.使用服务名注册实例

• For client:

  • When a client program or database connects to a listener, it requests a connection to a service. 使用服务名请求连接.
• Command to return service name

SHOW PARAMETER service_names;
# orcl
SHOW PARAMETER db_name;
# com
SHOW PARAMETER db_domain;
# orcl.com

SELECT name FROM v$database;
# orcl.com
SELECT name FROM v$services;
# ORCL
SELECT * FROM GLOBAL_NAME;
# ORCL.COM

---

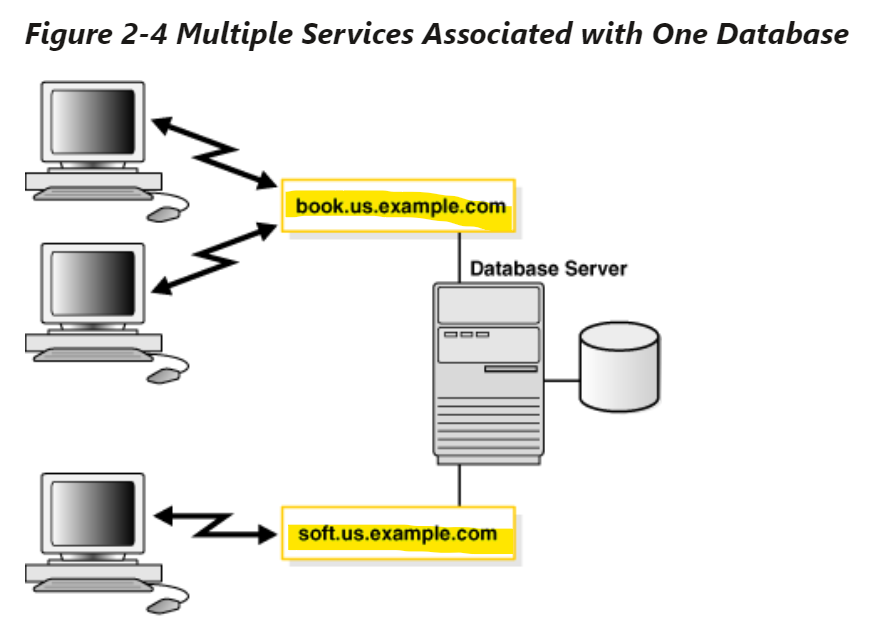

• Three Web browsers connecting to the same database server.
  • two Web browsers are connecting to the book.us.example.com service.Here service name of the database is book, host name is us.example.
  • the other Web browser is connecting to the soft.us.example.com service. Here service name of the database is soft, host name is us.example.
  • Both services are associated with the same database.

---

Instance Name vs Service Name

• 无对应关系

• A service name can identify multiple database instances
• An instance can belong to multiple services.
• 结果: 服务名与实例名没有必然联系. 关键的是 DB. 而关键是连接到对应的 DB, 即使用服务名即可.
  • the listener acts as a mediator between the client and instances and routes the connection request to the appropriate instance. 监听器是用于路由请求到适当的实例.
  • Clients connecting to a service need not specify which instance they require. 用户的连接请求无需包括实例.

---

Service Name & Net service

• The service name is used to register itself with a listener.
  • Listener can map a request to the specific database.

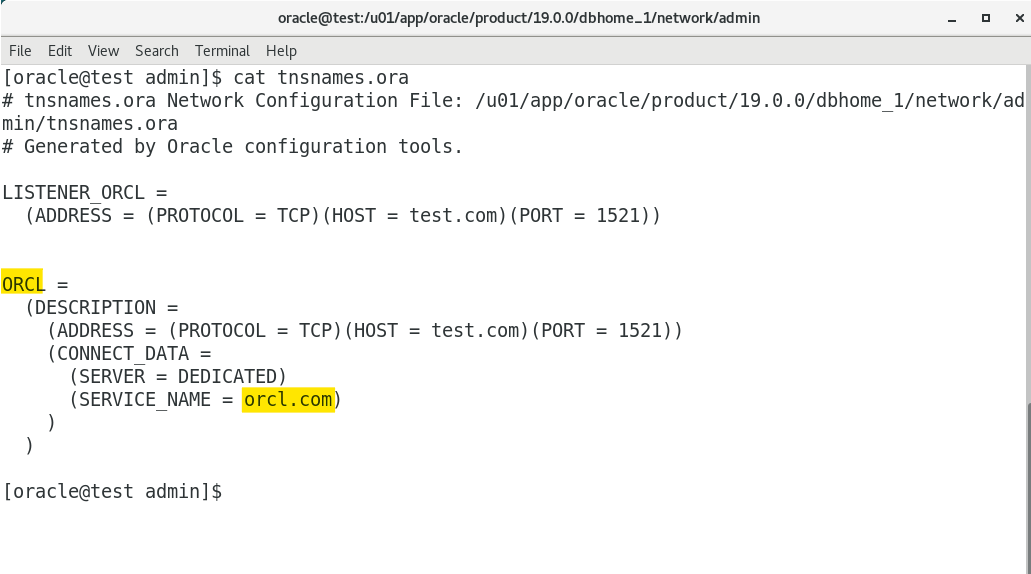

• tnsname.ora: define a Net service named “orcl” using a descriptor, to map this “orcl” to a database with a service name “orcl.com”.
• When client establish a connection using a connection string that contains this “orcl” net service, listener will map this request to the database with a service name “orcl.com”.

• The listener registration process (LREG) registers information about the database instance and dispatcher processes with the Oracle Net Listener.

---

Connecting to a Database Service

Connect descriptor

• connect descriptor

  • allow client to establish connection to a database service.
  • used to map to a database.
  • contains detailed information of a connection between a client and an Oracle database.
  • provides the location of the database and the name of the database service.

• Components

  • Host Name (Hostname):
    • the network location where the Oracle database server is running.
    • either the host name or IP address
  • Port Number:
    • The port number on which the Oracle Listener is listening for incoming connection requests.
    • The default port is 1521.
  • Service Name:
    • The name of the Oracle database service to which the client wants to connect.
    • defined in the database’s listener.ora file.
  • Protocol:
    • The network protocol to be used for communication
    • e.g.: TCP/IP or IPC (Inter-Process Communication).

• Use case:

  • TNS (Transparent Network Substrate) Entries, stored in the tnsnames.ora file
  • JDBC Connection Strings, used in Java Database Connectivity (JDBC) applications
  • Easy Connect, a simplified way to specify connect descriptors without the need for a separate tnsnames.ora file

---

• Example of Easy Connect descriptor:

sales-server/sales.us.example.com

• database service name: sales.us.example.com
• host: sales-server

• default port: 1521

• the entry in the tnsnames.ora file for the preceding Easy Connect connect descriptor and database service

• The entry in the tnsnames.ora

(DESCRIPTION=
  (ADDRESS=(PROTOCOL=tcp)(HOST=sales-server)(PORT=1521))
  (CONNECT_DATA=
    (SERVICE_NAME=sales.us.example.com)))

---

Naming Methods

• connect string

  • used by users to initiate a connection request
  • includes
    • user name
    • password
    • connect identifier

• connect identifier can be

  • the connect descriptor
  • or a name that resolves to a connect descriptor.

• Example

# a connect string that has a complete connect descriptor as the connect identifier instead of a network service name.
CONNECT hr@(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=sales-server1)
(PORT=1521))(CONNECT_DATA=(SERVICE_NAME=sales.us.example.com)))

# connect identifiers is a network service name, a simple name for a service.
# uses network service name sales as the connect identifier
# connection processing takes place by first mapping sales to the connect descriptor.
CONNECT hr@sales

• naming method
  • a resolution method used by a client application to resolve a connect identifier to a connect descriptor when attempting to connect to a database service.
  • the method access to the mapped information about how to map a connect identifier to a connect desriptor. 如何将 map 信息存储的方法.

---

Types of Naming Methods

• Local naming:

  • Stores network service names and their connect descriptors in a localized configuration file named tnsnames.ora

• Directory naming:

  • Stores connect identifiers in a centralized LDAP-compliant directory server to access a database service.

• Easy Connect naming:

  • Enables clients to connect to an Oracle database server by using a TCP/IP connect string consisting of a host name and optional port and service name.

• Easy Connect Plus naming

• Centralized Configuration Provider naming:

  • Stores connect descriptors or database credential references in a Centralized Configuration Provider
  • such as Azure App Configuration store or OCI Object Storage as a JSON file.

---

Choosing a Naming Method

• Depends upon the size of the organization
  • a small organization with only a few databases
    • Easy Connect naming:
      • to make TCP/IP connections with the host name of the database server
    • local naming:
      • to store names in tnsnames.ora file on the clients.
  • large organizations with several databases
    • directory naming:
      • to store names in a centralized directory server.
  • an Internet network
    • configure the application web servers needed to connect to the databases with the local naming method.

---

Configuration Steps

• 1. Select a naming method.
• 1. Map connect descriptors to the names or to a connect identifier.
• 1. Configure clients to use the naming method.

---

Connection process

• A typical process for establishing a client session using a naming method is as follows:
  • 1. The client initiates a connect request by providing a connect identifier.
  • 1. The connect identifier is resolved to a connect descriptor by a naming method.
  • 1. The client makes the connection request to the address provided in the connect descriptor.
  • 1. A listener receives the request and directs it to the appropriate database server.
  • 1. The connection is accepted by the database server.

---

Local Naming: tnsnames.ora

• local naming

  • to store names in tnsnames.ora file on the clients.

---

Localized Management

• When localized management is used, network computers are configured with the files:

File	Locate	Description
tnsnames.ora	clients	Contain mapping info. local naming method.
sqlnet.ora	client+db server	Contain Client domain, Order of naming methods, Logging and tracing features, Route of connections, External naming parameters, security parameters, and Database access control parameters
listener.ora	db server	Contain Protocol addresse, listening services, Control parameters
cman.ora	computer where Oracle Connection Manager runs	Contain listening endpoint, Access control rule list,Parameter list

• Typical path of Configuration files:

  • $ORACLE_HOME/network/admin
  • ORACLE_BASE_HOME/network/admin for a read-only Oracle home

• Oracle Net checks the other directories for the configuration files.

  • the order for checking the tnsnames.ora file:
    • 1. the path specified by the $TNS_ADMIN environment variable.
    • 2.
      • 1. $ORACLE_HOME/network/admin environment variable;
      • 1. for a read-only Oracle home:
           • $ORACLE_BASE_HOME/network/admin
           • $ORACLE_HOME/network/admin

---
