DBA - Pluggable Database: Create Pluggable Database

Back

DBA - Pluggable Database: Create Pluggable Database
- Create Pluggable Database
  - Create PDB from SEED
  - Cloning a PDB
    - Lab: Cloning PDB

Create Pluggable Database

Methods:
- Create a PDB using the seed
- Clone an existing PDB
- Plug and unplug a PDB
- Create a PDB from a non-CDB (not in the course)
- Plug an unplugged PDB into a different CDB (not in the course)
- Relocate a PDB to a different CDB (not in the course)
- Create a PDB as a proxy PDB (not in the course)
Tools:
- SQL*Plus
- SQL Developer
- DBCA
- Enterprise Manager Cloud Control (for cloud)

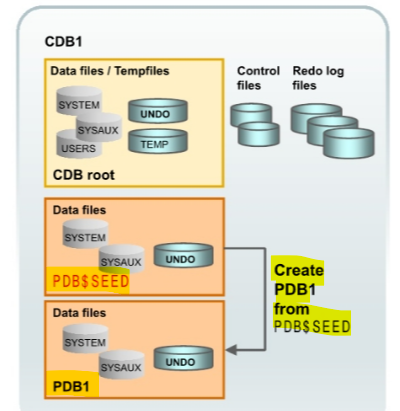

Create PDB from SEED

pluggable_db_from_seed_diagram

Statement:
- CREATE PLUGGABLE DATABASE
- copy data files from seed to new location.
- Create system and sysaux tbsp.
- Create default schemas and common users.
  - sys user will be super user.
  - system user can manage the PDB
- create DB service automatically.
Prerequisites:
- current container must be root.
- The CDB must be in READ WRITE mode.
- must have CREATE PLUGGABLE DATABASE privileges.
Example:

CREATE PLUGGABLE DATABASE pdb1
  ADMIN USER pdb1admin IDENTIFIED BY welcome  -- Create a new user
  ROLES = (dba)     -- privilege: give dba role to the new user
  DEFAULT TABLESPACE users  -- create a new tbsp,
    -- create a df for users tbsp,
    DATAFILE '/u01/app/oracle/oradata/ORCL/pdb1/users01.dbf'
    -- assign size
    SIZE 250M
    -- auto extend size
    AUTOEXTEND ON
  -- convert the file name from the seed dir to the new pdb dir
  FILE_NAME_CONVERT = ('/u01/app/oracle/oradata/ORCL/pdbseed/',
                       '/u01/app/oracle/oradata/ORCL/pdb1/');

Lab: Explore PDB Seed

show con_name;
-- confirm pdb mode
select con_id,name,open_mode
from v$containers;

-- move to PDB
alter session set container=PDB$SEED;
-- confirm current container
show con_name
-- CON_NAME
-- ------------------------------
-- PDB$SEED

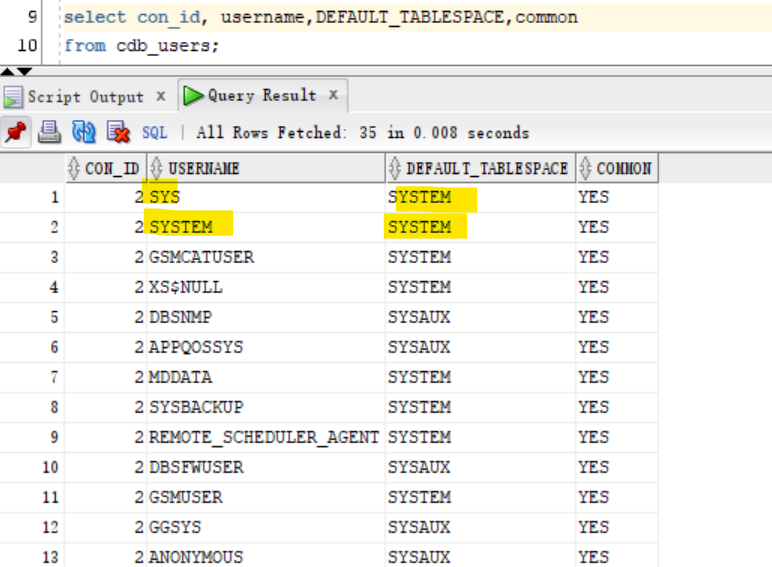

-- query all user in seddm using cdb
select con_id, username,DEFAULT_TABLESPACE,common
from cdb_users;

-- query all user in seddm using dba
select  username,DEFAULT_TABLESPACE,common
from dba_users;

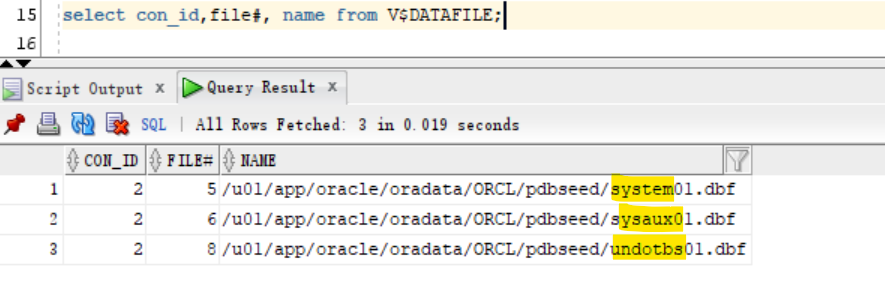

-- query for df
select con_id,file#, name from V$DATAFILE;

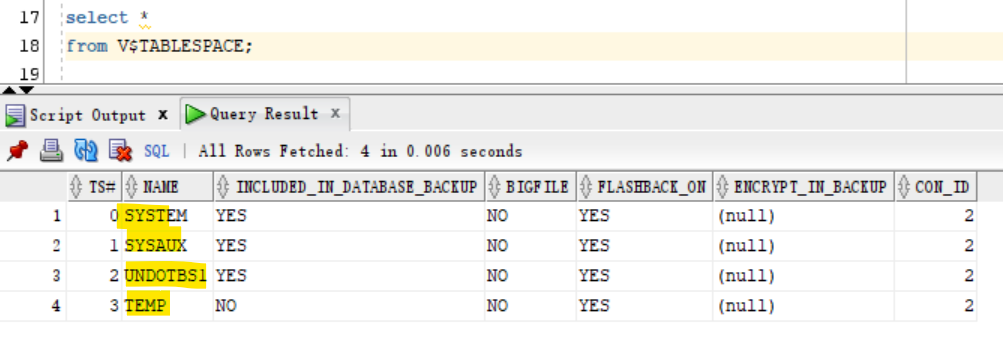

-- query tbsp
select *
from V$TABLESPACE;

lab_seed

Lab: Create a PDB from seed using SQL

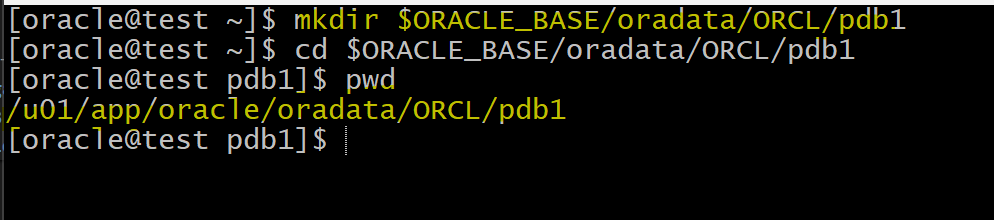

Create dir for pdb pdb1

cd $ORACLE_BASE/oradata/ORCL
mkdir pdb1
ls
pwd
-- /u01/app/oracle/oradata/ORCL/pdb1

lab_pdb_from_seed

-- confirm in the root
show con_name
-- CON_NAME
-- ------------------------------
-- CDB$ROOT

-- confirm the root is open
select con_id,name,open_mode
from v$containers;
-- 1	CDB$ROOT	READ WRITE
-- 2	PDB$SEED	READ ONLY
-- 3	ORCLPDB   READ WRITE

-- create pdb
CREATE PLUGGABLE DATABASE pdb1
  ADMIN USER pdb1admin IDENTIFIED BY welcome  -- Create a new user
  ROLES = (dba)     -- privilege: give dba role to the new user
  DEFAULT TABLESPACE users  -- create a new tbsp,
    -- create a df for users tbsp,
    DATAFILE '/u01/app/oracle/oradata/ORCL/pdb1/users01.dbf'
    -- assign size
    SIZE 250M
    -- auto extend size
    AUTOEXTEND ON
  -- convert the file name from the seed dir to the new pdb dir
  FILE_NAME_CONVERT = ('/u01/app/oracle/oradata/ORCL/pdbseed/',
                       '/u01/app/oracle/oradata/ORCL/pdb1/');
-- Pluggable database PDB1 created.

-- list all containers
select con_id,name,open_mode
from v$containers;
-- 1	CDB$ROOT	READ WRITE
-- 2	PDB$SEED	READ ONLY
-- 3	ORCLPDB	READ WRITE
-- 4	PDB1	MOUNTED

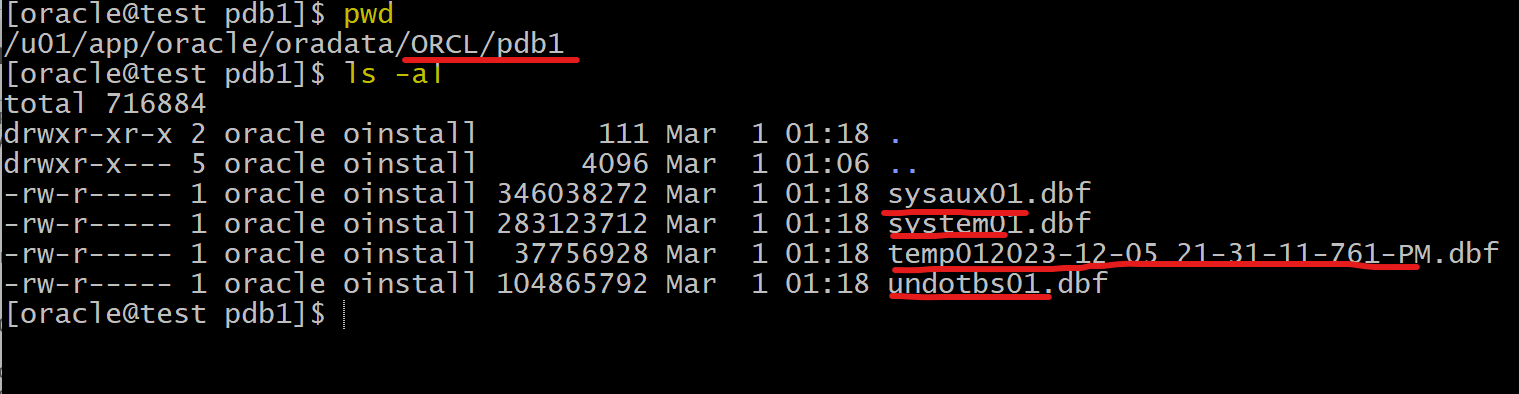

explore in the pdb dir
- 4 df have been copies.

lab_pdb_from_seed

-- move to PDB
alter session set container=pdb1;
show con_name;
-- CON_NAME
-- ------------------------------
-- PDB1

-- open pdb1
alter pluggable database open;
-- Pluggable database OPEN altered.

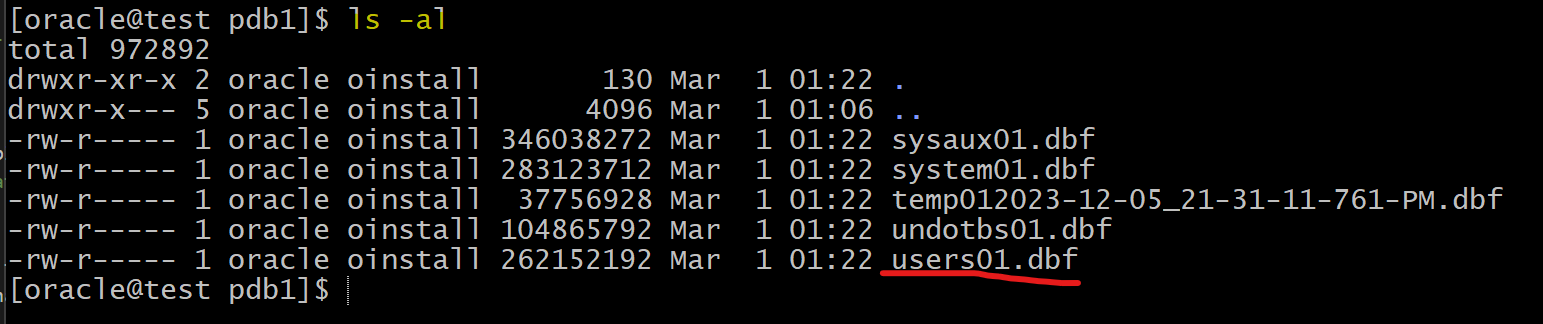

explore in the pdb dir
- user df has been created when pdb is opened.

lab_pdb_from_seed

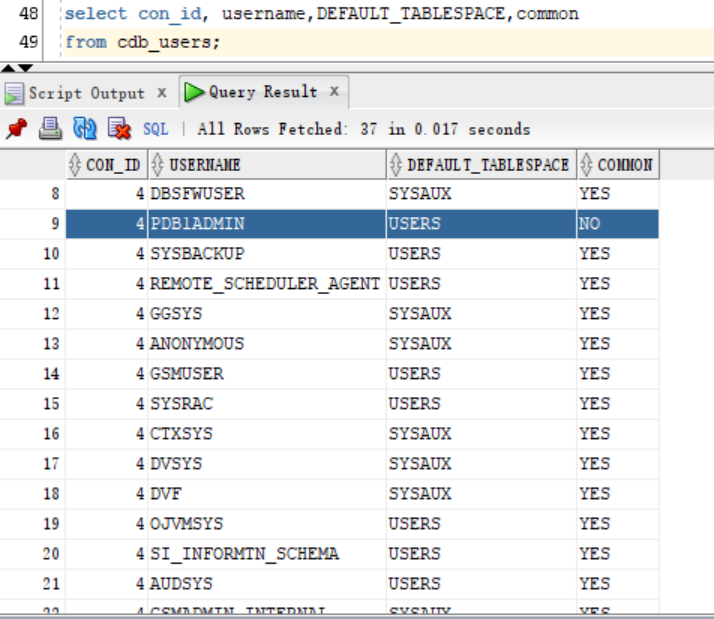

-- Query user in new pdb, note the new user has been created.
select con_id, username,DEFAULT_TABLESPACE,common
from cdb_users;

select  username,DEFAULT_TABLESPACE,common
from dba_users;

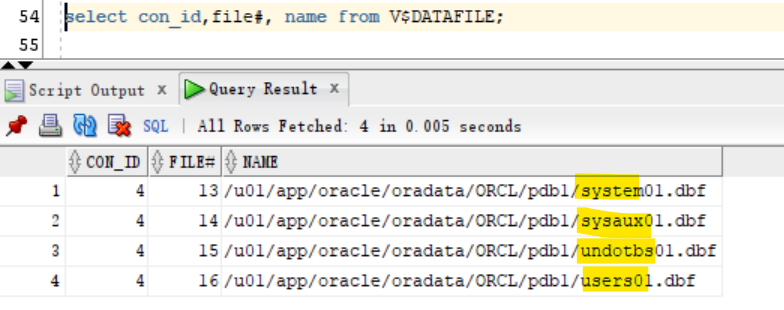

-- query df, 4 df, including user
select con_id,file#, name from V$DATAFILE;

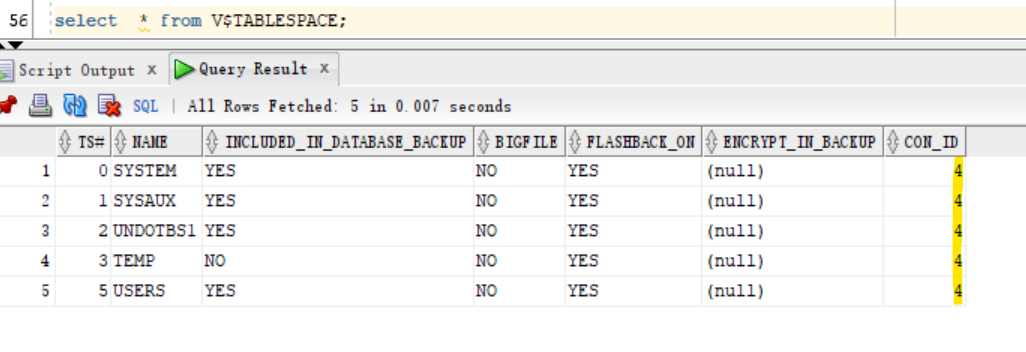

-- query tbsp, 5 tbsp.
select  * from V$TABLESPACE

lab_pdb_from_seed

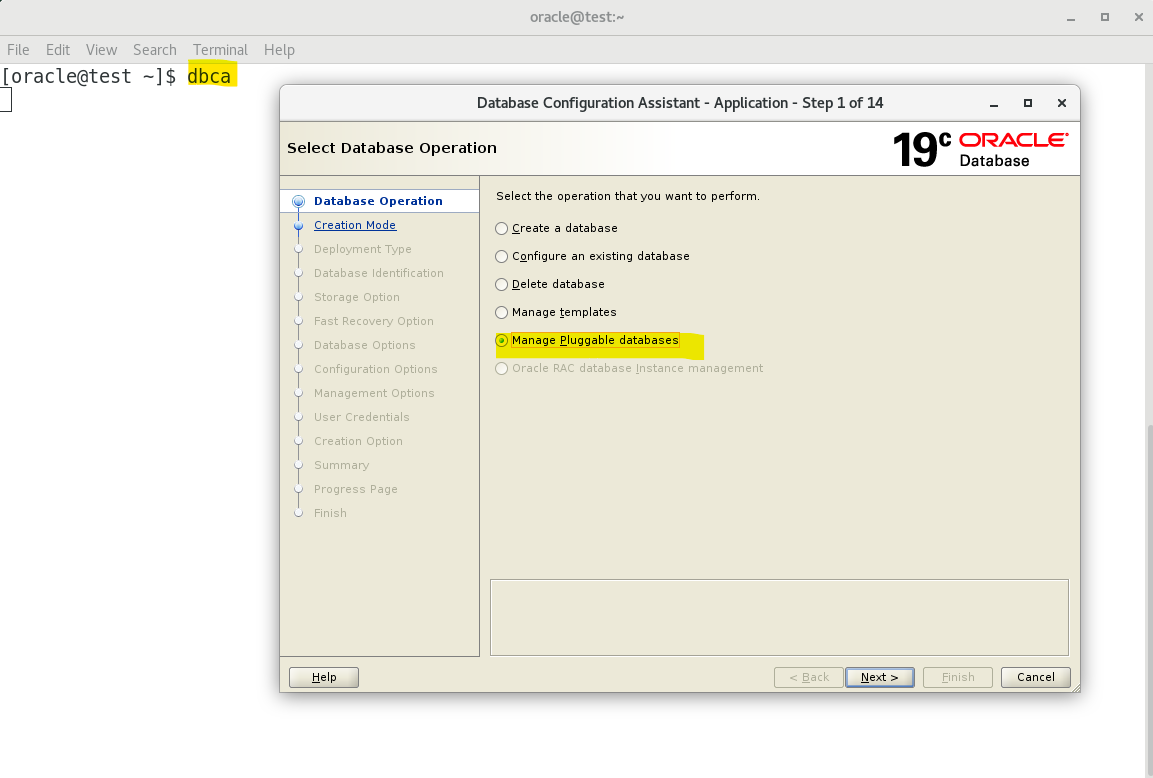

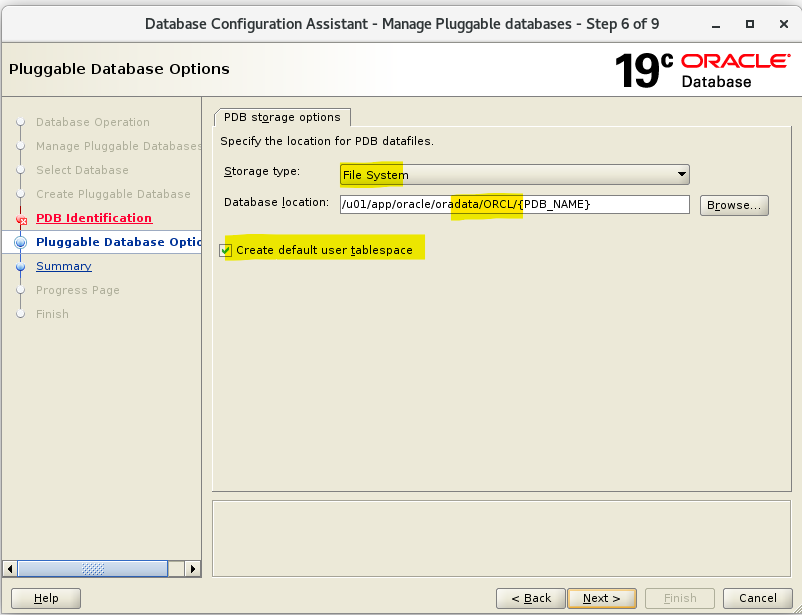

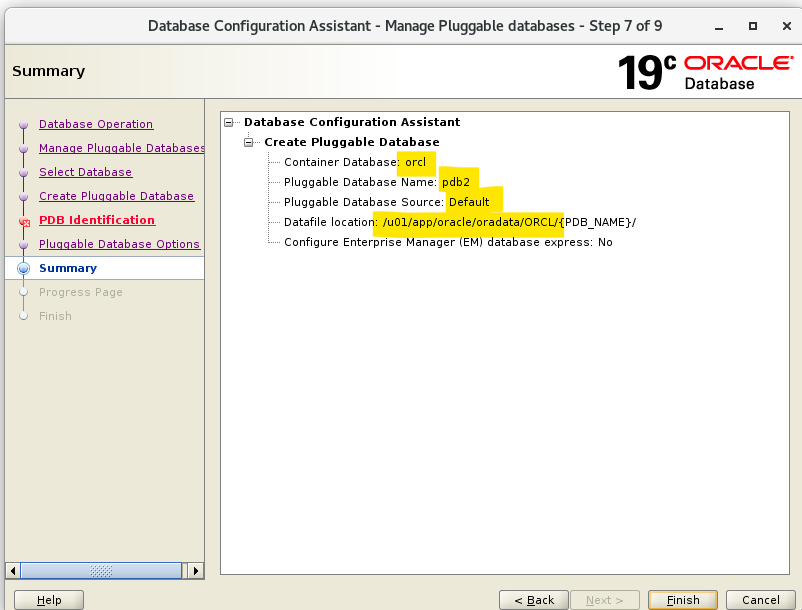

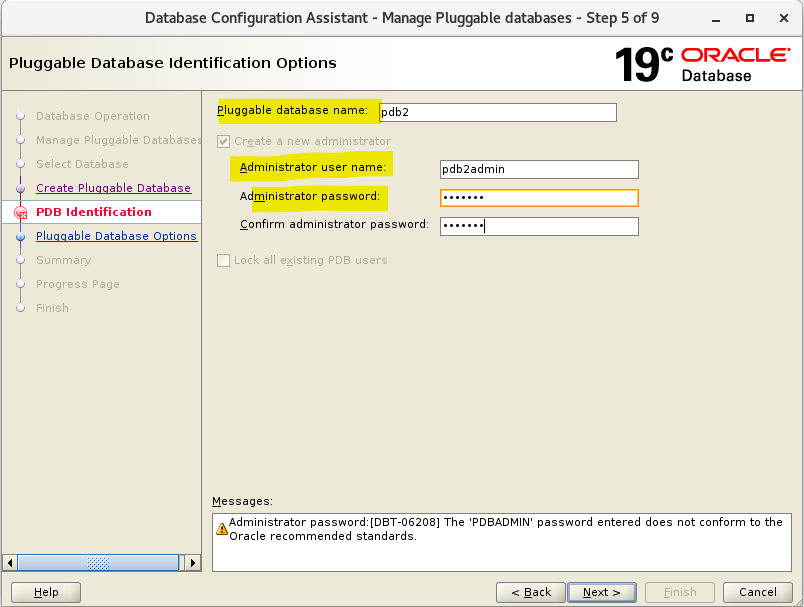

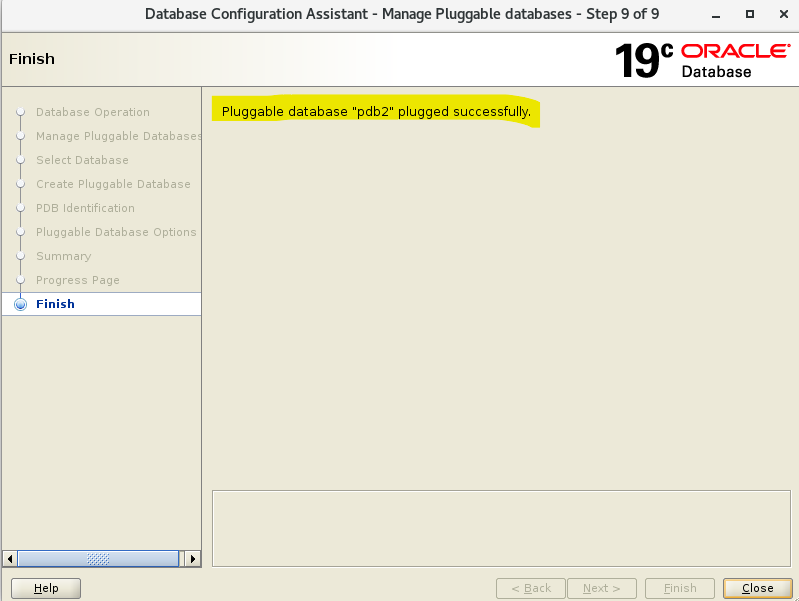

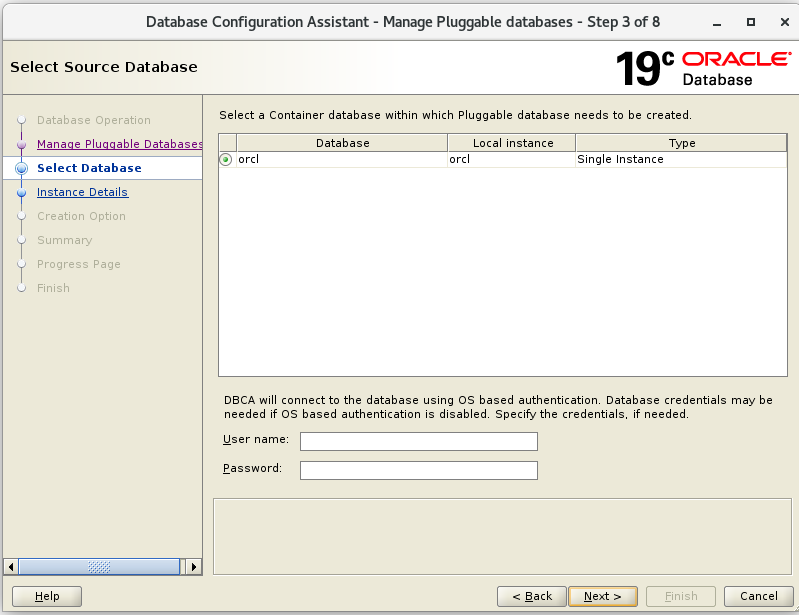

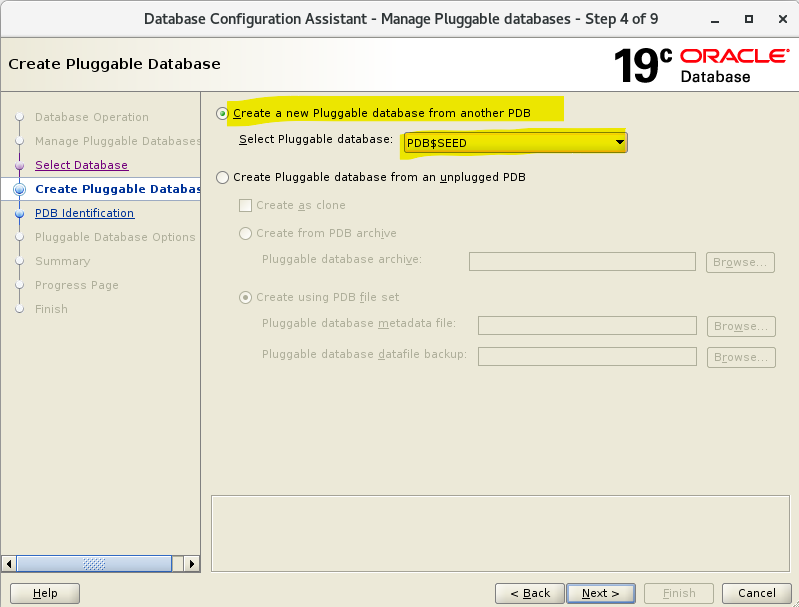

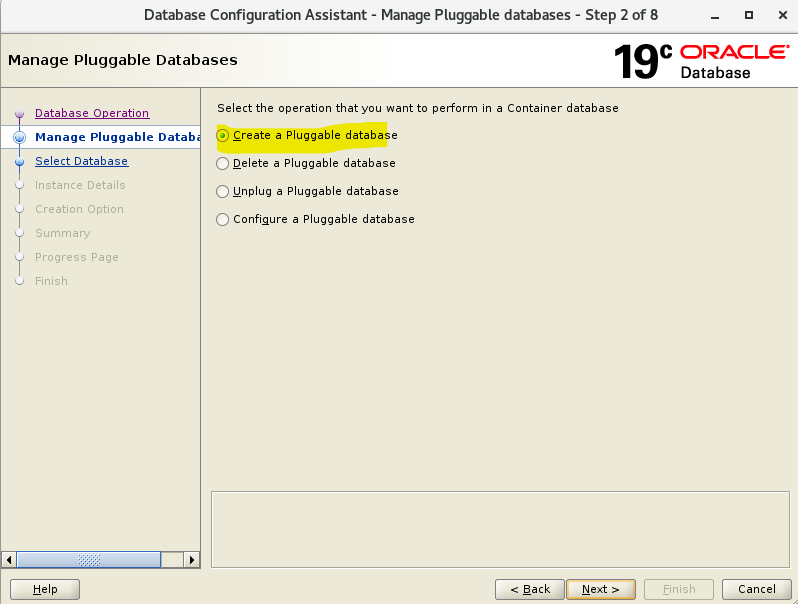

Lab: Create a PDB from seed using DBCA

lab_pdb_from_seed_dbca

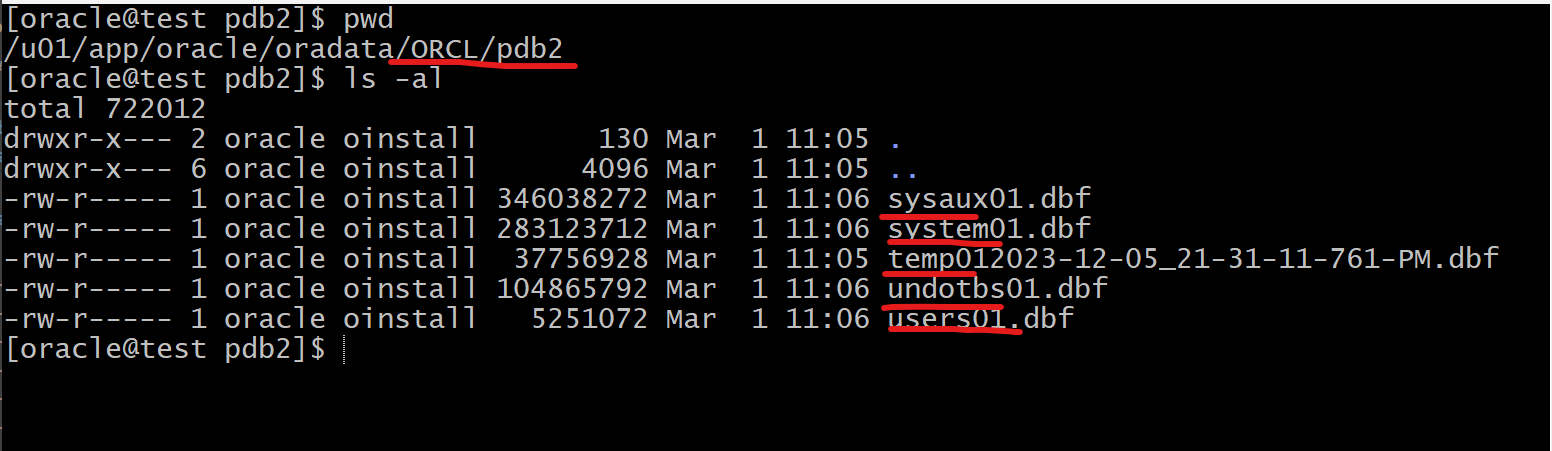

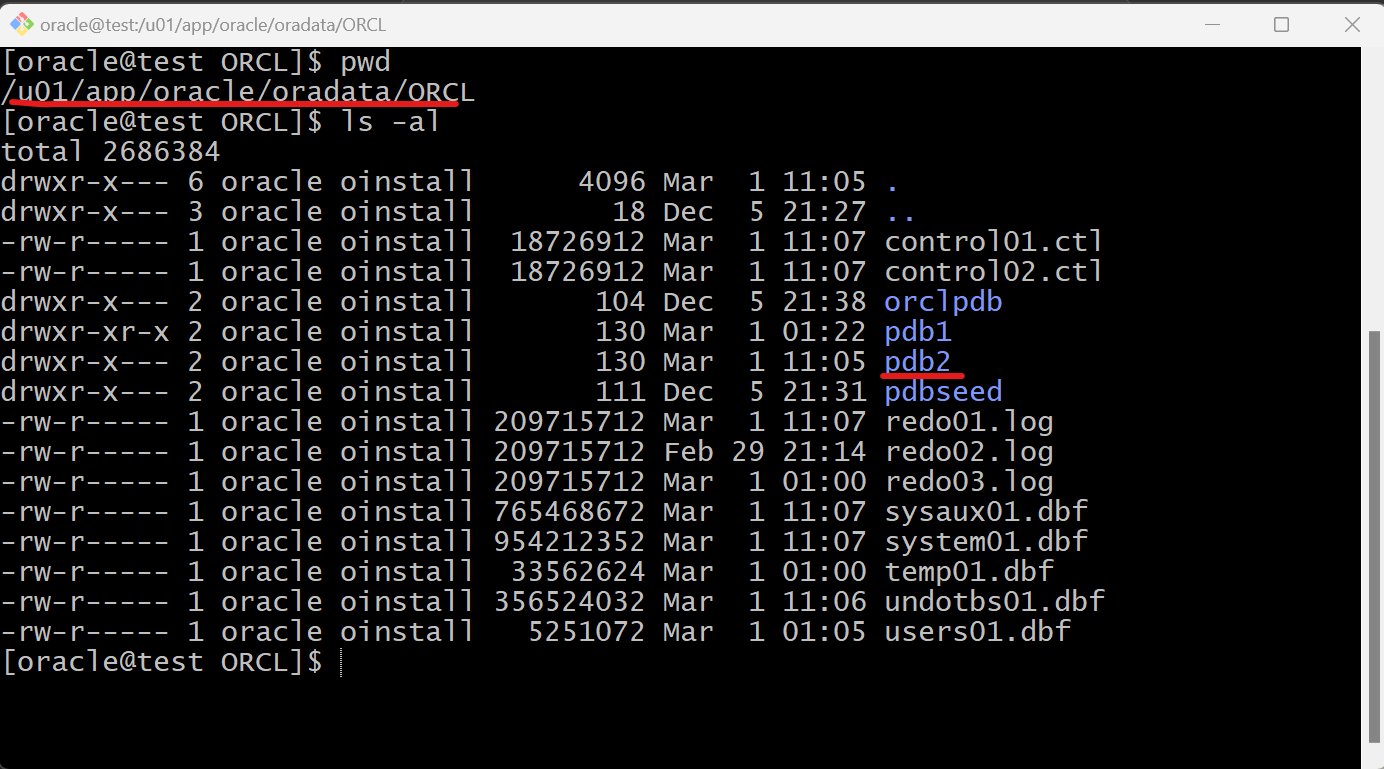

Explore files created in the OS
- same as command line

lab_pdb_from_seed_dbca

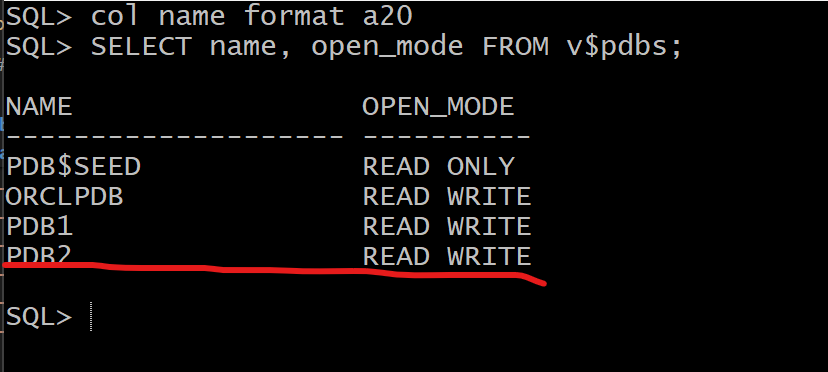

Query in Oracle DB
- note: open mode is read write,already opened, not mounted.

SELECT name, open_mode FROM v$pdbs;

lab_pdb_from_seed_dbca

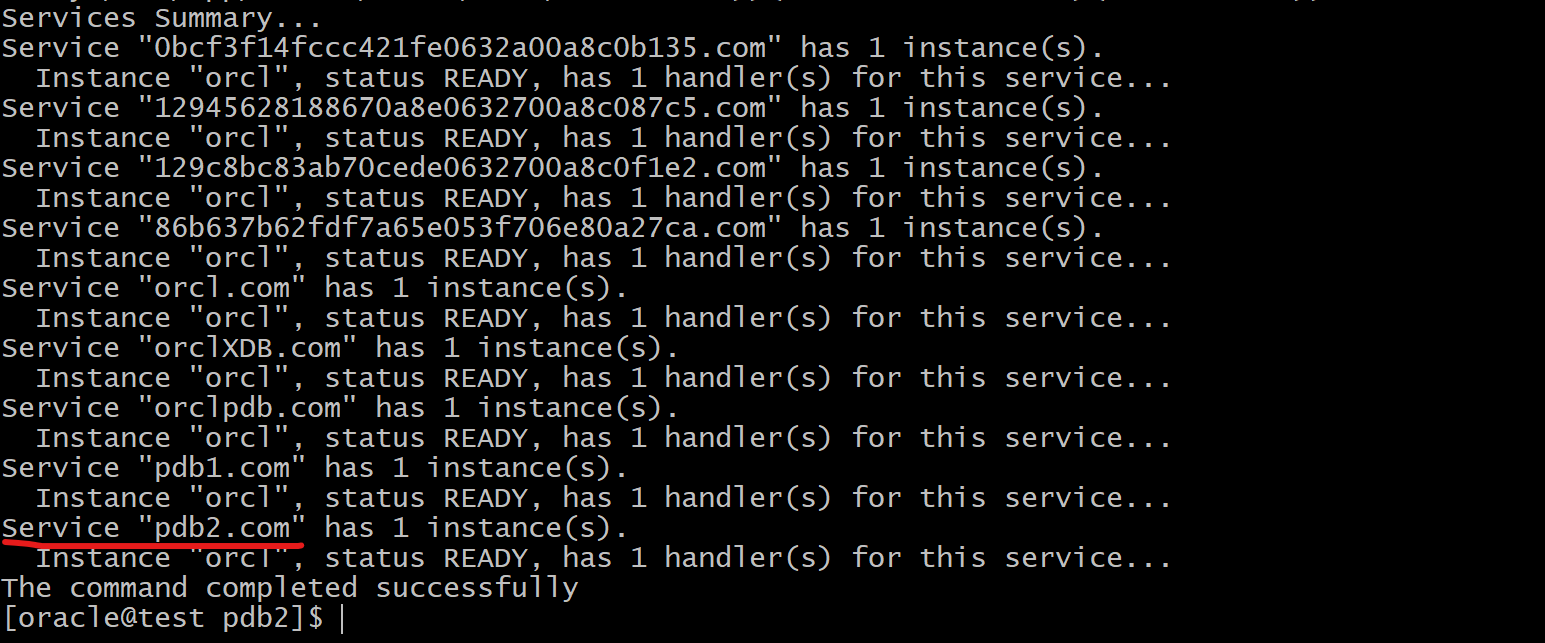

Get service name

lsnrctl status

lab_pdb_from_seed_dbca

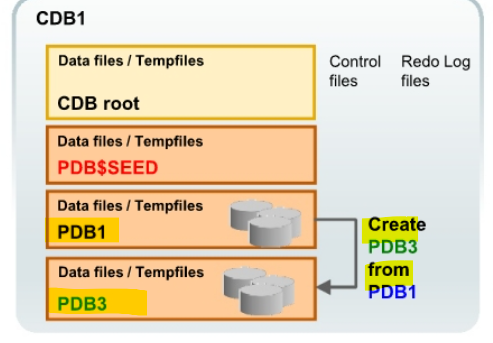

Cloning a PDB

cloning
- copying a source PDB from a CDB and plugging the copy into the same CDB or another CDB.
- all users in the source PDB will be copied, including common users and local users.
- all data files will be copied, including the password.
- all tbsp will be copied.
- uncommitted transaction will not be copied.
  - dirty buffer will not be copied.

pdb_cloning

Prerequisite:
- current container must be the root.
- the current CDB must be in READ WRITE mode.
- privilege: CREATE PLUGGABLE DATABASE
Best practise:
- put the target PDB into READ ONLY mode.
Statement:

CREATE PLUGGABLE DATABASE pdb5 from orclpdb
FILE_NAME_CONVERT = ('/u01/app/oracle/oradata/ORCL/orclpdb/',
                       '/u01/app/oracle/oradata/ORCL/pdb5/')

-- Optional: if you need oracle managed files to names the files
-- CREATE PLUGGABLE DATABASE pdb5 from orclpdb
-- create_file_dest '/u01/app/oracle/oradata/ORCL/pdb5';

if the source pdb has active transaction, it will have this error.

/* Error report -
ORA-65023: active transaction exists in container ORCLPDB
1.     00000 -  "active transaction exists in container %s"
*Cause:    A statement attempted to create a new transaction in the current
           container while there was an active transaction in another container.
*Action:   Switch to the container with the active transaction and commit, rollback
           or detach the active transaction before attempting to issue any
           statement that will attempt to create a new transaction in another
           container. */

-- solution
ALTER session SET container=ORCLPDB;
show con_name;
rollback;

ALTER session SET container=cdb$root;
show con_name;

Lab: Cloning PDB

Create dir for the new pdb

cd $ORACLE_BASE/oradata/ORCL
mkdir pdb5
ls
cd pdb5
pwd
# /u01/app/oracle/oradata/ORCL/pdb5

login oracle
make some change in the source pdb but not commit

-- move to source pdb
ALTER session SET container=orclpdb;

show con_name;

-- change but not commit
-- create a umcommited transaction
update hr.employees set salary=salary +1 where employee_id=100;

-- confirm an uncommited transaction has been created.
select salary from hr.employees where employee_id=100;
-- 24001

Clone an existing PDB.

-- move to root
alter session set container=cdb$root;
-- confirm in the root
show con_name;

-- list all pdb
select con_id,name,open_mode
from v$pdbs;

-- clone a PDB
CREATE PLUGGABLE DATABASE pdb5 from orclpdb
FILE_NAME_CONVERT = ('/u01/app/oracle/oradata/ORCL/orclpdb/',
                       '/u01/app/oracle/oradata/ORCL/pdb5/');
-- Pluggable database PDB5 created.

-- confirm creation
select con_id,name,open_mode
from v$pdbs;
-- 2	PDB$SEED	READ ONLY
-- 3	ORCLPDB	READ WRITE
-- 4	PDB1	READ WRITE
-- 5	PDB5	MOUNTED

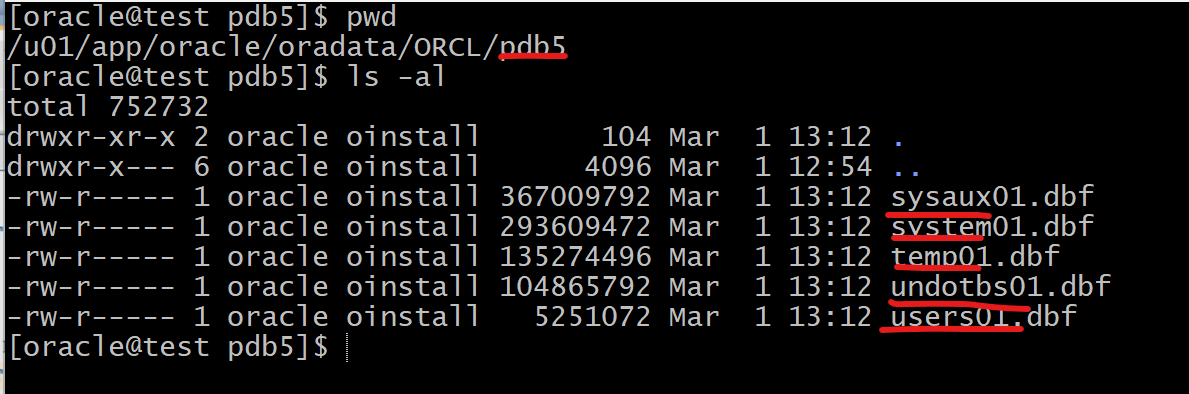

Check the files in os

lab_pdb_clone01

Explore new pdb

-- move to new pdb
alter session set container=PDB5;
-- open new pdb
alter pluggable database open;
-- check the data, uncommitted transaction will be copied.
select salary from hr.employees where employee_id=100;

-- query uses, confirm that all common and local users are copied.
select  username,DEFAULT_TABLESPACE,common
from dba_users;
-- HR	SYSAUX	NO

-- query all tables of a user, confirm that all objects are copied.
select  *
from dba_tables
where OWNER='HR';

-- query datafile
select con_id,file#, name from V$DATAFILE;

-- query tbsp
select * from V$TABLESPACE;

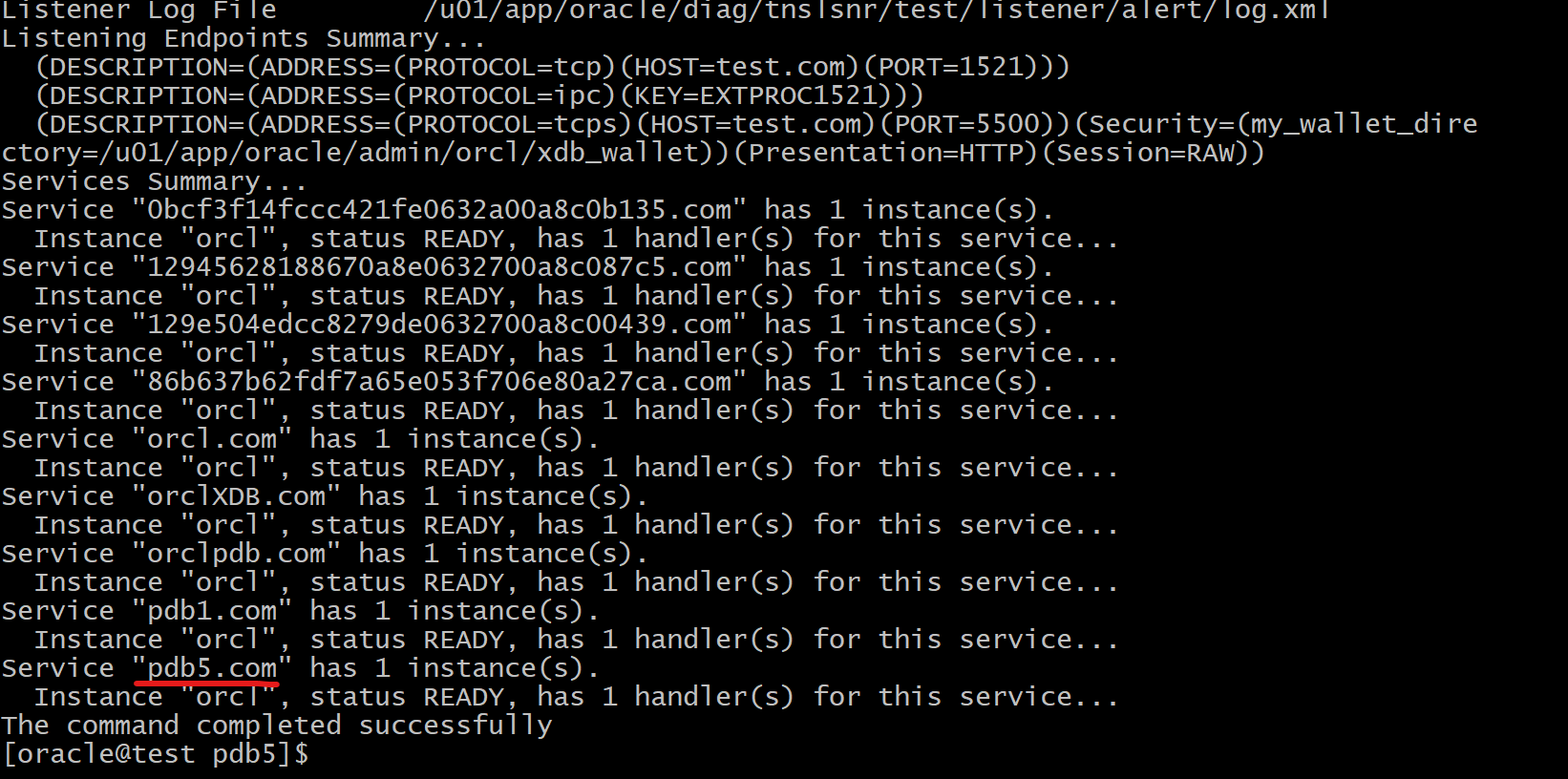

confirm service has been registered in the listener.

lab_pdb_clone01
