DBA - Backup: Block Change Tracking Feature

Back

• DBA - Backup: Block Change Tracking Feature
  • Block Change Tracking
  • Block Change Tracking File
  • Lab: Configuring Block Change Tracking

---

Block Change Tracking

• Block Change Tracking

  • By default, not enable
  • used to implement Fast Incremental Backup to improve the performance of incremental backup’s by recording information of changed database blocks in change tracking file.
  • maintains a record of block chunks that have changed since the last backup
  • Writes this record to a file, as redo is generated redo 产生时生产文件
  • optimized for up to eight incremental backups
  • recommended when your changes are 20 percent or less.
  • can make incremental backup faster
    • When it is time to perform the incremental backup, RMAN can look at the block change tracking file, determine the modified block chunks, and back up only those blocks.
    • It does not have to scan every block to see whether it has changed since the last backup.

---

Block Change Tracking File

• Block Change Tracking File

  • a binary file to track modified block since the last incremental backups.

• Characteristics:

  • If the change tracking file is stored in the database area with your database files, it is deleted when you disable change tracking. 如果文件在数据库文件中, 自动删除
  • Consider the eight-bitmap limit8 个
    • contain only eight bitmaps, so the backup cannot be optimized if there have been more than eight incremental backups since the parent-level backup that the new incremental will be based on.
    • e.g.,
      • if you make a level 0 database backup followed by seven differential incremental backups, then the block change tracking file now includes eight bitmaps. 包括 level 0
      • If you then make a cumulative level 1 incremental backup, RMAN cannot optimize the backup because the bitmap corresponding to the parent level 0 backup is overwritten with the bitmap that tracks the current changes.
  • The maintenance of the tracking file is fully automatic and does not require your intervention.
  • The minimum size for the block change tracking file is 10 MB, and any new space is allocated in 10 MB increments.

  • should not place block change tracking file in the fast recovery area.

    • RMAN does not support backup and recovery of the block change tracking file.

• Prerequisite:

  • must be in the MOUNT state

• Tools:

  • Enterprise Manager Cloud Control
  • SQL command

---

• Initialization Parameter:

  • DB_CREATE_FILE_DEST:
    • default destination of the BCT file
    • default: null

• SQL Command:

show parameter DB_CREATE_FILE_DEST

-- Enable the block change tracking
ALTER DATABASE
ENABLE BLOCK CHANGE TRACKING
[USING FILE 'path'];

-- Disable the block change tracking
ALTER DATABASE
DISABLE BLOCK CHANGE TRACKING;

-- Rename the block change tracking
-- The database must be in MOUNT state.
ALTER DATABASE
RENAME FILE 'path' TO 'path';

• Views

View	Description
V$BLOCK_CHANGE_TRACKING	Show info of block change tracking file
V$BACKUP_DATAFILE	how effective the block change tracking is

-- Query block change tracking file
SELECT filename, status, bytes
FROM v$block change_tracking;

-- Query efficiency of block change tracking file
SELECT file#, avg(datafile_blocks), avg(blocks_read),
avg (blocks_read/datafile_blocks) * 100 AS PCT_READ_FOR_BACKUP,
avg (blocks)
FROM v$backup_datafile
WHERE used_change_tracking = 'YES' AND incremental_level > 0
GROUP BY file#;

-- shows how **effective** the `block change tracking` is in minimizing the `incremental backup` I/O - `PCT_READ_FOR_BACKUP` column:
--  A **high** value indicates that RMAN reads **most** blocks in the data file during an incremental backup.
--  You can **reduce** this ratio by **decreasing the time** between the `incremental backups`.

---

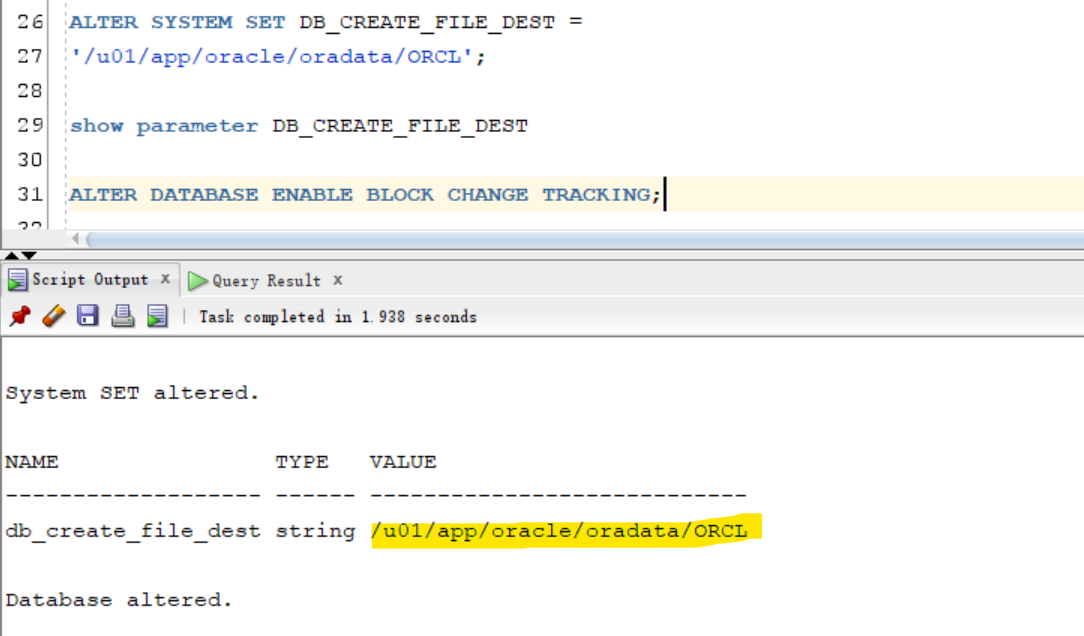

Lab: Configuring Block Change Tracking

-- view the parameter before configuration
show parameter DB_CREATE_FILE_DEST

-- Set the DB_CREATE_FILE_DEST initialization parameter
ALTER SYSTEM SET DB_CREATE_FILE_DEST =
'/u01/app/oracle/oradata/ORCL';

-- confirm
show parameter DB_CREATE_FILE_DEST

-- Enable block change tracking
ALTER DATABASE ENABLE BLOCK CHANGE TRACKING;

---
