Backup - Proxy Copy

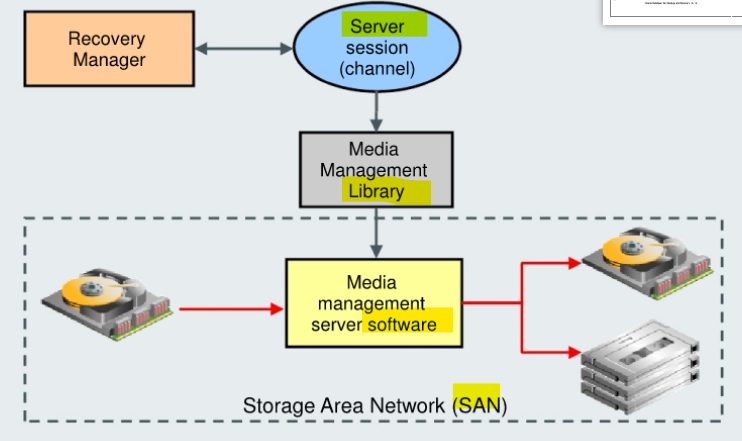

diagram_proxy_copy

proxy copy:
- RMAN turns over control of the data transfer to a media manager.
- cannot be used with channels of type DISK.
RMAN queries the media manager to determine whether it can perform a proxy copy.
- If the media manager cannot proxy copy the file, then RMAN backs up the file as if the PROXY option had not been used.
Control files are never backed up with proxy copy. 不会备份 cf
- If the PROXY option is specified on an operation backing up a control file, then it is silently ignored for the purposes of backing up the control file.
Command:
- PROXY option
  - specifies that a backup is a proxy copy.
- PROXY ONLY option
  - to force RMAN to fail if a proxy copy cannot be performed.
Syntax:

BACKUP [AS BACKUPSET] .. PROXY [ONLY] DATABASE |TABLESPACE;

-- to view information about the proxy copy
LIST BACKUP;

View	Description
`V$PROXY_DATAFILE`	info about the proxy datafile and control file backups
`V$PROXY_ARCHIVEDLOG`	info about the proxy archived log backups
`V$PROXY_ARCHIVELOG_SUMMARY`	summary information about the output proxy archive log file.
`V$PROXY_ARCHIVELOG_DETAILS`	information about all available archive log proxy copies.
`V$PROXY_COPY_SUMMARY`	Summary of information about data file proxy copies
`V$PROXY_COPY_DETAIL`	information about all available control file and datafile proxy copies.

Some media management products can completely manage all data movement between Oracle data files and the backup devices. Some products that use high-speed connections between storage and media subsystems can reduce much of the backup load from the primary database server. This is beneficial in that the copying takes place across the SAN instead of the LAN. At that point, RMAN is no longer involved in the operation, except for communicating status across the LAN to and from the MML.
