Recovery - Incomplete Recovery (DBPITR)

Back

• Recovery - Incomplete Recovery (DBPITR)
  • Incomplete Recovery (DBPITR)
  • Steps
  • Lab: Imcomplete Recovery
    • Connect to Catalog to resynchronization
    • Setup Environment
    • Diagnosis
    • Fail of Complete Recovery
    • Determine the loss of DBPITR
    • Incomplete Recovery
    • Update Recovery Catalog
    • Clearup

---

Incomplete Recovery (DBPITR)

• Database point-in-time recovery (DBPITR)(Incomplete Recovery):
  • To recover of an entire database to a specified past target time, SCN, or log sequence number. 整体恢复
  • To migrate a database to a different platform by creating a new database on the destination platform and performing a transport of all the user tablespaces, but excluding the SYSTEM tablespace迁移

---

Steps

1. Determine the target point of the restore:

   • can be in terms of a date and time, an SCN, restore point, or log sequence number.
   • e.g., if you know that some bad transactions were submitted at 3:00 PM yesterday, then you can choose 2:59 PM yesterday as the target restore point time.

2. Set the National Language Support (NLS) OS environment variables so that the time constants you provide to RMAN are formatted correctly.

   • e.g.,

export NLS_LANG = american_america.us7ascii
export NLS DATE FORMAT = "yyyy-mm-dd:hh24:mi:ss"

• If you do not want to rely on the NLS parameters, you can set the time Using SET command:

-- set the time in a European format
set until time

"to_date('14.08.2018 21:59:00', 'dd.mm.yyyy hh24:mi:ss'")";

1. Mount the database.
   • If it is open, you have to shut it down first

shutdown immediate
startup mount

1. Prepare and execute a RUN block, using the SET UNTIL, RESTORE, and RECOVER commands.
   • e.g.,

RUN {
    SET UNTIL TIME '2018-08-14:21:59:00';
    RESTORE DATABASE;
    RECOVER DATABASE;
}

1. Open the database in READ ONLY mode and verify that the recovery point is correct.

SQL 'ALTER DATABASE OPEN READ ONLY';

1. If satisfied with the results of the recovery, open the database with the RESETLOGS option

ALTER DATABASE OPEN RESETLOGS;

---

Lab: Imcomplete Recovery

Connect to Catalog to resynchronization

• Connect to the target database and the recovery catalog and resynchronize the catalog with the database control file.

-- confirm rcat db is opened
sqlplus / as sysdba
SHOW PDBS

rman target / catalog rcowner@rcat
-- create a full backup
BACKUP DATABASE;
-- resynchronize the catalog with the database control file.
RESYNC CATALOG;
EXIT

---

Setup Environment

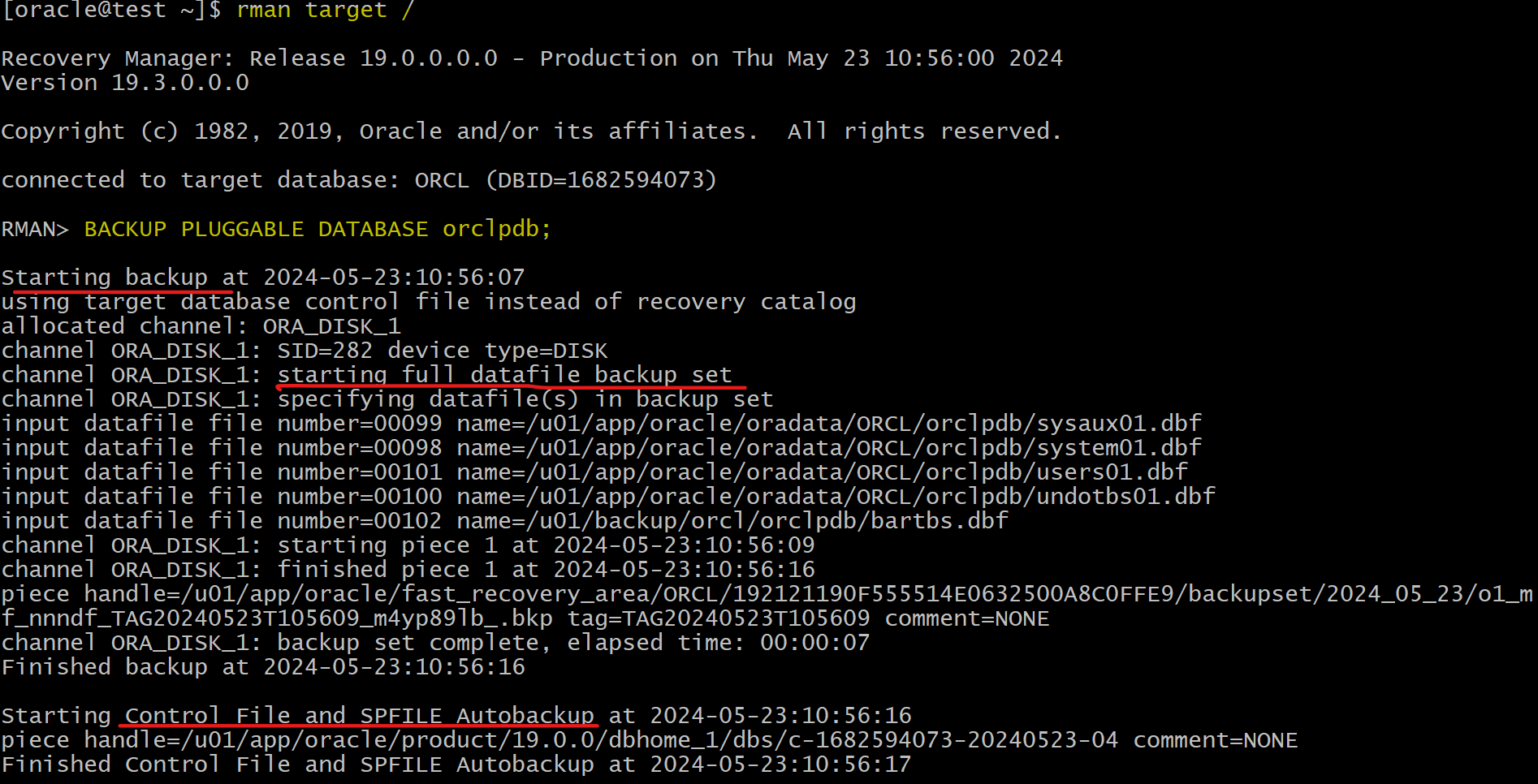

• Backup pdb

rman target /
-- confirm that the control file is automatically backup
show all;
BACKUP PLUGGABLE DATABASE orclpdb;

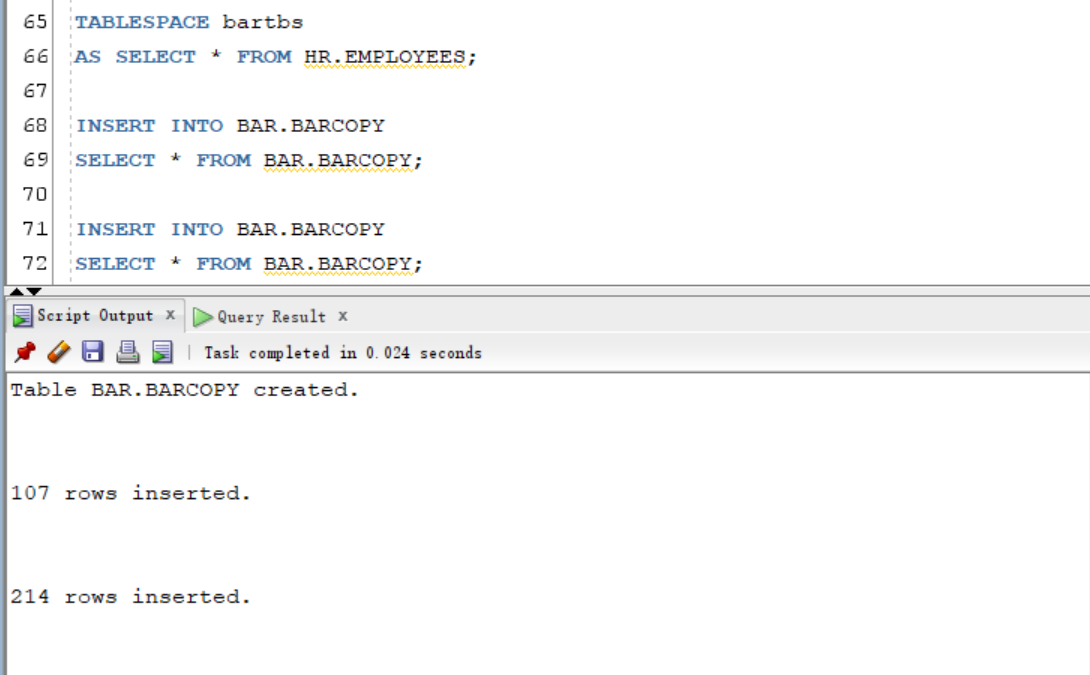

• Create a new tablespace, a new user, and a table, and populates it.

# create directory for tbsp
mkdir -p /u01/backup/orcl/orclpdb

sqlplus / as sysdba

alter session set container=orclpdb;
show user
show con_name

-- CLEANUP from previous run
DROP USER bar CASCADE;
DROP TABLESPACE bartbs INCLUDING CONTENTS AND DATAFILES;

-- Create tablespace
CREATE TABLESPACE bartbs
DATAFILE '/u01/backup/orcl/orclpdb/bartbs.dbf' SIZE 10M REUSE
SEGMENT SPACE MANAGEMENT MANUAL;

-- Create user
CREATE USER BAR IDENTIFIED BY pass4BAR
DEFAULT TABLESPACE bartbs
QUOTA UNLIMITED ON bartbs;

GRANT CREATE SESSION TO BAR;

-- create table and populate
-- be sure table is at least 2 blocks long
CREATE TABLE BAR.barcopy
TABLESPACE bartbs
AS SELECT * FROM HR.EMPLOYEES;

INSERT INTO BAR.BARCOPY
SELECT * FROM BAR.BARCOPY;

INSERT INTO BAR.BARCOPY
SELECT * FROM BAR.BARCOPY;

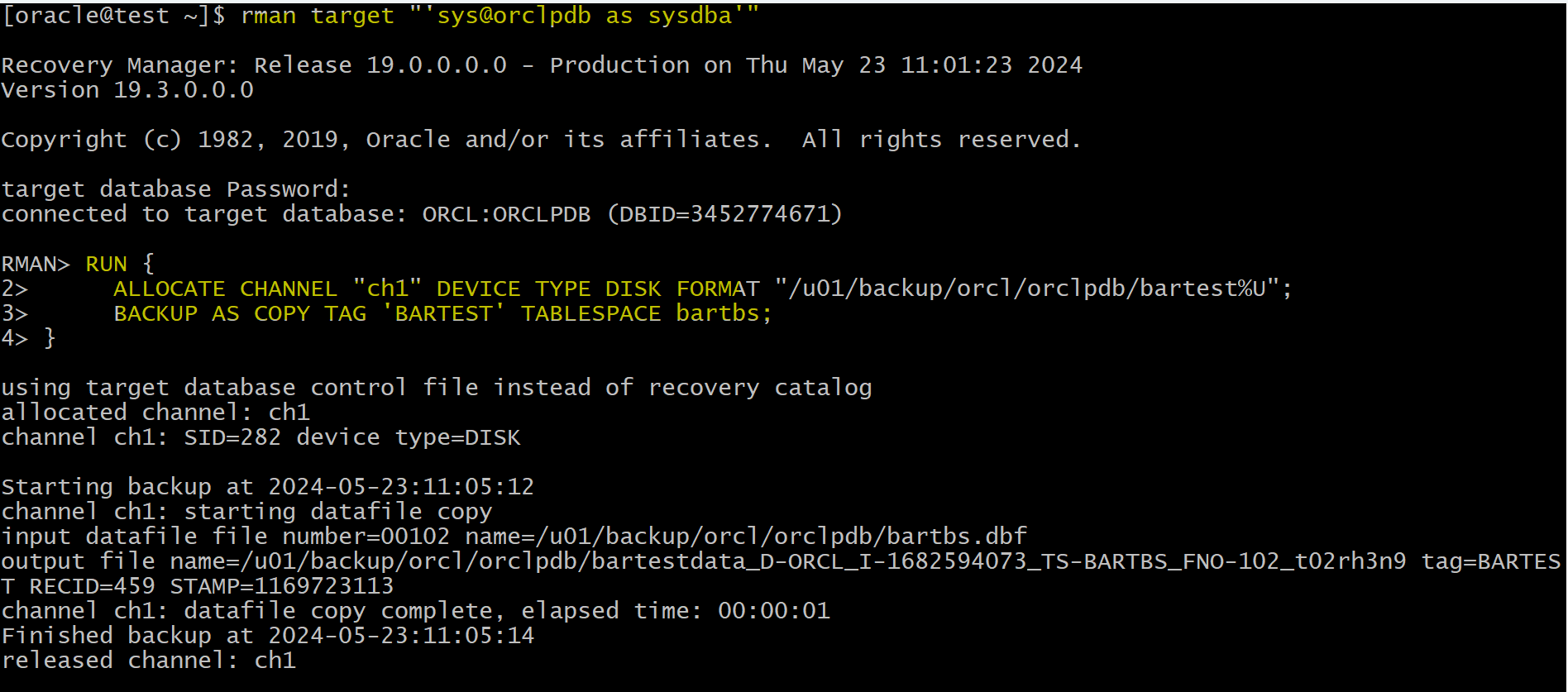

• creates a backup of the tablespace

rman target "'sys@orclpdb as sysdba'"

RUN {
  ALLOCATE CHANNEL "ch1" DEVICE TYPE DISK FORMAT "/u01/backup/orcl/orclpdb/bartest%U";
  BACKUP AS COPY TAG 'BARTEST' TABLESPACE bartbs;
}

EXIT

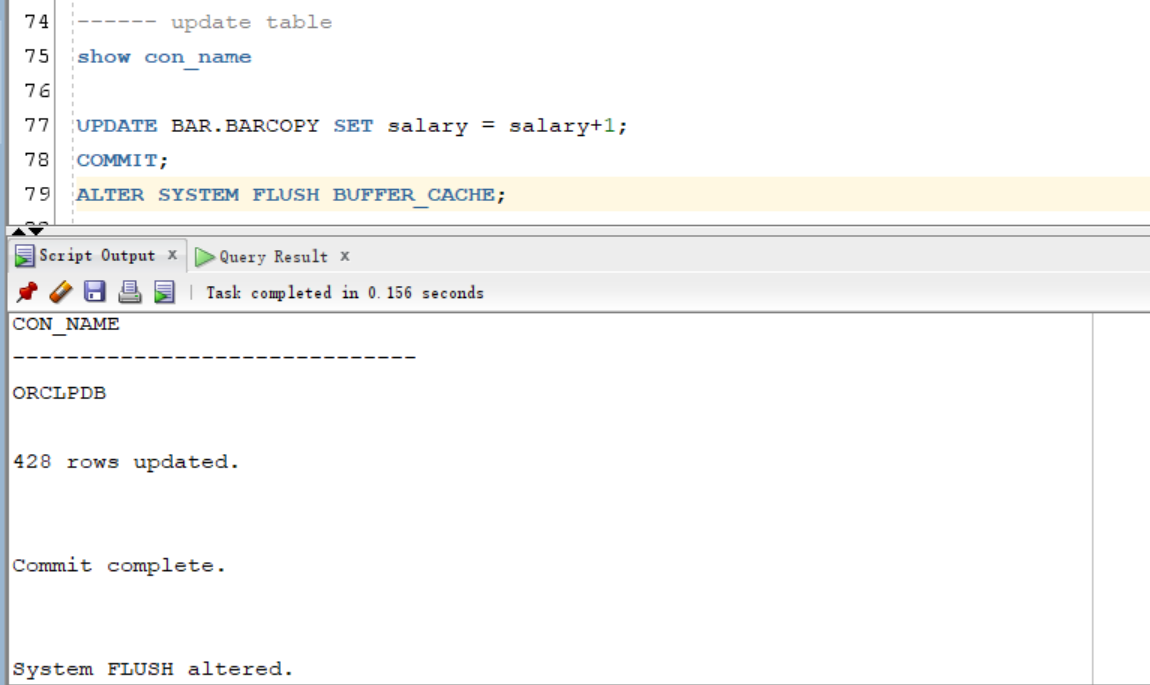

• then updates the table.

sqlplus sys@orclpdb as sysdba

show con_name

UPDATE BAR.BARCOPY SET salary = salary+1;
COMMIT;
ALTER SYSTEM FLUSH BUFFER_CACHE;

EXIT

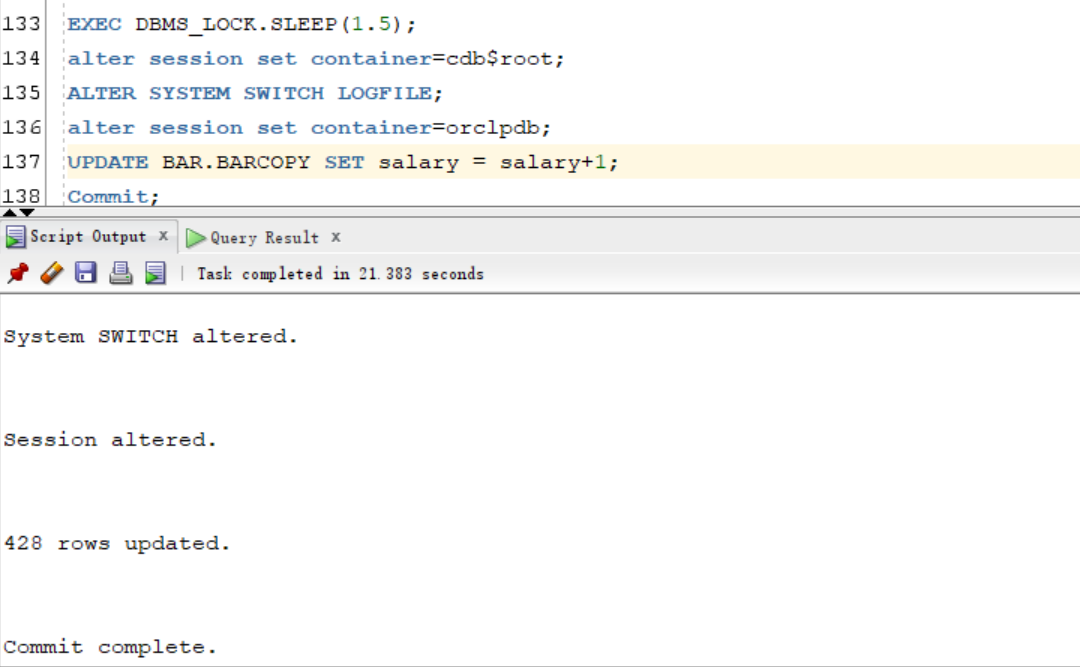

• Update table and switch log

sqlplus sys@orclpdb as sysdba


EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

EXEC DBMS_LOCK.SLEEP(1.5);
alter session set container=cdb$root;
ALTER SYSTEM SWITCH LOGFILE;
alter session set container=orclpdb;
UPDATE BAR.BARCOPY SET salary = salary+1;
Commit;

The database has been update and switched log after a backup.

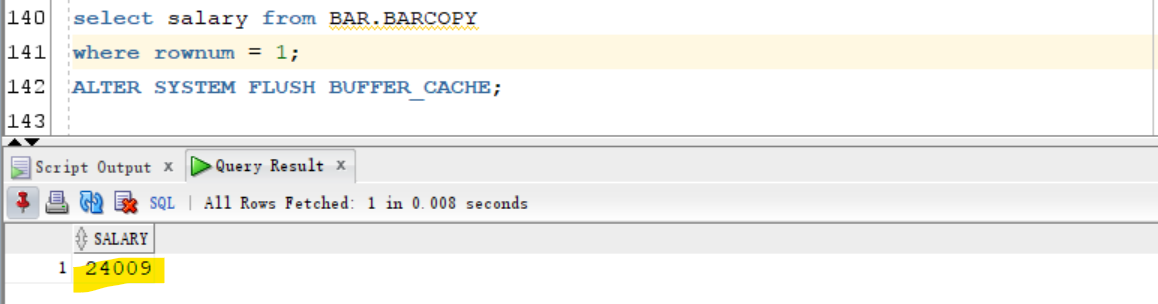

• Show the first row to indicate the table has been updated serveral times

connect sys/welcome@orclpdb as sysdba
select salary from BAR.BARCOPY
where rownum = 1;

connect / as sysdba
ALTER SYSTEM FLUSH BUFFER_CACHE;

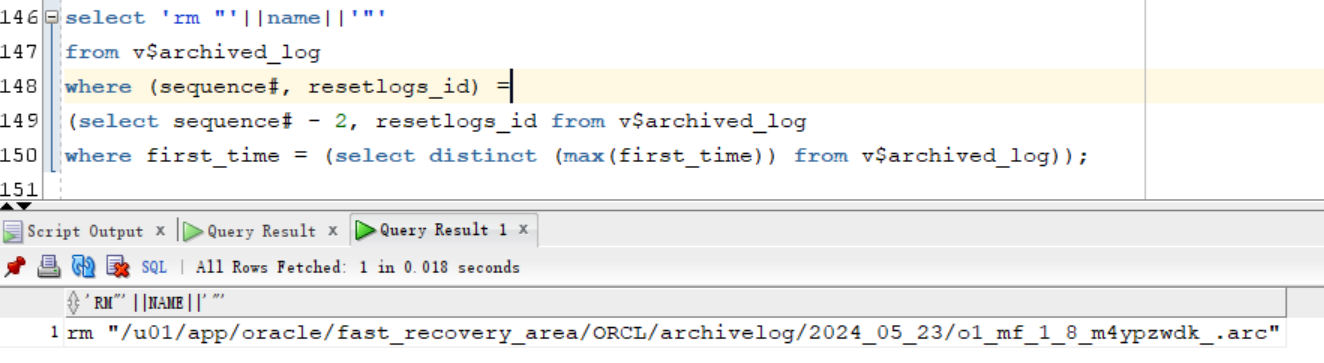

• Find the newest archive log file where the redo is overwritten

select 'rm "'||name||'"'
from v$archived_log
where (sequence#, resetlogs_id) =
(select sequence# - 2, resetlogs_id from v$archived_log
where first_time = (select distinct (max(first_time)) from v$archived_log));

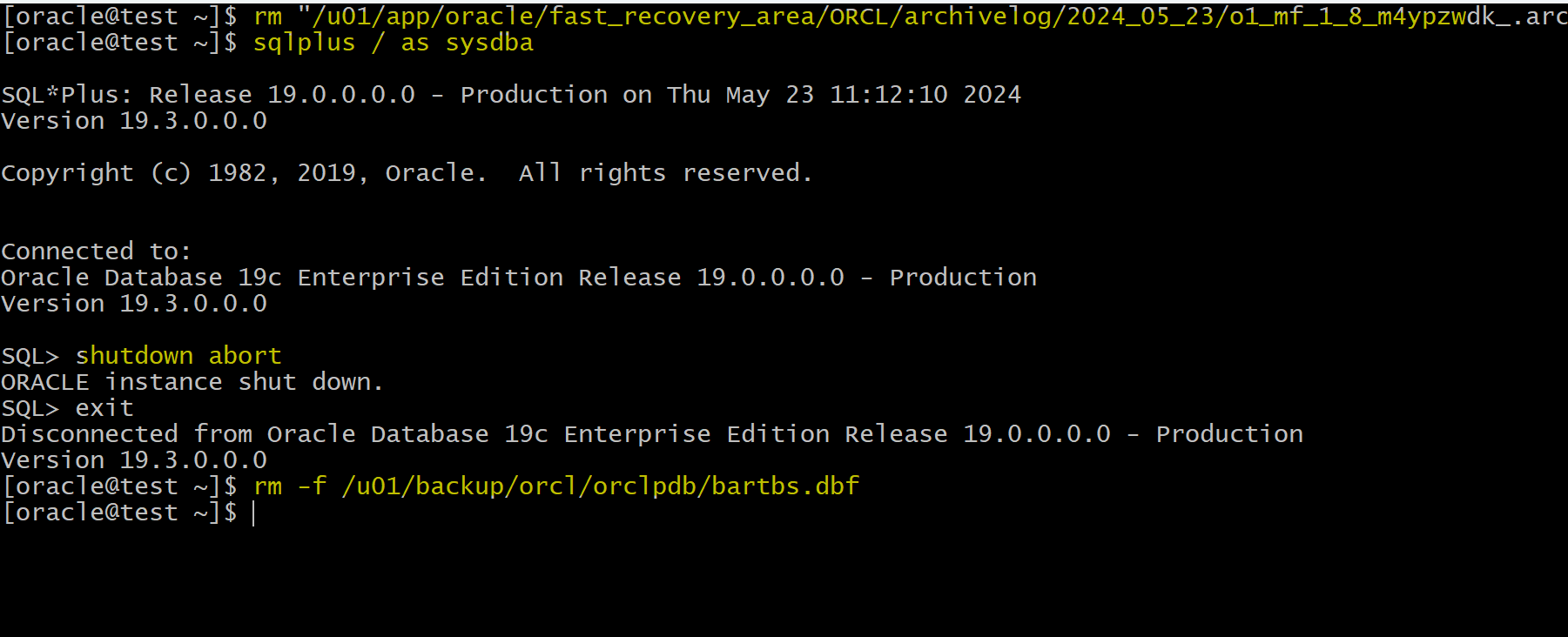

• Remove the newest archive log file

rm "/u01/app/oracle/fast_recovery_area/ORCL/archivelog/2024_05_23/o1_mf_1_8_m4ypzwdk_.arc"

• Shutdown abort

sqlplus / as sysdba
shutdown abort

exit

• remove datafile

rm -f /u01/backup/orcl/orclpdb/bartbs.dbf

---

Diagnosis

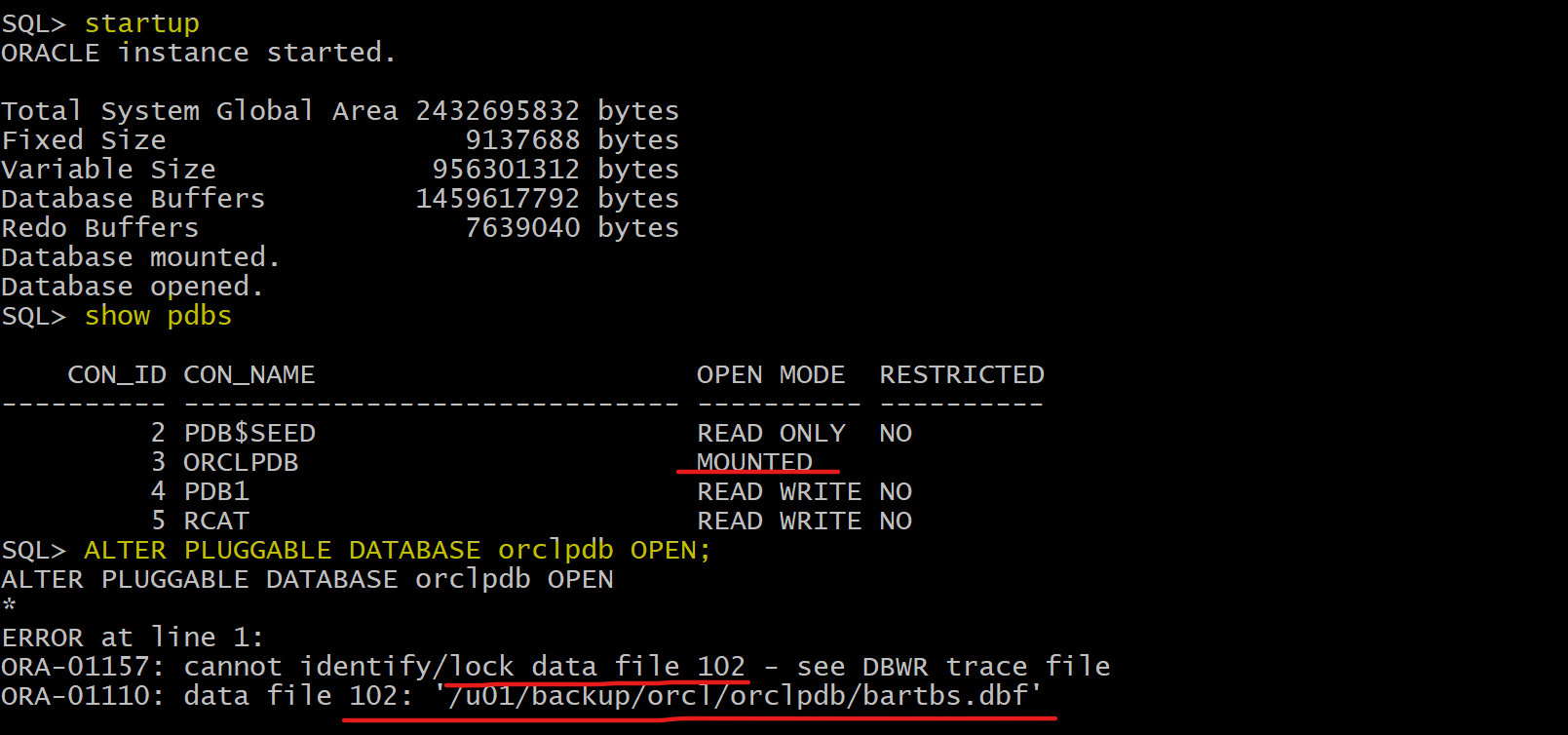

• Connect to sqlplus and try to open pdb
  • it raises error, indicating the df is missing.

sqlplus / as sysdba
startup

show pdbs

-- try to open pdb
ALTER PLUGGABLE DATABASE orclpdb OPEN;

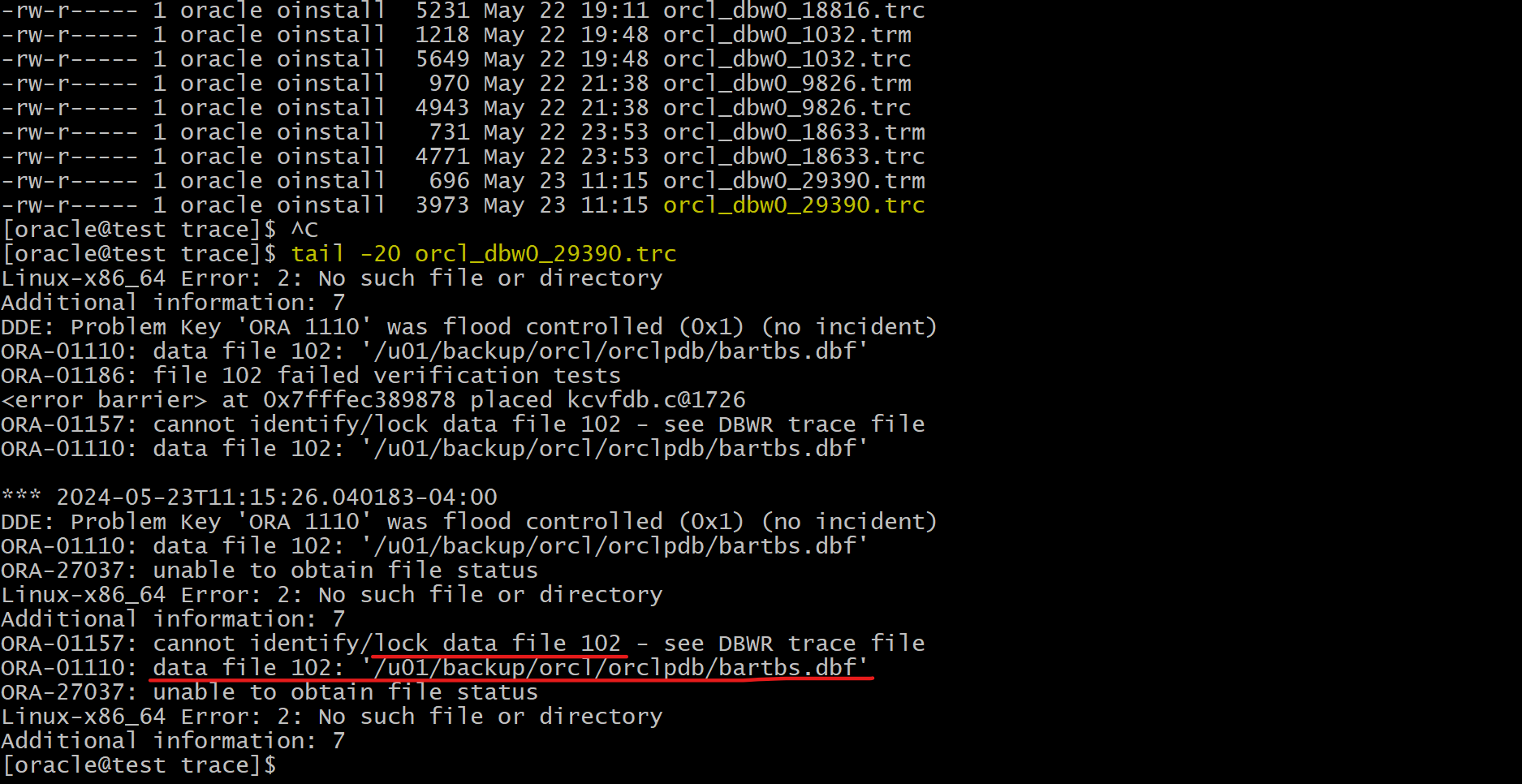

• Check the latest DBWR trace file for the error info

cd $ORACLE_BASE/diag/rdbms/orcl/orcl/trace
ls -1ltr *dbw*

tail -20 orcl_dbw0_29390.trc

---

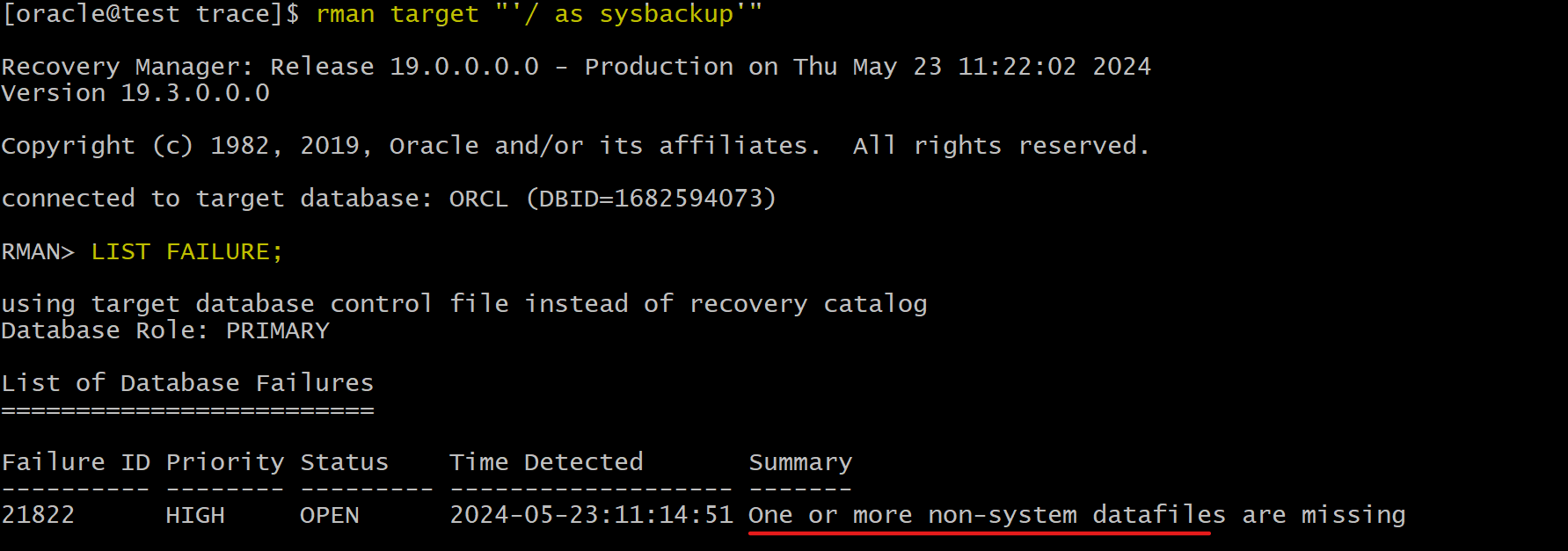

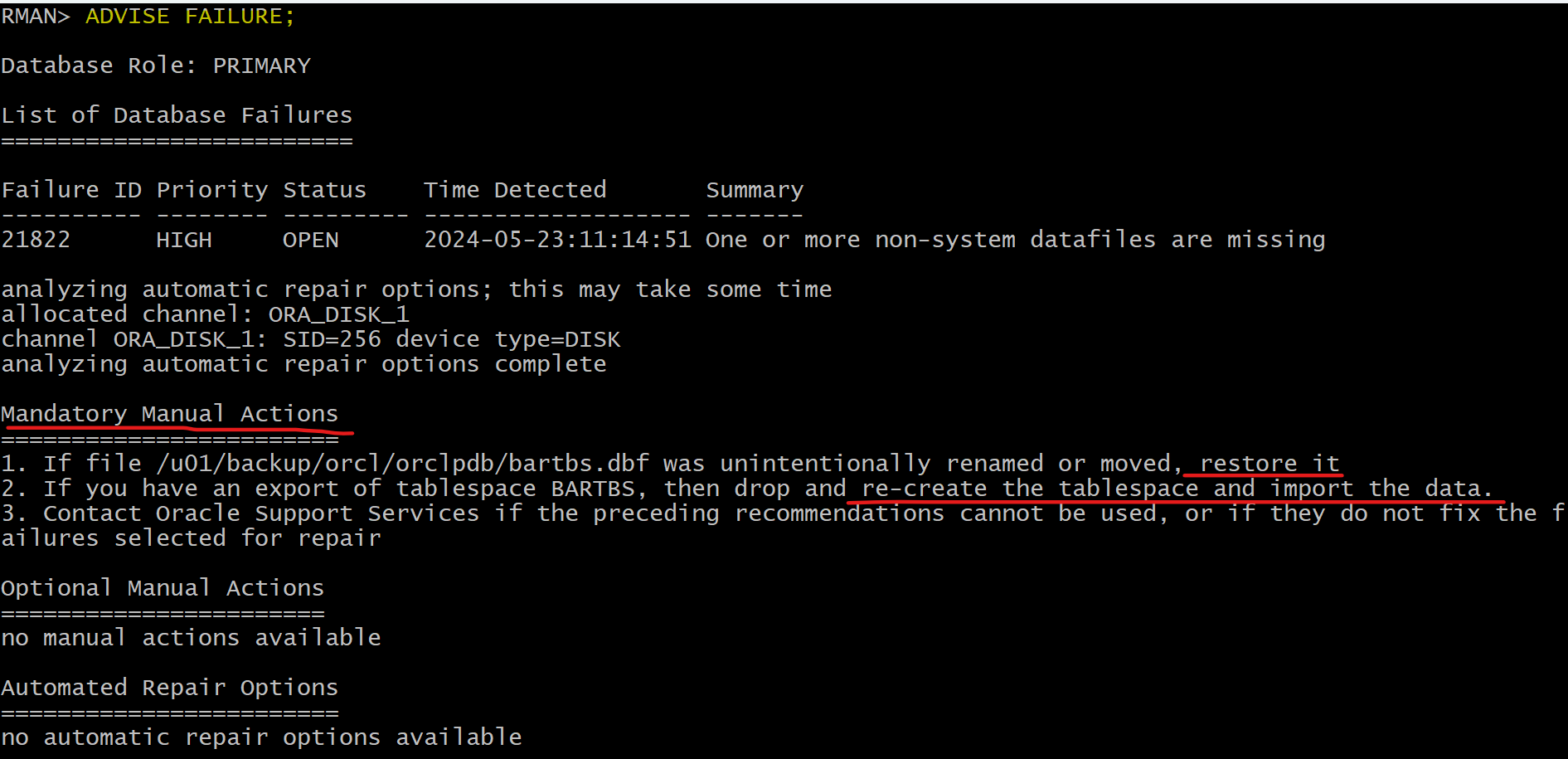

• Use the RMAN LIST FAILURE command to find more information about the failure.
  • it indicates that it needs mannual actions.

rman target "'/ as sysbackup'"

LIST FAILURE;

ADVISE FAILURE;

---

Fail of Complete Recovery

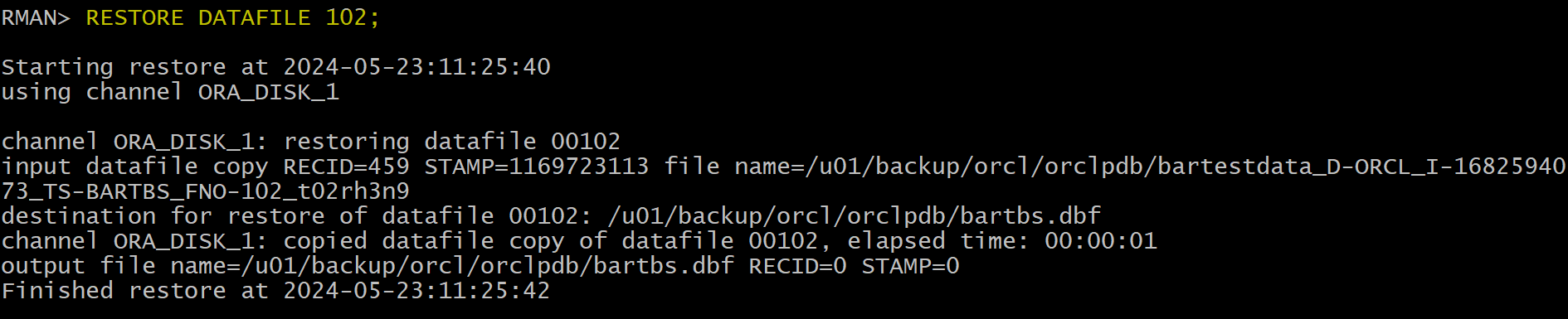

• Restore datafile

RESTORE DATAFILE 102;

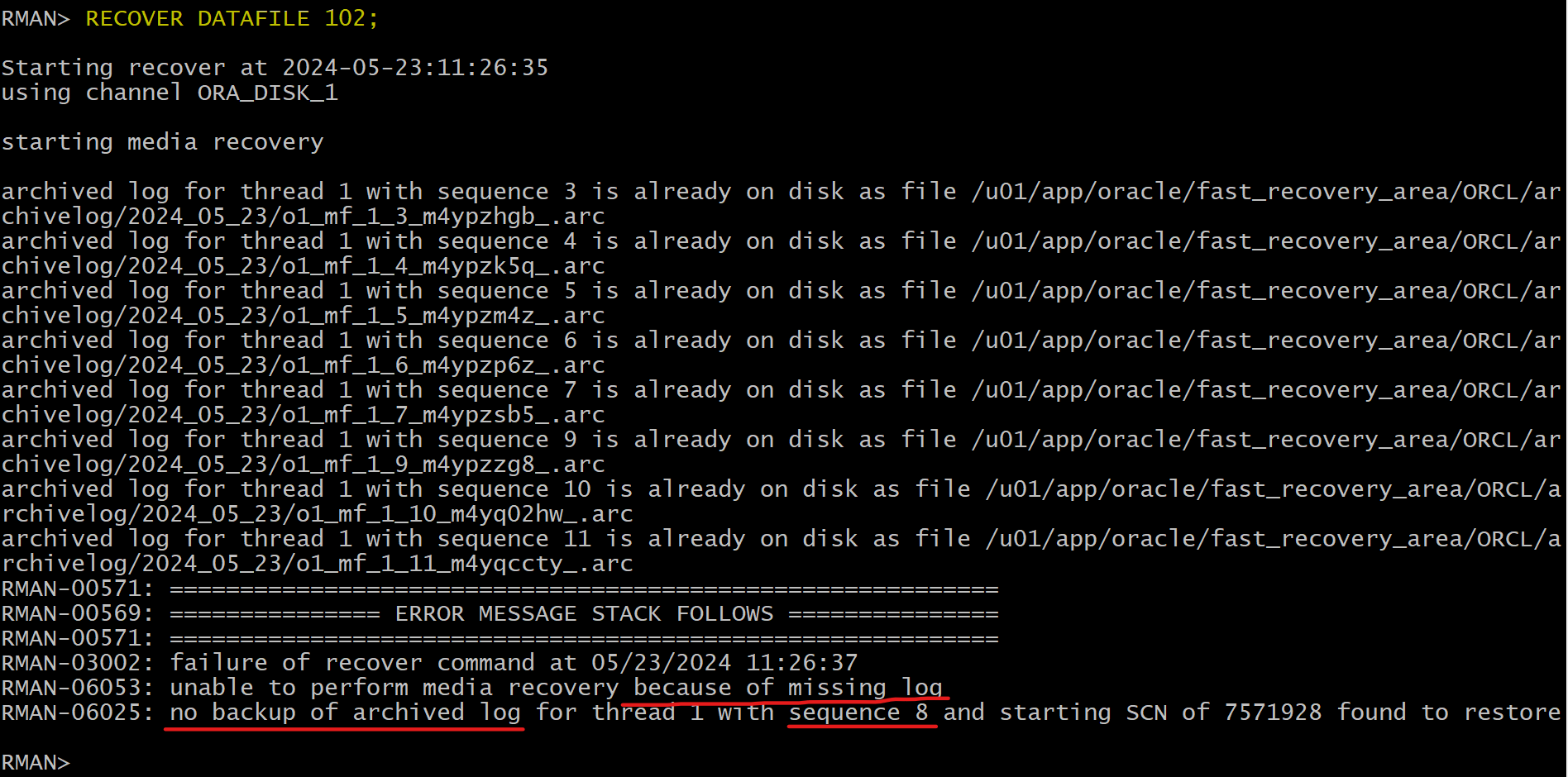

• Recover datafile
  • fails, due to loss of archive log file with sequence 8
  • Complete recovery is not possible in this situation.

RECOVER DATAFILE 102;

---

Determine the loss of DBPITR

• how much data will be lost.

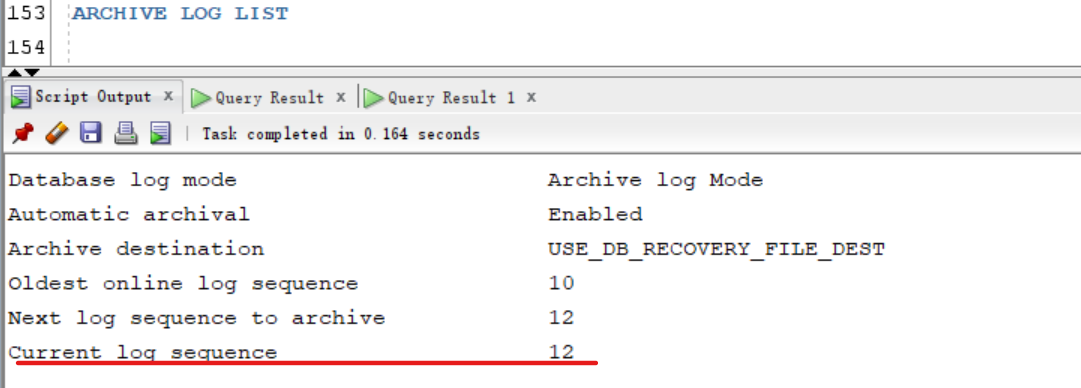

  • Check the current log sequence
  • The current redo log file is sequence number 12.
  • The missing log number is 8.
  • So all the data contained in log files 8 through 12 will be lost.

ARCHIVE LOG LIST

---

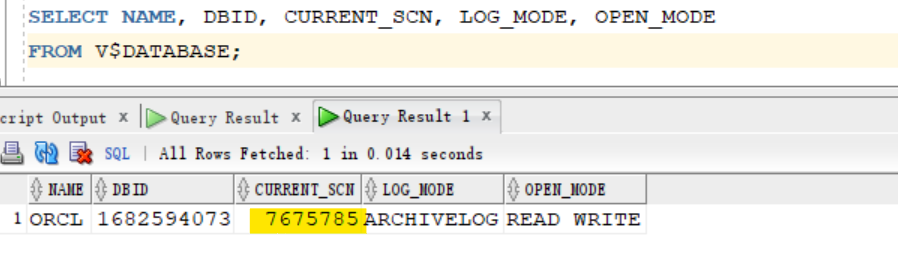

• Query the current SCN

-- query scn
SELECT NAME, DBID, CURRENT_SCN, LOG_MODE, OPEN_MODE FROM V$DATABASE;
-- if in cdb:
-- ORCL	1682594073	7675785	ARCHIVELOG	READ WRITE
-- if in pdb: the current_scn is 0.
-- ORCL	1682594073	0	ARCHIVELOG	MOUNTED

---

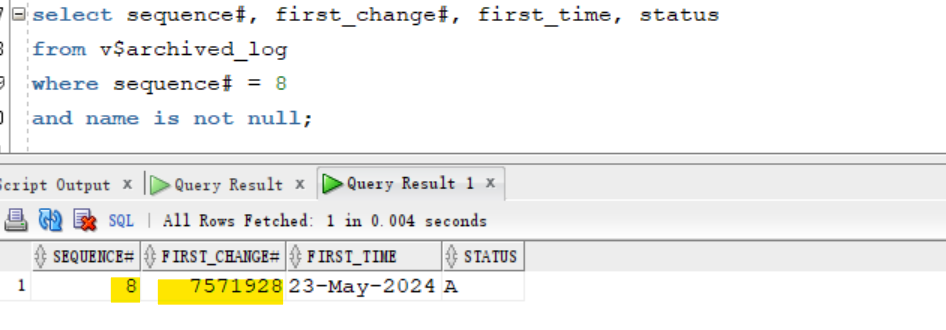

• Determine the starting SCN and start time of your missing log

  • it shows how far back they have to go to recover any transactions that have been lost.

-- The value in FIRST_TIME can be used to inform users how far back they have to go to recover any transactions that have been lost.
select sequence#, first_change#, first_time, status
from v$archived_log
where sequence# = 8
and name is not null;
-- 8	7571928	23-May-2024	A

---

Incomplete Recovery

rman target /

shutdown immediate;
startup nomount;

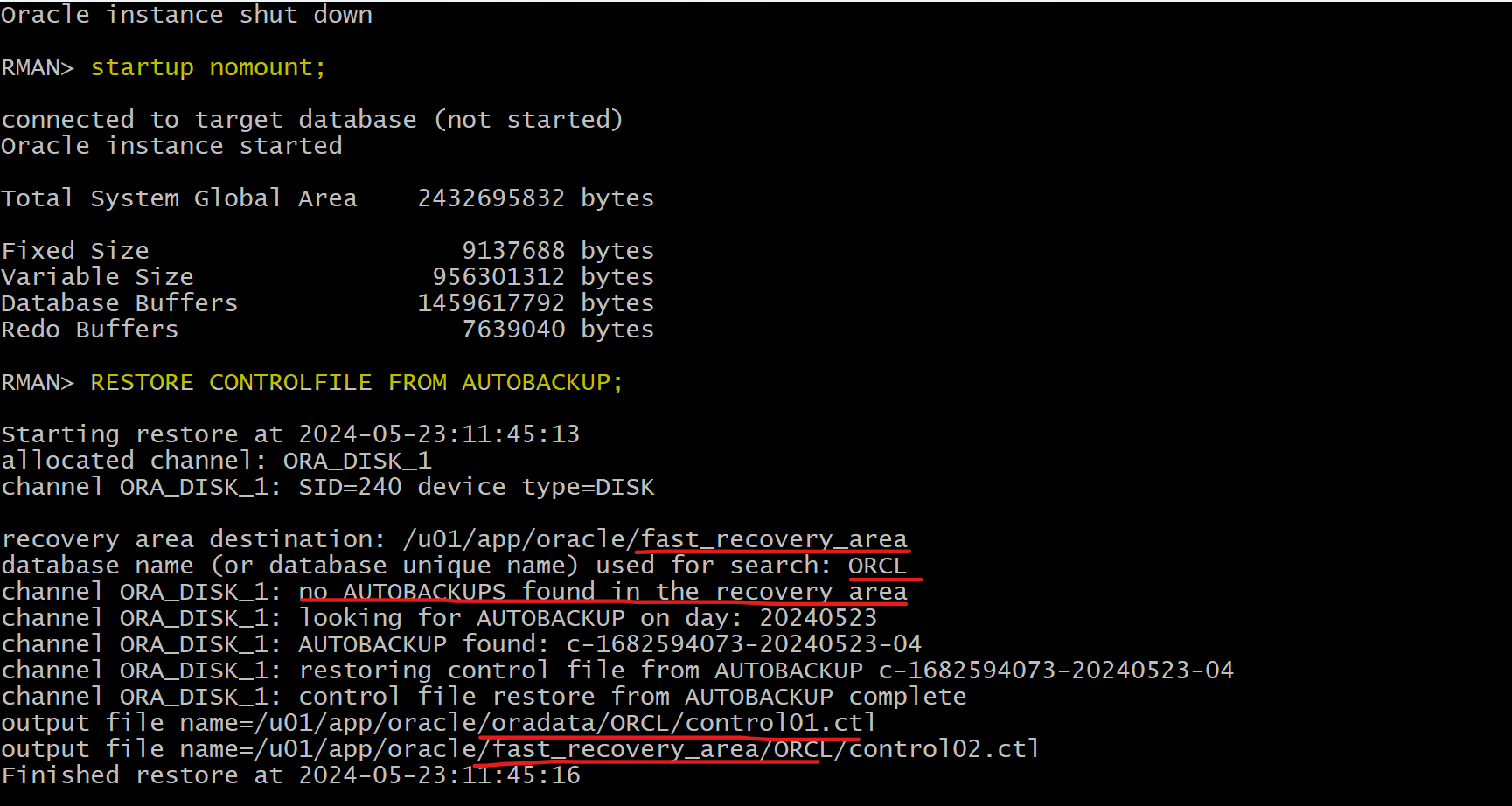

-- restore control file
RESTORE CONTROLFILE FROM AUTOBACKUP;

-- Mount the database.
ALTER DATABASE MOUNT;

-- Restore the entire database from a backup that was taken before the missing archive log file with sequence

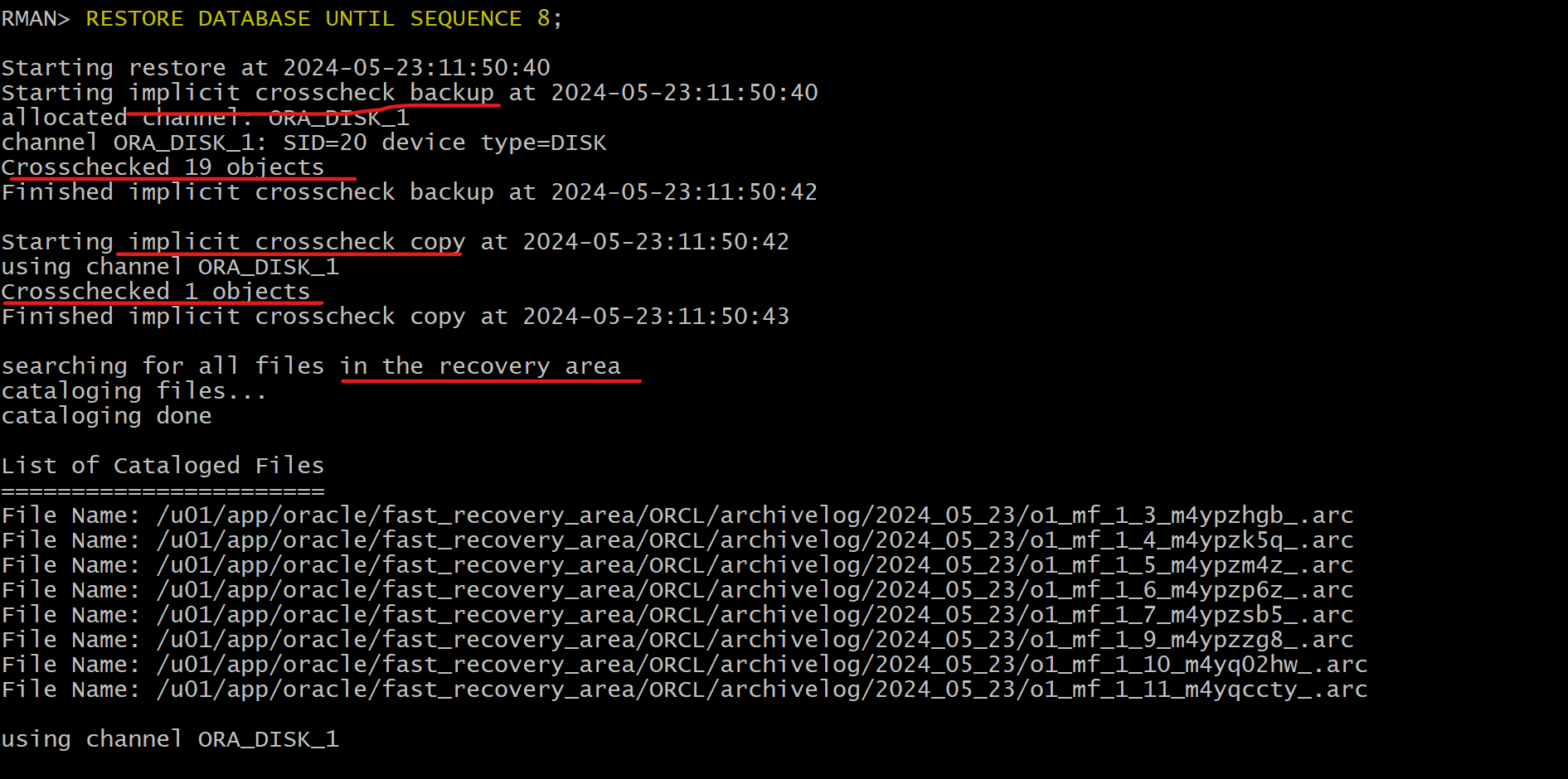

RESTORE DATABASE UNTIL SEQUENCE 8;

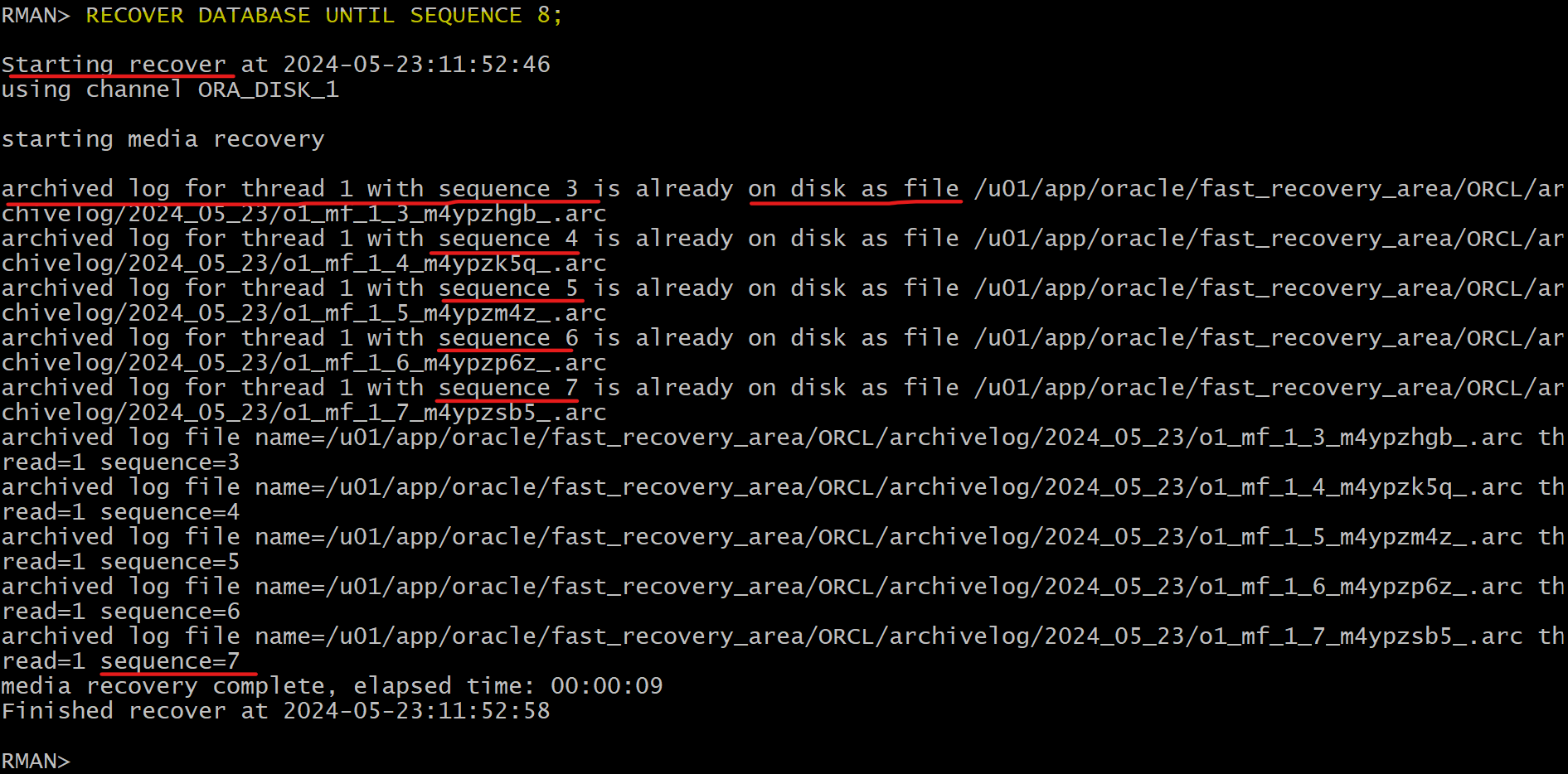

RECOVER DATABASE UNTIL SEQUENCE 8;

-- Open the database using the RESETLOGS option.
ALTER DATABASE OPEN RESETLOGS;

ALTER PLUGGABLE DATABASE orclpdb OPEN;
EXIT

---

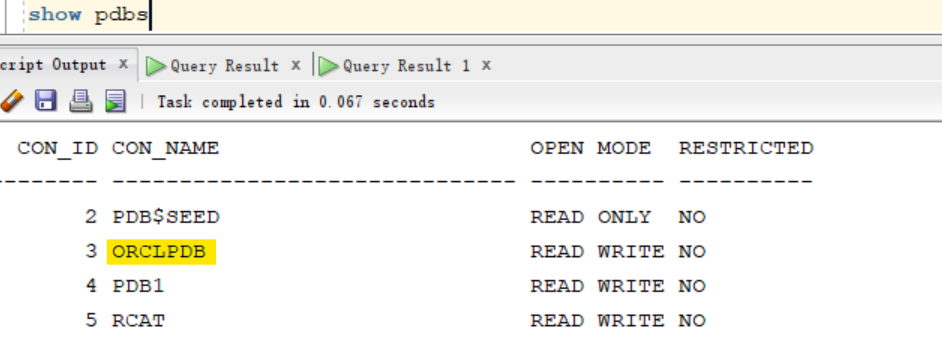

• Confirm pdb is recovered and opened

sqlplus / as sysdba
show pdbs

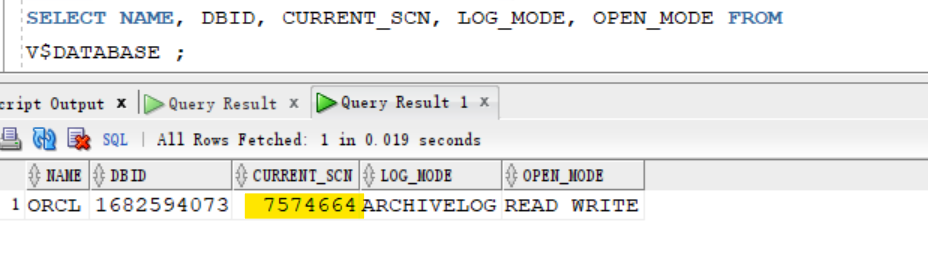

• Confirm current SCN
  • in root
    • the current scn is 7675785 before recovery
    • the current scn is 7574664 after recovery
  • in pdb
    • the current scn is 0 before recovery
    • the current scn is 7575521 after recovery

SELECT NAME, DBID, CURRENT_SCN, LOG_MODE, OPEN_MODE FROM
V$DATABASE;
-- ORCL	1682594073	7574664	ARCHIVELOG	READ WRITE

ALTER SESSION SET CONTAINER=orclpdb;

SELECT NAME, DBID, CURRENT_SCN, LOG_MODE, OPEN_MODE FROM
V$DATABASE ;
-- ORCL	1682594073	7575521	ARCHIVELOG	READ WRITE

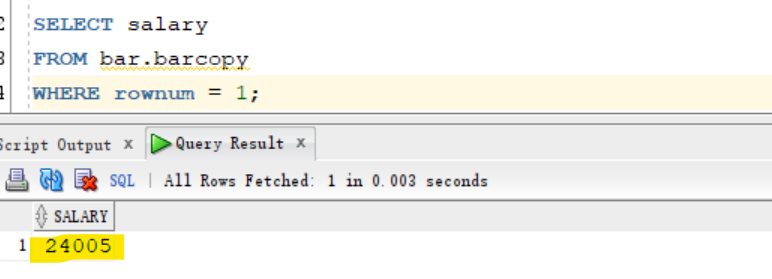

• Confirm the data in the table
  • Query the first row’s salary after recovery
  • the return value has been change from 24009 to 24005, indicating the loss of data in between.

SELECT salary
FROM bar.barcopy
WHERE rownum = 1;

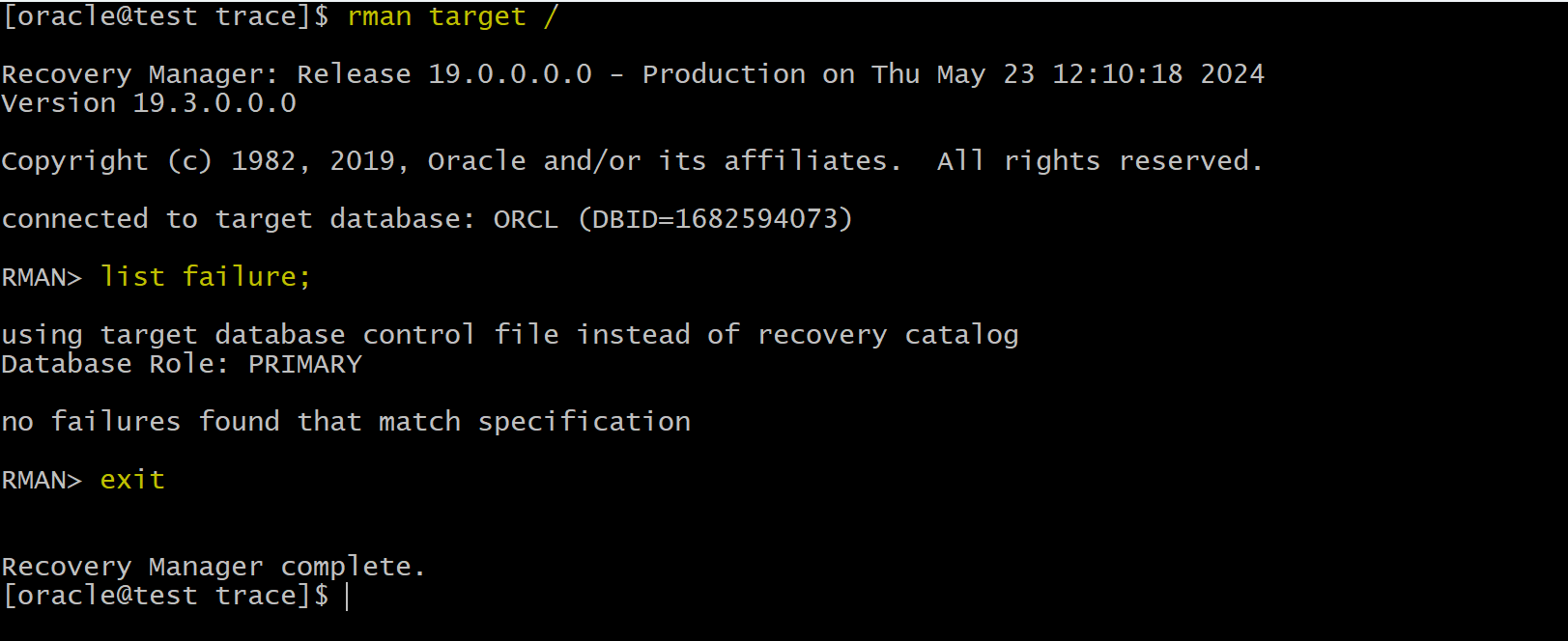

• Confirm in RMAN

rman target /
list failure;
exit

---

Update Recovery Catalog

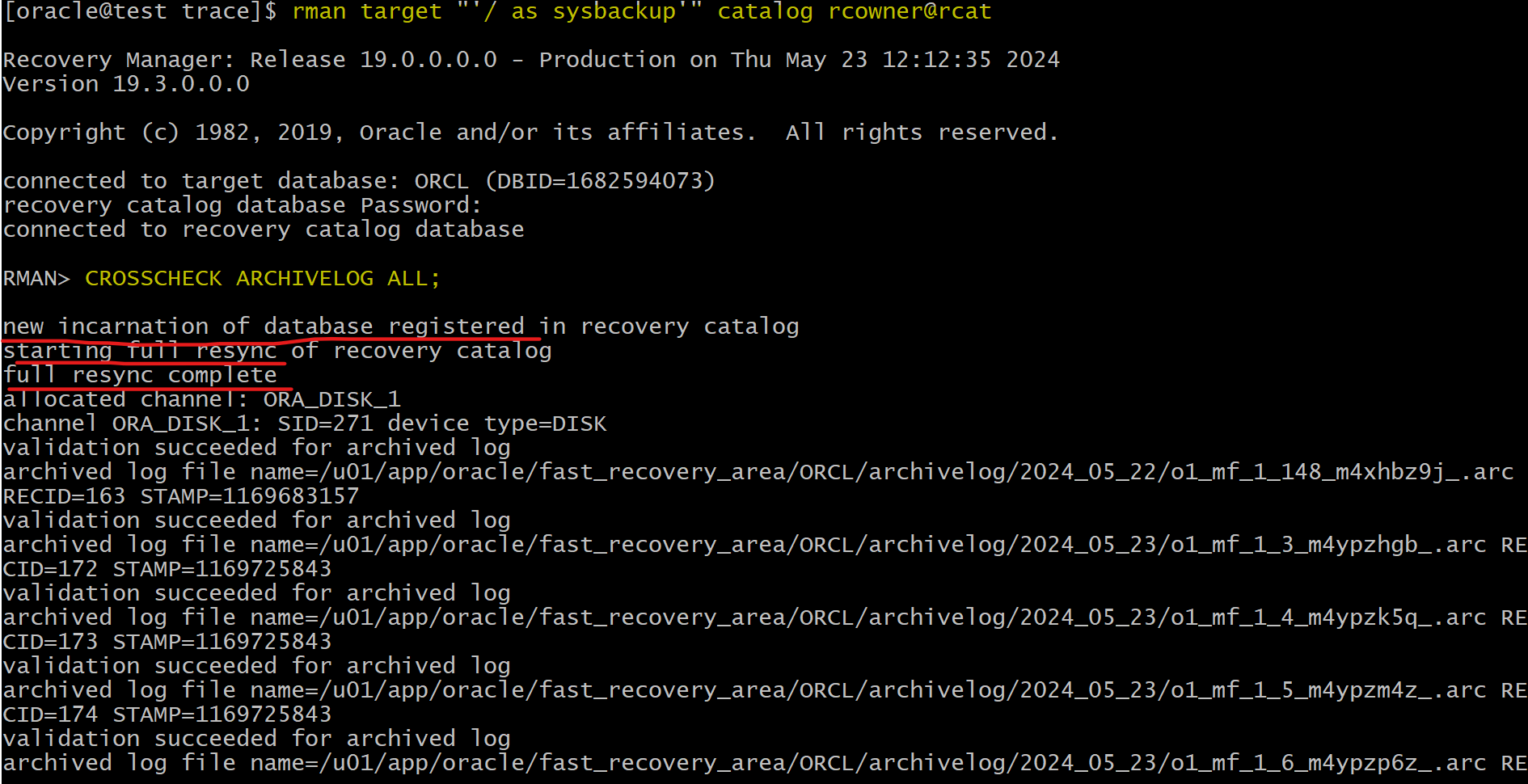

• crosscheck all archive logs connected to the recovery catalog.
  • new incarnation of database registered in recovery catalog
  • the older backups become obsolete,

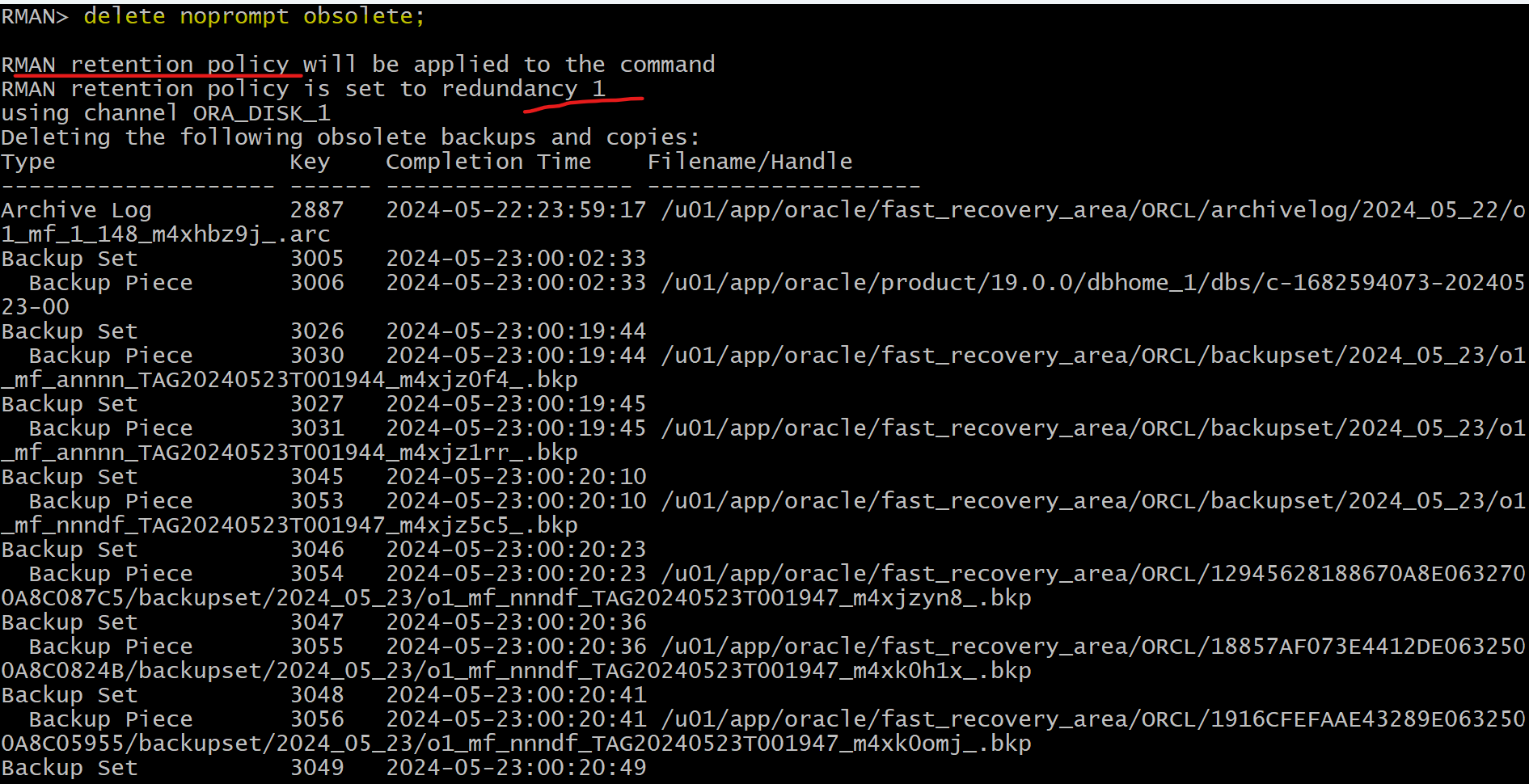

  • Delete obsolete backups

rman target "'/ as sysbackup'" catalog rcowner@rcat

CROSSCHECK ARCHIVELOG ALL;
-- Delete obsolete backups
delete noprompt obsolete;

• Perform full database backup after recovery.
  • Incomplete recovery will create a new incarnation of the database and the older backups are obsolete, although there are certain cases where the older backups can be used.
  • A new incarnation of the database was created when the RESETLOGS command was executed.

BACKUP DATABASE PLUS ARCHIVELOG delete input;
exit;

---

Clearup

• Drop user and tbsp

DROP USER bar CASCADE;
DROP TABLESPACE bartbs INCLUDING CONTENTS AND DATAFILES;

---
