Recovery - Media Failure

Back

• Recovery - Media Failure
  • Media Failure
  • Media Recovery
    • Complete Recovery Process
    • Point-in-Time Recovery Process
      • VS Flashback Database
  • Recovery with the RESETLOGS Option

---

Media Failure

• media failure:

  • any failure that results in the loss or corruption of one or more database files.
    • data file
    • control file
    • redo log file

• Typical Causes

  • Failure of disk drive
  • Failure of disk controller
  • Deletion or corruption of a file needed for database operation
  • Logical unit (LUN) in a storage array going offline

• Possible Solutions

  • 1. Restore the affected file from backup.
  • 1. Inform the database about a new file location (if necessary).
  • 1. Recover the file by applying redo information (if necessary).

---

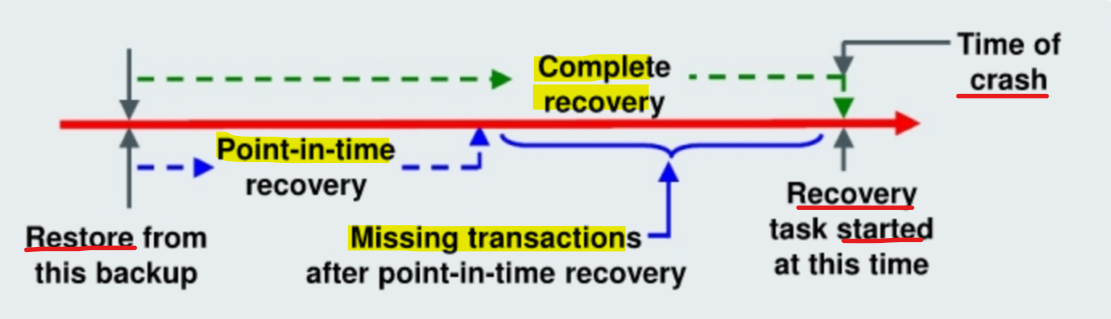

Media Recovery

• Recovery can have two kinds of scope:

  • Complete recovery:

    • Brings the database or tablespace up to the point of failure, including all committed data changes made up to the point of failure

  • Incomplete or point-in-time recovery (PITR):

    • Brings the database or tablespace up to a specified point in time in the past, before the recovery operation was requested.
    • some transactions is missing
      • any data modifications done between the recovery destination time and the present are lost.
    • Recovering to a point in the past is a way to remove the unwanted changes.

---

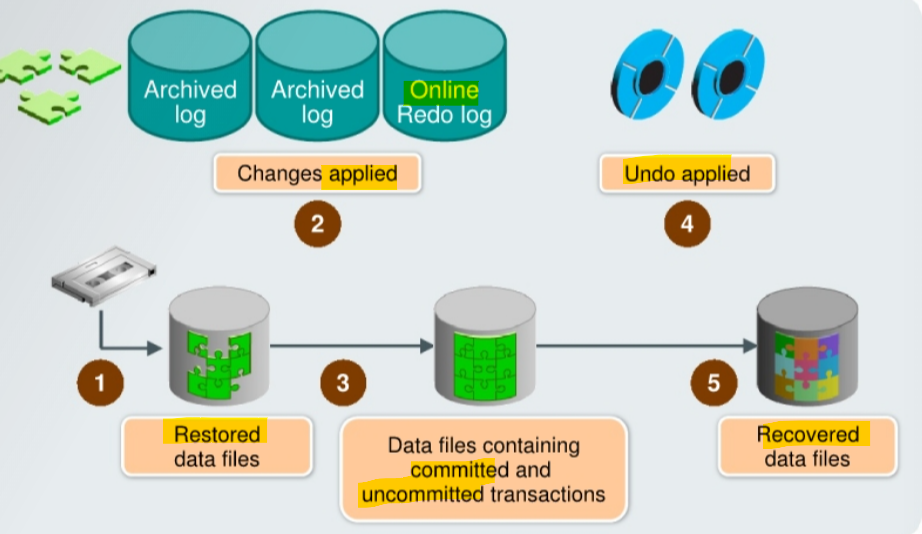

Complete Recovery Process

• steps in complete recovery:
  • 1. Damaged or missing files are restored from a backup.
  • 1. Changes from incremental backups, archived redo log files, and online redo log files are applied as necessary.
       • The redo log changes are applied to the data files until the current online log is reached and the most recent changes have been applied.
       • rolling forward / cache recovery: Undo blocks are generated during this entire process.
  • 1. The restored data files may now contain committed and uncommitted changes.
  • 1. transaction recovery: The undo blocks are used to roll back any uncommitted changes.
  • 1. The data files are now in a recovered state and are consistent with the other data files in the database.

---

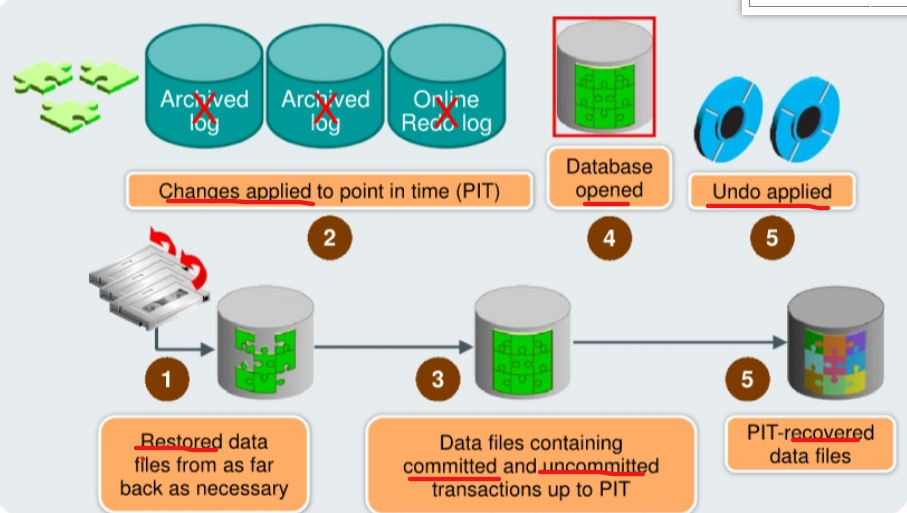

Point-in-Time Recovery Process

• Incomplete recovery / database point-in-time recovery (DBPITR)

  • uses a backup to produce a noncurrent version of the database.
  • do not apply all of the redo records generated after the most recent backup.

• Prerequisites:

  • A valid offline or online backup of all the data files made before the recovery point
  • All archived logs from the time of the backup until the specified time of recovery

• Steps
  • 1. Restore the data files from backup:
       • The backup that is used must be from before your target recovery point.
       • This entails copying files either by using OS commands or by using the RMAN RESTORE command.
  • 1. Use the RECOVER command:
       • Apply redo from the archived redo log files, including as many as necessary to reach the restore point destination.
  • 1. State of over-recovery:
       • Now the data files contain some committed and some uncommitted transactions because the redo can contain uncommitted data.
  • 1. Use the ALTER DATABASE OPEN command:
       • The database is opened before undo is applied. This is to provide higher availability.
  • 1. Apply undo data:
       • undo any uncommitted transactions.
  • 1. Process complete:

---

VS Flashback Database

• Oracle Flashback Database is the most efficient alternative to DBPITR.
• Flashback:
  • it operates at a physical level and reverts the current data files to their contents at a past
  • The result is like the result of a DBPITR, including OPEN RESETLOGS
  • typically faster:
    • it does not require you to restore data files and requires only limited application of redo compared to media recovery.

---

Recovery with the RESETLOGS Option

• Issue: Missing archive logs for target recovery SCN

• Workflow:

  1. Restore backups.
  2. Recover as far forward as the unbroken series of archive logs allows.
  3. Open the database with the RESETLOGS option.
     • A new database incarnation (new redo logs generated from this point of time) is automatically created to avoid confusion when two different redo streams have the same SCN, but occurred at different times.

• Note: Changes after the last applied archive log are lost.

• When an archived log is missing, which contains transactions that occurred sometime between the time of the backup you are restoring from and the target recovery SCN: 缺失 archived log 时
  • PITR with RESETLOGS option is the only option to perform a recovery and discover
  • Without the missing log, you have no record of the updates to your data files during that period. 因为缺失 archive, 所以无法更新到恢复时点, 只能使用 PITR, 然后以 RESETLOGS 打开 db 来重置 scn.

---
