Terraform - Module

Terraform - Module

Module

Modules
- containers for multiple resources that are used together.
- consists of a collection of .tf and/or .tf.json files kept together in a directory.
- the main way to package and reuse resource configurations with Terraform.
Typical module declaration

module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"
  version = "6.0.1"
}

Module Provider

Terraform Registry:
- Semantic：
  - NAMESPACE/MODULE_NAME/PROVIDER
  - ie: hashicorp/consul/aws
Terraform private registry:
- Semantic：
  - HOSTNAME/NAMESPACE/MODULE_NAME/PROVIDER
  - ie: registry.mycorp.com/myteam/mymodule/aws
  - Default hostanme: registry.terraform.io
- private registry requires to specify access token in config .terraform.rc
refer to a directory
- source = "./mymodule"
refer to a github
- source = "github.com/simonangelfong/mytfproject/vpc_module"
- if over SSH: source = "git@github.com:simonangelfong/mytfproject.git"
Also avaialbe:
- https, can be zip file
- s3 bucket, can be zip file

Passing input

Variable is used to pass input
Variable is only available within module that it is declared.

# defile a varialbe to get the input in a module
# /mymodule/variable.tf
variable "myValue" {
  default = "123"
}

# define input in the root
# /main.tf
module "mymodule" {
  source = "./mymodule"
  myValue = "123" # passing input
}

Getting output

root module only can access the output defined within a module.

# define output in a module
# /mymodule/output.tf
output "instance_public_ip" {
  value = aws_instance_myinstance_public_ip
}


# refer the output of module
# /main.tf
# define a module
module "mymodule" {
  source = "./mymodule"
  myValue = "123" # passing input
}

# refer the output of a module
module "other_module" {
  public_ip = module.mymodule.instance_public_ip  # refer to the output of a module
}

Module Registry

Module Registry
- a platform to found different modules that support terraform.
- https://registry.terraform.io/browse/modules
Version constraint
- follows semantic versioning: major.minor.patch
- version = ">= 1.2.0, < 2.0.0"
- Operators:
  - =: =1.0.0 / 1.0.0
  - !=: excludes a version
  - ~>: allows right most version to increment
    - ~> 1.2.3: match 1.2.4, 1.2.5, but not 1.3.0
    - ~> 1.2: match 1.3, 1.32, but not 2.0

Common Modules

Module	Refer
AWS VPC	https://registry.terraform.io/modules/terraform-aws-modules/vpc/aws/latest
AWS Instance	https://registry.terraform.io/modules/terraform-aws-modules/ec2-instance/aws/latest
AWS ECS	https://registry.terraform.io/modules/terraform-aws-modules/ecs/aws/latest
AWS EKS	https://registry.terraform.io/modules/terraform-aws-modules/eks/aws/latest

Root Module

Every Terraform configuration has at least one module
root module
- consists of the resources defined in the .tf files in the main working directory.

Published Modules

Terraform can load modules from a public or private registry.
- This makes it possible to publish modules for others to use, and to use modules that others have published.
The Terraform Registry hosts a broad collection of publicly available Terraform modules for configuring many kinds of common infrastructure.

Using Modules

Module Blocks documents the syntax for calling a child module from a parent module, including meta-arguments like for_each.
Module Sources documents what kinds of paths, addresses, and URIs can be used in the source argument of a module block.

Child Modules

A Terraform module (usually the root module of a configuration) can call other modules to include their resources into the configuration.
Child Modules
- A module called by another module.
- can be called multiple times within the same configuration, and multiple configurations can use the same child module.

Calling a Child Module

calling a module
- include the contents of that module into the configuration with specific values for its input variables.
Syntax

module "servers" {
    source = "./app-cluster"

    servers = 5
}

local name
- The label immediately after the module keyword
- can be used to refer to this instance of the module.
arguments
- Within the block body (between { and }) are the arguments for the module.
- source argument:
  - mandatory for all modules.
- version argument:
  - recommended for modules from a registry.
- Most other arguments correspond to input variables defined by the module.
- meta-arguments:
  - can be used with all modules, including for_each and depends_on.

Argument

Arguments
- items declared within the block body (between { and }).

Variable: declare the input for module
Output: declare the module output, which can be used for other modules.
- ie. module.mymodule.myvalue

Count

count
Example

# count with condition
module "my_module_condition" {
  count = var.enable_my_module? 1:0
}

# count with list
module "my_module_list" {
  count = ["instance1","instance2","instance3"]
}

# Actual resources:
module.my_module_list[0].resource
module.my_module_list[1].resource
module.my_module_list[2].resource

Problem of count with list
- assume count = [0,1,2] and created resource[0],resource[1], resource[2]
- when resource[1] is removed, then resource[2] will be rebuilt.
- Solution:
  - using tf state mv old_name new_name to rename resource[2] to resource[1], instead of resource[2] being destroyed and resource[1] being rebuilt.

for_each in module

Example

locals {
  mymap = {
    instance1 = "instance1 data "
    instance2 = "instance2 data "
    instance3 = "instance3 data "
  }
}

module "my_module" {
  for_each = local.mymap
  instance_name = each.key
}
# actual resource
module.my_module["instance1"].resource
module.my_module["instance2"].resource
module.my_module["instance3"].resource

Even removing instance2, it would be fine.
If the instance2 key in mymap is renamed instance20, then the resource instance2 will be destroyed and instance20 will be created.
Example

variable "conditions" {
  type = list(object({
    field = string
    values = list(string)
  }))
  default = [
    {
      field = "host-header"
      values = ["mydomain.com", "www.mydomain.com"]
    }
  ]
}

resource "aws_lb_listener_rule" "alb_rule"{
  # ...

  # delare condition block
  dynamic condition{
    for_each = var.conditions
    content{
      # declare nested host_header block
      dynamic host_header {
        for_each = condition.value.field == "host-header" ? [1] : []
        content{
          values = condition.value.values
        }
      }
    }
  }
}

# actual resource
resource "aws_lb_listener_rule" "alb_rule"{
  condition{
    host_header {
      values = ["mydomain.com", "www.mydomain.com"]
    }
  }
}

Lab: Create SSM parameters with for_each

Create Module

/ssm-parameter/
/ssm-parameter/ssm-parameter.tf

# Variable
variable "name" {}
variable "value" {}

# ##############################
# SSM parameter
# ##############################
resource "aws_ssm_parameter" "param" {
  name  = var.name
  type  = "String"
  value = var.value
}

# Module output
output "param_arn" {
  value = aws_ssm_parameter.param.arn
}

/main.tf

provider "aws" {
  region = "ca-central-1"
}

# Define local variables
locals {
  my_param = {
    env     = "dev"
    version = "1.0"
    mykey   = "myval"
  }
}

# define module
module "param_module" {
  source   = "./ssm-parameter"

  # loop map varialbe
  for_each = local.my_param
  name     = each.key   # pass key
  value    = each.value # pass value
}

# module output
output "all-parameters"{
  # customized output as a map
  value = {for k, p in module.param_module: k => p.param_arn}
}

Apply

terraform init
terraform apply

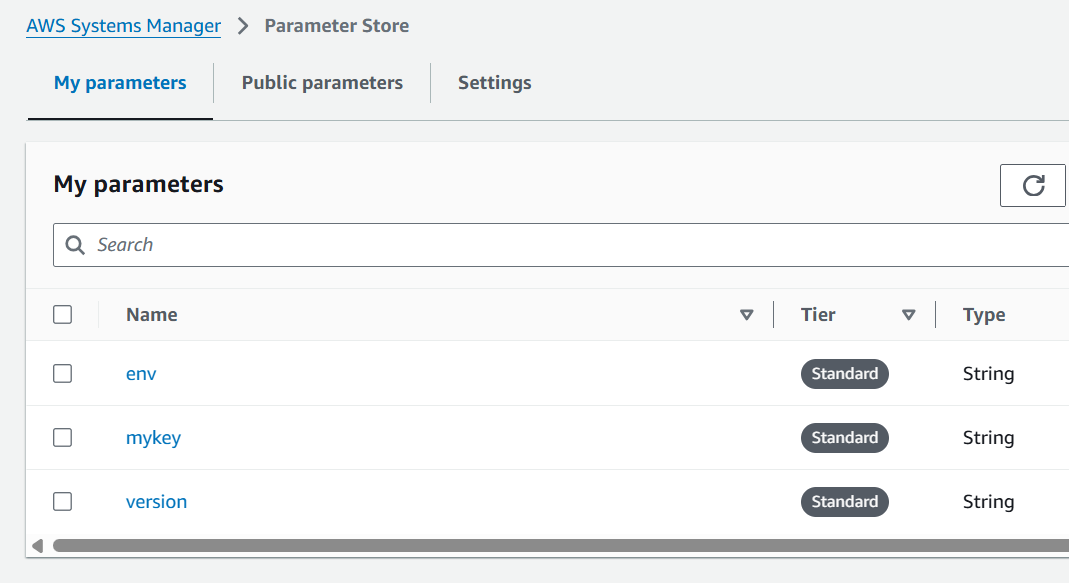

Confirm

terraform console
# confirm a specific parameter
module.param_module["mykey"].param_arn
# param_arn" = "arn:aws:ssm:******************:parameter/mykey

# loop all parameters
[ for k, p in module.param_module: p.param_arn]
# [
#   "arn:aws:ssm::******************::parameter/env",
#   "arn:aws:ssm::******************::parameter/mykey",
#   "arn:aws:ssm::******************::parameter/version",
# ]

# output as map
{for k, p in module.param_module: k => p.param_arn}
{
  "env" = "arn:aws:ssm::******************::parameter/env"
  "mykey" = "arn:aws:ssm::******************::parameter/mykey"
  "version" = "arn:aws:ssm::******************::parameter/version"
}

Lab: Complex data type and flatten() function

Complex Data Type + flatten()

/main.tf

locals {
  my_param = [
    {
      "prefix" = "/myprefix"
      "parameters" = [
        {
          "name"  = "myparameter"
          "value" = "myvalue"
        },
        {
          "name"  = "env"
          "value" = "dev"
        }
      ]
    },
    {
      "prefix" = "/myapp"
      "parameters" = [
        {
          "name"  = "env"
          "value" = "prod"
        }
      ]
    }
  ]
}

Explore data type using console

terraform concolse
# get all prefix
[ for p in local.my_param: p.prefix ]
# [
#   "/myprefix",
#   "/myapp",
# ]

# custom paramters: concatenate prefix with name
[ for p in local.my_param: [ for kv in p.parameters: {"name" = "${p.prefix}/${kv.name}", "value" = kv.value} ] ]
# [
#   [
#     {
#       "name" = "/myprefix/myparameter"
#       "value" = "myvalue"
#     },
#     {
#       "name" = "/myprefix/env"
#       "value" = "dev"
#     },
#   ],
#   [
#     {
#       "name" = "/myapp/env"
#       "value" = "prod"
#     },
#   ],
# ]

# flatten function: to convert the above into a list
flatten([ for p in local.my_param: [ for kv in p.parameters: {"name" = "${p.prefix}/${kv.name}", "value" = kv.value} ] ])
# [
#   {
#     "name" = "/myprefix/myparameter"
#     "value" = "myvalue"
#   },
#   {
#     "name" = "/myprefix/env"
#     "value" = "dev"
#   },
#   {
#     "name" = "/myapp/env"
#     "value" = "prod"
#   },
# ]

Update module

/ssm-parameter/ssm-parameter.tf

# ##############################
# Variable
# ##############################
variable "parameters" {
  type = list(object(
    {
      prefix = string
      parameters = list(object(
        {
          name  = string
          value = string
        })
      )
    }
    )
  )

  default = []
}

# ##############################
# Extract data from variable using flatten function
# ##############################
locals {
  parameters = flatten([
    for p in var.parameters : [
      for kv in p.parameters :
      {
        "name"  = "${p.prefix}/${kv.name}"
        "value" = kv.value
      }
    ]
    ]
  )
}

# ##############################
# SSM parameter
# ##############################
resource "aws_ssm_parameter" "param" {
  for_each = { for kv in local.parameters : kv.name => kv.value }
  name     = each.key
  type     = "String"
  value    = each.value
}

/main.tf

# Define complex data type to pass to module
locals {
  my_param = [
    {
      "prefix" = "/myprefix"
      "parameters" = [
        {
          "name"  = "myparameter"
          "value" = "myvalue"
        },
        {
          "name"  = "env"
          "value" = "dev"
        }
      ]
    },
    {
      "prefix" = "/myapp"
      "parameters" = [
        {
          "name"  = "env"
          "value" = "prod"
        }
      ]
    }
  ]
}

# module
module "param_module" {
  source     = "./ssm-parameter"
  parameters = local.my_param
}

Apply

terraform init
terraform apply

terraform state list
# module.param_module.aws_ssm_parameter.param["/myapp/env"]
# module.param_module.aws_ssm_parameter.param["/myprefix/env"]
# module.param_module.aws_ssm_parameter.param["/myprefix/myparameter"]

Refactor

Rename a resource

resource "aws_ssm_parameter" "myparam" {
  type     = "String"
  name     = "env"
  value    = "test"
}

Show state

terraform state list
# aws_ssm_parameter.myparam

Inform tf the resource has new name but is not to destroy and recreate.

resource "aws_ssm_parameter" "new_myparam" {
  type     = "String"
  name     = "env"
  value    = "test"
}

moved {
  from  = aws_ssm_parameter.myparam
  to    = aws_ssm_parameter.new_myparam
}

Refresh

terraform refresh
# aws_ssm_parameter.new_myparam: Refreshing state... [id=env]
terraform state list
# aws_ssm_parameter.new_myparam

Add `count`

resource "aws_instance" "web" {
  count         = 2
  ami           = ""
  instance_type = ""

  tags = {
    Name = "web instance"
  }
}

Apply and list state

terraform apply
terraform state list
# aws_instance.web

Add count and rename

resource "aws_instance" "web" {
  count         = 2
  ami           = ""
  instance_type = ""

  tags = {
    Name = "web instance"
  }
}

moved {
  from = aws_ssm_parameter.web
  to   = aws_ssm_parameter.web[0]
}

Apply and list state

terraform apply
terraform state list
# aws_instance.web[0]
# aws_instance.web[1]

Add `for_each`

resource "aws_instance" "web" {
  count         = 2
  ami           = ""
  instance_type = ""

  tags = {
    Name = "web instance"
  }
}

Apply and list state

terraform apply
terraform state list
# aws_instance.web

Add count and rename

variable "arch_ami" {
  default = {
    amazon_linux = { ami = "ami-06131bddb5c4ff9ac" }
    ubuntu       = { ami = "ami-0c0a551d0459e9d39" }
  }
}

resource "aws_instance" "web" {
  for_each = var.arch_ami
  ami      = each.value.ami
  instance_type = "t2.micro"

  tags = {
    Name = "web instance ${each.key}"
  }
}

moved {
  from = aws_instance.web
  to   = aws_instance.web["ubuntu"]
}

Apply and list state

terraform apply
terraform state list
# aws_instance.web["amazon_linux"]
# aws_instance.web["ubuntu"]

Rename Module

module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"
  version = "6.0.1"
}

Apply

terraform init
terraform apply
terraform state list
# module.vpc.aws_vpc.this[0]

Rename and refresh

module "vpc-new" {
  source = "terraform-aws-modules/vpc/aws"

  name = "my-vpc"
  cidr = "10.0.0.0/16"
}

moved {
    from = module.vpc
    to = module.vpc-new
}

Refresh

terraform refresh
# module.vpc-new.aws_vpc.this[0]: Refreshing state...
terraform state list
# module.vpc-new.aws_vpc.this[0]

Add `count` with module

module "ec2-instance" {
  source  = "terraform-aws-modules/ec2-instance/aws"
  version = "6.0.2"

  instance_type = "t2.micro"
  subnet_id     = ""
  ami           = ""
  name          = "web"
}

Apply

terraform init
terraform apply
terraform state list
# module.ec2-instance.aws_instance.this[0]

Add count

module "ec2-instance" {
  count = 2
  source  = "terraform-aws-modules/ec2-instance/aws"
  version = "6.0.2"

  instance_type = "t2.micro"
  subnet_id     = ""
  ami           = ""
  name          = "web"
}

moved {
  from = module.ec2-instance
  to   = module.ec2-instance[1]
}

Apply and list state

terraform state list
# module.ec2-instance[0].aws_instance.this[0]
# module.ec2-instance[1].aws_instance.this[0]

Refactor from resource to module

resource "aws_instance" "web" {
  ami           = "ami-06131bddb5c4ff9ac"
  instance_type = "t2.micro"
  subnet_id     = ""

  tags = {
    Name = "web instance"
  }
}

refactor

module "instance" {
  source        = "terraform-aws-modules/ec2-instance/aws"
  name          = "web-instance"
  ami           = "ami-06131bddb5c4ff9ac"
  instance_type = "t2.micro"
  subnet_id     = "subnet-072bd92fbc35ffaca"
}

moved {
  from = aws_instance.web
  to   = module.instance.aws_instance.web-instance
}

Refresh

terraform refresh
terraform state list
# module.instance.aws_instance.web-instance

Note_Tech

Terraform - Module

Module

Module Provider

Passing input

Getting output

Module Registry

Common Modules

Root Module

Published Modules

Using Modules

Child Modules

Calling a Child Module

Argument

Count

for_each in module

Lab: Create SSM parameters with for_each

Create Module

Apply

Lab: Complex data type and flatten() function

Complex Data Type + flatten()

Update module

Refactor

Rename a resource

Add count

Add for_each

Rename Module

Add count with module

Refactor from resource to module

Add `count`

Add `for_each`

Add `count` with module
