Terraform - State

Back

Terraform - State

Terraform State

Terraform state
- the data Terraform uses to map the configuration to the real-world resources it manages.
- keep track of metadata, it knows what exists and what needs to change.
terraform.tfstate
- a required JSON file that maps Terraform configuration to real-world infrastructure.
  - a json snapshot of terraform state.
- acts as the “source of truth,” tracking metadata, resource IDs, and dependencies so Terraform can efficiently manage, update, or destroy existing infrastructure rather than recreating it every time.
- created only when first apply terraform apply
- use terraform state, terraform import, terraform pull command for modifications

Common Commands

State management

Command	Description
`terraform refresh`	synchronize state file with the actual infrastructure
`terraform show`	Show the current state
`terraform state list`	Lists all resources in the Terraform state.
`terraform state show <resource>`	Displays detailed information about a specific resource in the Terraform state.
`terraform state mv <old_resource> <new_resource>`	Moves/Rename an item in the Terraform state.
`terraform state rm`	Removes items from the Terraform state.
`terraform state replace-provider`	Updates the provider for a resource in the state.
`terraform state pull`	retrieve the state from the remote state
`terraform state pull > backup.tfstate`	backup remote state
`terraform state push`	write the state to the remote state.
`terraform state push -force`	write the state to the remote state.

Taint the resource and recreate in next apply

Command	Description
`terraform taint resource_name`	Mark a resource instance as not fully funciontal
`terraform untaint resource_name`	Remove the ‘tainted’ state from a resource instance

Lab: Terraform State

Show state

main.tf

resource "aws_vpc" "main" {
  cidr_block = "10.0.0.0/16"
}

resource "aws_subnet" "main" {
  vpc_id     = aws_vpc.main.id
  cidr_block = "10.0.1.0/24"
}

terraform apply

terraform state list
# aws_subnet.main
# aws_vpc.main

terraform show
# # aws_subnet.main:
# resource "aws_subnet" "main" {
#     arn                                            = "arn:aws:ec2:ca-central-1:099139718958:subnet/subnet-0dd8e689541b8932f"
#     assign_ipv6_address_on_creation                = false
#     availability_zone                              = "ca-central-1d"
#     availability_zone_id                           = "cac1-az4"
#     cidr_block                                     = "10.0.1.0/24"
#     customer_owned_ipv4_pool                       = null
#     enable_dns64                                   = false
#     enable_lni_at_device_index                     = 0
#     enable_resource_name_dns_a_record_on_launch    = false
#     enable_resource_name_dns_aaaa_record_on_launch = false
#     id                                             = "subnet-0dd8e689541b8932f"
#     ipv6_cidr_block                                = null
#     ipv6_cidr_block_association_id                 = null
#     ipv6_native                                    = false
#     map_customer_owned_ip_on_launch                = false
#     map_public_ip_on_launch                        = false
#     outpost_arn                                    = null
#     owner_id                                       = "099139718958"
#     private_dns_hostname_type_on_launch            = "ip-name"
#     region                                         = "ca-central-1"
#     tags_all                                       = {}
#     vpc_id                                         = "vpc-0990959cf08b033a0"
# }

# # aws_vpc.main:
# resource "aws_vpc" "main" {
#     arn                                  = "arn:aws:ec2:ca-central-1:099139718958:vpc/vpc-0990959cf08b033a0"
#     assign_generated_ipv6_cidr_block     = false
#     cidr_block                           = "10.0.0.0/16"
#     default_network_acl_id               = "acl-0154c16862eb0e3b8"
#     default_route_table_id               = "rtb-0f55d3f64d8c00841"
#     default_security_group_id            = "sg-044e2fc72add880ef"
#     dhcp_options_id                      = "dopt-077605ecfdd0f617f"
#     enable_dns_hostnames                 = false
#     enable_dns_support                   = true
#     enable_network_address_usage_metrics = false
#     id                                   = "vpc-0990959cf08b033a0"
#     instance_tenancy                     = "default"
#     ipv6_association_id                  = null
#     ipv6_cidr_block                      = null
#     ipv6_cidr_block_network_border_group = null
#     ipv6_ipam_pool_id                    = null
#     ipv6_netmask_length                  = 0
#     main_route_table_id                  = "rtb-0f55d3f64d8c00841"
#     owner_id                             = "099139718958"
#     region                               = "ca-central-1"
#     tags                                 = {}
#     tags_all                             = {}
# }

terraform state show aws_vpc.main
# # aws_vpc.main:
# resource "aws_vpc" "main" {
#     arn                                  = "arn:aws:ec2:ca-central-1:099139718958:vpc/vpc-0990959cf08b033a0"
#     assign_generated_ipv6_cidr_block     = false
#     cidr_block                           = "10.0.0.0/16"
#     default_network_acl_id               = "acl-0154c16862eb0e3b8"
#     default_route_table_id               = "rtb-0f55d3f64d8c00841"
#     default_security_group_id            = "sg-044e2fc72add880ef"
#     dhcp_options_id                      = "dopt-077605ecfdd0f617f"
#     enable_dns_hostnames                 = false
#     enable_dns_support                   = true
#     enable_network_address_usage_metrics = false
#     id                                   = "vpc-0990959cf08b033a0"
#     instance_tenancy                     = "default"
#     ipv6_association_id                  = null
#     ipv6_cidr_block                      = null
#     ipv6_cidr_block_network_border_group = null
#     ipv6_ipam_pool_id                    = null
#     ipv6_netmask_length                  = 0
#     main_route_table_id                  = "rtb-0f55d3f64d8c00841"
#     owner_id                             = "099139718958"
#     region                               = "ca-central-1"
#     tags                                 = {}
#     tags_all                             = {}
# }

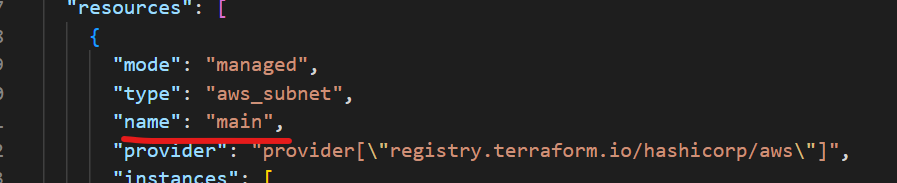

state file

Rename State

update resource name

resource "aws_subnet" "main_subnet" {
  vpc_id     = aws_vpc.main.id
  cidr_block = "10.0.1.0/24"
}

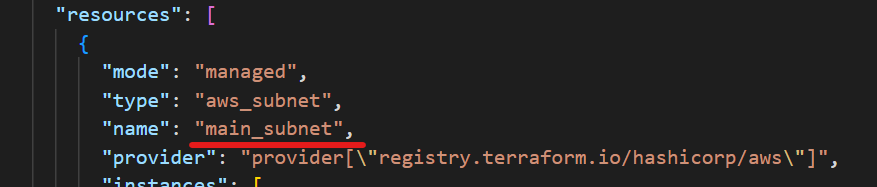

Rename resource state

# rename old_name new_name
terraform state mv aws_subnet.main aws_subnet.main_subnet
# Move "aws_subnet.main" to "aws_subnet.main_subnet"
# Successfully moved 1 object(s).

# confirm
terraform state list
# aws_subnet.main_subnet
# aws_vpc.main

Remove State

# remove subnet
terraform state rm aws_subnet.main_subnet
# Removed aws_subnet.main_subnet
# Successfully removed 1 resource instance(s).

terraform state list
# aws_vpc.main

Lockfile

lockfile
- a configuration file that tracks and “locks” the exact versions and checksums of the providers used in your project.
.terraform.lock.hcl
- Manages provider versions and security.
- created when the command terraform init is issued.
- updated when the provider is changed terraform init -upgrade
- lockfile should be committed to git
  - the re-run of terraform will use the same provider/module, especially when terraform is ran by other members.

S3 Bucket Lock

use_lockfile:
- Whether to use a lockfile for locking the state file.
- Defaults to false.

terraform {
 backend "s3" {
    bucket         = "your-terraform-state-bucket"
    key            = "path/to/your/statefile.tfstate"
    region         = "us-east-1"
    encrypt        = true
    use_lockfile   = true # Enables S3 native locking
  }
}

Troubleshotting

sometime, when terraform crashes, or a users’ internet connection breaks during terraform apply, the lock will stay.
can use terraform force-unlock state_id to unlock the state.
- it is safe, because it does not touch the state, just remove the lock file.
option: terraform apply -lock=false to indicate tf not to use the lock file.
- not recommanded, only used when the locking is not working.
