ArgoCD - Fundamental

Back

• ArgoCD - Fundamental
  • traditional deployment flow
  • GitOps
    • Pull Model
  • ArgoCD
    • Core Concepts
  • Remote Cluster
    • Authentication
  • Best Practices
    • Repositories Separation
    • Environments Manifest
    • Common Practices

---

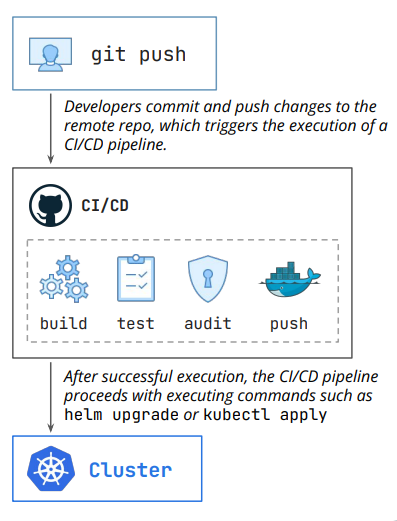

traditional deployment flow

• Key steps:
  • starts with git push
    • Developers commit and push changes to the remote repo, which triggers the execution of a CI/CD pipeline.
  • trigger CI/CD pipeline
    • build > test > audit > push
  • Apply to cluster
    • the CI/CD pipeline proceeds with executing commands such as helm upgrade or kubectl apply

---

• drawbacks
  • Configuration Drift
    • What happens if a developer runs kubectl scale deployment my-app –replicas=0 directly in the cluster?
      • The live state of the cluster is now different from the configuration stored in Git.
      • Nobody knows what the real desired state is.
      • Git says one thing, but the cluster is doing another.
  • Poor Auditability
    • How do you know who scaled the deployment and why? There’s little to no audit trail.
    • The “source of truth” is just the current state of the cluster, with no history.
  • Difficult Rollbacks
    • Reverting a bad deployment is often not straightforward, especially when multiple services are involved.
    • It often requires a high-stress, manual process of finding the last good artifact and re-running a pipeline.
    • This is slow and highly prone to human error during an outage.
  • Inconsistent Deployments and Configuration
    • Since configuration might drift, it becomes increasingly harder to have a clear view of each environment configuration, also opening the door to bigger problems when promoting a certain release from a lower to a higher environment.
• Traditional

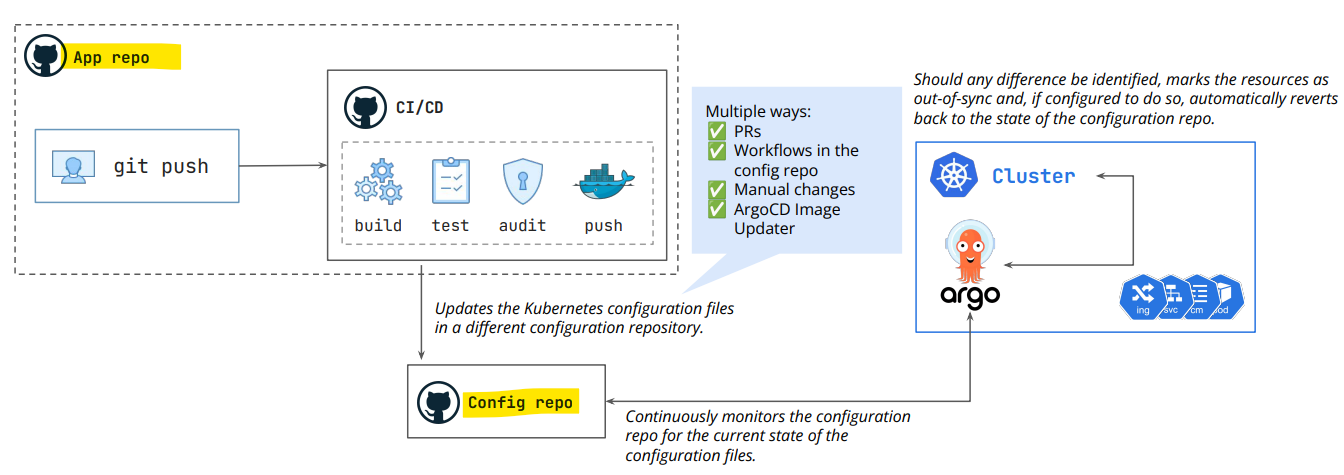

• GitOps

---

GitOps

• GitOps
  • an operational framework that uses Git repositories as the “single source of truth” to define, manage, and deploy infrastructure and applications.
• Principles of GitOps
  • Declarative Infrastructure:
    • The desired state of the system is defined declaratively (e.g., Kubernetes YAML files) rather than through manual, imperative commands.
  • Versioned and Immutable:
    • The desired state is stored in a way that enforces immutability, versioning and retains a complete version history.
  • Automated Synchronization:
    • Software agents (e.g., in the cluster) automatically pull changes from the Git repository and update the live environment, eliminating manual deployment steps.
  • Continuous Reconciliation:
    • The system constantly monitors for discrepancies between the Git repository and the actual state, automatically correcting any drift to ensure alignment.

---

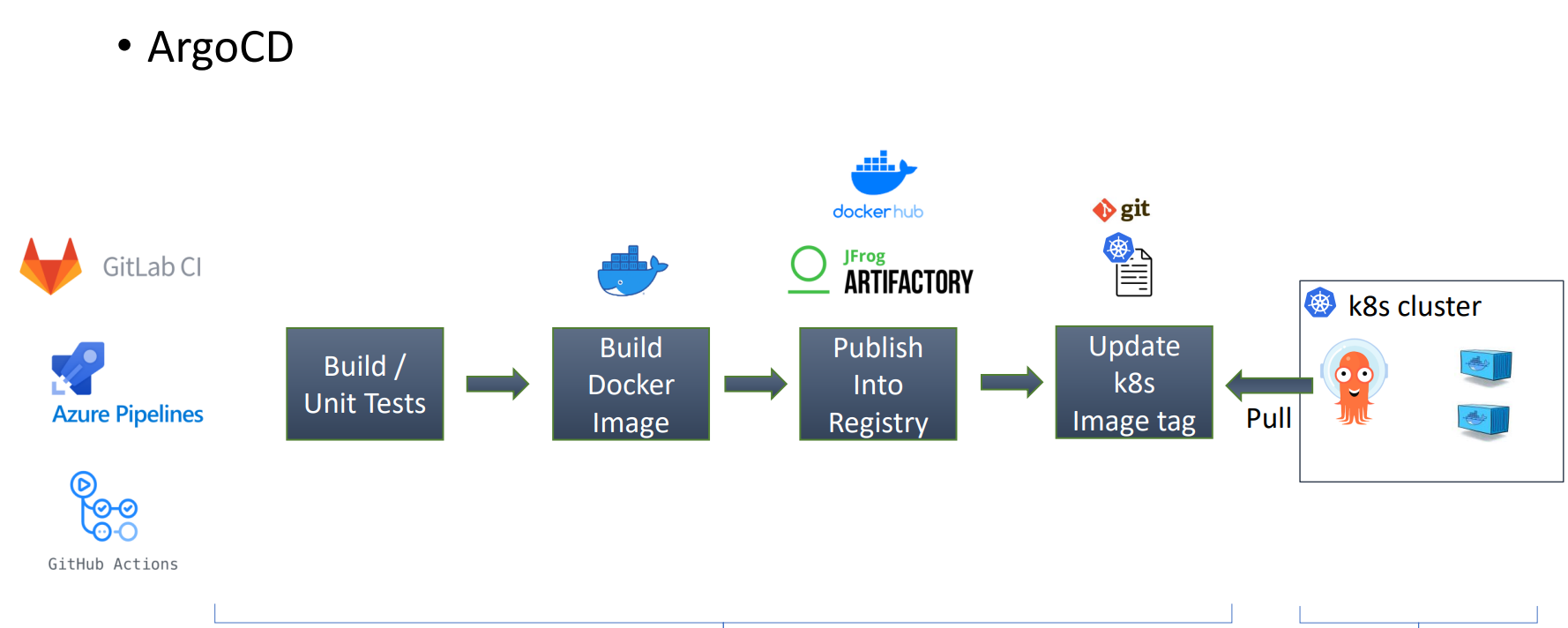

Pull Model

• pull model
  • a deployment strategy where an in-cluster agent (like Argo CD or Flux) continuously monitors a Git repository for changes and pulls them to synchronize the environment’s actual state with the desired state. I

• Sample flow: Full release

• dev commit changes to main branch
• Trigger main pipeline
  • build
  • test
  • code analysis
  • docker build
  • docker push
  • update test manifests
• Argo sync changes to test env
• postsysnc trigger test-staging pipeline
  • integration test
  • security test
  • dast testing
  • update staging manifests
• if pass, create merge request to update staging env
• Argo sync changes to staging env
• postsysnc trigger staging-prod pipeline
  • performance test
  • pen test
  • manual test
  • UAT
  • update prod manifests
• if pass, create a merge request to update prod env
• if Approval, Argo sync changes to prod env

---

ArgoCD

• ArgoCD
  • a GitOps continues delivery tool for Kubernetes.
• Not a CI tool

• Features
  • Git as the source of truth.
    • Developer and DevOps engineer will update the Git code only.
  • Keep your cluster in sync with Git.
  • Easy rollback.
  • More security : Grant access to ArgoCD only.
  • Disaster recovery solution : You easily deploy the same apps to any k8s cluster.

---

Core Concepts

• Application
  • a Kubernetes Custom Resource Definition (CRD) that defines the desired state of an application in a target cluster, sourcing its configuration (YAML, Helm, Kustomize) from a Git repository.
  • the unit of deployment and tracking, enabling GitOps by monitoring for differences between the Git repository and the cluster.
• Source :
  • Helm charts
  • Kustomize application
  • k8s manifests
  • jsonnet
• Destination: cluster and namespace.

---

• Projects
  • provide a logical grouping of applications.
  • a logical grouping of applications used to organize, restrict, and manage access in multi-tenant environments.
  • acts as a safety boundary, defining which Git repositories can be used, where applications can be deployed (clusters/namespaces), and which users can perform actions via RBAC.
• Use case:
  • when ArgoCD is used by multiple teams.

---

• Desired state vs Actual state
• Desired state:
  • the definitive version of what Kubernetes resources should look like, as defined by the manifests stored in Git repository.
• Actual state:
  • what is currently running in Kubernetes cluster.
• Sync
  • the process that reconciles the desired state of an application (defined in Git) with its actual state in a Kubernetes cluster.
  • makes the live cluster match the Git repository, applying manifest changes, creating new resources, or deleting removed ones.
  • can be manual or automated.
• Refresh (Compare)
  • updates the application’s status by comparing the desired Git state with the live cluster state, without changing cluster resources.
  • By default, automatically refreshes every 3 minutes.

---

Remote Cluster

• By default, ArgoCD has the permission to deploy into the local cluster where its running.
• can add remote k8s clusters information including credentials as k8s secrets.
  • Each secret must have label of argocd.argoproj.io/secret-type: cluster
• Each cluster must have the below data:
  • Name.
  • Server (cluster api server url).
  • Config (an option to authenticate to the cluster).
  • namespaces (optional): comma-separated list of namespaces which are accessible in that cluster.
• can add remote clusters declarativly or using cli.

---

Authentication

• options to authenticate to remote clusters:
  • Basic authentication (username and password)
  • Bearer token authentication.
  • IAM authentication configuration (suitable for cloud k8s clusters).
  • External provider command to supply client credentials.

---

Best Practices

Repositories Separation

Separating application config repo from application code repo

• Cleaner Git history of what changes were made
• The application might consist of services that are distributed in multiple Git repositories, but is deployed as a single unit.
• Separation of access. Maintainers of application source code maybe not be the same as the maintainers of application config.
• Smaller overhead on Argo CD repo-controller, cloning config repo without the source code.

---

Environments Manifest

Types of environments:

• Static environments:
  • Test
  • Staging
  • Production
• On-demand environments :
  • created for a small period for feature testing.
  • Can be created once a pull request created and destroyed once the pull request is closed.

---

How to handle on-demand environments creation/deletion:

• On-demand environments can be created by two options
  • Option-1:
    • Use ApplicationSet Pull Request Generator, it will handle creating ArgoCD applications per open pull request. And it will be Argo CD application will be destroyed once Pull request is closed.
  • Option-2:
    • Single branch for on-demand environments, and a folder per environment and each folder will contain the related manifests. (You need to write a script using CI pipeline to create theses folders and manifests per Pull request).

---

How to handle static environments config?

• Approach #1: Single branch all static environments:
  • e.g, Main branch, contains the helm chart values files for-each static environment:
    • Values-test.yaml.
    • Values-staging.yaml.
    • Values-prod.yaml.
• Approach #2: Branch per static environment
  • Test branch.
  • Staging branch.
  • Production branch. (You can use tags or commits SHA for production environments)

---

Common Practices

• Immutable manifests
  • Use immutable manifests in production
  • Avoid using HEAD revision and use tags or commits SHA.
• Replicas and HPA
  • If you want HPA to control the number of replicas , then don’t include replicas in Git.
• Plan for secrets management
  • Don’t store plain secrets in git.
  • There are several solutions for secrets:
    • Within Git
      • Sealed secrets.
      • SOPS
    • External secrets store:
      • Hashicorp Vault
      • External Secrets Operator
      • Cloud secrets store
        • Aws secret operator
• Plan for ArgoCD Instances
  • Use a separated ArgoCD instance for production.
  • Use HA setup for production.
  • Its recommended to have at least two instances:
    • Non-prod instance.
    • Prod instance.
• App of Apps and ApplicationSet
  • Use app of apps to manage ArgoCD application.
  • Use Application Set and the power of generators to generate applications.
