ArgoCD - Sync Hook

ArgoCD - Sync Hook

Sync Phases & Hook

Sync Phases
- Specific stages of a sync operation

Phases	Description	Use cases
`PreSync`	Executes before any resources are applied.	DB migrations, schema updates, security checks
`Sync`	Default. Runs alongside standard application syncing.
`Skip`	Indicates to Argo CD to skip the application of the manifest.
`PostSync`	Executes after all resources are synced and healthy.	smoke tests, notifying Slack
`SyncFail`	Runs if the synchronization fails.fails.
`PreDelete`	Executes before the application is deleted.
`PostDelete`	Executes after the application is deleted.

Sync hooks
- the Kubernetes annotations argocd.argoproj.io/hook used by resources to specify custom logic at specific stages of an sync operation.
example

apiVersion: batch/v1
kind: Job
metadata:
  generateName: database-migrations
  annotations:
    argocd.argoproj.io/hook: PreSync

Hook Deletion Policies

hook deletion policies (argocd.argoproj.io/hook-delete-policy)
- annotations that dictate when automated task resources (like Jobs or Pods) are cleaned up after running.
- They ensure cluster cleanliness by automatically deleting completed hooks.
Policies include HookSucceeded, HookFailed, and BeforeHookCreation.

Policies	Description
`HookSucceeded`	Deletes the resource if it finishes successfully, but keeps it for debugging if it fails.
`HookFailed`	Deletes the resource if the hook fails.
`BeforeHookCreation`	Default policy; deletes any existing hook resource before creating a new one, ensuring a clean state for the new hook.

How to Use Them:
- Annotations are added to the resource metadata, typically to Kubernetes Jobs or Pods used for tasks like migrations, as shown in this Argo CD Resource Hooks Documentation.

Lab: Sync Hook

sync-hook/

apiVersion: batch/v1
kind: Job
metadata:
  name: db-migration-job
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: migration
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running db migration...'; sleep 20; echo 'Done'"
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: nginx
          image: nginx:1.14.2
          ports:
            - containerPort: 80

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: sync-job
  namespace: argocd
spec:
  project: default
  source:
    repoURL: "git@github.com:simonangel-fong/Demo_Helm_Private_Repo.git"
    targetRevision: HEAD
    path: sync-hook
  destination:
    server: "https://kubernetes.default.svc"
    namespace: default
  syncPolicy:
    syncOptions:
      - CreateNamespace=true

kubectl apply -f sync-hook.yaml

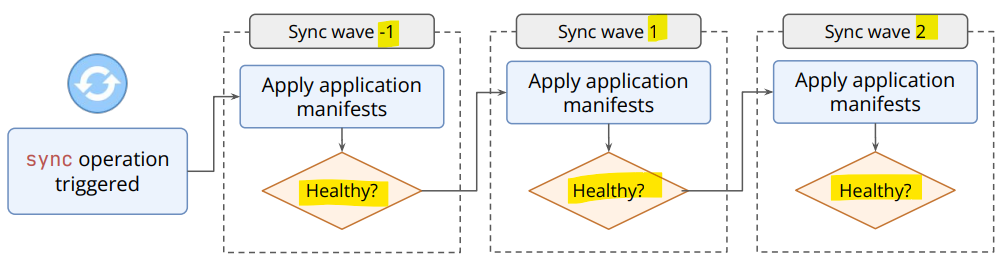

Sync Waves

Sync Waves
- an annotation-based feature (argocd.argoproj.io/sync-wave) that controls the order in which Kubernetes resources are applied to a cluster.
integer wave value
- a numerical annotation used to control the exact deployment order of Kubernetes resources.
  - Default Value: 0
Behavior:
- ArgoCD orders waves from the lowest integer to the highest.
  - Lower values: deployed first
  - negative numbers are allowed for pre-deployment
  - all resources in the same wave deploy in parallel.
- ArgoCD waits for all resources in one wave to be healthy before proceeding to the next.
  - If a resource in a wave fails to become healthy, the subsequent waves will not be deployed, causing the sync to “get stuck”.

Example:

metadata:
  annotations:
    argocd.argoproj.io/sync-wave: "5"

Sync waves and phases (hooks) can be combined!
- When specifying both options, Argo CD will apply the manifests and execute the operations following the Sync Wave order within each Sync Phase!
Example Scenario (Using Sync Waves):
- Wave -5: Namespaces, Network Policies.
- Wave -1: Persistent Volume Claims, ConfigMaps, Secrets.
- Wave 0 (Default): Database Deployment.
- Wave 1: Application Deployment.

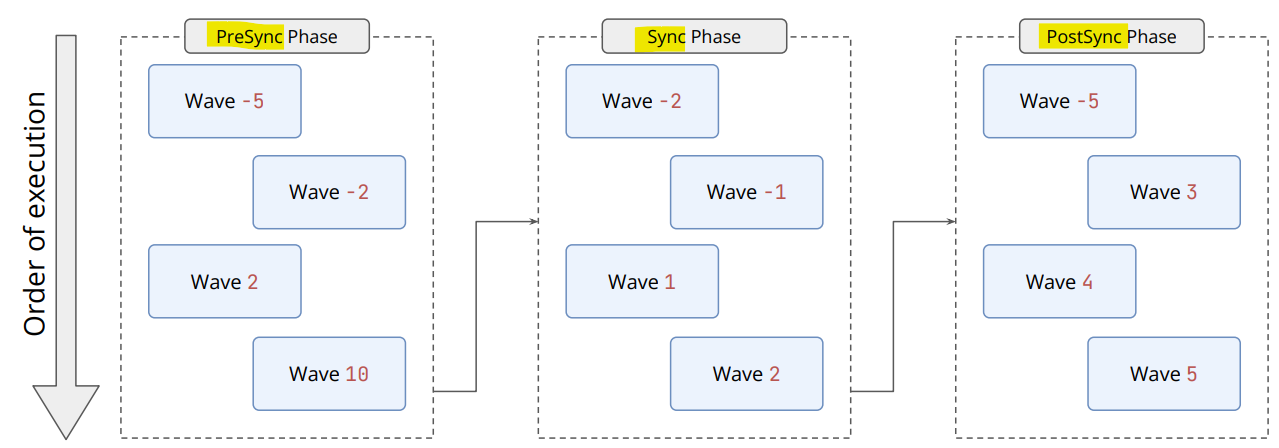

Sync Phases + Sync Waves

Order:

phase
wave, from lower values
By kind
By name
The Scenario: Deploying a Data-Driven Web AppPhase

PreSync: The Setup
1. Wave -1:
  - Create the Namespace so it definitely exists.
2. Wave 0:
  - Run a Database Migration job to update the schema.
  - Argo CD waits here until the migration is successful.
Phase 2: Sync (The Main Event)
1. Wave 1:
  - Deploy the Database and Redis cache.
  - Argo CD waits until the database is “Healthy” and ready for connections.
2. Wave 2:
  - Deploy the Backend API.
  - Argo CD waits until the API passes its readiness probe.
3. Wave 3:
  - Deploy the Frontend UI.
  - Since the API is already up, the UI won’t show “502 Bad Gateway” errors to users.
Phase 3: PostSync (The Wrap-up)
1. Wave 0:
  - Run a Smoke Test script to verify the website loads.
2. Wave 5:
  - Send a Slack Notification saying “Deployment Complete!”

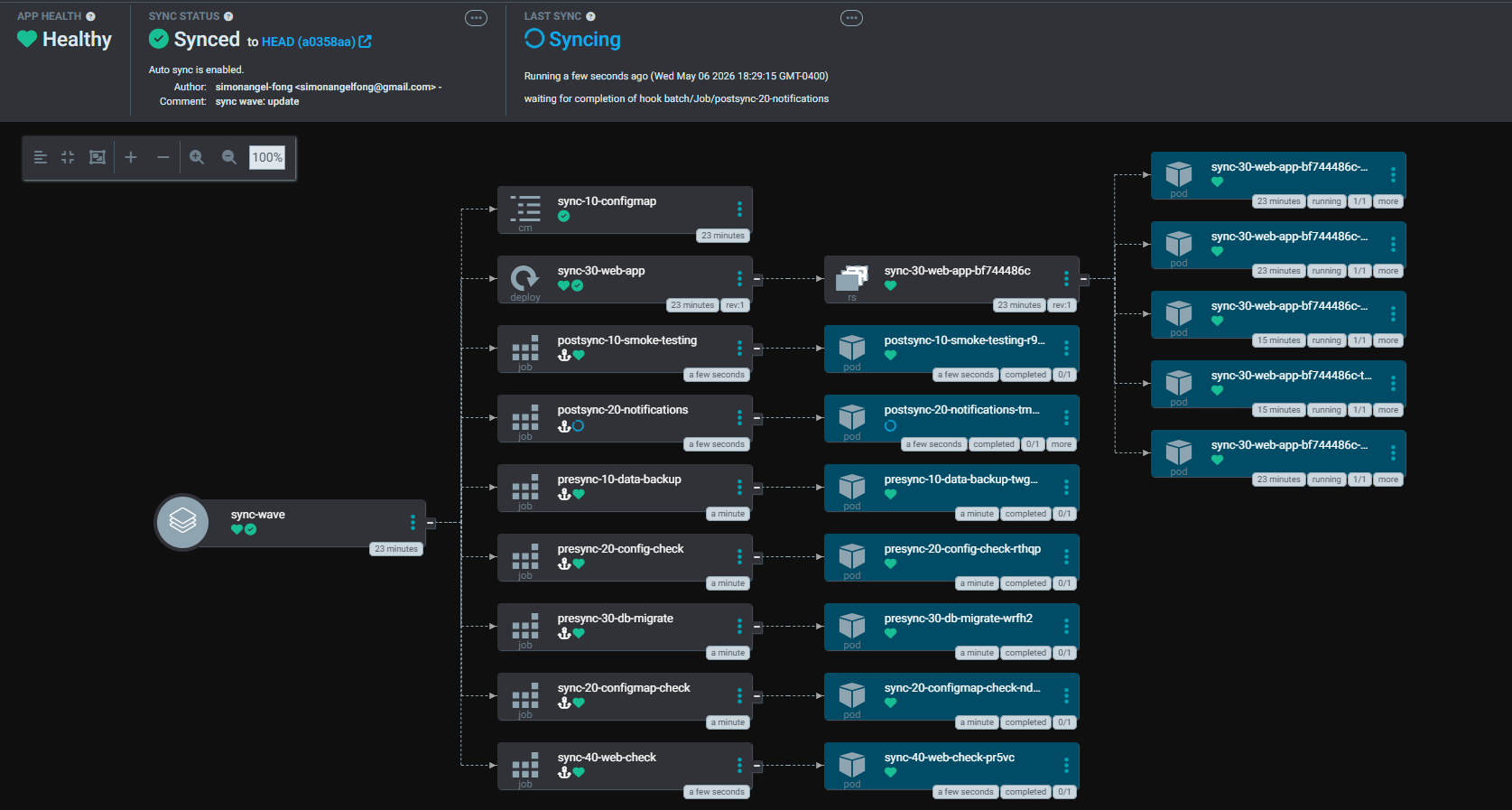

Lab: Sync Phases + Sync Waves

presync-10-job.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: presync-10-data-backup
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "10"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: data-backup
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running data-backup ...'; sleep 5; echo 'Done'"

presync-20-job.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: presync-20-config-check
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "20"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: config-check
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running config-check...'; sleep 5; echo 'Done'"

presync-30-job.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: presync-30-db-migrate
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "30"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: db-migrate
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running db-migrate...'; sleep 5; echo 'Done'"

sync-10-cm.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: sync-10-configmap
  annotations:
    argocd.argoproj.io/sync-wave: "10"
data:
  db_host: "pgdb"

sync-20-cm.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: sync-20-configmap-check
  annotations:
    argocd.argoproj.io/hook: Sync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "20"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: configmap-check
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running configmap-check...'; sleep 5; echo 'Done'"

sync-30-cm.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: sync-30-web-app
  labels:
    app: nginx
  annotations:
    argocd.argoproj.io/sync-wave: "30"
spec:
  replicas: 5
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: nginx
          image: nginx:1.14.2
          ports:
            - containerPort: 80

sync-40-cm.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: sync-40-web-check
  annotations:
    argocd.argoproj.io/hook: Sync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "40"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: web-check
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running web-check...'; sleep 5; echo 'Done'"

postsync-10-job.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: postsync-10-smoke-testing
  annotations:
    argocd.argoproj.io/hook: PostSync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "10"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: smoke-testing
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running smoke-testing...'; sleep 5; echo 'Done'"

postsync-20-job.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: postsync-20-notifications
  annotations:
    argocd.argoproj.io/hook: PostSync
    argocd.argoproj.io/hook-delete-policy: BeforeHookCreation, HookSucceeded
    argocd.argoproj.io/sync-wave: "20"
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: notifications
          image: busybox
          command:
            - "sh"
            - "-c"
            - "echo 'Running notifications...'; sleep 5; echo 'Done'"

kubectl apply -f sync-wave.yaml
# application.argoproj.io/sync-wave created
