Argo Rollout - with `Prometheus`

Argo Rollout - with Prometheus

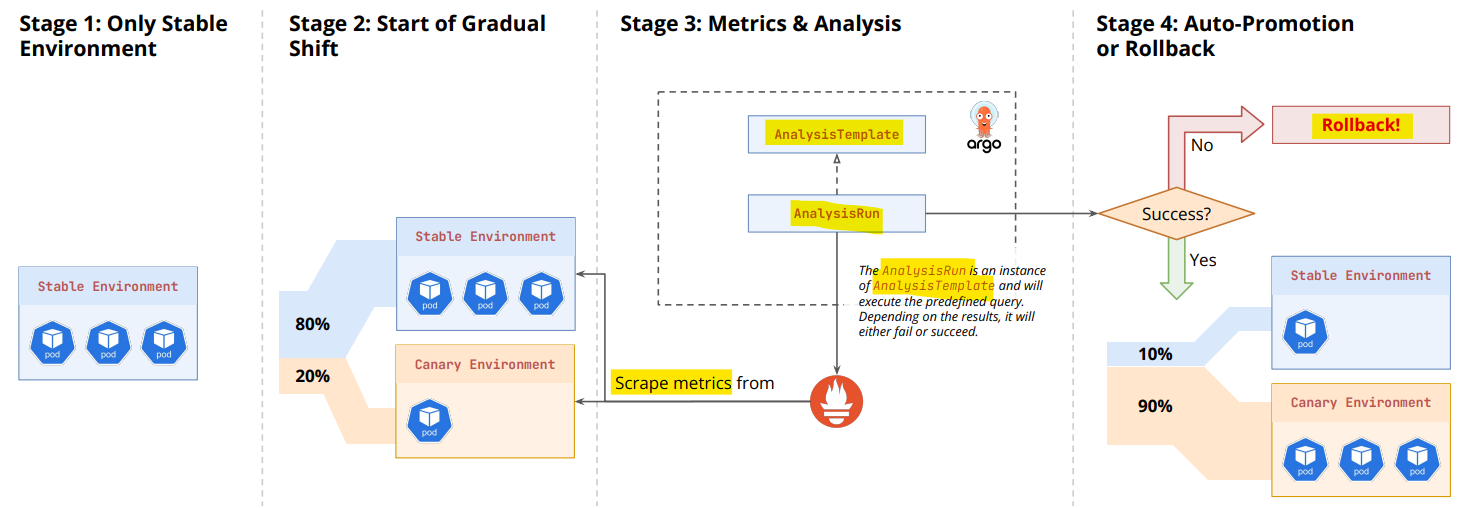

Analysis

Analysis
- a feature for automated canary and blue-green deployments that verifies app health by querying metrics (e.g., Prometheus, Datadog) or webhooks during updates.
- automatically promotes or rolls back applications based on these results, ensuring safety by pausing or aborting deployments if performance KPIs fail.
Features of Analysis in Argo Rollouts:
- Automation & Safety:
  - It automates the verification process, eliminating the need for manual checks.
  - If the metrics fail, the rollout is automatically aborted.
- Analysis Templates & Runs:
  - AnalysisTemplate: Defines what to measure (e.g., HTTP error rate).
  - AnalysisRun: The actual execution of a template during a rollout, tied specifically to that rollout instance.
  - ClusterAnalysisTemplate: A template that can be shared across multiple rollouts.
- Metric Providers:
  - Supports various platforms for measuring data points like response time, error rate, and resource utilization.
  - Common providers include:
    - Prometheus
    - Datadog
    - Webhooks/HTTP APIs
  - Timing Options:
    - Background Analysis: Runs alongside a canary update, checking metrics throughout the process.
    - Pre-Promotion Analysis: Validates a Blue/Green release before switching production traffic.
    - Post-Promotion Analysis: Validates the new version after it has received traffic.
- Outcome Management:
  - Based on the results, the rollout can proceed, abort and rollback, or stay paused, providing robust control over deployment risk.

Lab: Analysis Canary

# 00-namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: analysis-canary
---
# 01-services.yaml
apiVersion: v1
kind: Service
metadata:
  name: analysis-canary
  namespace: analysis-canary
  annotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "3000"
    prometheus.io/path: "/metrics"
spec:
  ports:
    - name: http
      port: 3000
      targetPort: 3000
      protocol: TCP
  selector:
    app: analysis-canary
---
apiVersion: v1
kind: Service
metadata:
  name: analysis-canary-stable
  namespace: analysis-canary
  annotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "3000"
    prometheus.io/path: "/metrics"
spec:
  ports:
    - name: http
      port: 3000
      targetPort: 3000
      protocol: TCP
  selector:
    app: analysis-canary
---
apiVersion: v1
kind: Service
metadata:
  name: analysis-canary-canary
  namespace: analysis-canary
  annotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "3000"
    prometheus.io/path: "/metrics"
spec:
  ports:
    - name: http
      port: 3000
      targetPort: 3000
      protocol: TCP
  selector:
    app: analysis-canary
---
# 02-rollout.yaml
apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: analysis-canary
  namespace: analysis-canary
spec:
  replicas: 10
  selector:
    matchLabels:
      app: analysis-canary
  template:
    metadata:
      labels:
        app: analysis-canary
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "3000"
        prometheus.io/path: "/metrics"
    spec:
      containers:
        - name: analysis-canary
          image: lmacademy/simple-color-app:1.1.0
          env:
            - name: ERROR_RATE
              value: "0"
              # value: '0.01'
            - name: APP_COLOR
              value: green
          ports:
            - name: http
              containerPort: 3000
              protocol: TCP
  strategy:
    canary:
      canaryService: analysis-canary-canary
      stableService: analysis-canary-stable
      steps:
        - setWeight: 20
        - pause:
            # pause for metrics collection
            duration: 3m
        - analysis:
            # pass argument
            args:
              - name: service-name
                value: analysis-canary
            # specify template
            templates:
              - templateName: success-rate
        - setWeight: 40
        - pause:
            duration: 90s
        - setWeight: 80
        - pause:
            duration: 90s

kubectl apply -f .
# namespace/analysis-canary created
# service/analysis-canary created
# service/analysis-canary-stable created
# service/analysis-canary-canary created
# rollout.argoproj.io/analysis-canary created
# analysistemplate.argoproj.io/success-rate created

kubectl argo rollouts get rollout analysis-canary -n analysis-canary
# Name:            analysis-canary
# Namespace:       analysis-canary
# Status:          ✔ Healthy
# Strategy:        Canary
#   Step:          7/7
#   SetWeight:     100
#   ActualWeight:  100
# Images:          lmacademy/simple-color-app:1.1.0 (stable)
# Replicas:
#   Desired:       10
#   Current:       10
#   Updated:       10
#   Ready:         10
#   Available:     10

# NAME                                         KIND        STATUS     AGE  INFO
# ⟳ analysis-canary                            Rollout     ✔ Healthy  32s
# └──# revision:1
#    └──⧉ analysis-canary-68d9c6c8dc           ReplicaSet  ✔ Healthy  32s  stable
#       ├──□ analysis-canary-68d9c6c8dc-6pjwr  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-7p6wt  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-9764n  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-bnv4k  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-jzj7s  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-n6t96  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-r7bwh  Pod         ✔ Running  32s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-4x7hc  Pod         ✔ Running  31s  ready:1/1
#       ├──□ analysis-canary-68d9c6c8dc-fcffc  Pod         ✔ Running  31s  ready:1/1
#       └──□ analysis-canary-68d9c6c8dc-rnqbb  Pod         ✔ Running  31s  ready:1/1

kubectl port-forward svc/analysis-canary -n analysis-canary 3000:3000

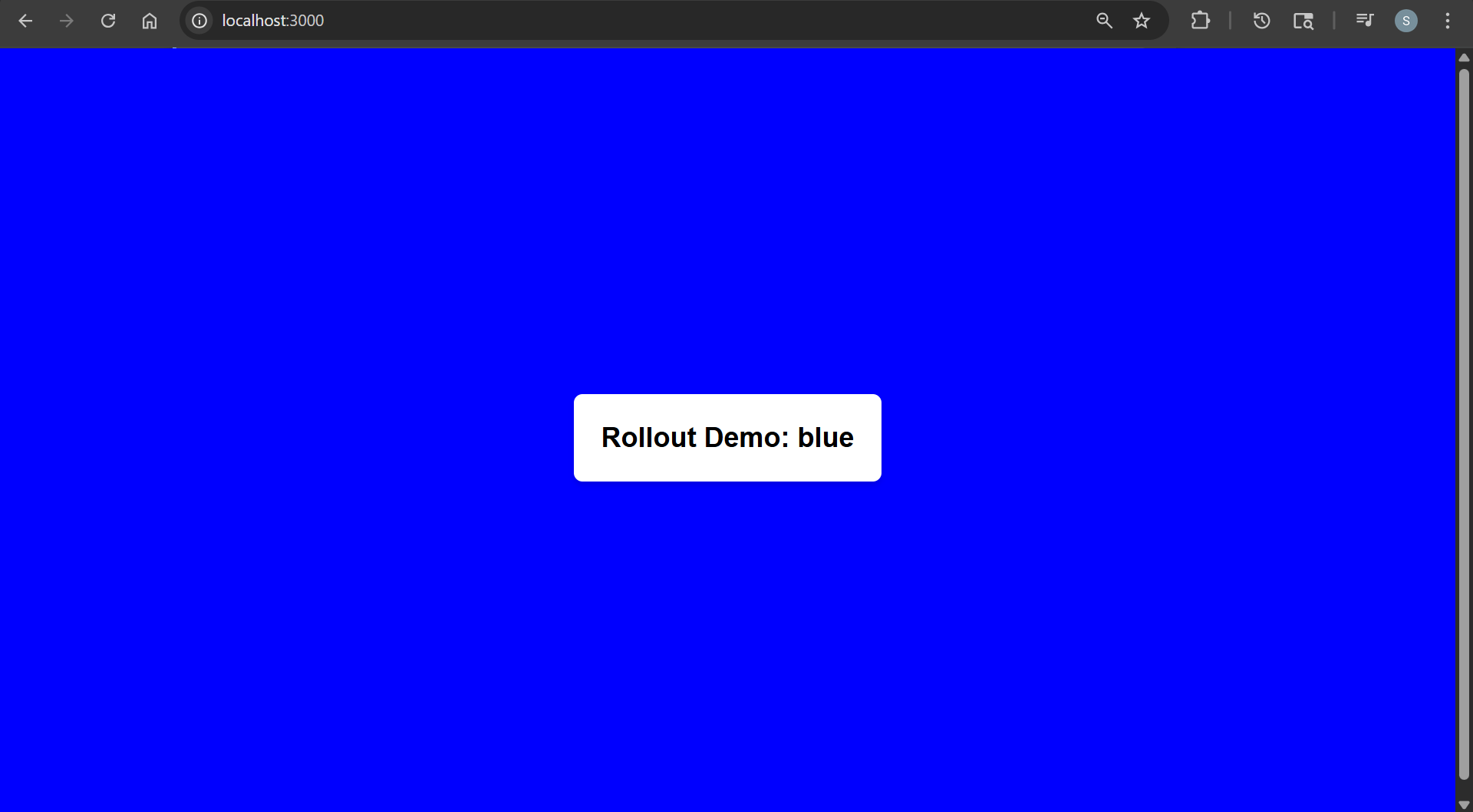

App page

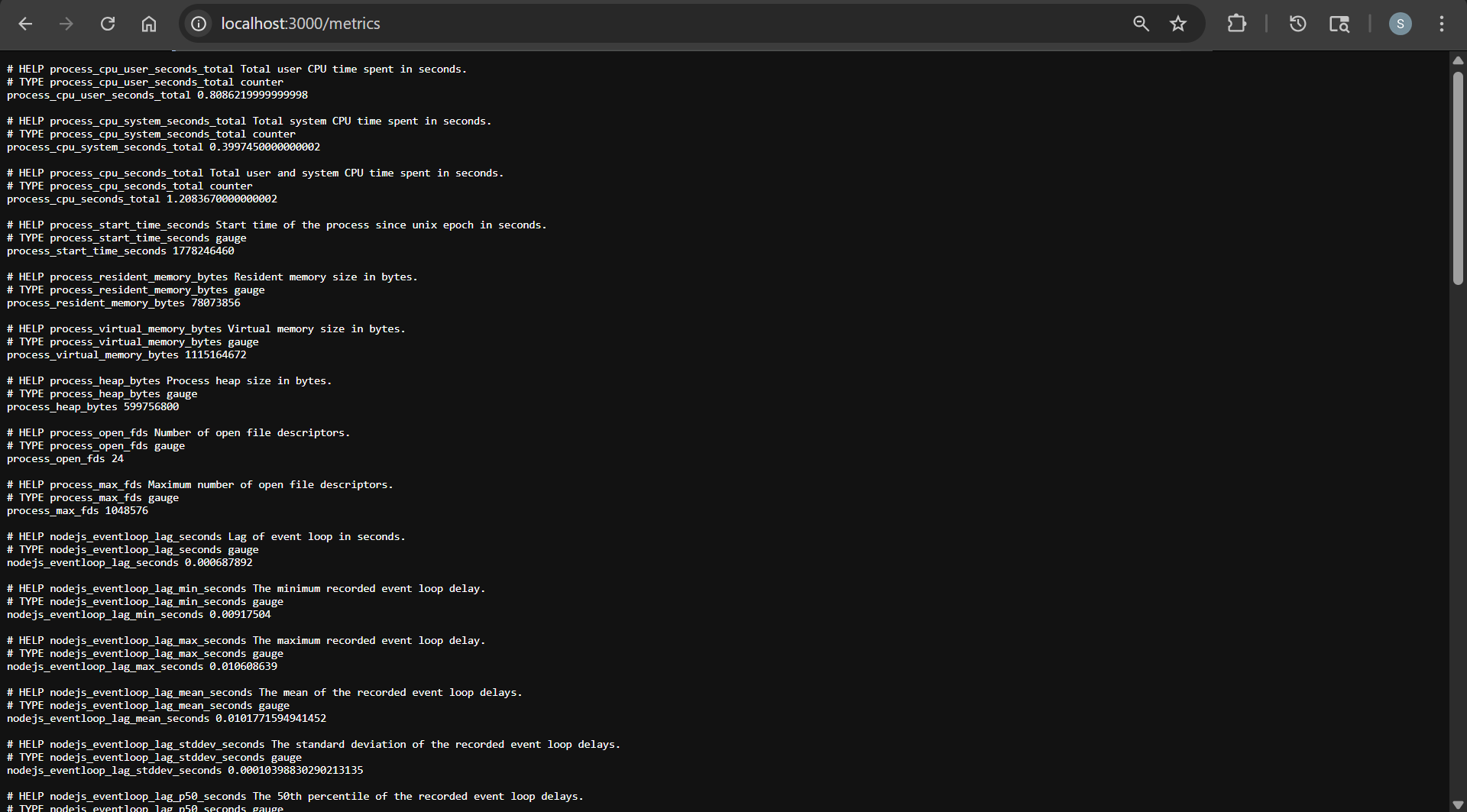

Metrics

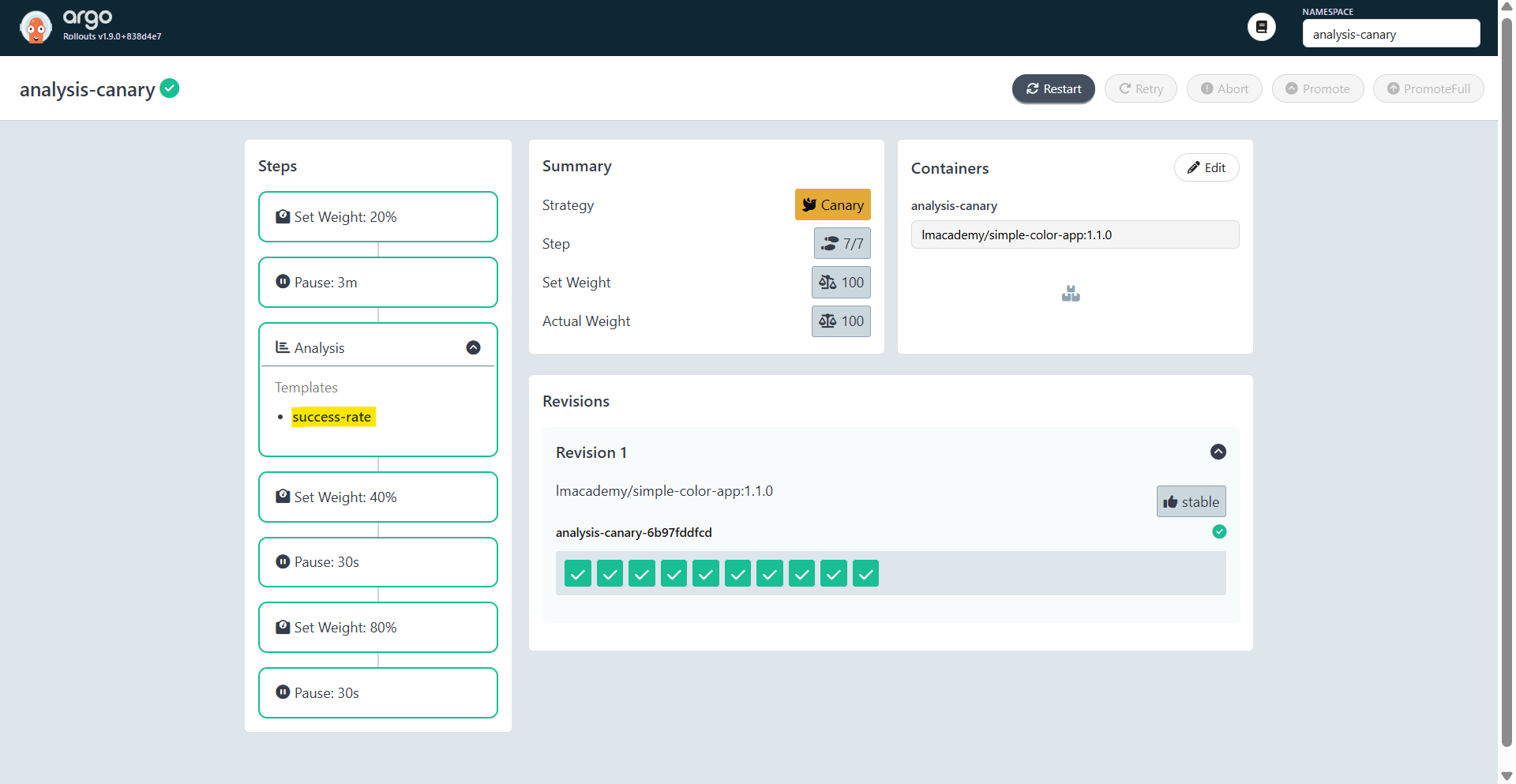

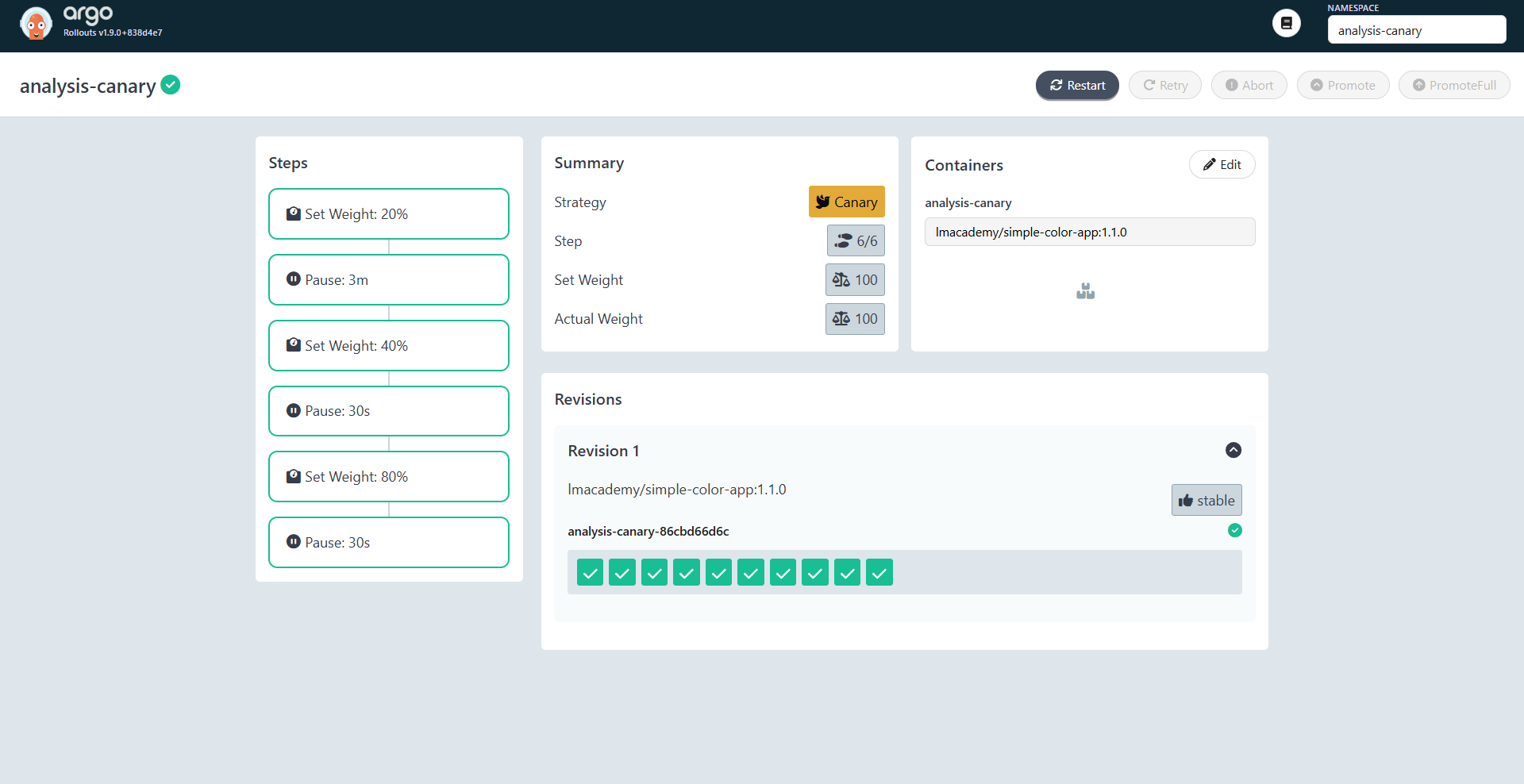

Argo rollout

Create Analysis

Create script query

#!/bin/bash

URL=${1:-"localhost:3000"}
DURATION=${2:-"-1"}

end_time=""
if [ "$DURATION" != "-1" ]; then
  end_time=$(( $(date +%s) + DURATION ))
fi

while true; do
  STATUS=$(curl -s -o /dev/null -w "%{http_code}" "http://$URL")
  echo "$(date '+%H:%M:%S') - HTTP $STATUS"

  if [ -n "$end_time" ] && [ "$(date +%s)" -ge "$end_time" ]; then
    echo "Done after ${DURATION}s"
    break
  fi

  sleep 1
done

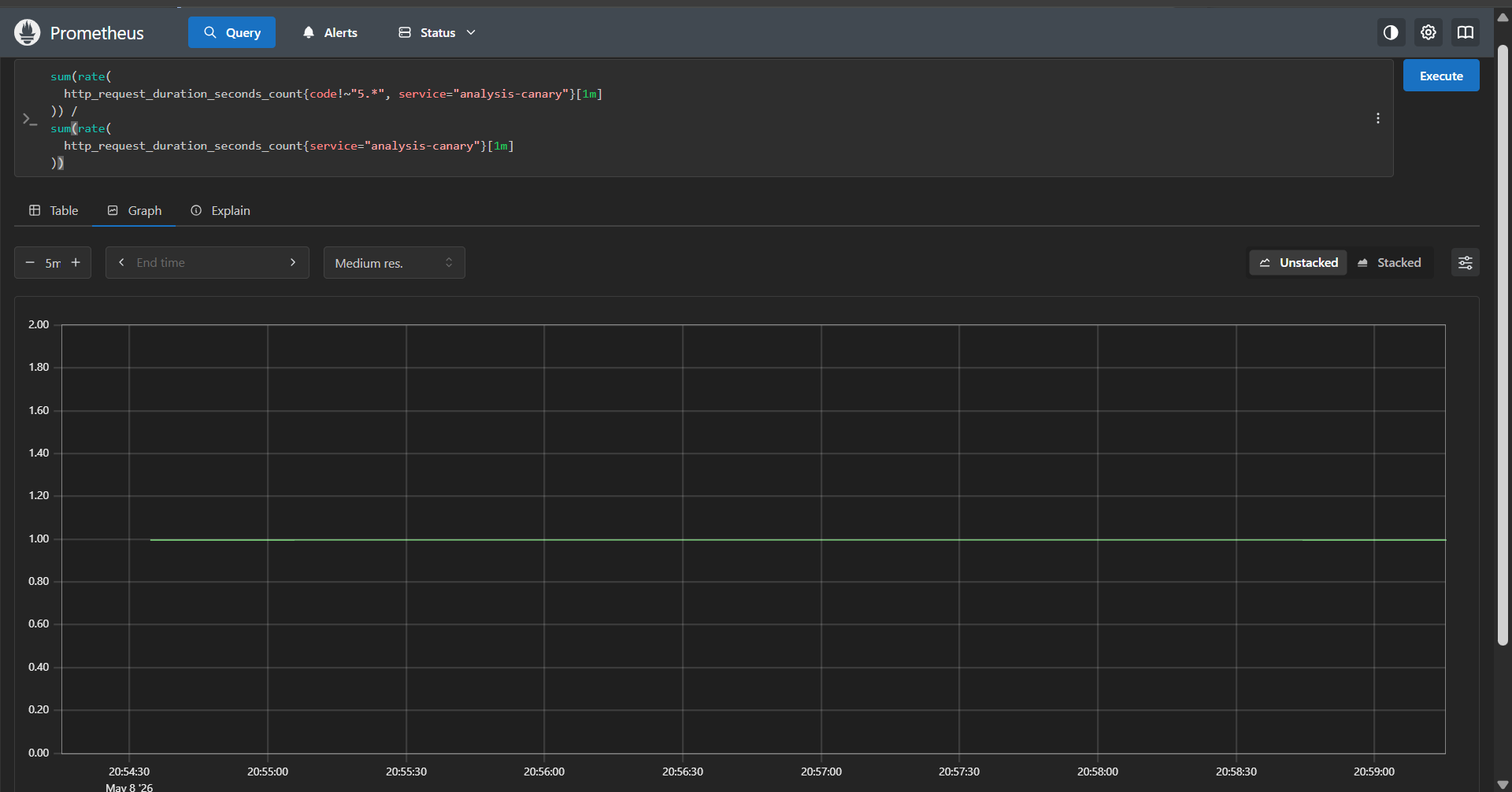

Crate query with promSQL

sum(rate(
  http_request_duration_seconds_count{code!~"5.*", service=""}[1m]
)) /
sum(rate(
  http_request_duration_seconds_count{service=""}[1m]
))

Create analysis

apiVersion: argoproj.io/v1alpha1
kind: AnalysisTemplate
metadata:
  name: success-rate
  namespace: analysis-canary
spec:
  args:
    - name: service-name
  metrics:
    - name: success-rate
      interval: 5s
      count: 60
      successCondition: result[0] >= 0.95
      failureLimit: 3
      provider:
        prometheus:
          address: http://prometheus-server.monitoring.svc.cluster.local:80
          query: |
            sum(rate(
              http_request_duration_seconds_count{code!~"5.*", service=""}[1m]
            )) /
            sum(rate(
              http_request_duration_seconds_count{service=""}[1m]
            ))

kubectl apply -f 03-analysis.yaml
# analysistemplate.argoproj.io/success-rate created

Add Analysis to Rollout

steps:
  - setWeight: 20
  - pause:
      # pause for metrics collection
      duration: 3m
  - analysis:
      # pass argument
      args:
        - name: service-name
          value: analysis-canary
      # specify template
      templates:
        - templateName: success-rate

kubectl apply -f 02-rolout.yaml
# rollout.argoproj.io/analysis-canary configured

Note: setWeight of traffic impact the successCondition If weight = 20% and app level error rate is 50%, then 0.10 failure = 0.9 success, < 0.95 success

Deploy Good version

update error rate

containers:
  - name: analysis-canary
    image: lmacademy/simple-color-app:1.1.0
    env:
      - name: ERROR_RATE
        value: "0" # stable
      - name: APP_COLOR
        value: green # good

kubectl apply -f 02-rollout.yaml
# rollout.argoproj.io/analysis-canary configured

kubectl argo rollouts get rollout analysis-canary -n analysis-canary
# Name:            analysis-canary
# Namespace:       analysis-canary
# Status:          ◌ Progressing
# Message:         more replicas need to be updated
# Strategy:        Canary
#   Step:          2/7
#   SetWeight:     20
#   ActualWeight:  20
# Images:          lmacademy/simple-color-app:1.1.0 (canary, stable)
# Replicas:
#   Desired:       10
#   Current:       10
#   Updated:       2
#   Ready:         10
#   Available:     10

# NAME                                         KIND         STATUS         AGE    INFO
# ⟳ analysis-canary                            Rollout      ◌ Progressing  3m32s
# ├──# revision:2
# │  ├──⧉ analysis-canary-68d9c6c8dc           ReplicaSet   ✔ Healthy      3m10s  canary
# │  │  ├──□ analysis-canary-68d9c6c8dc-br96j  Pod          ✔ Running      3m9s   ready:1/1
# │  │  └──□ analysis-canary-68d9c6c8dc-wcbdf  Pod          ✔ Running      3m9s   ready:1/1
# │  └──α analysis-canary-68d9c6c8dc-2-2       AnalysisRun  ◌ Running      6s     ✔ 2
# └──# revision:1
#    └──⧉ analysis-canary-6b97fddfcd           ReplicaSet   ✔ Healthy      3m32s  stable
#       ├──□ analysis-canary-6b97fddfcd-88w26  Pod          ✔ Running      3m32s  ready:1/1
#       ├──□ analysis-canary-6b97fddfcd-8qzk2  Pod          ✔ Running      3m32s  ready:1/1
#       ├──□ analysis-canary-6b97fddfcd-drfvr  Pod          ✔ Running      3m32s  ready:1/1
#       ├──□ analysis-canary-6b97fddfcd-fbbjp  Pod          ✔ Running      3m32s  ready:1/1
#       ├──□ analysis-canary-6b97fddfcd-hrshz  Pod          ✔ Running      3m32s  ready:1/1
#       ├──□ analysis-canary-6b97fddfcd-m6p6t  Pod          ✔ Running      3m32s  ready:1/1
#       ├──□ analysis-canary-6b97fddfcd-r5f6f  Pod          ✔ Running      3m32s  ready:1/1
#       └──□ analysis-canary-6b97fddfcd-vm6tr  Pod          ✔ Running      3m32s  ready:1/1

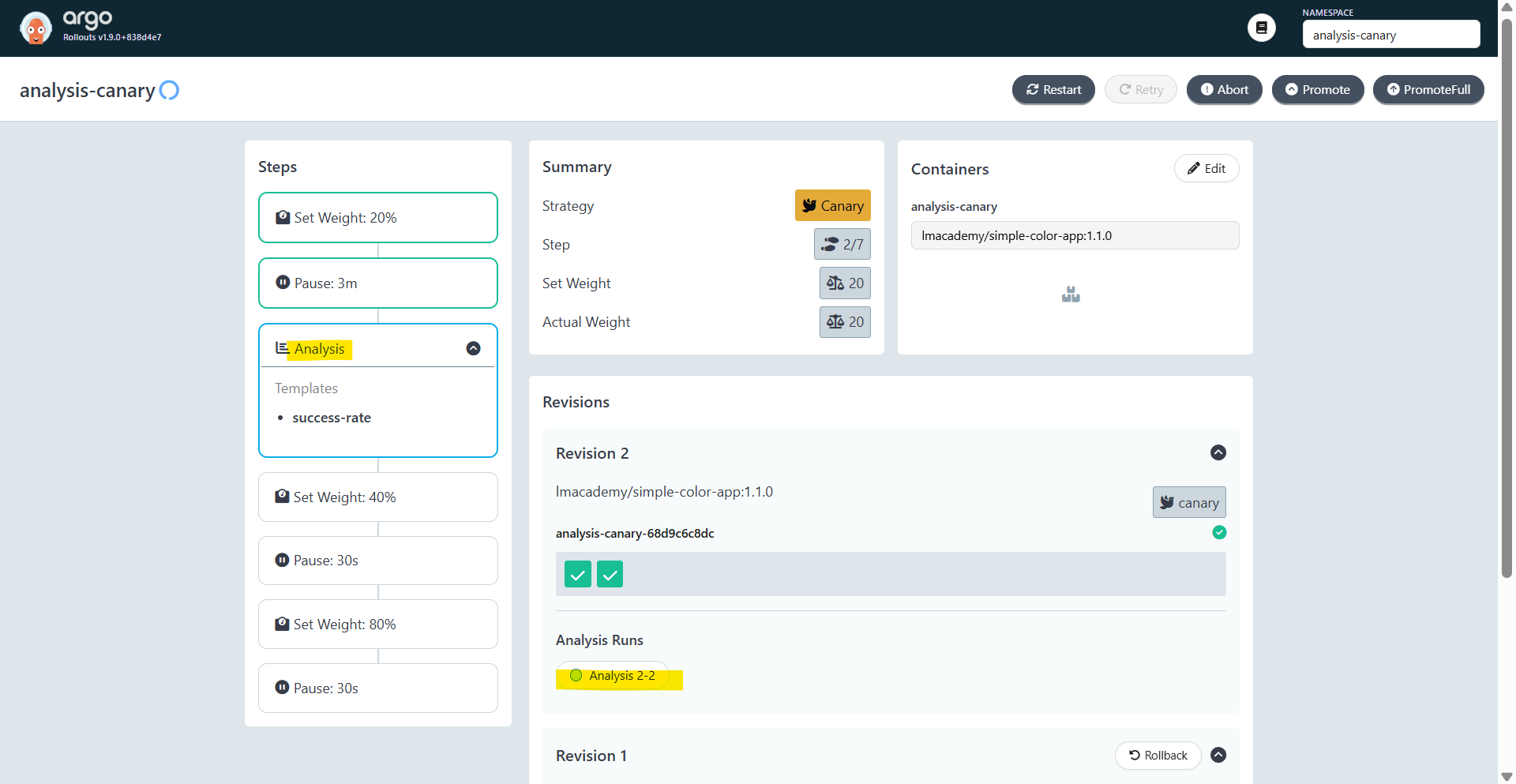

Argo Rollout - Dashbaord

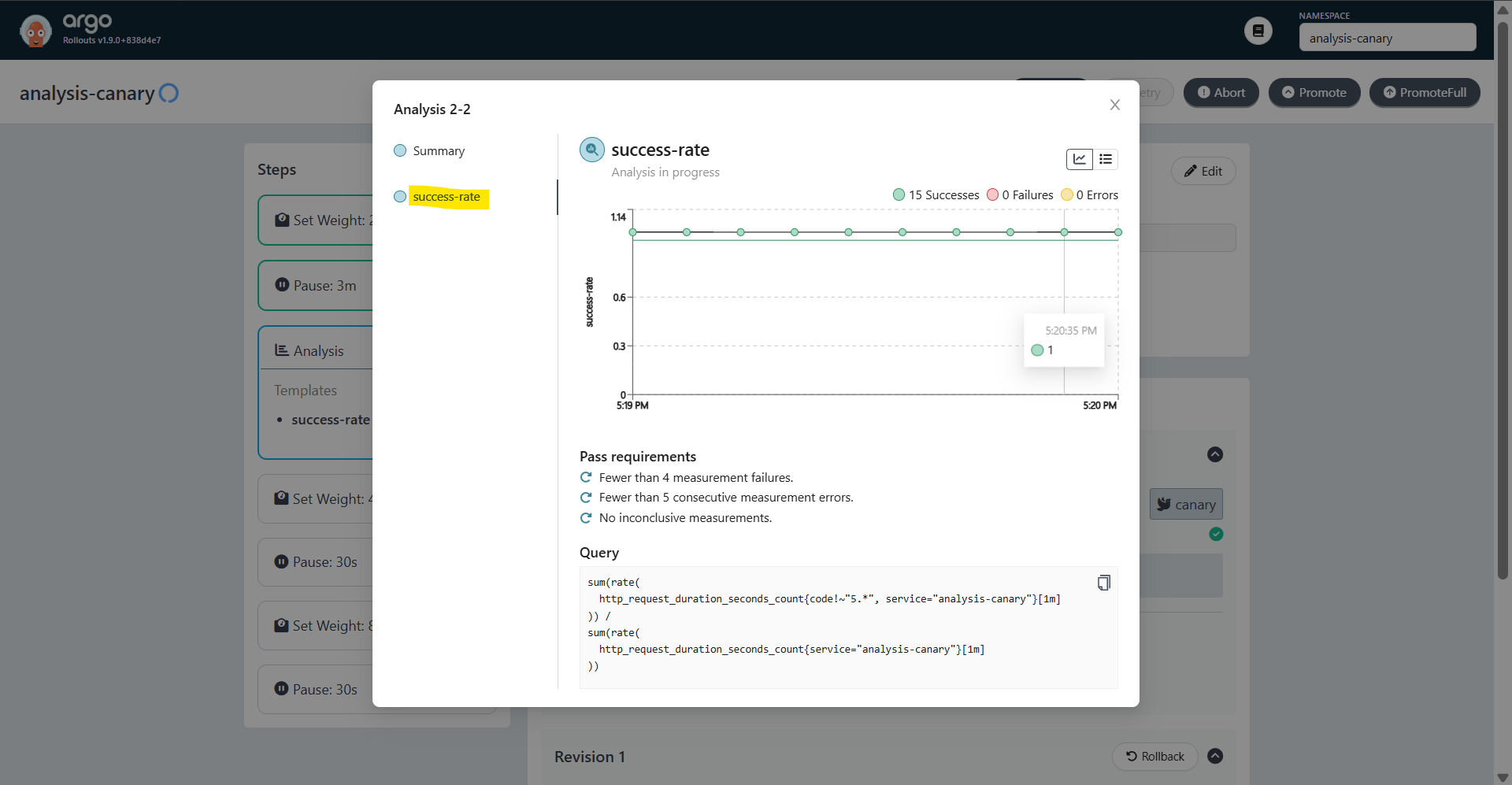

Argo Rollout - Analysis

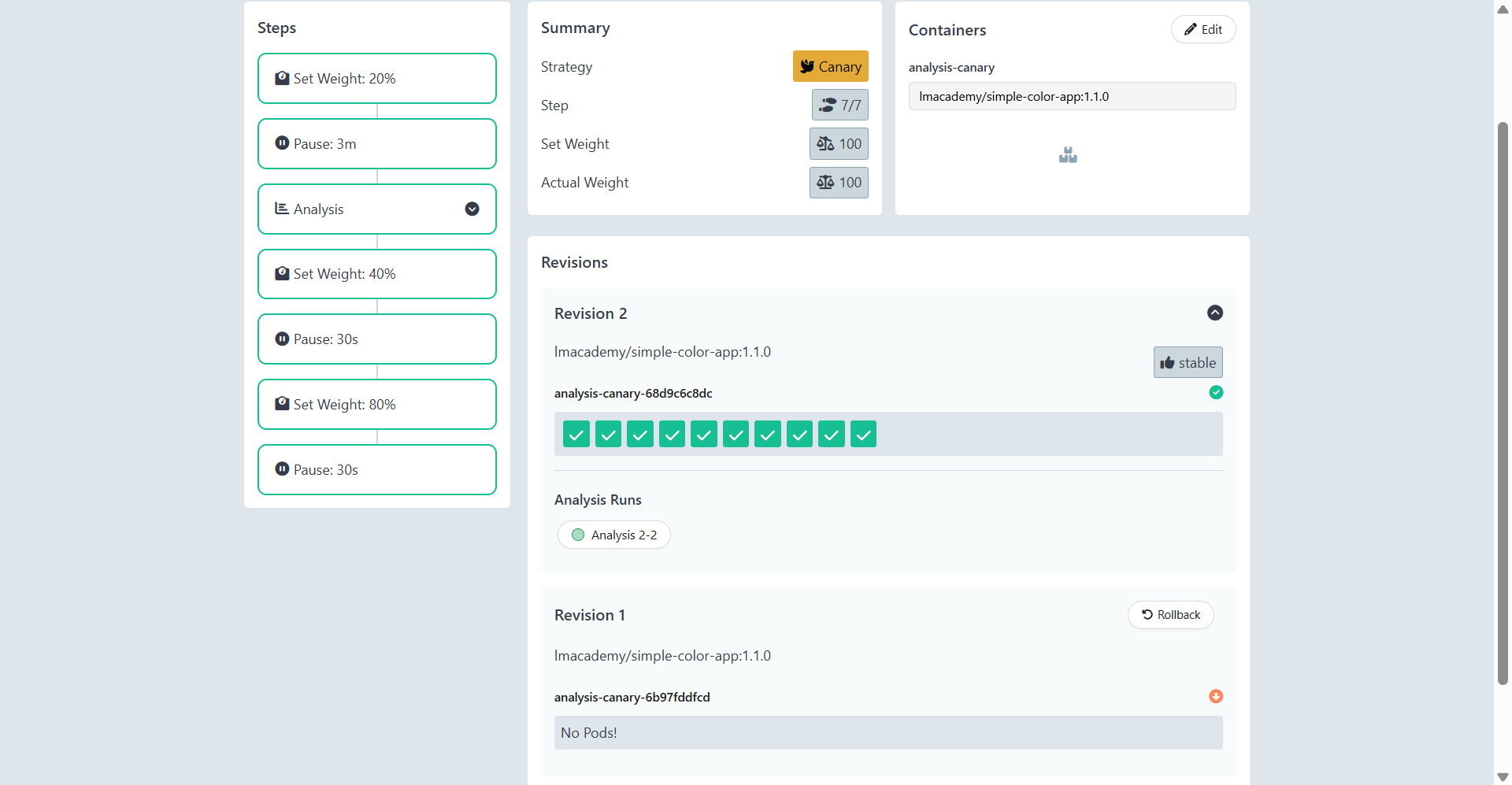

Argo Rollout - Complete

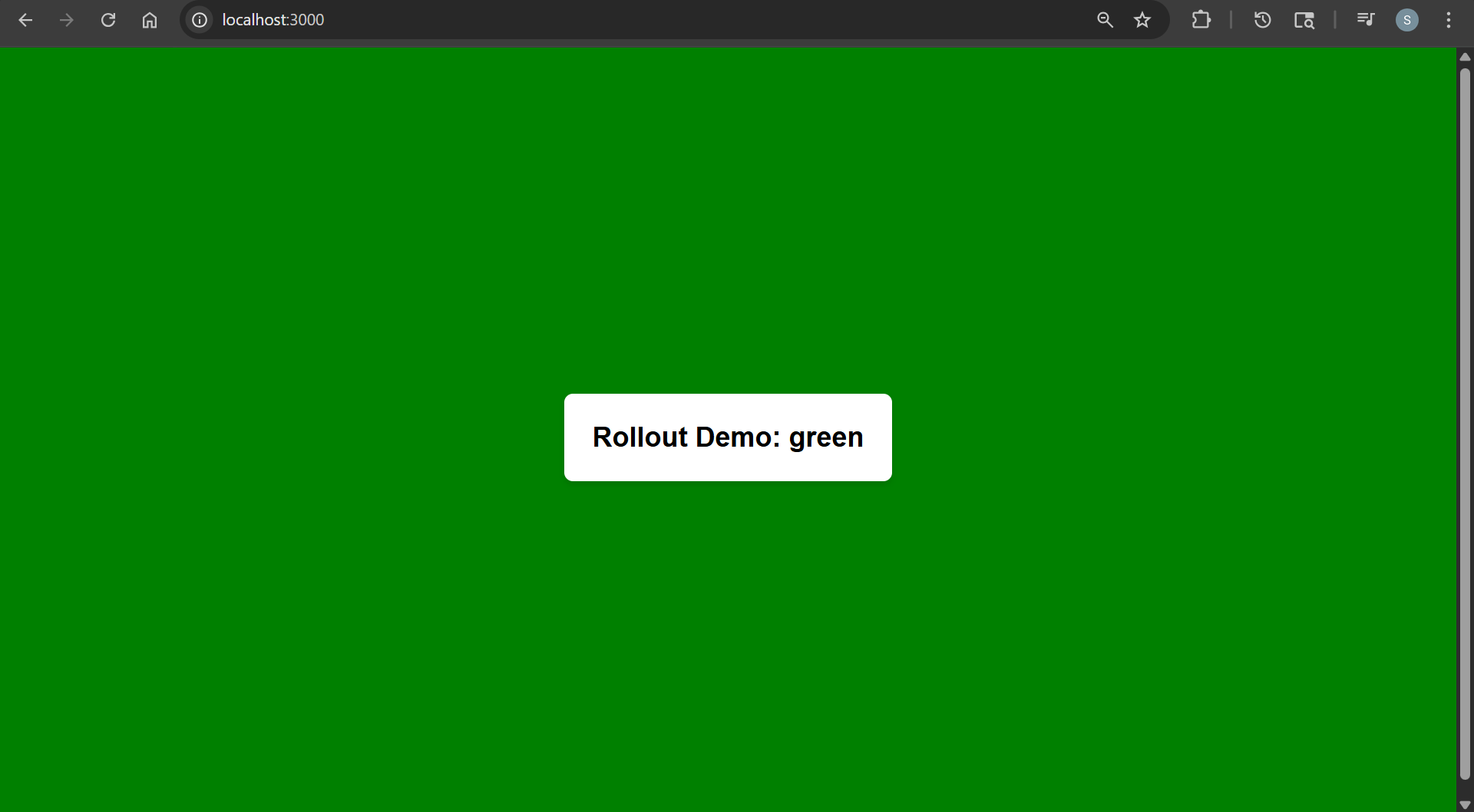

App Page
