Argo Rollout - with Prometheus
Prometheus Architecture
Prometheus server- the brain of the whole system.
- periodically scrapes metrics from configured targets, stores them in its time-series database (TSDB), evaluates alerting/recording rules, and exposes a query interface (PromQL).
- pull model
kube-state-metrics- a service that watches the Kubernetes API and converts object state into Prometheus-compatible metrics — things like pod readiness, deployment replica counts, node conditions, and job statuses.
node-exporter- runs on every node and exposes hardware and OS metrics from the host — CPU, memory, disk I/O, network, file descriptors, etc.
- It’s the ground-level view of each machine.
Pushgateway- Accepts pushed metrics
- Short-lived jobs like batch processes or cron jobs die before Prometheus can scrape them, so they push their final metrics to the
Pushgateway, which holds them until Prometheus scrapes it.
Alertmanager- receives firing alerts from the Prometheus server and handles everything downstream: deduplication (so you don’t get 100 pages for the same incident), grouping, silencing, inhibition, and routing alerts to the right destination (Slack, PagerDuty, email, etc.).
Lab: Install Prometheus
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update
helm search repo prometheus
# prometheus-community/prometheus 29.6.0 v3.11.3 Prometheus is a monitoring system and time seri...
helm upgrade --install prometheus prometheus-community/prometheus --version 29.6.0 --namespace monitoring --create-namespace --values prometheus_values.yaml
# NAME: prometheus
# LAST DEPLOYED: Thu May 7 22:03:47 2026
# NAMESPACE: monitoring
# STATUS: deployed
# REVISION: 1
# DESCRIPTION: Install complete
# TEST SUITE: None
# NOTES:
# The Prometheus server can be accessed via port 80 on the following DNS name from within your cluster:
# prometheus-server.monitoring.svc.cluster.local
# Get the Prometheus server URL by running these commands in the same shell:
# export NODE_PORT=$(kubectl get --namespace monitoring -o jsonpath="{.spec.ports[0].nodePort}" services prometheus-server)
# export NODE_IP=$(kubectl get nodes --namespace monitoring -o jsonpath="{.items[0].status.addresses[0].address}")
# echo http://$NODE_IP:$NODE_PORT
# Prometheus alertmanager can be accessed via port 9093 on the following DNS name from within your cluster:
# prometheus-alertmanager.monitoring.svc.cluster.local
# Get the Alertmanager URL by running these commands in the same shell:
# export POD_NAME=$(kubectl get pods --namespace monitoring -l "app.kubernetes.io/name=alertmanager,app.kubernetes.io/instance=prometheus" -o jsonpath="{.items[0].metadata.name}")
# kubectl --namespace monitoring port-forward $POD_NAME 9093
# Prometheus Pushgateway can be accessed via port 9091 on the following DNS name from within your cluster:
# prometheus-prometheus-pushgateway.monitoring.svc.cluster.local
# Get the Pushgateway URL by running these commands in the same shell:
# export POD_NAME=$(kubectl get pods --namespace monitoring -l "app.kubernetes.io/name=prometheus-pushgateway,app.kubernetes.io/instance=prometheus" -o jsonpath="{.items[0].metadata.name}")
# kubectl --namespace monitoring port-forward $POD_NAME 9091
# For more information on running Prometheus, visit:
# https://prometheus.io/
# confirm
kubectl get po -n monitoring

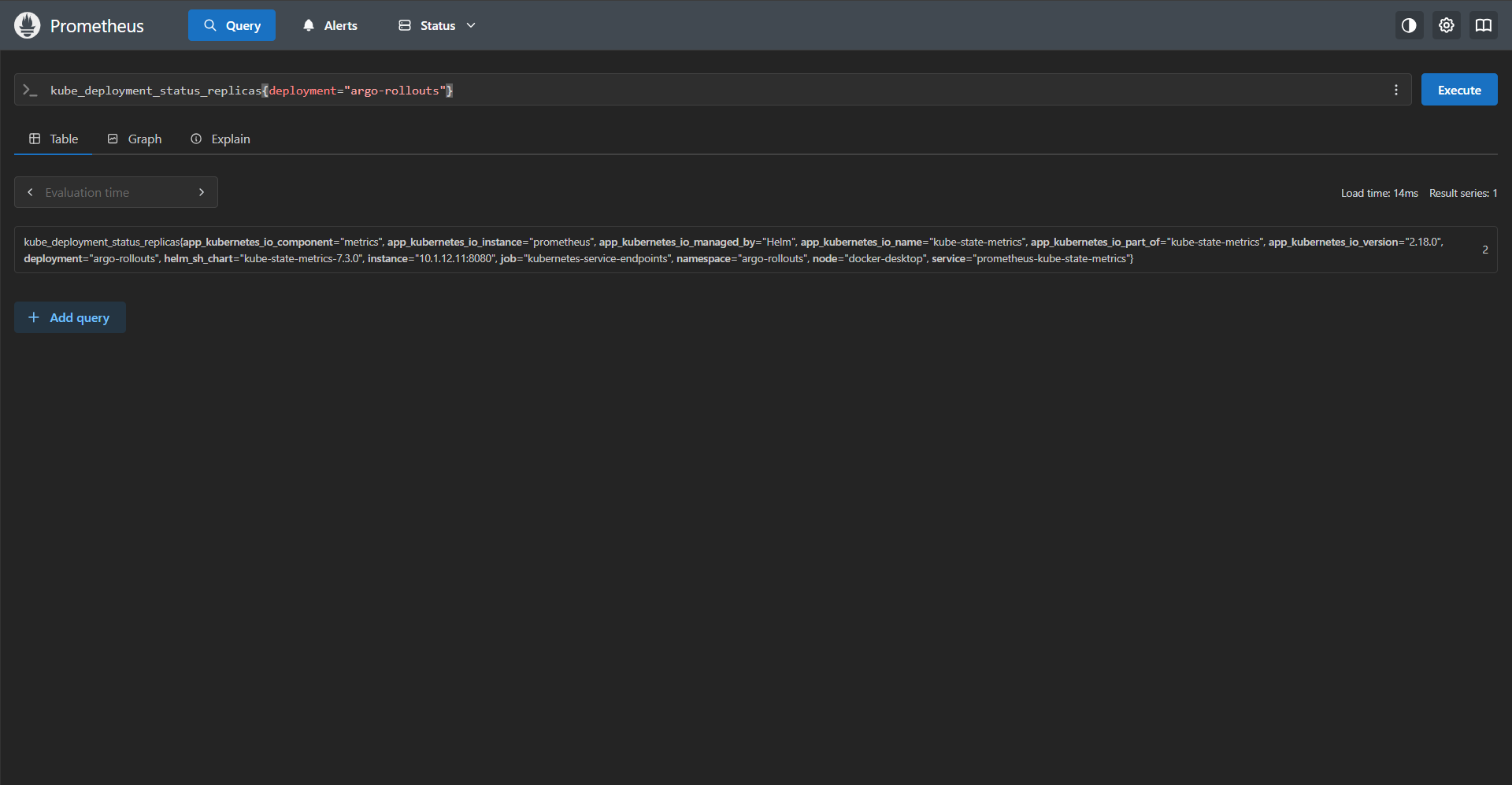

kubectl port-forward svc/prometheus-server 8080:80 -n monitoring
