Argo Rollout - Rollout

Back

Argo Rollout - Rollout
- Rollout CRD
  - Common Commands
  - Lab: Demo rollout

Rollout CRD

Argo Rollouts
- a set of CRDs that replaces the standard Kubernetes Deployment object to provide advanced, automated deployment capabilities.
- It facilitates progressive delivery—specifically blue-green and canary deployments—to reduce downtime and risk during application updates.

Common Commands

Viewing & Monitoring

Command	Description
`kubectl argo rollouts list rollouts`	Lists Rollout resources in the current namespace.
`kubectl argo rollouts list rollouts -n <namespace>`	List rollouts in a specific namespace
`kubectl argo rollouts get rollout <rollout>`	Displays detailed status of a Rollout.
`kubectl argo rollouts get rollout <rollout> --watch`	Watches the Rollout progress in real time.
`kubectl argo rollouts status <rollout>`	Shows whether a Rollout is healthy, progressing, paused, or degraded.

Creating and Updating

Command	Description
`kubectl apply -f rollout.yaml`	Apply a rollout manifest (standard way to update rollout spec)
`kubectl argo rollouts restart <rollout>`	Restarts pods managed by the Rollout.
`kubectl argo rollouts set image <rollout> <container>=<image>`	Updates the container image of a Rollout.

Controlling Progression

Command	Description
`kubectl argo rollouts promote <rollout>`	Manually promotes a paused Rollout to the next step.
`kubectl argo rollouts promote <rollout> --full`	Fully promotes the Rollout and skips the remaining canary steps.
`kubectl argo rollouts abort <rollout>`	Aborts the current rollout update and stops progressing to the new version.
`kubectl argo rollouts retry rollout <rollout>`	Retries a failed Rollout.
`kubectl argo rollouts pause <rollout>`	Pauses a Rollout manually.
`kubectl argo rollouts resume <rollout>`	Resumes a paused Rollout.
`kubectl argo rollouts undo <rollout>`	Rolls back to a previous revision.
`kubectl argo rollouts undo <name> --to-revision=<N>`	Roll back to a specific revision number
`kubectl delete rollout rollouts-demo`	Delete rollout

Analysis & Experiments

Command	Description
`kubectl argo rollouts lint -f <file>`	Validates Rollout manifests before applying them.
`kubectl argo rollouts terminate analysisrun <analysisrun>`	Terminates a running AnalysisRun.
`kubectl argo rollouts retry analysisrun <analysisrun>`	Retries a failed AnalysisRun.
`kubectl argo rollouts completion bash`	Generates shell completion for Bash.
`kubectl argo rollouts get experiment <name>`	Get details of an experiment
`kubectl argo rollouts list experiments`	List all experiments
`kubectl argo rollouts create analysisrun --from-clusteranalysistemplate <template>`	Manually trigger an analysis run

example

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: guestbook-ui
spec:
  replicas: 5
  selector:
    matchLabels:
      app: guestbook
  template:
    spec:
      containers:
        - name: guestbook
          image: argoproj/rollouts-demo:blue
  strategy: {}

Lab: Demo rollout

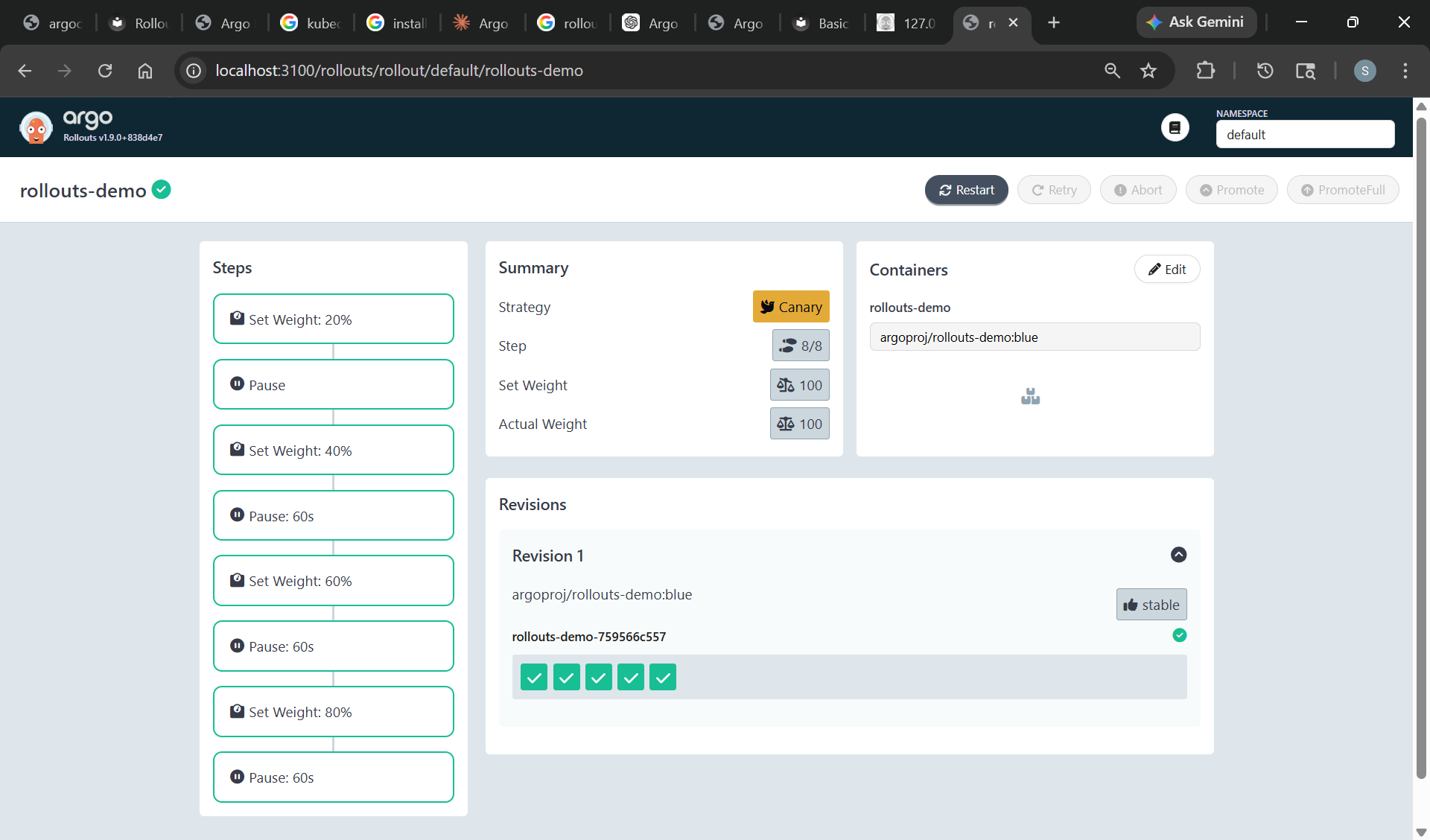

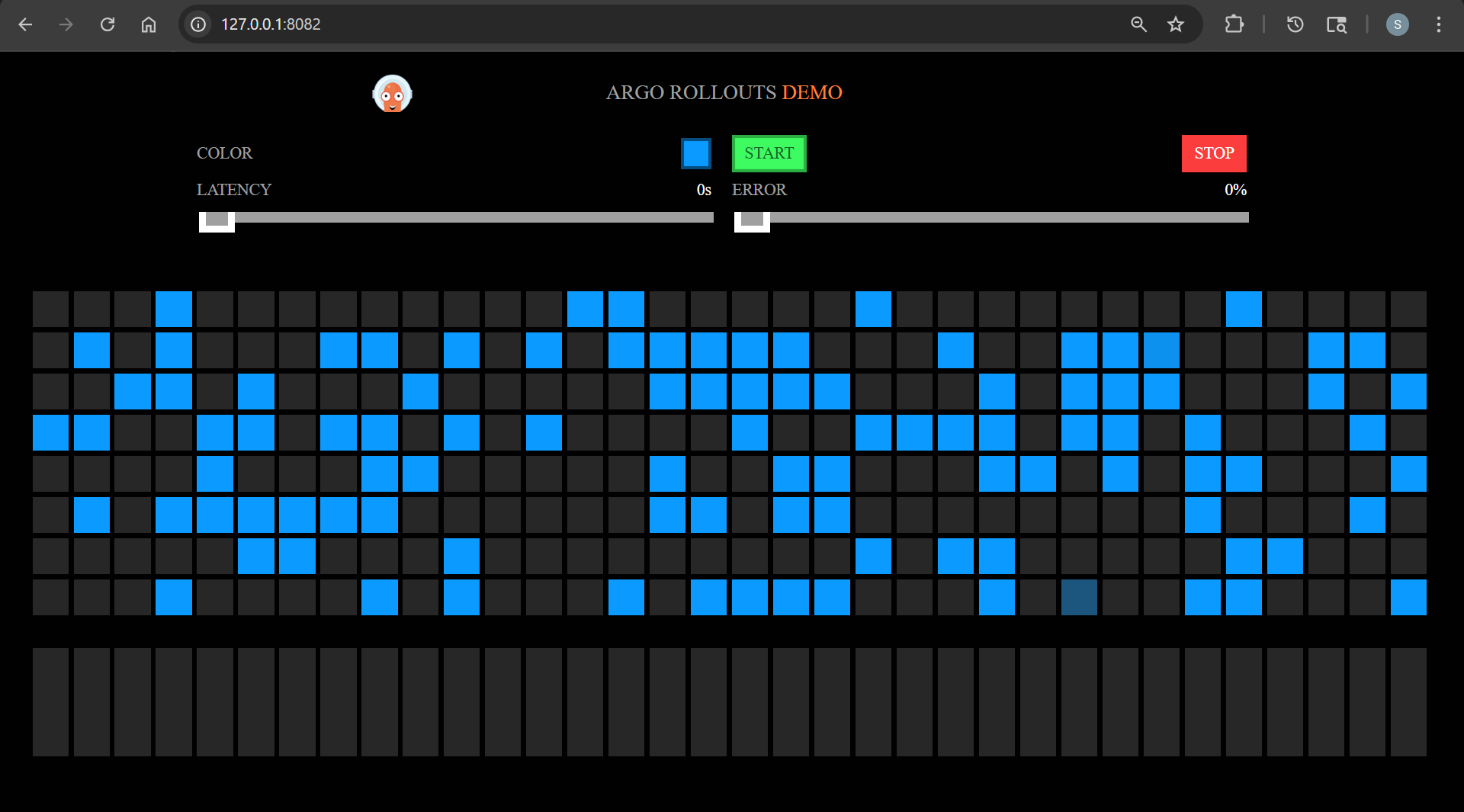

Deploy a Rollout

# rollout.yaml
apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: rollouts-demo
spec:
  replicas: 5
  selector:
    matchLabels:
      app: rollouts-demo
  template:
    metadata:
      labels:
        app: rollouts-demo
    spec:
      containers:
        - name: rollouts-demo
          image: argoproj/rollouts-demo:blue # v1 (stable)
          ports:
            - name: http
              containerPort: 8080
              protocol: TCP
  strategy:
    canary:
      steps:
        - setWeight: 20 # 20%
        - pause: {} # Pause, manual promotion required
        - setWeight: 40 # 40%
        - pause: { duration: 60 } # Auto-advance
        - setWeight: 60 # 60%
        - pause: { duration: 60 } # Auto-advance
        - setWeight: 80 # 80%
        - pause: { duration: 60 } # Auto-advance, Full rollout

---
# service.yaml
# service.yaml
apiVersion: v1
kind: Service
metadata:
  name: rollouts-demo
spec:
  ports:
    - port: 80
      targetPort: http
      protocol: TCP
      name: http
  selector:
    app: rollouts-demo

kubectl apply -f .
# rollout.argoproj.io/rollouts-demo created
# service/rollouts-demo created

kubectl argo rollouts list rollouts
# NAME           STRATEGY   STATUS        STEP  SET-WEIGHT  READY  DESIRED  UP-TO-DATE  AVAILABLE
# rollouts-demo  Canary     Healthy       8/8   100         5/5    5        5           5

kubectl argo rollouts get rollouts rollouts-demo
# Name:            rollouts-demo
# Namespace:       default
# Status:          ✔ Healthy
# Strategy:        Canary
#   Step:          8/8
#   SetWeight:     100
#   ActualWeight:  100
# Images:          argoproj/rollouts-demo:blue (stable)
# Replicas:
#   Desired:       5
#   Current:       5
#   Updated:       5
#   Ready:         5
#   Available:     5

# NAME                                       KIND        STATUS     AGE    INFO
# ⟳ rollouts-demo                            Rollout     ✔ Healthy  2m47s
# └──# revision:1
#    └──⧉ rollouts-demo-759566c557           ReplicaSet  ✔ Healthy  2m47s  stable
#       ├──□ rollouts-demo-759566c557-65gg8  Pod         ✔ Running  2m47s  ready:1/1
#       ├──□ rollouts-demo-759566c557-g2wgt  Pod         ✔ Running  2m47s  ready:1/1
#       ├──□ rollouts-demo-759566c557-gk9w6  Pod         ✔ Running  2m47s  ready:1/1
#       ├──□ rollouts-demo-759566c557-n2k7x  Pod         ✔ Running  2m47s  ready:1/1
#       └──□ rollouts-demo-759566c557-rdp8t  Pod         ✔ Running  2m47s  ready:1/1

kubectl argo rollouts status rollouts-demo
# Healthy

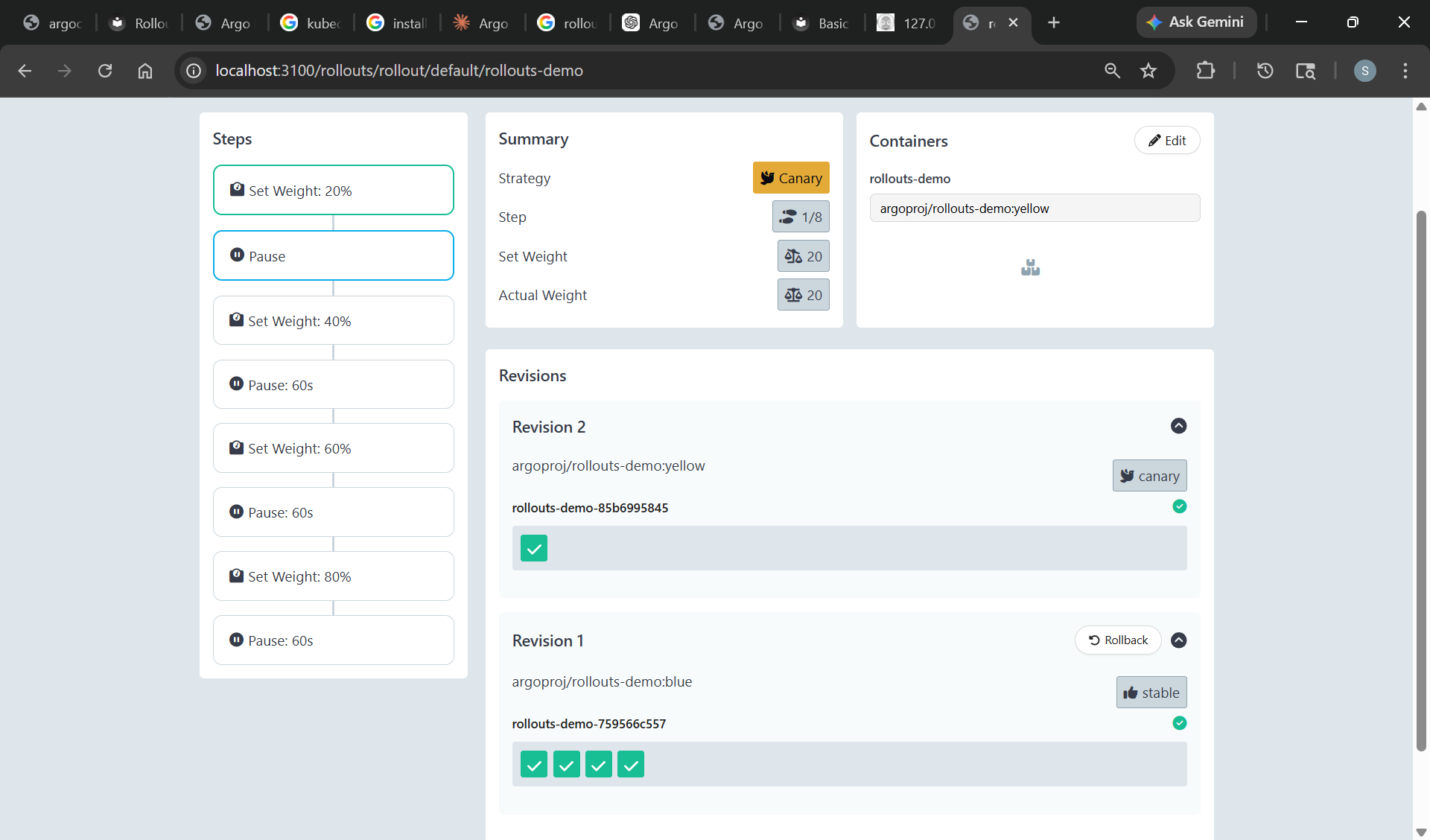

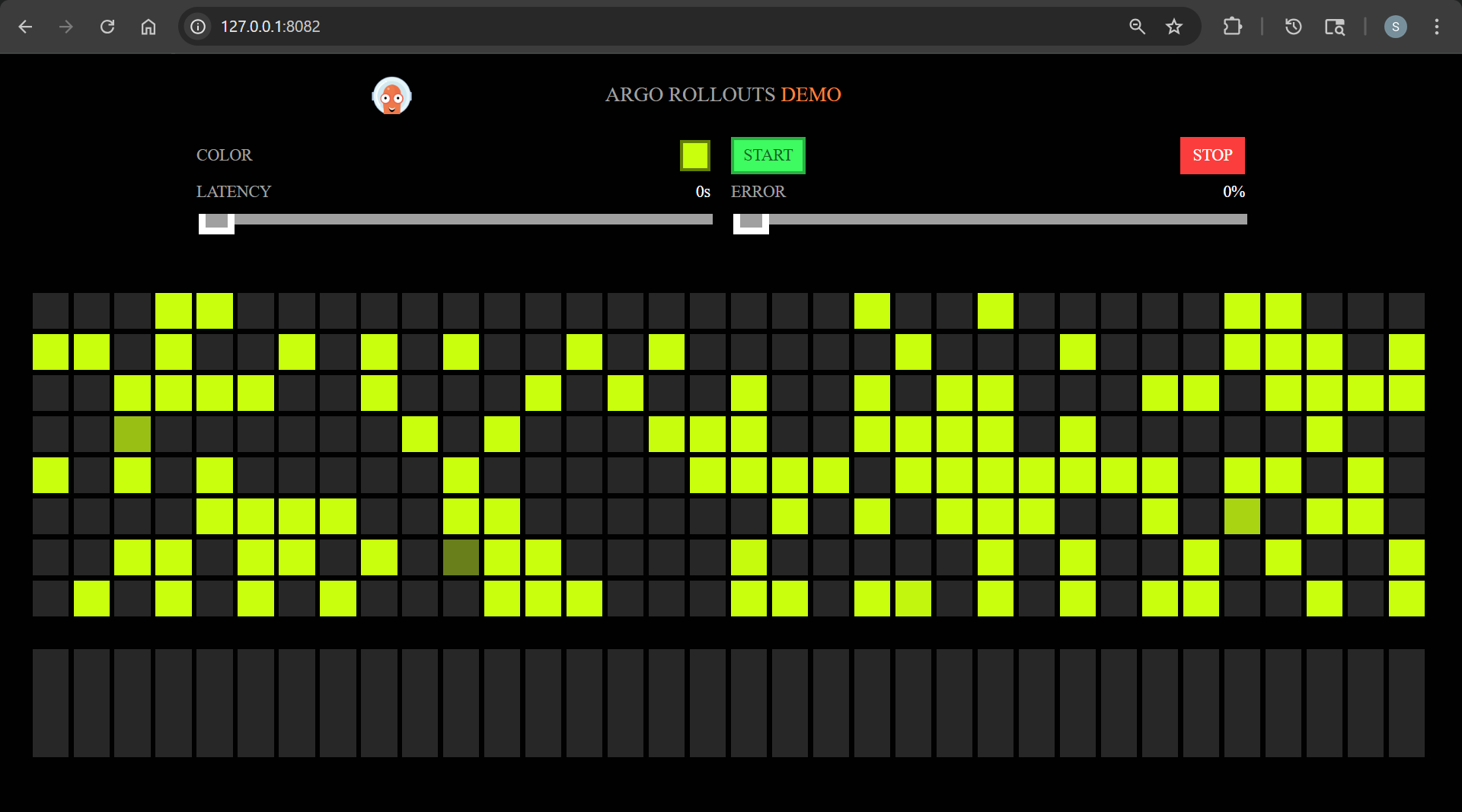

Updating a Rollout

Set image

kubectl argo rollouts set image rollouts-demo rollouts-demo=argoproj/rollouts-demo:yellow
# rollout "rollouts-demo" image updated

kubectl argo rollouts get rollouts rollouts-demo
# Name:            rollouts-demo
# Namespace:       default
# Status:          ॥ Paused
# Message:         CanaryPauseStep
# Strategy:        Canary
#   Step:          1/8
#   SetWeight:     20
#   ActualWeight:  20
# Images:          argoproj/rollouts-demo:blue (stable)
#                  argoproj/rollouts-demo:yellow (canary)
# Replicas:
#   Desired:       5
#   Current:       5
#   Updated:       1
#   Ready:         5
#   Available:     5

# NAME                                       KIND        STATUS     AGE    INFO
# ⟳ rollouts-demo                            Rollout     ॥ Paused   5m38s
# ├──# revision:2
# │  └──⧉ rollouts-demo-85b6995845           ReplicaSet  ✔ Healthy  17s    canary
# │     └──□ rollouts-demo-85b6995845-cmkg6  Pod         ✔ Running  17s    ready:1/1
# └──# revision:1
#    └──⧉ rollouts-demo-759566c557           ReplicaSet  ✔ Healthy  5m38s  stable
#       ├──□ rollouts-demo-759566c557-65gg8  Pod         ✔ Running  5m38s  ready:1/1
#       ├──□ rollouts-demo-759566c557-g2wgt  Pod         ✔ Running  5m38s  ready:1/1

kubectl argo rollouts list rollouts
# NAME           STRATEGY   STATUS        STEP  SET-WEIGHT  READY  DESIRED  UP-TO-DATE  AVAILABLE
# rollouts-demo  Canary     Paused        1/8   20          5/5    5        1           5

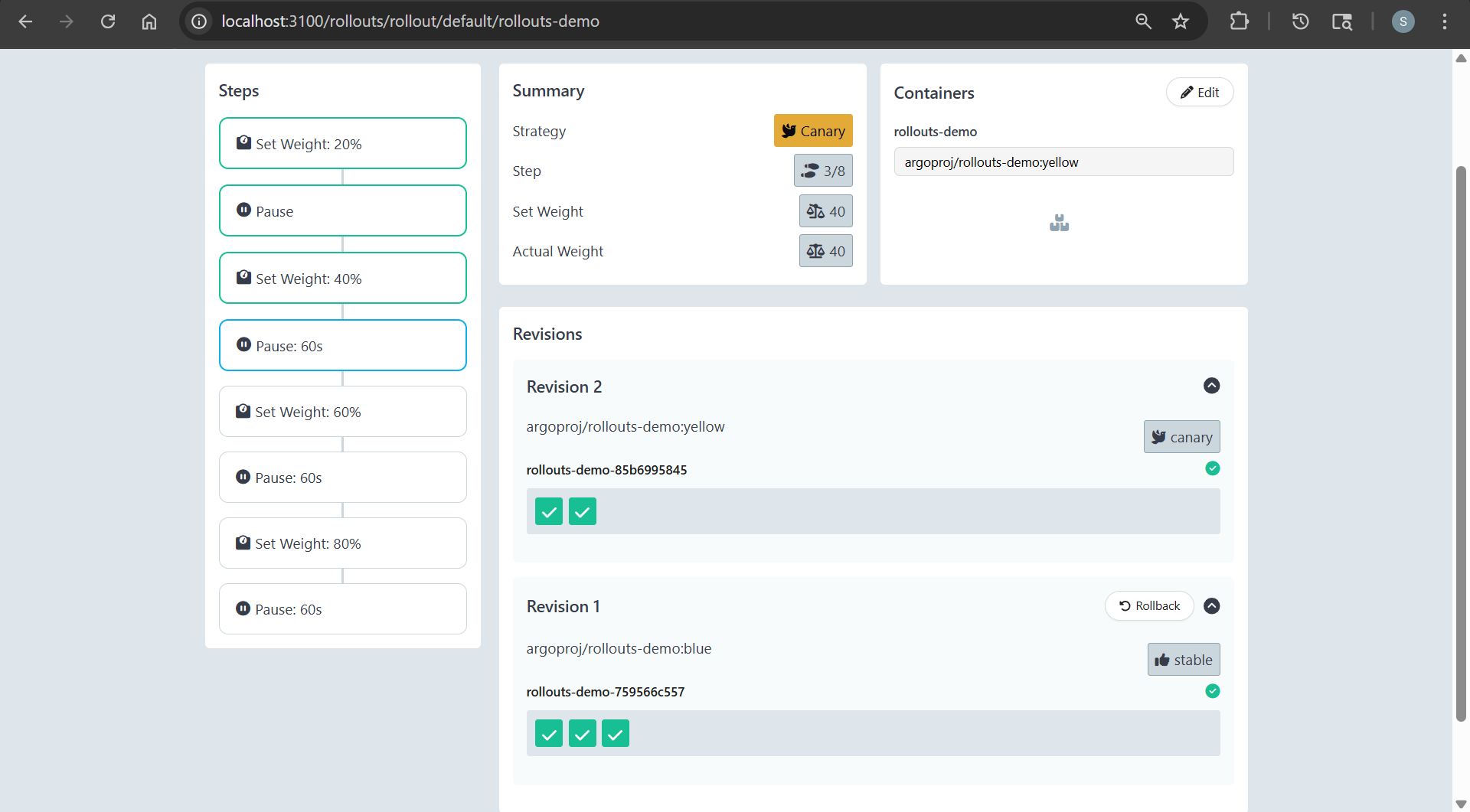

Promoting a Rollout

kubectl argo rollouts promote rollouts-demo
# rollout 'rollouts-demo' promoted

kubectl argo rollouts get rollouts rollouts-demo
# Name:            rollouts-demo
# Namespace:       default
# Status:          ॥ Paused
# Message:         CanaryPauseStep
# Strategy:        Canary
#   Step:          3/8
#   SetWeight:     40
#   ActualWeight:  40
# Images:          argoproj/rollouts-demo:blue (stable)
#                  argoproj/rollouts-demo:yellow (canary)
# Replicas:
#   Desired:       5
#   Current:       5
#   Updated:       2
#   Ready:         5
#   Available:     5

# NAME                                       KIND        STATUS         AGE    INFO
# ⟳ rollouts-demo                            Rollout     ॥ Paused       9m9s
# ├──# revision:2
# │  └──⧉ rollouts-demo-85b6995845           ReplicaSet  ✔ Healthy      3m48s  canary
# │     ├──□ rollouts-demo-85b6995845-cmkg6  Pod         ✔ Running      3m48s  ready:1/1
# │     └──□ rollouts-demo-85b6995845-qvjqh  Pod         ✔ Running      4s     ready:1/1
# └──# revision:1
#    └──⧉ rollouts-demo-759566c557           ReplicaSet  ✔ Healthy      9m9s   stable
#       ├──□ rollouts-demo-759566c557-65gg8  Pod         ✔ Running      9m9s   ready:1/1

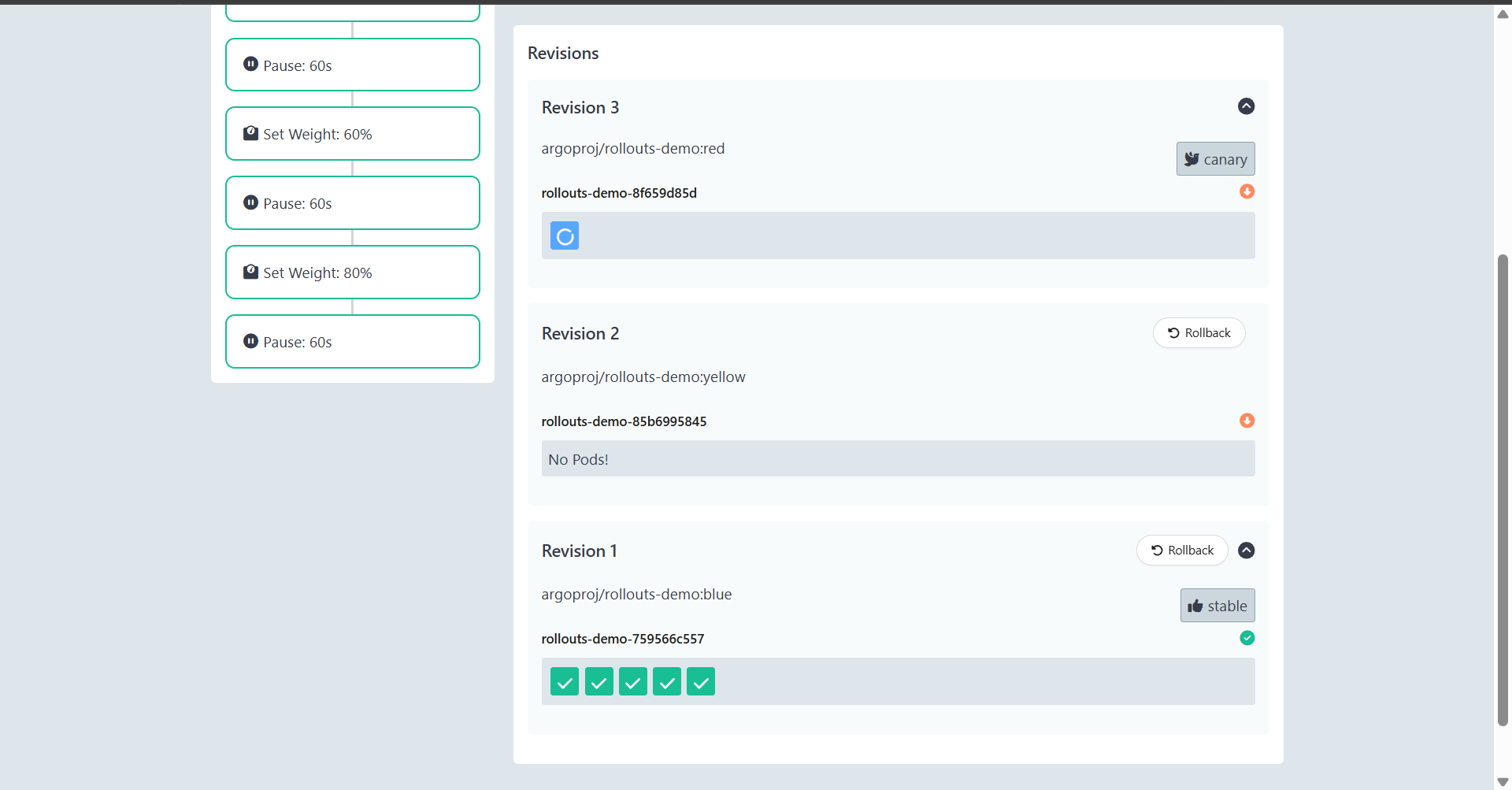

Aborting a Rollout

kubectl argo rollouts set image rollouts-demo rollouts-demo=argoproj/rollouts-demo:red
# rollout "rollouts-demo" image updated

kubectl argo rollouts abort rollouts-demo
# rollout 'rollouts-demo' aborted

kubectl argo rollouts get rollouts rollouts-demo
# Name:            rollouts-demo
# Namespace:       default
# Status:          ✖ Degraded
# Message:         RolloutAborted: Rollout aborted update to revision 3
# Strategy:        Canary
#   Step:          0/8
#   SetWeight:     0
#   ActualWeight:  0
# Images:          argoproj/rollouts-demo:blue (stable)
# Replicas:
#   Desired:       5
#   Current:       5
#   Updated:       0
#   Ready:         5
#   Available:     5

# NAME                                       KIND        STATUS         AGE    INFO
# ⟳ rollouts-demo                            Rollout     ✖ Degraded     9m45s
# ├──# revision:3
# │  └──⧉ rollouts-demo-8f659d85d            ReplicaSet  • ScaledDown   26s    canary
# │     └──□ rollouts-demo-8f659d85d-r6wnv   Pod         ◌ Terminating  26s    ready:1/1
# ├──# revision:2
# │  └──⧉ rollouts-demo-85b6995845           ReplicaSet  • ScaledDown   4m24s
# └──# revision:1
#    └──⧉ rollouts-demo-759566c557           ReplicaSet  ✔ Healthy      9m45s  stable
#       ├──□ rollouts-demo-759566c557-65gg8  Pod         ✔ Running      9m45s  ready:1/1

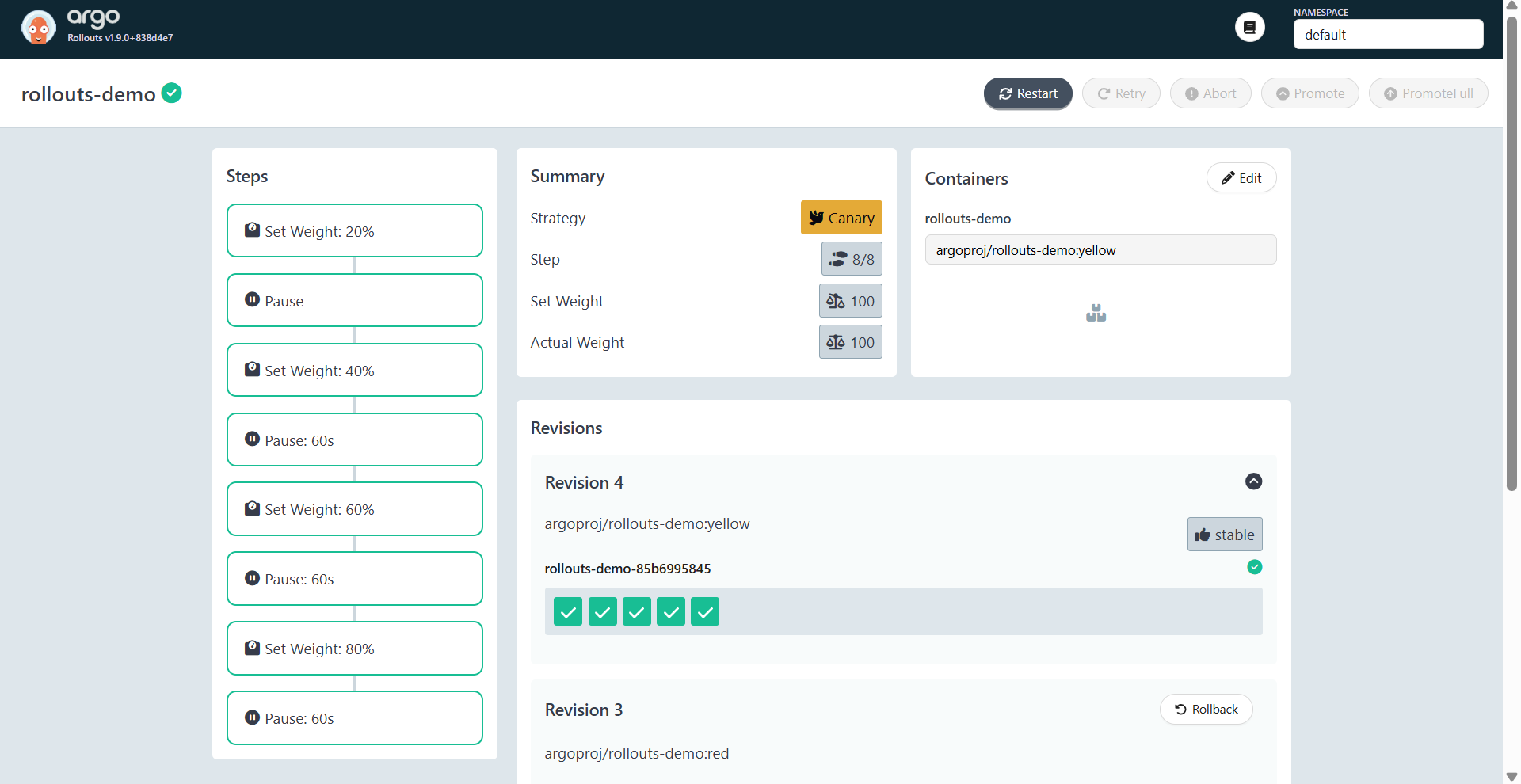

Promote until full deploy

# reset image
kubectl argo rollouts set image rollouts-demo rollouts-demo=argoproj/rollouts-demo:yellow
# rollout "rollouts-demo" image updated

# advance
kubectl argo rollouts promote rollouts-demo
# rollout 'rollouts-demo' promoted

kubectl argo rollouts get rollouts rollouts-demo
# Name:            rollouts-demo
# Namespace:       default
# Status:          ✔ Healthy
# Strategy:        Canary
#   Step:          8/8
#   SetWeight:     100
#   ActualWeight:  100
# Images:          argoproj/rollouts-demo:yellow (stable)
# Replicas:
#   Desired:       5
#   Current:       5
#   Updated:       5
#   Ready:         5
#   Available:     5

# NAME                                       KIND        STATUS        AGE    INFO
# ⟳ rollouts-demo                            Rollout     ✔ Healthy     19m
# ├──# revision:4
# │  └──⧉ rollouts-demo-85b6995845           ReplicaSet  ✔ Healthy     13m    stable
# │     ├──□ rollouts-demo-85b6995845-knlcc  Pod         ✔ Running     7m35s  ready:1/1
# │     ├──□ rollouts-demo-85b6995845-8sfmm  Pod         ✔ Running     6m11s  ready:1/1
# │     ├──□ rollouts-demo-85b6995845-s46b8  Pod         ✔ Running     5m5s   ready:1/1
# │     ├──□ rollouts-demo-85b6995845-6q8hd  Pod         ✔ Running     3m59s  ready:1/1
# │     └──□ rollouts-demo-85b6995845-zrkww  Pod         ✔ Running     2m53s  ready:1/1
# ├──# revision:3
# │  └──⧉ rollouts-demo-8f659d85d            ReplicaSet  • ScaledDown  9m54s
# └──# revision:1
#    └──⧉ rollouts-demo-759566c557           ReplicaSet  • ScaledDown  19m

Clean up

kubectl delete rollout rollouts-demo
# rollout.argoproj.io "rollouts-demo" deleted from default namespace
