Kubernetes Cluster: Update

Back

Kubernetes Cluster: Update

Kubernetes Version

major.minor.patch
- patch: bug fixes
- minor:
  - features, functionalities
  - every few months
alpha realse:
- e.g.,: v1.10.0-alpha
- new features are disabled by default.
- requires a flag to enable them
beta realse:
- e.g., v1.10.0-beta
- new features are enabled by default.

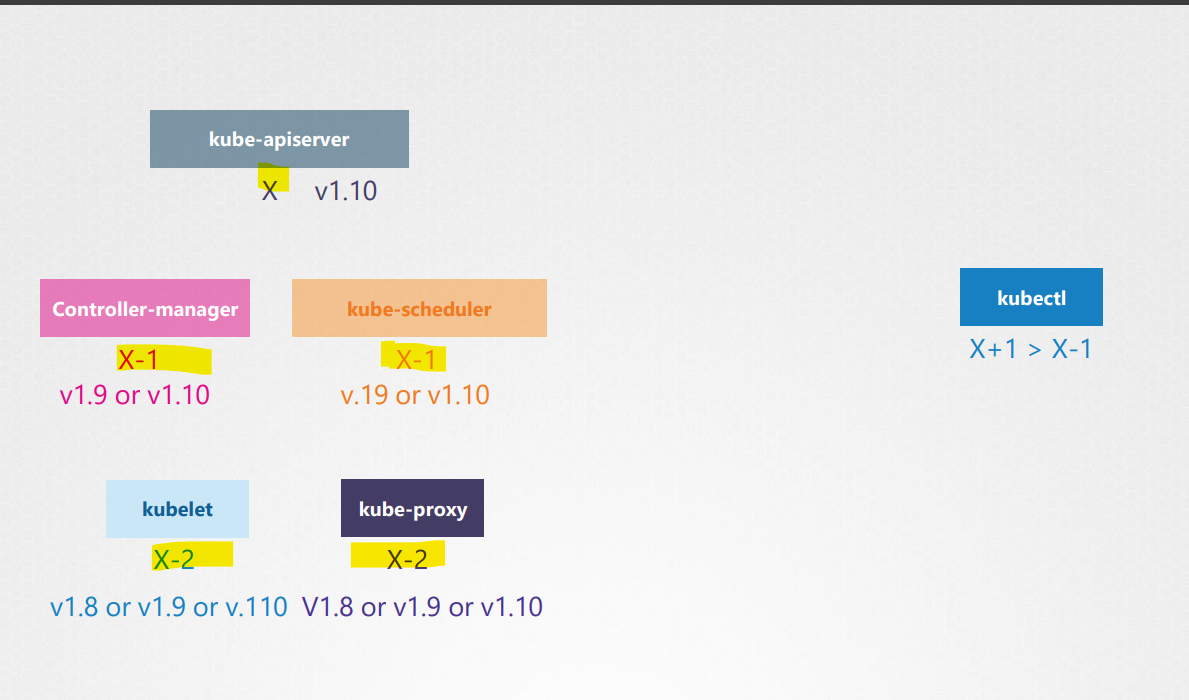

Components can have different release versions.
- etcd cluster and core dns have their own versions
- No other components should have a higher version than the API server.

Cluster Upgrade

K8s supports only up to the recent 3 minor versions.
- v1.12
- v1.11
- v1.10
Upgrade timing:
- before the new release.
Recommended approach:
- upgrade one minor version at a time.
Upgrade process depends on how the cluster is set up.
- cloud providers offers easy upgrade solution.
- kubeadm:
  - kubectl upgrade plan
  - kubectl upgrade apply
- manual way

Upgrade Steps

upgrade master node

cannot access with kubectl
cannot deploy/modify/delete the existing application.
no new pods will be automatically created.

upgrade worker node

Upgrade Worker Nodes Strategy

Strategy A
- upgrade all at once
- lead to downtime
Strategy B
- upgrade one node at a time
- no downtime
Strategy C
- add new node with upgraded version at a time
- no down time
- common when using a cloud provider
After upgrading the cluster, the kubelets are needed to upgrad manually.
kubeadm should be upgraded before the cluster upgrade.

Upgrade Master Node

Upgrade kubeadm
Create and output an upgrade plan
Execute upgrade
Upgrade kubelet on the master node, if applied

Command	Description
`kubectl version`	Get the cluster version
`kubeadm version`	Get the kubeadm version
`apt-get install -y kubeadm='1.33.6-1.1'`	Install kubeadm of a version
`apt-get install -y kubelet='1.35.x-*'`	Upgrade kubelet of a version
`apt-get install -y kubectl='1.35.x-*'`	Upgrade kubectl of a version
`kubeadm upgrade plan`	Create an upgrade plan
`kubeadm upgrade apply v1.33.6`	Execute upgrade
`system restart kubelet`	Restart kubelet

Upgrade Worker Nodes

Cordon the node
Drain the pod from the a worker node
Upgrade kubeadm and kubelet
Upgrade the kube configuration
Uncordon the node

Imperative Commands

Command	Description
`kubectl drain node_name`	Drain existing pods and cordon node
`apt-get upgrade -y kubeadm`	Upgrade kubelet on each node
`apt-get upgrade -y kubelet`	Upgrade kubelet on each node
`kubectl upgrade node config --kubelet-version version_name`	Upgrade the kube configuration
`system restart kubelet`	Restart kubelet
`kubectl uncordon node_name`	Uncordon the node

Lab: Upgrade Cluster to another `minor` release - from 1.33 to 1.34

Changing the package repository

# check the current Kubernetes package repositories
cat /etc/apt/sources.list.d/kubernetes.list
# deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.33/deb/ /

# update minor release from 1.33 to 1.34
sudo nano /etc/apt/sources.list.d/kubernetes.list
# https://pkgs.k8s.io/core:/stable:/v1.34/deb/ /

# confirm
cat /etc/apt/sources.list.d/kubernetes.list
# deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.34/deb/ /

Upgrading `kubeadm`

# update available packages list
sudo apt update

# Find the latest patch release
sudo apt-cache madison kubeadm
# kubeadm | 1.34.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
# kubeadm | 1.34.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
# kubeadm | 1.34.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
# kubeadm | 1.34.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages

# #################################
# Upgrade kubeadm
# #################################
# Unset kubeadm set as held back
sudo apt-mark unhold kubeadm
# Canceled hold on kubeadm.

# update package list
sudo apt-get update

# install a specific version
sudo apt-get install -y kubeadm='1.34.3-1.1'

# Mark kubeadm as held back
sudo apt-mark hold kubeadm
# kubeadm set on hold.

# confirm
kubeadm version
# kubeadm version: &version.Info{Major:"1", Minor:"34", EmulationMajor:"", EmulationMinor:"", MinCompatibilityMajor:"", MinCompatibilityMinor:"", GitVersion:"v1.34.3", GitCommit:"df11db1c0f08fab3c0baee1e5ce6efbf816af7f1", GitTreeState:"clean", BuildDate:"2025-12-09T15:05:15Z", GoVersion:"go1.24.11", Compiler:"gc", Platform:"linux/amd64"}

Upgrading Cluster

# Create cluster upgradeable plan
sudo kubeadm upgrade plan
# [preflight] Running pre-flight checks.
# [upgrade/config] Reading configuration from the "kubeadm-config" ConfigMap in namespace "kube-system"...
# [upgrade/config] Use 'kubeadm init phase upload-config kubeadm --config your-config-file' to re-upload it.
# [upgrade] Running cluster health checks
# [upgrade] Fetching available versions to upgrade to
# [upgrade/versions] Cluster version: 1.33.7
# [upgrade/versions] kubeadm version: v1.34.3
# I0114 17:33:53.488160   55380 version.go:260] remote version is much newer: v1.35.0; falling back to: stable-1.34
# [upgrade/versions] Target version: v1.34.3
# [upgrade/versions] Latest version in the v1.33 series: v1.33.7

# Components that must be upgraded manually after you have upgraded the control plane with 'kubeadm upgrade apply':
# COMPONENT   NODE           CURRENT   TARGET
# kubelet     controlplane   v1.33.7   v1.34.3
# kubelet     node01         v1.34.3   v1.34.3
# kubelet     node02         v1.34.3   v1.34.3

# Upgrade to the latest stable version:

# COMPONENT                 NODE           CURRENT    TARGET
# kube-apiserver            controlplane   v1.33.7    v1.34.3
# kube-controller-manager   controlplane   v1.33.7    v1.34.3
# kube-scheduler            controlplane   v1.33.7    v1.34.3
# kube-proxy                               1.33.7     v1.34.3
# CoreDNS                                  v1.12.0    v1.12.1
# etcd                      controlplane   3.5.24-0   3.6.5-0

# You can now apply the upgrade by executing the following command:

#         kubeadm upgrade apply v1.34.3

# _____________________________________________________________________


# The table below shows the current state of component configs as understood by this version of kubeadm.
# Configs that have a "yes" mark in the "MANUAL UPGRADE REQUIRED" column require manual config upgrade or
# resetting to kubeadm defaults before a successful upgrade can be performed. The version to manually
# upgrade to is denoted in the "PREFERRED VERSION" column.

# API GROUP                 CURRENT VERSION   PREFERRED VERSION   MANUAL UPGRADE REQUIRED
# kubeproxy.config.k8s.io   v1alpha1          v1alpha1            no
# kubelet.config.k8s.io     v1beta1           v1beta1             no
# _____________________________________________________________________

# update cluster
sudo kubeadm upgrade apply v1.34.3 -
# [upgrade] Reading configuration from the "kubeadm-config" ConfigMap in namespace "kube-system"...
# [upgrade] Use 'kubeadm init phase upload-config kubeadm --config your-config-file' to re-upload it.
# [upgrade/preflight] Running preflight checks
# [upgrade] Running cluster health checks
# [upgrade/preflight] You have chosen to upgrade the cluster version to "v1.34.3"
# [upgrade/versions] Cluster version: v1.33.7
# [upgrade/versions] kubeadm version: v1.34.3
# [upgrade/preflight] Pulling images required for setting up a Kubernetes cluster
# [upgrade/preflight] This might take a minute or two, depending on the speed of your internet connection
# [upgrade/preflight] You can also perform this action beforehand using 'kubeadm config images pull'
# W0114 17:41:10.003772   57221 checks.go:827] detected that the sandbox image "registry.k8s.io/pause:3.8" of the container runtime is inconsistent with that used by kubeadm. It is recommended to use "registry.k8s.io/pause:3.10.1" as the CRI sandbox image.
# [upgrade/control-plane] Upgrading your static Pod-hosted control plane to version "v1.34.3" (timeout: 5m0s)...
# [upgrade/staticpods] Writing new Static Pod manifests to "/etc/kubernetes/tmp/kubeadm-upgraded-manifests3943742347"
# [upgrade/staticpods] Preparing for "etcd" upgrade
# [upgrade/staticpods] Renewing etcd-server certificate
# [upgrade/staticpods] Renewing etcd-peer certificate
# [upgrade/staticpods] Renewing etcd-healthcheck-client certificate
# [upgrade/staticpods] Moving new manifest to "/etc/kubernetes/manifests/etcd.yaml" and backing up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2026-01-14-17-41-36/etcd.yaml"
# [upgrade/staticpods] Waiting for the kubelet to restart the component
# [upgrade/staticpods] This can take up to 5m0s
# [apiclient] Found 1 Pods for label selector component=etcd
# [upgrade/staticpods] Component "etcd" upgraded successfully!
# [upgrade/etcd] Waiting for etcd to become available
# [upgrade/staticpods] Preparing for "kube-apiserver" upgrade
# [upgrade/staticpods] Renewing apiserver certificate
# [upgrade/staticpods] Renewing apiserver-kubelet-client certificate
# [upgrade/staticpods] Renewing front-proxy-client certificate
# [upgrade/staticpods] Renewing apiserver-etcd-client certificate
# [upgrade/staticpods] Moving new manifest to "/etc/kubernetes/manifests/kube-apiserver.yaml" and backing up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2026-01-14-17-41-36/kube-apiserver.yaml"
# [upgrade/staticpods] Waiting for the kubelet to restart the component
# [upgrade/staticpods] This can take up to 5m0s
# [apiclient] Found 1 Pods for label selector component=kube-apiserver
# [upgrade/staticpods] Component "kube-apiserver" upgraded successfully!
# [upgrade/staticpods] Preparing for "kube-controller-manager" upgrade
# [upgrade/staticpods] Renewing controller-manager.conf certificate
# [upgrade/staticpods] Moving new manifest to "/etc/kubernetes/manifests/kube-controller-manager.yaml" and backing up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2026-01-14-17-41-36/kube-controller-manager.yaml"
# [upgrade/staticpods] Waiting for the kubelet to restart the component
# [upgrade/staticpods] This can take up to 5m0s
# [apiclient] Found 1 Pods for label selector component=kube-controller-manager
# [upgrade/staticpods] Component "kube-controller-manager" upgraded successfully!
# [upgrade/staticpods] Preparing for "kube-scheduler" upgrade
# [upgrade/staticpods] Renewing scheduler.conf certificate
# [upgrade/staticpods] Moving new manifest to "/etc/kubernetes/manifests/kube-scheduler.yaml" and backing up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2026-01-14-17-41-36/kube-scheduler.yaml"
# [upgrade/staticpods] Waiting for the kubelet to restart the component
# [upgrade/staticpods] This can take up to 5m0s
# [apiclient] Found 1 Pods for label selector component=kube-scheduler
# [upgrade/staticpods] Component "kube-scheduler" upgraded successfully!
# [upgrade/control-plane] The control plane instance for this node was successfully upgraded!
# [upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
# [kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
# [upgrade/kubeconfig] The kubeconfig files for this node were successfully upgraded!
# W0114 17:44:54.019109   57221 postupgrade.go:116] Using temporary directory /etc/kubernetes/tmp/kubeadm-kubelet-config64290263 for kubelet config. To override it set the environment variable KUBEADM_UPGRADE_DRYRUN_DIR
# [upgrade] Backing up kubelet config file to /etc/kubernetes/tmp/kubeadm-kubelet-config64290263/config.yaml
# [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
# [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/instance-config.yaml"
# [patches] Applied patch of type "application/strategic-merge-patch+json" to target "kubeletconfiguration"
# [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
# [upgrade/kubelet-config] The kubelet configuration for this node was successfully upgraded!
# [upgrade/bootstrap-token] Configuring bootstrap token and cluster-info RBAC rules
# [bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
# [bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
# [bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
# [bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
# [addons] Applied essential addon: CoreDNS
# [addons] Applied essential addon: kube-proxy

# [upgrade] SUCCESS! A control plane node of your cluster was upgraded to "v1.34.3".

# [upgrade] Now please proceed with upgrading the rest of the nodes by following the right order.

Upgrading `kubectl` and `kubelet`

# Drain the node, marking it unschedulable and evicting the workloads
kubectl drain controlplane --ignore-daemonsets
# node/controlplane cordoned
# Warning: ignoring DaemonSet-managed Pods: kube-flannel/kube-flannel-ds-jwtcj, kube-system/kube-proxy-v54gx
# node/controlplane drained

# Unset kubelet kubectl set as held back
sudo apt-mark unhold kubelet kubectl
# Canceled hold on kubelet.
# Canceled hold on kubectl.

# update package list
sudo apt-get update

# Find the latest patch release
sudo apt-cache madison kubectl kubelet
#  kubectl | 1.34.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubectl | 1.34.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubectl | 1.34.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubectl | 1.34.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages

# install a specific version
sudo apt-get install -y kubectl='1.34.3-1.1' kubelet='1.34.3-1.1'

# Mark kubelet kubectl as held back
sudo apt-mark hold kubelet kubectl
# kubelet set on hold.
# kubectl set on hold.

# Restart the kubelet
sudo systemctl daemon-reload
sudo systemctl restart kubelet

# Uncordon the node, marking it schedulable
kubectl uncordon controlplane
# node/controlplane uncordoned

# confirm
kubectl get node
# NAME           STATUS   ROLES           AGE    VERSION
# controlplane   Ready    control-plane   46h    v1.34.3

Lab: Upgrade Worker Node

Changing the package repository

# check the current Kubernetes package repositories
cat /etc/apt/sources.list.d/kubernetes.list
# deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.33/deb/ /

# update minor release from 1.33 to 1.34
sudo nano /etc/apt/sources.list.d/kubernetes.list
# https://pkgs.k8s.io/core:/stable:/v1.34/deb/ /

# confirm
cat /etc/apt/sources.list.d/kubernetes.list
# deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.34/deb/ /

Upgrading `kubeadm`

# update available packages list
sudo apt update

# Find the latest patch release
sudo apt-cache madison kubeadm
# kubeadm | 1.34.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
# kubeadm | 1.34.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
# kubeadm | 1.34.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
# kubeadm | 1.34.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages

# #################################
# Upgrade kubeadm
# #################################
# Unset kubeadm set as held back
sudo apt-mark unhold kubeadm
# Canceled hold on kubeadm.

# update package list
sudo apt-get update

# install a specific version
sudo apt-get install -y kubeadm='1.34.3-1.1'

# Mark kubeadm as held back
sudo apt-mark hold kubeadm
# kubeadm set on hold.

# confirm
kubeadm version
# kubeadm version: &version.Info{Major:"1", Minor:"34", EmulationMajor:"", EmulationMinor:"", MinCompatibilityMajor:"", MinCompatibilityMinor:"", GitVersion:"v1.34.3", GitCommit:"df11db1c0f08fab3c0baee1e5ce6efbf816af7f1", GitTreeState:"clean", BuildDate:"2025-12-09T15:05:15Z", GoVersion:"go1.24.11", Compiler:"gc", Platform:"linux/amd64"}

Upgrading Worker Node Configuration

# upgrades the local kubelet configuration
sudo kubeadm upgrade node
# [upgrade] Reading configuration from the "kubeadm-config" ConfigMap in namespace "kube-system"...
# [upgrade] Use 'kubeadm init phase upload-config kubeadm --config your-config-file' to re-upload it.
# [upgrade/preflight] Running pre-flight checks
# [upgrade/preflight] Skipping prepull. Not a control plane node.
# [upgrade/control-plane] Skipping phase. Not a control plane node.
# [upgrade/kubeconfig] Skipping phase. Not a control plane node.
# W0114 18:19:18.181386   13569 postupgrade.go:116] Using temporary directory /etc/kubernetes/tmp/kubeadm-kubelet-config3985649104 for kubelet config. To override it set the environment variable KUBEADM_UPGRADE_DRYRUN_DIR
# [upgrade] Backing up kubelet config file to /etc/kubernetes/tmp/kubeadm-kubelet-config3985649104/config.yaml
# [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
# [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/instance-config.yaml"
# [patches] Applied patch of type "application/strategic-merge-patch+json" to target "kubeletconfiguration"
# [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
# [upgrade/kubelet-config] The kubelet configuration for this node was successfully upgraded!
# [upgrade/addon] Skipping the addon/coredns phase. Not a control plane node.
# [upgrade/addon] Skipping the addon/kube-proxy phase. Not a control plane node.

Upgrading `kubelet` & `kubectl`

Master node

# Drain the node
kubectl drain node --ignore-daemonsets
# node/node01 cordoned
# Warning: ignoring DaemonSet-managed Pods: kube-flannel/kube-flannel-ds-c7p97, kube-system/kube-proxy-tdkr8
# evicting pod kube-system/coredns-66bc5c9577-7t6dp
# pod/coredns-66bc5c9577-7t6dp evicted
# node/node01 drained

Worker node

# Unset kubelet kubectl set as held back
sudo apt-mark unhold kubelet kubectl
# Canceled hold on kubelet.
# Canceled hold on kubectl.

# update package list
sudo apt-get update

# Find the latest patch release
sudo apt-cache madison kubectl kubelet
#  kubectl | 1.34.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubectl | 1.34.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubectl | 1.34.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubectl | 1.34.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages
#  kubelet | 1.34.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.34/deb  Packages

# install a specific version
sudo apt-get install -y kubectl='1.34.3-1.1' kubelet='1.34.3-1.1'

# Mark kubelet kubectl as held back
sudo apt-mark hold kubelet kubectl
# kubelet set on hold.
# kubectl set on hold.

# Restart the kubelet
sudo systemctl daemon-reload
sudo systemctl restart kubelet

Master node

# Uncordon the node, marking it schedulable
kubectl uncordon node01
# node/node01 already uncordoned

# confirm
kubectl get node
# NAME           STATUS   ROLES           AGE    VERSION
# controlplane   Ready    control-plane   47h    v1.34.3
# node01         Ready    <none>          157m   v1.34.3

Note_Tech

Kubernetes Cluster: Update

Kubernetes Version

Cluster Upgrade

Upgrade Steps

Upgrade Worker Nodes Strategy

Upgrade Master Node

Upgrade Worker Nodes

Imperative Commands

Lab: Upgrade Cluster to another minor release - from 1.33 to 1.34

Changing the package repository

Upgrading kubeadm

Upgrading Cluster

Upgrading kubectl and kubelet

Lab: Upgrade Worker Node

Changing the package repository

Upgrading kubeadm

Upgrading Worker Node Configuration

Upgrading kubelet & kubectl

Lab: Upgrade Cluster to another `minor` release - from 1.33 to 1.34

Upgrading `kubeadm`

Upgrading `kubectl` and `kubelet`

Upgrading `kubeadm`

Upgrading `kubelet` & `kubectl`
