Kubernetes Networking: Ingress

Back

Kubernetes Networking: Ingress

Ingress

Limitation of service:
- becomes problematic with large numbers of services, since each service needs its own public IP address.
Ingress
- an API object that manages external access to services within a Kubernetes cluster, typically using HTTP and HTTPS protocols.
- used to expose multiple services with a single IP address
- exposes HTTP and HTTPS routes from outside the cluster to services within the cluster.
  - Traffic routing is controlled by rules defined on the Ingress resource.
Only expose services of HTTP and HTTPS to the internet

Additional features:
- HTTP authentication,
- cookie-based session affinity,
- URL rewriting
An Ingress object typically handles traffic for all Service objects in a particular Kubernetes namespace.
- multiple Ingresses are also an option.
each Ingress object gets its own IP address
- some ingress implementations use a shared entrypoint for all Ingress objects

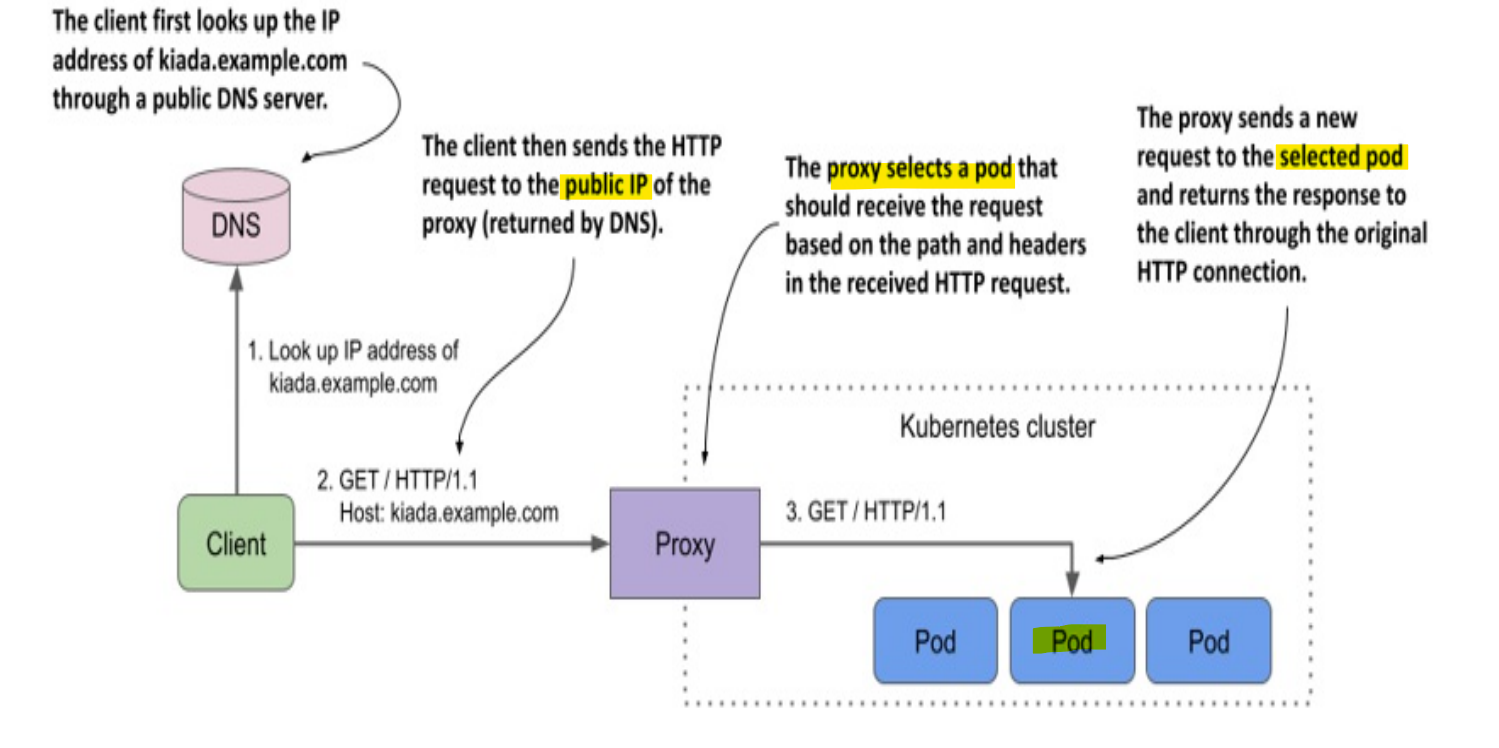

Note that the proxy doesn’t send the request to the service IP, but directly to the pod.

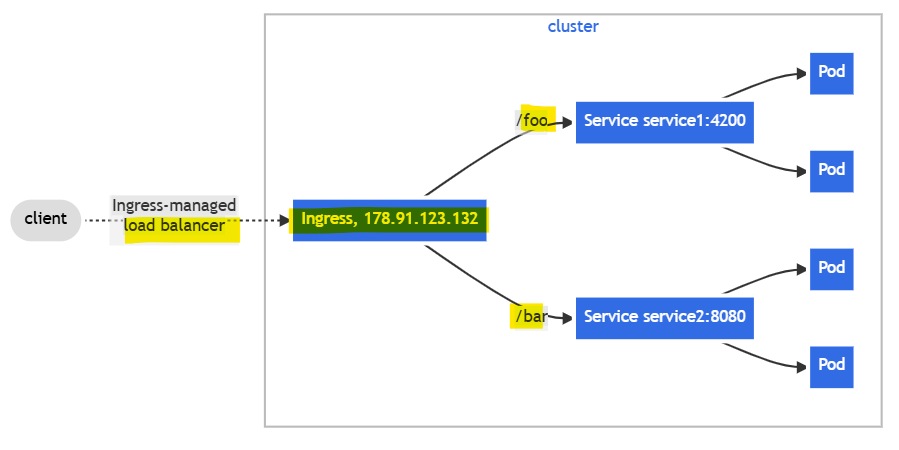

ingress forward the request based on the path to different services

Ingress Controller

Ingress Controller
- a cluster add-on component
- a specialized, Layer 7 load balancer and reverse proxy that manages external traffic into cluster, routing it to the correct internal services based on rules.
- link between the Ingress object and the actual physical ingress (the reverse proxy)
- popular e.g., nginx, haproxy, trafik
Common Controllers
- Google Kubernetes Engine: GLBC (GCE L7 Load Balancer)
- AWS: AWS Load Balancer Controller
- Azure: AGIC (Application Gateway Ingress Controller)
Nginx ingress controller: https://kubernetes.github.io/ingress-nginx/deploy/

Default Backend

If the client request doesn’t match any rules defined in the Ingress object, the response 404 Not Found is normally returned.
can define a default backend to which the ingress should forward the request if no rules are matched.
- The default backend serves as a catch-all rule.
spec.defaultBackend field

spec:
  defaultBackend:
    service:
      name: fun404
      port:
        name: http
  rules:
    # ...

Declarative Manifest

Example:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: minimal-ingress
spec:
  ingressClassName: nginx-example
  rules:
    - http:
        paths:
          - path: /testpath
            pathType: Prefix
            backend:
              service:
                name: test
                port:
                  number: 80

spec.ingressClassName field:
- specify the Ingress Class
- If omitted, a default Ingress class should be defined.
spec.rules[].http field:
- specify http rules
- http.paths:
  - A list of paths, each of which has an associated backend
- http.paths[].backend:
  - the associated service
  - defined with a service.name and a service.port.name or service.port.number.
spec.defaultBackend field:
- the backend that should handle requests when the Ingress has no rules
- If none of the hosts or paths match the HTTP request in the Ingress objects, the traffic is routed to default backend

Resource backends

defaultBackend.resource/backend.resource field:
- an ObjectRef to another Kubernetes resource within the same namespace as the Ingress object.
- cannot be a service

# exampe of resource
spec:
  defaultBackend:
    resource:
      apiGroup: k8s.example.com
      kind: StorageBucket
      name: static-assets
spec:
  rules:
    - http:
        paths:
          - backend:
              resource:
                apiGroup: k8s.example.com
                kind: StorageBucket
                name: icon-assets

Path types

http.paths.pathType:
- required
- specify the type of path
- supported values:
  - ImplementationSpecific:
    - matching is up to the IngressClass.
  - Exact:
    - Matches the URL path exactly and with case sensitivity.
  - Prefix:
    - Matches based on a URL path prefix split by / with case sensitive
Multiple matches
- the precedence will be given first to the longest matching path.
- If two paths are still equally matched, precedence will be given to paths with an exact path type over prefix path type.

Path	Matched Request path(s)
`/` Exact	all paths
`/foo` Exact	`/foo`
`/foo` Prefix	`/foo`, `/foo/`
`/foo/` Prefix	`/foo`, `/foo/`
`/aaa/bbb` Prefix	`/aaa/bbb` , `/aaa/bbb/`, `/aaa/bbb/ccc`
`/aaa/bbb/` Prefix	`/aaa/bbb`

Hosts

http.host:
- optional
- specify the the host to which current rule is applied.
- used to matche HTTP host header with the host field.
- if ommited, the rule applies to all inbound HTTP traffic through the IP address specified.
Hostname wildcards match:
- require the HTTP host header is equal to the suffix of the wildcard rule.
Example

Host	Host header	Match
`*.foo.com`	`bar.foo.com`	Matches based on shared suffix
`*.foo.com`	`baz.bar.foo.com`	No match, wildcard only covers a single DNS label
`*.foo.com`	`foo.com`	No match, wildcard only covers a single DNS label

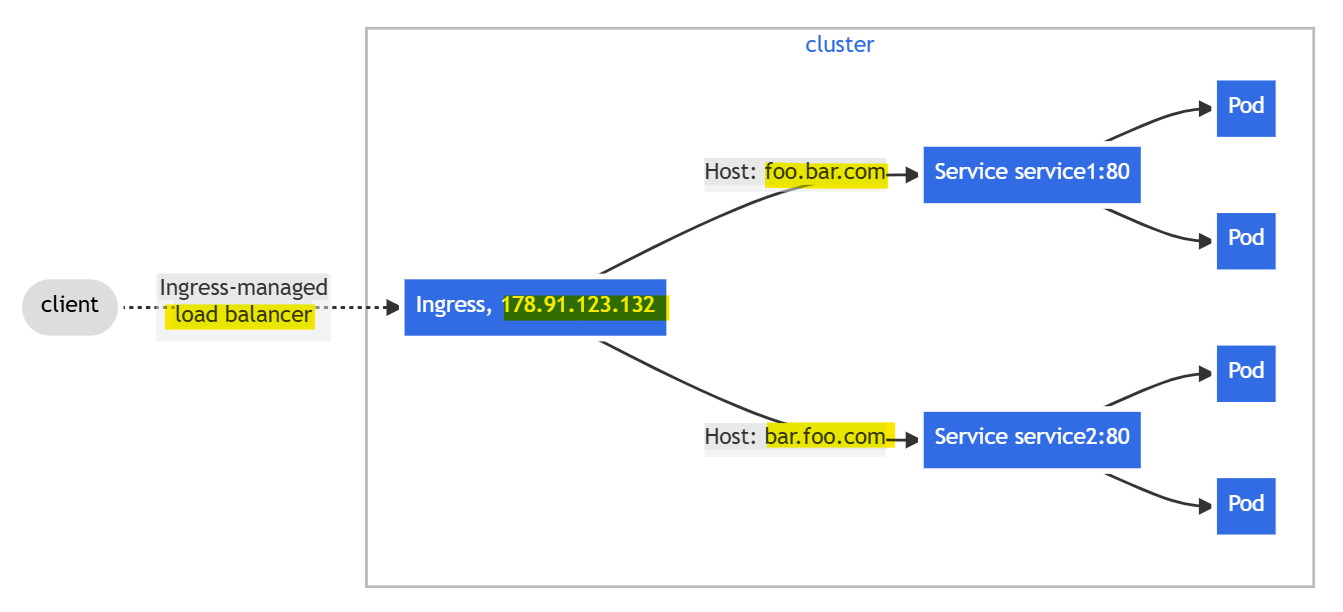

Example: multiple hosts rules

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-wildcard-host
spec:
  rules:
    - host: "foo.bar.com"
      http:
        paths:
          - pathType: Prefix
            path: "/bar"
            backend:
              service:
                name: service1
                port:
                  number: 80
    - host: "*.foo.com"
      http:
        paths:
          - pathType: Prefix
            path: "/foo"
            backend:
              service:
                name: service2
                port:
                  number: 80

Imperative Commands

CMD	DESC
`kubectl explain ingress`	Show ingress API structure
`kubectl get ingress`	List all ingress resources in current namespace
`kubectl get ingress -A`	List ingress in all namespaces
`kubectl describe ingress <name>`	Show rules, backend services, TLS, annotations
`kubectl create ingress <name> --rule=host/path=svc:port`	Create ingress imperatively
`kubectl edit ingress <name>`	Edit ingress live
`kubectl delete ingress <name>`	Delete an ingress
`kubectl logs -n ingress-nginx deploy/ingress-nginx-controller`	View ingress controller logs
`kubectl get svc -n ingress-nginx`	View ingress controller service (LoadBalancer/NodePort)

Ingress class

Ingresses can be implemented by different controllers, often with different configuration. Each Ingress should specify a class, a reference to an IngressClass resource that contains additional configuration including the name of the controller that should implement the class.
A cluster can use multiple ingress class
An ingress object specify the ingress class in the ingressClassName field
default IngressClass
- ingressclass.kubernetes.io/is-default-class:true

kubectl get ingressclasses
# NAME    CONTROLLER             PARAMETERS   AGE
# nginx   k8s.io/ingress-nginx   <none>       5h7m

kubectl get ingressclasses nginx -o yaml
# apiVersion: networking.k8s.io/v1
# kind: IngressClass
# metadata:
#   annotations:
#     kubectl.kubernetes.io/last-applied-configuration: |
#       {"apiVersion":"networking.k8s.io/v1","kind":"IngressClass","metadata":{"annotations":{},"labels":{"app.kubernetes.io/component":"controller","app.kubernetes.io/instance":"ingress-nginx","app.kubernetes.io/name":"ingress-nginx","app.kubernetes.io/part-of":"ingress-nginx","app.kubernetes.io/version":"1.14.1"},"name":"nginx"},"spec":{"controller":"k8s.io/ingress-nginx"}}
#   creationTimestamp: "2025-12-29T23:00:55Z"
#   generation: 1
#   labels:
#     app.kubernetes.io/component: controller
#     app.kubernetes.io/instance: ingress-nginx
#     app.kubernetes.io/name: ingress-nginx
#     app.kubernetes.io/part-of: ingress-nginx
#     app.kubernetes.io/version: 1.14.1
#   name: nginx
#   resourceVersion: "2777695"
#   uid: 7788ee00-8598-4d8c-8851-3aa28910f190
# spec:
#   controller: k8s.io/ingress-nginx

Lab: Install `Nginx Ingress Controller`

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.14.1/deploy/static/provider/cloud/deploy.yaml
# namespace/ingress-nginx created
# serviceaccount/ingress-nginx created
# serviceaccount/ingress-nginx-admission created
# role.rbac.authorization.k8s.io/ingress-nginx created
# role.rbac.authorization.k8s.io/ingress-nginx-admission created
# clusterrole.rbac.authorization.k8s.io/ingress-nginx created
# clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
# rolebinding.rbac.authorization.k8s.io/ingress-nginx created
# rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
# clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
# clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
# configmap/ingress-nginx-controller created
# service/ingress-nginx-controller created
# service/ingress-nginx-controller-admission created
# deployment.apps/ingress-nginx-controller created
# job.batch/ingress-nginx-admission-create created
# job.batch/ingress-nginx-admission-patch created
# ingressclass.networking.k8s.io/nginx created
# validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created

# confirm
get pods --namespace=ingress-nginx
# NAME                                        READY   STATUS    RESTARTS   AGE
# ingress-nginx-controller-59bc454dc9-mdqtz   1/1     Running   0          51s

k get ingressclass
# NAME    CONTROLLER             PARAMETERS   AGE
# nginx   k8s.io/ingress-nginx   <none>       82s

Local testing

kubectl create deployment demo --image=httpd --port=80
# deployment.apps/demo created
kubectl expose deployment demo
# service/demo exposed

kubectl get svc
# NAME                        TYPE           CLUSTER-IP       EXTERNAL-IP        PORT(S)          AGE
# demo                        ClusterIP      10.105.59.62     <none>             80/TCP           9s

kubectl create ingress demo-localhost --class=nginx --rule="demo.localdev.me/*=demo:80"
# ingress.networking.k8s.io/demo-localhost created

kubectl port-forward --namespace=ingress-nginx service/ingress-nginx-controller 8080:80
# Forwarding from 127.0.0.1:8080 -> 80
# Forwarding from [::1]:8080 -> 80

# test
curl --resolve demo.localdev.me:8080:127.0.0.1 http://demo.localdev.me:8080
# <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
# <html>
# <head>
# <title>It works! Apache httpd</title>
# </head>
# <body>
# <p>It works!</p>
# </body>
# </html>

Types of Ingress

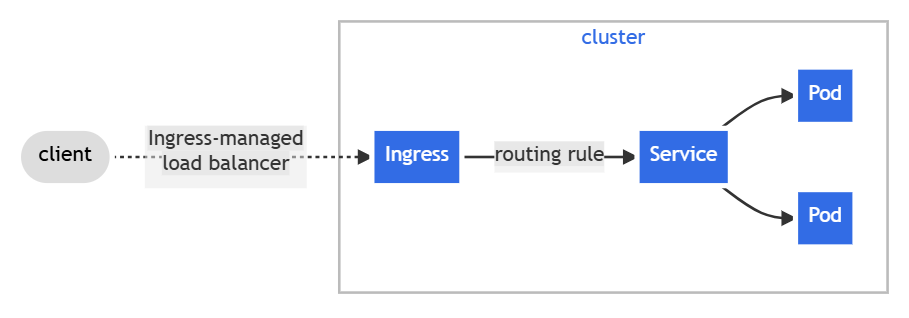

Single Service

using Ingress to expose a single Service
Example

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-single-svc
spec:
  defaultBackend:
    service:
      name: test
      port:
        number: 80

Lab: Single Service Ingress

tee demo-ingress-single-svc.yaml<<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-single-svc-deploy
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-single-svc-deploy
  template:
    metadata:
      labels:
        app: demo-single-svc-deploy
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: demo-single-svc-svc
spec:
  selector:
    app: demo-single-svc-deploy
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-single-svc
spec:
  ingressClassName: nginx
  defaultBackend:
    service:
      name: demo-single-svc-svc
      port:
        number: 80
EOF

kubectl apply -f demo-ingress-single-svc.yaml
# deployment.apps/demo-single-svc-deploy created
# service/demo-single-svc-svc created
# ingress.networking.k8s.io/demo-single-svc created

kubectl get deploy demo-single-svc-deploy
# NAME                     READY   UP-TO-DATE   AVAILABLE   AGE
# demo-single-svc-deploy   3/3     3            3           29s

kubectl get svc demo-single-svc-svc
# NAME                  TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
# demo-single-svc-svc   ClusterIP   10.96.17.93   <none>        80/TCP    86s

kubectl get ing demo-single-svc
# NAME              CLASS   HOSTS   ADDRESS   PORTS   AGE
# demo-single-svc   nginx   *                 80      13m

# get ingress svc ip and port
kubectl -n ingress-nginx get svc ingress-nginx-controller
# NAME                       TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
# ingress-nginx-controller   LoadBalancer   10.102.142.89   <pending>     80:31043/TCP,443:32723/TCP   4h46m

# test internal
kubectl run curltest --rm -it --image=curlimages/curl --restart=Never -- sh
curl -i http://10.102.142.89/
# HTTP/1.1 200 OK
# Date: Fri, 23 Jan 2026 01:20:49 GMT
# Content-Type: text/html
# Content-Length: 615
# Connection: keep-alive
# Last-Modified: Tue, 09 Dec 2025 18:28:10 GMT
# ETag: "69386a3a-267"
# Accept-Ranges: bytes

# <!DOCTYPE html>
# <html>
# <head>
# <title>Welcome to nginx!</title>
# <style>
# html { color-scheme: light dark; }
# body { width: 35em; margin: 0 auto;
# font-family: Tahoma, Verdana, Arial, sans-serif; }
# </style>
# </head>
# <body>
# <h1>Welcome to nginx!</h1>
# <p>If you see this page, the nginx web server is successfully installed and
# working. Further configuration is required.</p>

# <p>For online documentation and support please refer to
# <a href="http://nginx.org/">nginx.org</a>.<br/>
# Commercial support is available at
# <a href="http://nginx.com/">nginx.com</a>.</p>

# <p><em>Thank you for using nginx.</em></p>
# </body>
# </html>

# test externally
kubectl get node -o wide
# NAME           STATUS   ROLES           AGE     VERSION    INTERNAL-IP      EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION      CONTAINER-RUNTIME
# controlplane   Ready    control-plane   5d20h   v1.32.11   192.168.10.150   <none>        Ubuntu 24.04.3 LTS   6.14.0-37-generic   containerd://1.7.28
# node01         Ready    <none>          5d20h   v1.32.11   192.168.10.151   <none>        Ubuntu 24.04.3 LTS   6.14.0-37-generic   containerd://1.7.28
# node02         Ready    <none>          5d20h   v1.32.11   192.168.10.152   <none>        Ubuntu 24.04.3 LTS   6.14.0-37-generic   containerd://1.7.28

curl http://192.168.10.150:31043
# <!DOCTYPE html>
# <html>
# <head>
# <title>Welcome to nginx!</title>
# <style>
# html { color-scheme: light dark; }
# body { width: 35em; margin: 0 auto;
# font-family: Tahoma, Verdana, Arial, sans-serif; }
# </style>
# </head>
# <body>
# <h1>Welcome to nginx!</h1>
# <p>If you see this page, the nginx web server is successfully installed and
# working. Further configuration is required.</p>

# <p>For online documentation and support please refer to
# <a href="http://nginx.org/">nginx.org</a>.<br/>
# Commercial support is available at
# <a href="http://nginx.com/">nginx.com</a>.</p>

# <p><em>Thank you for using nginx.</em></p>
# </body>
# </html>

Simple fanout

fanout
- routes traffic from a single IP address to more than one Service, based on the HTTP URI being requested.
- An Ingress allows to keep the number of load balancers down to a minimum.

Example: fan

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: simple-fanout-example
spec:
  rules:
    - host: foo.bar.com
      http:
        paths:
          - path: /foo
            pathType: Prefix
            backend:
              service:
                name: service1
                port:
                  number: 4200
          - path: /bar
            pathType: Prefix
            backend:
              service:
                name: service2
                port:
                  number: 8080

Lab: Fanout Ingress

tee demo-fanout.yaml<<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-fanout-deploy1
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-fanout-deploy1
  template:
    metadata:
      labels:
        app: demo-fanout-deploy1
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-fanout-deploy2
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-fanout-deploy2
  template:
    metadata:
      labels:
        app: demo-fanout-deploy2
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: demo-fanout-svc1
spec:
  selector:
    app: demo-fanout-deploy1
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: demo-fanout-svc2
spec:
  selector:
    app: demo-fanout-deploy2
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-fanout-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: nginx
  rules:
  - host: fanout.mysite.com
    http:
      paths:
      - path: /alpha
        pathType: Prefix
        backend:
          service:
            name: demo-fanout-svc1
            port:
              number: 80
      - path: /beta
        pathType: Prefix
        backend:
          service:
            name: demo-fanout-svc2
            port:
              number: 80
EOF

kubectl apply -f demo-fanout.yaml
# deployment.apps/demo-fanout-deploy1 created
# deployment.apps/demo-fanout-deploy2 created
# service/demo-fanout-svc1 created
# service/demo-fanout-svc2 created
# ingress.networking.k8s.io/demo-fanout-ingress created

kubectl get deploy demo-fanout-deploy1 demo-fanout-deploy2
# NAME                  READY   UP-TO-DATE   AVAILABLE   AGE
# demo-fanout-deploy1   3/3     3            3           2m22s
# demo-fanout-deploy2   3/3     3            3           2m22s

kubectl get svc demo-fanout-svc1 demo-fanout-svc2
# NAME               TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
# demo-fanout-svc1   ClusterIP   10.107.227.140   <none>        80/TCP    2m42s
# demo-fanout-svc2   ClusterIP   10.111.143.230   <none>        80/TCP    2m42s

kubectl get ing demo-fanout-ingress
# NAME                  CLASS   HOSTS               ADDRESS   PORTS   AGE
# demo-fanout-ingress   nginx   fanout.mysite.com             80      25m

Testing

kubectl -n ingress-nginx get svc ingress-nginx-controller
# NAME                       TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
# ingress-nginx-controller   LoadBalancer   10.102.142.89   <pending>     80:31043/TCP,443:32723/TCP   5h57m


# test internal
kubectl run curltest --rm -it --image=curlimages/curl --restart=Never -- sh
curl -i -H "Host: fanout.mysite.com" http://10.102.142.89/alpha
curl -i -H "Host: fanout.mysite.com" http://10.102.142.89/beta

# test externally
curl -i -H "Host: fanout.mysite.com" http://192.168.10.150:31043/alpha
curl -i -H "Host: fanout.mysite.com" http://192.168.10.150:31043/beta

Name based virtual hosting

Name-based virtual hosts
- support routing HTTP traffic to multiple host names at the same IP address.

Example: virtual hosting

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: name-virtual-host-ingress
spec:
  rules:
    - host: foo.bar.com
      http:
        paths:
          - pathType: Prefix
            path: "/"
            backend:
              service:
                name: service1
                port:
                  number: 80
    - host: bar.foo.com
      http:
        paths:
          - pathType: Prefix
            path: "/"
            backend:
              service:
                name: service2
                port:
                  number: 80

Lab: Virtual Hosting Ingress

tee demo-vhost.yaml<<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-vhost-deploy1
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-vhost-deploy1
  template:
    metadata:
      labels:
        app: demo-vhost-deploy1
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-vhost-deploy2
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-vhost-deploy2
  template:
    metadata:
      labels:
        app: demo-vhost-deploy2
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: demo-vhost-svc1
spec:
  selector:
    app: demo-vhost-deploy1
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: demo-vhost-svc2
spec:
  selector:
    app: demo-vhost-deploy2
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-vhost-ingress
spec:
  rules:
  - host: foo.mysite.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: demo-vhost-svc1
            port:
              number: 80
  - host: bar.mysite.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: demo-vhost-svc2
            port:
              number: 80

EOF

kubectl apply -f demo-vhost.yaml
# deployment.apps/demo-vhost-deploy1 created
# deployment.apps/demo-vhost-deploy2 created
# service/demo-vhost-svc1 created
# service/demo-vhost-svc2 created
# ingress.networking.k8s.io/demo-vhost-ingress created

kubectl get ing demo-vhost-ingress
# NAME                 CLASS    HOSTS                           ADDRESS   PORTS   AGE
# demo-vhost-ingress   <none>   foo.mysite.com,bar.mysite.com             80      20s

test

kubectl -n ingress-nginx get svc ingress-nginx-controller
# NAME                       TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
# ingress-nginx-controller   LoadBalancer   10.102.142.89   <pending>     80:31043/TCP,443:32723/TCP   5h57m


# test internal
kubectl run curltest --rm -it --image=curlimages/curl --restart=Never -- sh
curl -i -H "Host: foo.mysite.com" http://10.102.142.89
curl -i -H "Host: bar.mysite.com" http://10.102.142.89

# test externally
curl -i -H "Host: foo.mysite.com" http://192.168.10.150:31043
curl -i -H "Host: bar.mysite.com" http://192.168.10.150:31043

Rules without host

If there is not any hosts defined in the rules, then any web traffic to the IP address of Ingress controller can be matched without a name based virtual host being required.
Example:
- traffic requested for first.bar.com: service1
- traffic requested for second.bar.com: service2
- any traffic whose request host header doesn’t match first.bar.com and second.bar.com: service3

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: name-virtual-host-ingress-no-third-host
spec:
  rules:
    - host: first.bar.com
      http:
        paths:
          - pathType: Prefix
            path: "/"
            backend:
              service:
                name: service1
                port:
                  number: 80
    - host: second.bar.com
      http:
        paths:
          - pathType: Prefix
            path: "/"
            backend:
              service:
                name: service2
                port:
                  number: 80
    - http:
        paths:
          - pathType: Prefix
            path: "/"
            backend:
              service:
                name: service3
                port:
                  number: 80

TLS

The Ingress only supports a single TLS port, 443, and assumes TLS termination at the ingress point
- secure the channel from the client to the load balancer using TLS
- traffic to the Service and its Pods is in plaintext
Example

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: tls-example-ingress
spec:
  tls:
    - hosts:
        - https-example.foo.com
      secretName: testsecret-tls
  rules:
    - host: https-example.foo.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: service1
                port:
                  number: 80

TLS passthrough

If the ingress controller supports TLS passthrough, you can usually configure it by adding annotations to the Ingress object
Example: Nginx Ingress Controller

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-passthrough
  annotations:
    nginx.ingress.kubernetes.io/ssl-passthrough: "true"
spec:

Terminating TLS at the ingress

Most ingress controller implementations support TLS termination at the ingress proxy.
- The proxy terminates the TLS connection between the client and itself and forwards the HTTP request unencrypted to the backend pod.

Lab: Enable Https with a single service ingress

# create key and crt
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout tls.key \
  -out tls.crt \
  -subj "/CN=web.foo.com" \
  -addext "subjectAltName=DNS:web.foo.com"

# create tls secret
kubectl create secret tls tls-web-foo-com \
  --cert=tls.crt \
  --key=tls.key
# secret/tls-web-foo-com created

kubectl describe secret tls-web-foo-com
# Name:         tls-web-foo-com
# Namespace:    default
# Labels:       <none>
# Annotations:  <none>

# Type:  kubernetes.io/tls

# Data
# ====
# tls.key:  1704 bytes
# tls.crt:  1176 bytes

tee demo-single-svc-tls.yaml<<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-single-svc-tls-deploy
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-single-svc-tls-deploy
  template:
    metadata:
      labels:
        app: demo-single-svc-tls-deploy
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: demo-single-svc-tls-svc
spec:
  selector:
    app: demo-single-svc-tls-deploy
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-single-svc-tls-ingress
spec:
  ingressClassName: nginx
  tls:
  - hosts:
      - web.foo.com
    secretName: tls-web-foo-com
  rules:
  - host: web.foo.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: demo-single-svc-tls-svc
            port:
              number: 80

EOF

kubectl apply -f demo-single-svc-tls.yaml
# deployment.apps/demo-single-svc-tls-deploy created
# service/demo-single-svc-tls-svc created
# ingress.networking.k8s.io/demo-single-svc-tls-ingress created

Testing

kubectl get nodes -o wide
# NAME           STATUS   ROLES           AGE     VERSION    INTERNAL-IP      EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION      CONTAINER-RUNTIME
# controlplane   Ready    control-plane   5d23h   v1.32.11   192.168.10.150   <none>        Ubuntu 24.04.3 LTS   6.14.0-37-generic   containerd://1.7.28
# node01         Ready    <none>          5d22h   v1.32.11   192.168.10.151   <none>        Ubuntu 24.04.3 LTS   6.14.0-37-generic   containerd://1.7.28
# node02         Ready    <none>          5d22h   v1.32.11   192.168.10.152   <none>        Ubuntu 24.04.3 LTS   6.14.0-37-generic   containerd://1.7.28

kubectl -n ingress-nginx get svc ingress-nginx-controller
# NAME                       TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
# ingress-nginx-controller   LoadBalancer   10.102.142.89   <pending>     80:31043/TCP,443:32723/TCP   5h57m

kubectl get ing demo-single-svc-tls-ingress
# NAME                          CLASS   HOSTS         ADDRESS   PORTS     AGE
# demo-single-svc-tls-ingress   nginx   web.foo.com             80, 443   8s

# test internally
kubectl run curltest --rm -it --image=curlimages/curl --restart=Never -- sh
curl -k --resolve web.foo.com:443:10.102.142.89 https://web.foo.com/

# test externally
curl -k -H "Host: web.foo.com" https://192.168.10.151:32723/

Customizing Ingress using annotations

depends on the ingress controller implementation.
Nginx:
- https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/

Service support the IP-based session affinity(Layer 4)
Ingress support the Cookie-based session affinity( Layer 7 http)

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: kiada
  annotations:
    nginx.ingress.kubernetes.io/affinity: cookie # enables cookie-based session affinity
    nginx.ingress.kubernetes.io/session-cookie-name: SESSION_COOKIE # sets the cookie name
spec:
# ...

Test

curl -I http://kiada.example.com --resolve kiada.example.com:80


# include this cookie in request header
# request is always forwarded to the same pod
curl -H "Cookie: SESSION_COOKIE=1638781091" http://kiada.exampl

Custom Resources as Backend

depends on the ingress controllers
e.g, The Citrix ingress controller provides the HTTPRoute custom object type, which allows you to configure where the ingress should route HTTP requests.
example

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: my-ingress
spec:
  ingressClassName: citrix
  rules:
    - host: example.com
      http:
        paths:
          - pathType: ImplementationSpecific
            backend: #A
              resource: #A
                apiGroup: citrix.com #B
                kind: HTTPRoute #B
                name: my-example-route

Note_Tech

Kubernetes Networking: Ingress

Ingress

Ingress Controller

Default Backend

Declarative Manifest

Resource backends

Path types

Hosts

Imperative Commands

Ingress class

Lab: Install Nginx Ingress Controller

Types of Ingress

Single Service

Lab: Single Service Ingress

Simple fanout

Lab: Fanout Ingress

Name based virtual hosting

Lab: Virtual Hosting Ingress

Rules without host

TLS

TLS passthrough

Terminating TLS at the ingress

Lab: Enable Https with a single service ingress

Customizing Ingress using annotations

Lab: Cookie-based session affinity

Custom Resources as Backend

Lab: Install `Nginx Ingress Controller`
