Kubernetes Workload: Debugging

Back

Kubernetes Workload: Debugging
[netstat -plan grep kube-proxy](#netstat–plan–grep-kube-proxy)

App Failure

Classic app model
- db pod -> db service -> web pod -> web service -> user
Debugging
- Check user connectivity
  - curl url
- Check if web service endpoint point to web pod ip and port
  - kubectl describe svc web-svc;
    - check endpoint pod and port
- Check web pod status == running
  - kubectl get pod web;
    - check if restarts
  - kubectl describe pod web
    - check events
  - kubectl logs web -f --previous
    - check for error
- Check if db service’s endpoint
  - kubectl describe svc db-svc;
- Check db pod status
  - kubectl get pod db
  - kubectl describe pod db
  - kubectl logs db -f --previous

Lab: Debug 2 tiers app

get to know the app

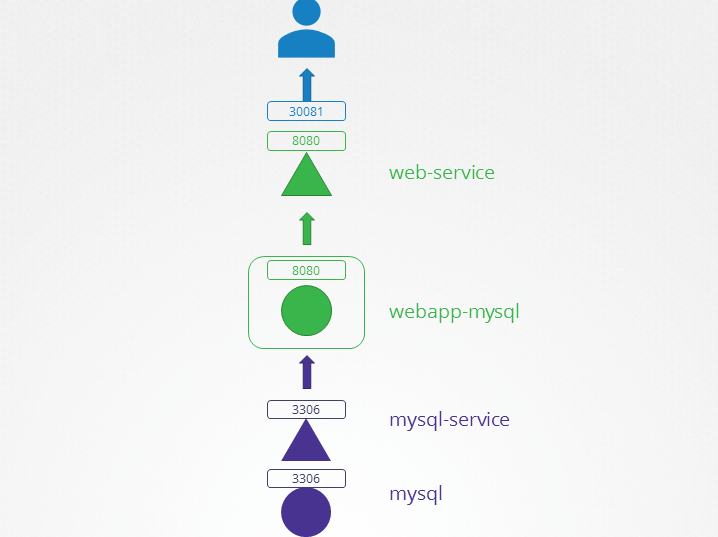

diagram

# set default context by swithing context
kubectl config set-context --current --namespace=alpha
# Context "default" modified.

k get deploy
# NAME           READY   UP-TO-DATE   AVAILABLE   AGE
# webapp-mysql   1/1     1            1           86s

k get svc
# NAME          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
# mysql         ClusterIP   10.43.94.140    <none>        3306/TCP         2m37s
# web-service   NodePort    10.43.249.112   <none>        8080:30081/TCP   2m37s

k get pod
# NAME                            READY   STATUS    RESTARTS   AGE
# mysql                           1/1     Running   0          3m17s
# webapp-mysql-7b5d66665c-mfsfx   1/1     Running   0          3m17s

debug

# test user connectivity
curl http://localhost:30081
# <!doctype html>
# <title>Hello from Flask</title>
# <body style="background: #ff3f3f;"></body>
# <div style="color: #e4e4e4;
#     text-align:  center;
#     height: 90px;
#     vertical-align:  middle;">
#     <img src="/static/img/failed.png">
#     <!-- <h1> DATABASE CONNECTION FAILED !!</h1> -->
#     <h2> Environment Variables: DB_Host=mysql-service; DB_Database=Not Set; DB_User=root; DB_Password=paswrd; 2003: Can&#39;t connect to MySQL server on &#39;mysql-service:3306&#39; (-2 Name does not resolve) </h2>
#     <p> From webapp-mysql-7b5d66665c-mfsfx!</p>
# </div>

# check service endpoint
kubectl describe svc web-service
# Selector:                 name=webapp-mysql
# TargetPort:               8080/TCP
# NodePort:                 <unset>  30081/TCP
# Endpoints:                10.22.0.10:8080

# check web pod
kubectl describe pod webapp-mysql-7b5d66665c-mfsfx
# Containers:
#   webapp-mysql:
#       Port:           8080/TCP
#     Environment:
#       DB_Host:      mysql-service
#       DB_User:      root
#       DB_Password:  paswrd

# Events:
#   Type    Reason     Age   From               Message
#   ----    ------     ----  ----               -------
#   Normal  Scheduled  8m5s  default-scheduler  Successfully assigned alpha/webapp-mysql-7b5d66665c-mfsfx to controlplane
#   Normal  Pulling    8m5s  kubelet            Pulling image "mmumshad/simple-webapp-mysql"
#   Normal  Pulled     8m2s  kubelet            Successfully pulled image "mmumshad/simple-webapp-mysql" in 2.813s (2.813s including waiting). Image size: 36428415 bytes.
#   Normal  Created    8m2s  kubelet            Created container: webapp-mysql
#   Normal  Started    8m2s  kubelet            Started container webapp-mysql

# check db service
kubectl logs webapp-mysql-7b5d66665c-mfsfx
#  * Serving Flask app "app" (lazy loading)
#  * Environment: production
#    WARNING: Do not use the development server in a production environment.
#    Use a production WSGI server instead.
#  * Debug mode: off
#  * Running on http://0.0.0.0:8080/ (Press CTRL+C to quit)
# 10.22.0.1 - - [06/Dec/2025 18:56:14] "GET / HTTP/1.1" 200 -
# 10.22.0.1 - - [06/Dec/2025 18:56:14] "GET /static/img/failed.png HTTP/1.1" 200 -
# 10.22.0.1 - - [06/Dec/2025 18:59:54] "GET / HTTP/1.1" 200 -

# check db service
kubectl describe svc mysql
# Name:                     mysql
# Namespace:                alpha
# TargetPort:               3306/TCP

# check db pod
kubectl describe pod mysql
# Containers:
#   mysql:
#     Port:           3306/TCP
#     State:          Running
# Events:
#   Type    Reason     Age   From               Message
#   ----    ------     ----  ----               -------
#   Normal  Scheduled  14m   default-scheduler  Successfully assigned alpha/mysql to controlplane
#   Normal  Pulling    14m   kubelet            Pulling image "mysql:5.6"
#   Normal  Pulled     14m   kubelet            Successfully pulled image "mysql:5.6" in 5.248s (5.248s including waiting). Image size: 102984033 bytes.
#   Normal  Created    14m   kubelet            Created container: mysql
#   Normal  Started    14m   kubelet            Started container mysql

Idenify problem:
- web pod
  - DB_Host: mysql-service
  - but service name: mysql
Solution:
- rename service name

# rename svc name
kubectl get svc mysql -o yaml > db.yaml

# remove and recreate svc
kubectl delete svc mysql
kubectl create -f db.yaml

# confirm
kubectl get svc
# NAME           TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
# mysql-serive   ClusterIP   10.43.94.140    <none>        3306/TCP         52s
# web-service    NodePort    10.43.249.112   <none>        8080:30081/TCP   20m

Common issue:
- port number:
  - svc != pod
- pod env:
  - db host != db service name
  - db pwd/root
- pod selector

Control Plane Debugging

Debugging
- Check components status on master node
  - systemctl kube-apiserver status
  - systemctl kube-controller-manager status
  - systemctl kube-scheduler status
- Check log of component on master node
  - sudo journalctl -u kube-apiserver
  - sudo journalctl -u kube-controller-manager
  - sudo journalctl -u kube-scheduler
- Check components status on worker node
  - systemctl kubelet status
  - systemctl kube-proxy status
- Check log of component on worker node
  - sudo journalctl -u kubelet
  - sudo journalctl -u kube-proxy
- Check if pods running
  - kubectl get pods -n kube-system
- Check the log of the pod for error
  - kubectl logs kube-apiserver-master -n kube-system

Lab:

# check the node
kubectl get node
# NAME           STATUS   ROLES           AGE   VERSION
# controlplane   Ready    control-plane   16m   v1.34.0

kubectl get pod
# NAME                                   READY   STATUS             RESTARTS      AGE
# coredns-6678bcd974-cgfnn               1/1     Running            0             10m
# coredns-6678bcd974-nxf2t               1/1     Running            0             10m
# etcd-controlplane                      1/1     Running            0             10m
# kube-apiserver-controlplane            1/1     Running            0             10m
# kube-controller-manager-controlplane   1/1     Running            0             10m
# kube-proxy-jcnwp                       1/1     Running            0             10m
# kube-scheduler-controlplane            0/1     CrashLoopBackOff   4 (39s ago)   2m29s

kubectl describe pod kube-scheduler-controlplane
# Events:
#   Type     Reason   Age                   From     Message
#   ----     ------   ----                  ----     -------
#   Normal   Pulled   83s (x5 over 3m12s)   kubelet  Container image "registry.k8s.io/kube-scheduler:v1.34.0" already present on machine
#   Normal   Created  83s (x5 over 3m11s)   kubelet  Created container: kube-scheduler
#   Warning  Failed   82s (x5 over 3m11s)   kubelet  Error: failed to create containerd task: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: exec: "kube-schedulerrrr": executable file not found in $PATH: unknown
#   Warning  BackOff  32s (x20 over 3m10s)  kubelet  Back-off restarting failed container kube-scheduler in pod kube-scheduler-controlplane_kube-system(39977019bc92a9d8ced12088e4be3124)

Sign of controlplane issue:
- app logs/events seem ok but pending
- app scale up/down but no action
Common Issues:
- config file error:
  - /etc/kubernetes/manifests/
- volume mount path incorrect

Worker node failure

Debugging
- Check if the node is ready
  - kubectl get node
- Check details of the node
  - kubectl describe node node_name
    - check Ready flag
    - if status == unknown, check the last of heart beat
- Check the node status
  - top: cpu
  - free: memory
  - df -h: disk
- Check if the kubelet running
  - systemctl status kubelet
  - sudo journalctl -u kubelet -n 20 --no-pager
- Check kubelet cert
  - openssl x509 -in /var/lib/kubelet/worker-node01.crt -text
    - Issuer: ca name
    - Subject: group name
    - Validity: expired date

Common issue:
- kubelet service stop
- kubelet service config file error:
  - /var/lib/kubelet/config.yaml
- kubelet serivces running but connect: connection refused
  - master node port (6443) error in config file
  - /etc/kubernetes/kubelet.conf

Debuging: Network

Check daemonset kube-proxy
- kubectl get ds kube-proxy -n kube-system
Check pod kube-proxy
- kubectl descrbe pod kube-proxy_pod -n kube-system
Common issue:
- networking plugin not install
- kube-proxy config
  - kubectl -n kube-system get ds kube-proxy -o yaml | grep -A4 "command"
  - /var/lib/kube-proxy/kubeconfig.conf
  - Check the volume mount

Network Troubleshooting Network Plugin in Kubernetes

There are several plugins available and these are some.

Weave Net:

To install,

kubectl apply -f https://github.com/weaveworks/weave/releases/download/v2.8.1/weave-daemonset-k8s.yaml

You can find details about the network plugins in the following documentation :

https://kubernetes.io/docs/concepts/cluster-administration/addons/#networking-and-network-policy

Flannel :

To install,

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/2140ac876ef134e0ed5af15c65e414cf26827915/Documentation/kube-flannel.yml

Note: As of now flannel does not support kubernetes network policies.

Calico :

To install,

curl https://raw.githubusercontent.com/projectcalico/calico/v3.25.0/manifests/calico.yaml -O

Apply the manifest using the following command.

  kubectl apply -f calico.yaml

Calico is said to have most advanced cni network plugin.

In CKA and CKAD exam, you won’t be asked to install the CNI plugin. But if asked you will be provided with the exact URL to install it.

Note: If there are multiple CNI configuration files in the directory, the kubelet uses the configuration file that comes first by name in lexicographic order.

DNS in Kubernetes

Kubernetes uses CoreDNS. CoreDNS is a flexible, extensible DNS server that can serve as the Kubernetes cluster DNS.

Memory and Pods

In large scale Kubernetes clusters, CoreDNS’s memory usage is predominantly affected by the number of Pods and Services in the cluster. Other factors include the size of the filled DNS answer cache, and the rate of queries received (QPS) per CoreDNS instance.

Kubernetes resources for coreDNS are:

a service account named coredns,

cluster-roles named coredns and kube-dns

clusterrolebindings named coredns and kube-dns,

a deployment named coredns,

a configmap named coredns and a

service named kube-dns.

While analyzing the coreDNS deployment you can see that the the Corefile plugin consists of important configuration which is defined as a configmap.

Port 53 is used for for DNS resolution.

kubernetes cluster.local in-addr.arpa ip6.arpa {
   pods insecure
   fallthrough in-addr.arpa ip6.arpa
   ttl 30
}

This is the backend to k8s for cluster.local and reverse domains.

proxy . /etc/resolv.conf

Forward out of cluster domains directly to right authoritative DNS server.

Troubleshooting issues related to coreDNS

If you find CoreDNS pods in pending state first check network plugin is installed.
coredns pods have CrashLoopBackOff or Error state

If you have nodes that are running SELinux with an older version of Docker you might experience a scenario where the coredns pods are not starting. To solve that you can try one of the following options:

a)Upgrade to a newer version of Docker.

b)Disable SELinux.

c)Modify the coredns deployment to set allowPrivilegeEscalation to true:

kubectl -n kube-system get deployment coredns -o yaml |
sed ‘s/allowPrivilegeEscalation: false/allowPrivilegeEscalation: true/g’ |
kubectl apply -f - d)Another cause for CoreDNS to have CrashLoopBackOff is when a CoreDNS Pod deployed in Kubernetes detects a loop.

There are many ways to work around this issue, some are listed here:

Add the following to your kubelet config yaml: resolvConf: This flag tells kubelet to pass an alternate resolv.conf to Pods. For systems using systemd-resolved, /run/systemd/resolve/resolv.conf is typically the location of the "real" resolv.conf, although this can be different depending on your distribution.

Disable the local DNS cache on host nodes, and restore /etc/resolv.conf to the original.

A quick fix is to edit your Corefile, replacing forward . /etc/resolv.conf with the IP address of your upstream DNS, for example forward . 8.8.8.8. But this only fixes the issue for CoreDNS, kubelet will continue to forward the invalid resolv.conf to all default dnsPolicy Pods, leaving them unable to resolve DNS.

If CoreDNS pods and the kube-dns service is working fine, check the kube-dns service has valid endpoints.
```
      kubectl -n kube-system get ep kube-dns
```

If there are no endpoints for the service, inspect the service and make sure it uses the correct selectors and ports.

Kube-Proxy

kube-proxy is a network proxy that runs on each node in the cluster. kube-proxy maintains network rules on nodes. These network rules allow network communication to the Pods from network sessions inside or outside of the cluster.

In a cluster configured with kubeadm, you can find kube-proxy as a daemonset.

kubeproxy is responsible for watching services and endpoint associated with each service. When the client is going to connect to the service using the virtual IP the kubeproxy is responsible for sending traffic to actual pods.

If you run a kubectl describe ds kube-proxy -n kube-system you can see that the kube-proxy binary runs with following command inside the kube-proxy container.

Command:
  /usr/local/bin/kube-proxy
  --config=/var/lib/kube-proxy/config.conf
  --hostname-override=$(NODE_NAME)


So it fetches the configuration from a configuration file ie, /var/lib/kube-proxy/config.conf and we can override the hostname with the node name of at which the pod is running.

In the config file we define the clusterCIDR, kubeproxy mode, ipvs, iptables, bindaddress, kube-config etc.

Troubleshooting issues related to kube-proxy

Check kube-proxy pod in the kube-system namespace is running.
Check kube-proxy logs.
Check configmap is correctly defined and the config file for running kube-proxy binary is correct.
kube-config is defined in the config map.
check kube-proxy is running inside the container

netstat -plan | grep kube-proxy

tcp 0 0 0.0.0.0:30081 0.0.0.0:_ LISTEN 1/kube-proxy tcp 0 0 127.0.0.1:10249 0.0.0.0:_ LISTEN 1/kube-proxy tcp 0 0 172.17.0.12:33706 172.17.0.12:6443 ESTABLISHED 1/kube-proxy tcp6 0 0 :::10256 :::* LISTEN 1/kube-proxy

References:

Debug Service issues:

                 https://kubernetes.io/docs/tasks/debug-application-cluster/debug-service/

DNS Troubleshooting:

                 https://kubernetes.io/docs/tasks/administer-cluster/dns-debugging-resolution/
