Kubernetes: StatefulSet - Rollout & Rollback

Kubernetes: StatefulSet - Rollout \& Rollback

Imperative Command

Update

Command	Description
`kubectl rollout history sts NAME`	View the rollout history of changes to the StatefulSets.
`kubectl get controllerrevisions`	Show revision objects
`kubectl rollout undo sts NAME`	Rollback to the previous version
`kubectl rollout undo sts NAME --to-revision VERSION`	Rollback to a specific version

Updating Strategy

updateStrategy field
- RollingUpdate
  - default
  - Pods are replaced one by one
    - pod with highest ordinal number is deleted and replaced first
    - when the new pod is ready
    - pod with the next highest ordinal number is replaced.
- OnDelete
  - waits for each Pod to be manually deleted.
    - When the old Pod gets manually deleted, the controller replaces it with a new Pod
    - the replacement of the pod can in any order.

Unready pod

If a new Pod fails to become ready during the update, the update is also paused.
- The rollout will resume when the Pod is ready again.
So, if you deploy a faulty version whose readiness probe never succeeds, the update will be blocked after the first Pod is replaced.
If the number of replicas in the StatefulSet is sufficient, the service provided by the Pods in the StatefulSet is unaffected.

Updating Strategy - RollingUpdate

only one Pod is replaced at a time.
with minReadySeconds field:
- causes the controller to wait a certain amount of time after the new Pods are ready before replacing the other Pods.

Lab: StatefulSet RollingUpdate Strategy

# demo-mongodb-rollingupdate.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: demo-mongodb-rollingupdate
spec:
  serviceName: mongodb-svc # headless svc
  replicas: 3
  minReadySeconds: 30 # wait for 30s for readiness
  selector:
    matchLabels:
      app: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - name: mongodb
          image: mongo:8
          ports:
            - containerPort: 27017
          volumeMounts:
            - name: data
              mountPath: /data/db
  volumeClaimTemplates: # a unique PVC for each pod
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 10Gi

kubectl apply -f demo-mongodb-rollingupdate.yaml
# statefulset.apps/demo-mongodb-rollingupdate created

# confirm
kubectl get sts -o wide
# NAME                         READY   AGE     CONTAINERS   IMAGES
# demo-mongodb-rollingupdate   3/3     4m14s   mongodb      mongo:8

kubectl set image sts demo-mongodb-rollingupdate mongodb=mongo:8.2.3
# statefulset.apps/demo-mongodb-rollingupdate image updated

# confirm:
#  sts update one by one
kubectl rollout status sts demo-mongodb-rollingupdate
# Waiting for 1 pods to be ready...
# Waiting for 1 pods to be ready...
# Waiting for 1 pods to be ready...
# Waiting for partitioned roll out to finish: 1 out of 3 new pods have been updated...
# Waiting for partitioned roll out to finish: 1 out of 3 new pods have been updated...
# Waiting for 1 pods to be ready...
# Waiting for 1 pods to be ready...
# Waiting for 1 pods to be ready...
# Waiting for partitioned roll out to finish: 2 out of 3 new pods have been updated...
# Waiting for partitioned roll out to finish: 2 out of 3 new pods have been updated...
# Waiting for 1 pods to be ready...
# Waiting for 1 pods to be ready...
# Waiting for 1 pods to be ready...
# partitioned roll out complete: 3 new pods have been updated...


# confirm:
#  sts update one by one
kubectl get sts -o wide -w
# NAME                         READY   AGE     CONTAINERS   IMAGES
# demo-mongodb-rollingupdate   3/3     3m50s   mongodb      mongo:8
# demo-mongodb-rollingupdate   3/3     4m37s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     4m37s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     4m38s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     4m38s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     4m38s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     4m39s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     5m10s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     5m10s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     5m11s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     5m11s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     5m13s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     6m14s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     6m15s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     6m15s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   2/3     6m15s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     6m18s   mongodb      mongo:8.2.3
# demo-mongodb-rollingupdate   3/3     7m18s   mongodb      mongo:8.2.3

# confirm:
#   sts update from highest
#   wait for ready
kubectl get pod -w
# NAME                           READY   STATUS              RESTARTS   AGE
# demo-mongodb-rollingupdate-0   1/1     Running             0          3m55s
# demo-mongodb-rollingupdate-1   1/1     Running             0          2m51s
# demo-mongodb-rollingupdate-2   1/1     Running             0          2m19s
# demo-mongodb-rollingupdate-2   1/1     Terminating         0          3m1s
# demo-mongodb-rollingupdate-2   1/1     Terminating         0          3m1s
# demo-mongodb-rollingupdate-2   0/1     Completed           0          3m2s
# demo-mongodb-rollingupdate-2   0/1     Completed           0          3m2s
# demo-mongodb-rollingupdate-2   0/1     Completed           0          3m2s
# demo-mongodb-rollingupdate-2   0/1     Pending             0          0s
# demo-mongodb-rollingupdate-2   0/1     Pending             0          0s
# demo-mongodb-rollingupdate-2   0/1     ContainerCreating   0          0s
# demo-mongodb-rollingupdate-2   1/1     Running             0          1s
# demo-mongodb-rollingupdate-1   1/1     Terminating         0          4m6s
# demo-mongodb-rollingupdate-1   1/1     Terminating         0          4m6s
# demo-mongodb-rollingupdate-1   0/1     Completed           0          4m6s
# demo-mongodb-rollingupdate-1   0/1     Completed           0          4m7s
# demo-mongodb-rollingupdate-1   0/1     Completed           0          4m7s
# demo-mongodb-rollingupdate-1   0/1     Completed           0          4m7s
# demo-mongodb-rollingupdate-1   0/1     Pending             0          0s
# demo-mongodb-rollingupdate-1   0/1     Pending             0          0s
# demo-mongodb-rollingupdate-1   0/1     ContainerCreating   0          0s
# demo-mongodb-rollingupdate-1   1/1     Running             0          2s
# demo-mongodb-rollingupdate-0   1/1     Terminating         0          6m14s
# demo-mongodb-rollingupdate-0   1/1     Terminating         0          6m14s
# demo-mongodb-rollingupdate-0   0/1     Completed           0          6m15s
# demo-mongodb-rollingupdate-0   0/1     Completed           0          6m15s
# demo-mongodb-rollingupdate-0   0/1     Completed           0          6m15s
# demo-mongodb-rollingupdate-0   0/1     Pending             0          0s
# demo-mongodb-rollingupdate-0   0/1     Pending             0          0s
# demo-mongodb-rollingupdate-0   0/1     ContainerCreating   0          0s
# demo-mongodb-rollingupdate-0   1/1     Running             0          3s

# confirm history
kubectl rollout history sts demo-mongodb-rollingupdate
# statefulset.apps/demo-mongodb-rollingupdate
# REVISION  CHANGE-CAUSE
# 1         <none>
# 2         <none>

kubectl get controllerrevisions
# NAME                                    CONTROLLER                                    REVISION   AGE
# demo-mongodb-rollingupdate-77dbc6c455   statefulset.apps/demo-mongodb-rollingupdate   2          18m
# demo-mongodb-rollingupdate-86bc878446   statefulset.apps/demo-mongodb-rollingupdate   1          21m

# confirm the version image get updated
kubectl describe controllerrevisions demo-mongodb-rollingupdate-77dbc6c455
# Name:         demo-mongodb-rollingupdate-77dbc6c455
# Namespace:    default
# Labels:       app=mongodb
#               controller.kubernetes.io/hash=77dbc6c455
# Annotations:  <none>
# API Version:  apps/v1
# Data:
#   Spec:
#     Template:
#       $patch:  replace
#       Metadata:
#         Labels:
#           App:  mongodb
#       Spec:
#         Containers:
#           Image:              mongo:8.2.3
#           Image Pull Policy:  IfNotPresent
#           Name:               mongodb
#           Ports:
#             Container Port:  27017
#             Protocol:        TCP
#           Resources:
#           Termination Message Path:    /dev/termination-log
#           Termination Message Policy:  File
#           Volume Mounts:
#             Mount Path:  /data/db
#             Name:        data
#         Dns Policy:      ClusterFirst
#         Restart Policy:  Always
#         Scheduler Name:  default-scheduler
#         Security Context:
#         Termination Grace Period Seconds:  30
# Kind:                                      ControllerRevision
# Metadata:
#   Creation Timestamp:  2026-01-01T19:43:27Z
#   Owner References:
#     API Version:           apps/v1
#     Block Owner Deletion:  true
#     Controller:            true
#     Kind:                  StatefulSet
#     Name:                  demo-mongodb-rollingupdate
#     UID:                   b608d553-b8f9-476f-aa58-ade3a9716e96
#   Resource Version:        2953656
#   UID:                     feb160f5-94c5-4f6e-8f5c-22fe8e90889b
# Revision:                  2
# Events:                    <none>

RollingUpdate with partition: Implement Canary Deployment

sts does not support kubectl rollout pause command

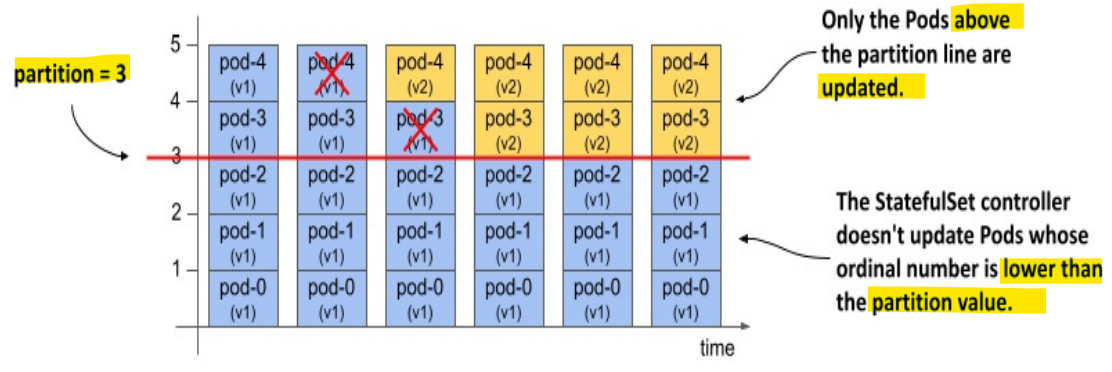

spec.updateStrategy.rollingUpdate.partition field
- specifies the ordinal number at which the StatefulSet should be partitioned.
- pods with an ordinal number lower than the partition value aren’t updated.

Use case:
- If you set the partition value appropriately, you can implement a Canary deployment, control the rollout manually, or stage an update instead of triggering it immediately.
Implement Canary
- set partition = replica and apply, as a safe net to block any auto update
- kubectl patch sts to scale down parition by 1;
  - sts controller automatically update the highest pod
  - then test this new pod
- if test is passed, continue kubectl patch sts to scale down parition by 1
- until parition = 0

Lab: Implement Canary Deployment with Partition

# demo-sts-update-partition.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: demo-sts-update-partition
spec:
  serviceName: mongodb-svc # headless svc
  replicas: 3
  minReadySeconds: 30 # wait for 30s for readiness
  updateStrategy:
    type: RollingUpdate # RollingUpdate strategy
    rollingUpdate:
      partition: 3
  selector:
    matchLabels:
      app: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - name: mongodb
          image: mongo:8
          ports:
            - containerPort: 27017
          volumeMounts:
            - name: data
              mountPath: /data/db
  volumeClaimTemplates: # a unique PVC for each pod
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 10Gi

kubectl apply -f demo-sts-update-partition.yaml
# statefulset.apps/demo-sts-update-partition created

kubectl get sts demo-sts-update-partition
# NAME                        READY   AGE
# demo-sts-update-partition   3/3     76s

Update image

kubectl set image sts demo-sts-update-partition mongodb=mongo:8.2.3

# confirm: no sts get updated
kubectl rollout status sts demo-sts-update-partition
# partitioned roll out complete: 0 new pods have been updated...

No pod update due to partition = replicas

Update partition to 2 and change image

# demo-sts-update-partition-patch.yaml
spec:
  updateStrategy:
    rollingUpdate:
      partition: 2

# update partition number
kubectl patch sts demo-sts-update-partition --patch-file demo-sts-update-partition-patch.yaml
# statefulset.apps/demo-sts-update-partition patched

kubectl rollout status sts demo-sts-update-partition
# Waiting for 1 pods to be ready...
# partitioned roll out complete: 1 new pods have been updated...

# confirm
kubectl get sts -w
# NAME                        READY   AGE
# demo-sts-update-partition   3/3     2m33s
# demo-sts-update-partition   3/3     3m56s
# demo-sts-update-partition   3/3     3m56s
# demo-sts-update-partition   3/3     14m
# demo-sts-update-partition   3/3     14m
# demo-sts-update-partition   2/3     14m
# demo-sts-update-partition   2/3     14m
# demo-sts-update-partition   2/3     14m
# demo-sts-update-partition   3/3     14m

# confirm:
#  highest get updated
kubectl get pod -w
# NAME                          READY   STATUS              RESTARTS   AGE
# demo-sts-update-partition-0   1/1     Running             0          2m53s
# demo-sts-update-partition-1   1/1     Running             0          2m21s
# demo-sts-update-partition-2   1/1     Running             0          109s
# demo-sts-update-partition-2   1/1     Terminating         0          13m
# demo-sts-update-partition-2   1/1     Terminating         0          13m
# demo-sts-update-partition-2   0/1     Completed           0          13m
# demo-sts-update-partition-2   0/1     Completed           0          13m
# demo-sts-update-partition-2   0/1     Completed           0          13m
# demo-sts-update-partition-2   0/1     Pending             0          0s
# demo-sts-update-partition-2   0/1     Pending             0          0s
# demo-sts-update-partition-2   0/1     ContainerCreating   0          0s
# demo-sts-update-partition-2   1/1     Running             0          2s

# confirm from status
#  replica Revision
kubectl get sts demo-sts-update-partition -o yaml
# status:
#   availableReplicas: 3
#   currentReplicas: 2
#   currentRevision: demo-sts-update-partition-86bc878446
#   updateRevision: demo-sts-update-partition-77dbc6c455
#   updatedReplicas: 1

Try to delete pod with partition update
- if one of the old Pods get deleted, the replacement Pod will be created with the previous template.
- If one of the new pods get deleted, it’ll be recreated with the new template.

# delete -0 with old version
kubectl delete pod demo-sts-update-partition-1
# pod "demo-sts-update-partition-1" deleted from default namespace

# confirm: replica and revision unchanged
kubectl get sts demo-sts-update-partition -o yaml
# status:
#   currentReplicas: 2
#   currentRevision: demo-sts-update-partition-86bc878446
#   updateRevision: demo-sts-update-partition-77dbc6c455
#   updatedReplicas: 1

Completing a partitioned update
Scale down partition to 0

# update demo-sts-update-partition-patch.yaml
# partition: 1
kubectl patch sts demo-sts-update-partition --patch-file demo-sts-update-partition-patch.yaml
# statefulset.apps/demo-sts-update-partition patched

# confirm updated=2
kubectl get sts demo-sts-update-partition -o yaml
# status:
#   currentReplicas: 1
#   currentRevision: demo-sts-update-partition-86bc878446
#   updateRevision: demo-sts-update-partition-77dbc6c455
#   updatedReplicas: 2

# update demo-sts-update-partition-patch.yaml
# partition: 0
kubectl patch sts demo-sts-update-partition --patch-file demo-sts-update-partition-patch.yaml
# statefulset.apps/demo-sts-update-partition patched

# confirm currentReplicas=updatedReplicas=3
kubectl get sts demo-sts-update-partition -o yaml
# status:
#   currentReplicas: 3
#   currentRevision: demo-sts-update-partition-77dbc6c455
#   updateRevision: demo-sts-update-partition-77dbc6c455
#   updatedReplicas: 3

Updating Strategy - OnDelete strategy

Pod’s readiness status is irrelevant
- because the rollout is controlled manually

Lab: OnDelete strategy

# demo-sts-update-ondelete.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: demo-sts-update-ondelete
spec:
  serviceName: mongodb-svc # headless svc
  replicas: 3
  minReadySeconds: 30 # wait for 30s for readiness
  updateStrategy:
    type: OnDelete # OnDelete strategy
  selector:
    matchLabels:
      app: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - name: mongodb
          image: mongo:8
          ports:
            - containerPort: 27017
          volumeMounts:
            - name: data
              mountPath: /data/db
  volumeClaimTemplates: # a unique PVC for each pod
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 10Gi

kubectl apply -f demo-sts-update-ondelete.yaml
# statefulset.apps/demo-sts-update-ondelete created

kubectl get sts -o wide
# NAME                       READY   AGE     CONTAINERS   IMAGES
# demo-sts-update-ondelete   3/3     3m10s   mongodb      mongo:8

# update image
kubectl set image sts demo-sts-update-ondelete mongodb=mongo:8.2.3
# statefulset.apps/demo-sts-update-ondelete image updated

Sts controller do nothing due to the onDelete strategy

Manually delete pod
- not necessary to have to delete the Pod with the highest ordinal number first.

kubectl delete pod demo-sts-update-ondelete-1
# pod "demo-sts-update-ondelete-1" deleted from default namespace

# confirm: controller create new pod
kubectl get pod -w
# NAME                         READY   STATUS             RESTARTS   AGE
# demo-sts-update-ondelete-0   1/1     Running            0          89s
# demo-sts-update-ondelete-1   1/1     Running            0          57s
# demo-sts-update-ondelete-2   1/1     Running            0          25s
# demo-sts-update-ondelete-1   1/1     Terminating        0          18m
# demo-sts-update-ondelete-1   1/1     Terminating        0          18m
# demo-sts-update-ondelete-1   0/1     Completed          0          18m
# demo-sts-update-ondelete-1   0/1     Completed          0          18m
# demo-sts-update-ondelete-1   0/1     Completed          0          18m
# demo-sts-update-ondelete-1   0/1     Pending            0          0s
# demo-sts-update-ondelete-1   0/1     Pending            0          0s
# demo-sts-update-ondelete-1   0/1     ContainerCreating  0          0s
# demo-sts-update-ondelete-1   1/1     Running            0          1s

# delet next pod
kubectl delete pod demo-sts-update-ondelete-2
# pod "demo-sts-update-ondelete-2" deleted from default namespace

# confirm: controller create new pod
kubectl get pod -w
# NAME                         READY   STATUS               RESTARTS   AGE
# demo-sts-update-ondelete-0   1/1     Running              0          22m
# demo-sts-update-ondelete-1   1/1     Running              0          2m46s
# demo-sts-update-ondelete-2   1/1     Running              0          20m
# demo-sts-update-ondelete-2   1/1     Terminating          0          21m
# demo-sts-update-ondelete-2   1/1     Terminating          0          21m
# demo-sts-update-ondelete-2   0/1     Completed            0          21m
# demo-sts-update-ondelete-2   0/1     Completed            0          21m
# demo-sts-update-ondelete-2   0/1     Completed            0          21m
# demo-sts-update-ondelete-2   0/1     Pending              0          0s
# demo-sts-update-ondelete-2   0/1     Pending              0          0s
# demo-sts-update-ondelete-2   0/1     ContainerCreating    0          0s
# demo-sts-update-ondelete-2   1/1     Running              0          1s


# delet next pod
kubectl delete pod demo-sts-update-ondelete-0
# pod "demo-sts-update-ondelete-0" deleted from default namespace

# confirm: controller create new pod
kubectl get pod -w
# NAME                         READY   STATUS               RESTARTS   AGE
# demo-sts-update-ondelete-0   1/1     Running              0          24m
# demo-sts-update-ondelete-1   1/1     Running              0          4m55s
# demo-sts-update-ondelete-2   1/1     Running              0          95s
# demo-sts-update-ondelete-0   1/1     Terminating          0          24m
# demo-sts-update-ondelete-0   1/1     Terminating          0          24m
# demo-sts-update-ondelete-0   0/1     Completed            0          24m
# demo-sts-update-ondelete-0   0/1     Completed            0          24m
# demo-sts-update-ondelete-0   0/1     Completed            0          24m
# demo-sts-update-ondelete-0   0/1     Pending              0          0s
# demo-sts-update-ondelete-0   0/1     Pending              0          0s
# demo-sts-update-ondelete-0   0/1     ContainerCreating    0          0s
# demo-sts-update-ondelete-0   1/1     Running              0          1s

# confirm all replicas get updated
kubectl get sts demo-sts-update-ondelete -o yaml
# status:
#   replicas: 3
#   updateRevision: demo-sts-update-ondelete-77dbc6c455
#   updatedReplicas: 3

Rolling Back

# before
kubectl get sts -o wide
# NAME                       READY   AGE   CONTAINERS   IMAGES
# demo-sts-update-ondelete   3/3     26m   mongodb      mongo:8.2.3

kubectl rollout undo sts demo-sts-update-ondelete
# statefulset.apps/demo-sts-update-ondelete rolled back

kubectl get sts -o wide
# NAME                       READY   AGE   CONTAINERS   IMAGES
# demo-sts-update-ondelete   3/3     28m   mongodb      mongo:8

Rollback

use cases:
- When updating the StatefulSet and the rollout hangs
- When the rollout was successful, but want to revert to the previous revision
If the strategy is RollingUpdate, the Pods are reverted one at a time.

kubectl rollout undo sts demo-sts-update-partition
# statefulset.apps/demo-sts-update-partition rolled back

# confirm: image = 8.0
kubectl get sts -o wide
# NAME                        READY   AGE   CONTAINERS   IMAGES
# demo-sts-update-partition   3/3     55m   mongodb      mongo:8

Rollout History: `ControllerRevision` Object

ControllerRevision objects
- the object stores the revision history of StatefulSets and DaemonSets
- a generic object that represents an immutable snapshot of the state of an object at a particular point in time.
vs history of deployment
- deployment: using rs
- StatefulSets: using ControllerRevision

Note_Tech

Kubernetes: StatefulSet - Rollout & Rollback

Imperative Command

Updating Strategy

Unready pod

Updating Strategy - RollingUpdate

Lab: StatefulSet RollingUpdate Strategy

RollingUpdate with partition: Implement Canary Deployment

Lab: Implement Canary Deployment with Partition

Updating Strategy - OnDelete strategy

Lab: OnDelete strategy

Rollback

Rollout History: ControllerRevision Object

Rollout History: `ControllerRevision` Object
