Jenkins - DSL

Back

Jenkins - DSL

DSL

Domain-Specific Language (DSL)
- a specialized, Groovy-based programming language used to define and manage Jenkins configurations as code
- an extension of Groovy
2 types:
- Job DSL (Plugin):
  - Used to create and manage Jenkins jobs programmatically.
  - Instead of manually clicking through the UI to create 100 similar jobs, you write a single Job DSL script that generates them automatically.
- Pipeline DSL:
  - Used to define the build/test/deploy workflow itself.
  - defined in Jenkinsfile.
  - two flavors:
    - Declarative Pipeline:
      - A simplified, opinionated syntax (e.g., using pipeline, agent, stages).
    - Scripted Pipeline:
      - A more flexible, full-power Groovy syntax for complex logic.
Plugin
- Job DSL
DSL dir:
- JENKINS_HOME/dsl
Document:
- https://plugins.jenkins.io/job-dsl/
DSL Struture:

Seed Job

seed job
- used to generate other Jenkins jobs automatically using code (DSL).
Flow:

Seed Job  -> reads DSL script -> creates Jenkins jobs

Lab: Create Freestyle Job DSL

Create Free style job
- name: “seed job”
Build Steps: “Process Job DSLs”

Use the provided DSL script:

job("my_dsl_job"){
  description('This is my DSL job.')
  parameters {
    stringParam('task_name', defaultValue = 'my jenkins task', description = "This is my task.")
    booleanParam('isComplete', false)
    choiceParam('type', ['option 1 (default)', 'option 2', 'option 3'])
  }
  scm {
    git('https://github.com/jenkinsci/job-dsl-plugin','master')
  }
  triggers {
    cron {spec("H/5 * * * *")}
  }
  steps {
    shell("echo 'Hello world'")
  }
  publishers {
    mailer("who@example.com", true, true)
  }
}

Run build

If failed, check Mange Jenkins > ScriptApprov > Approve

Build again

Started by user admin
Running as SYSTEM
Building remotely on docker-agent (docker) in workspace /home/jenkins/agent/workspace/seed job
Processing provided DSL script

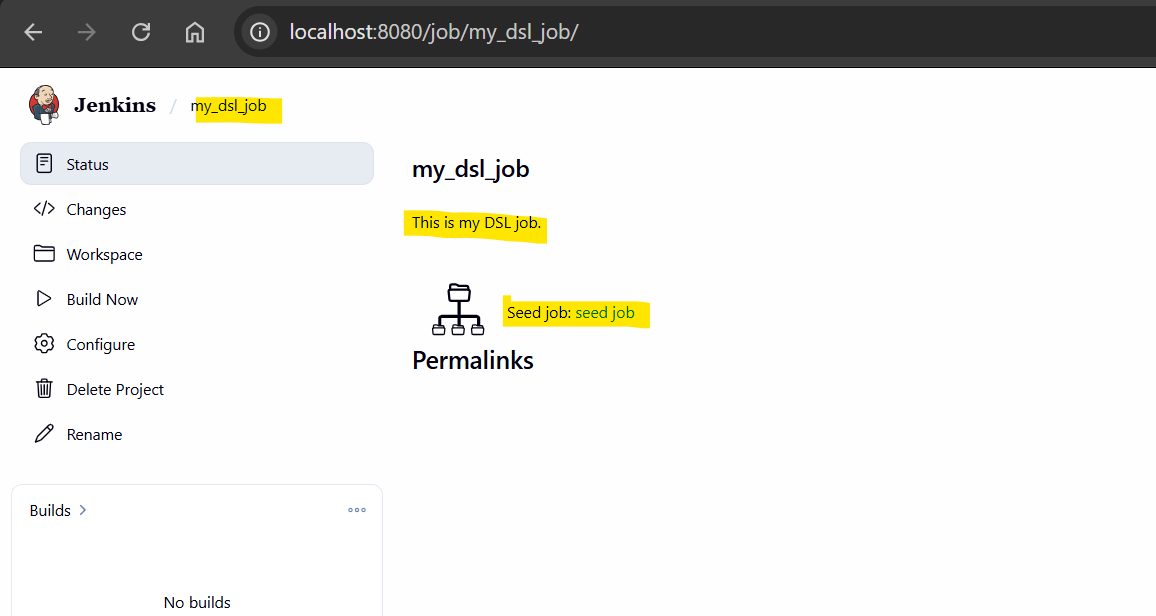

Added items:
GeneratedJob{name='my_dsl_job'}
Finished: SUCCESS
