Jenkins - Pipeline & Jenkinsfile

Back

Jenkins - Pipeline \& Jenkinsfile

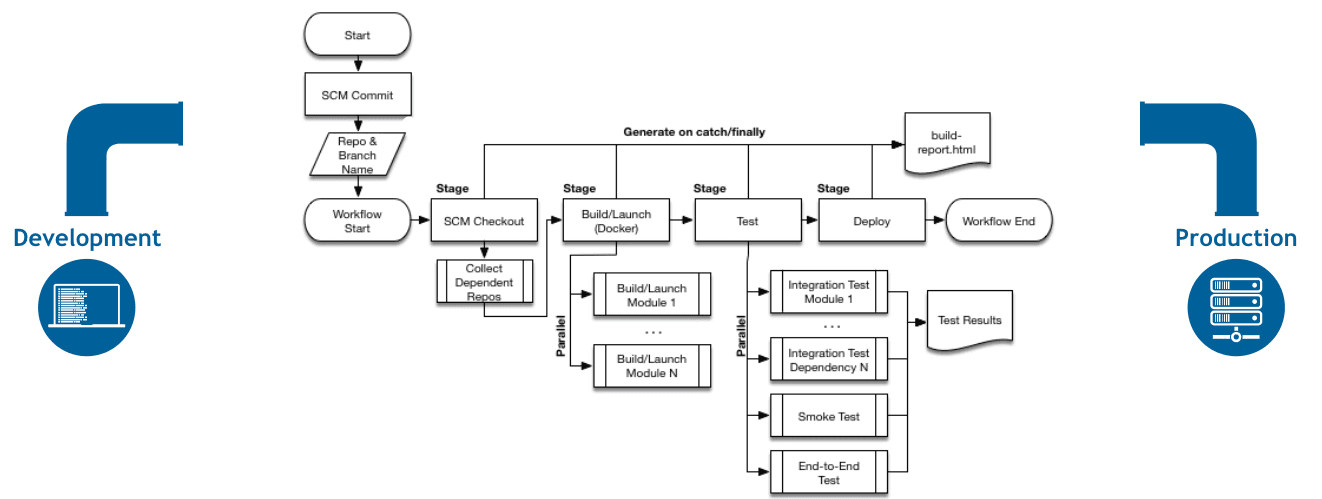

Jenkins Pipeline

Jenkins Pipeline
- used to define the CI/CD workflow as code instead of clicking around in the UI.
- It describes how your software is built, tested, and deployed in a structured, repeatable way.
Jenkinsfile
- a text file that contains the definition of that pipeline, written using a Domain-Specific Language (DSL) based on the Groovy programming language.
- Key components:
  - pipeline → top-level definition
  - agent → where it runs (node, container, k8s pod)
  - stages → logical phases
  - steps → actual commands

Pipeline fundamental

Best Practice

Use Declarative Pipeline when possible
Store Jenkinsfile in SCM
Use shared libraries for common code
Implement proper error handling
Use meaningful stage names
Secure credentials properly
Keep pipelines simple and modular
Use parallel execution for independent tasks
Implement proper logging
Clean workspaces regularly

Node vs Agent

Node:
- A generic term for any machine (physical or virtual) that is part of the Jenkins environment.
  - includes the Controller (formerly Master) and all connected Agents.
- mainly used in Scripted Pipelines.
  - can used in Declarartive pipeline: script{ node{}}
- node('linux') { ... }
Agent:
- A specific “worker” entity that connects to the Jenkins controller to execute jobs.
  - An agent is technically a small Java process (client) running on a Node to perform tasks assigned by the controller.
- used in Declarative Pipelines
- agent { label 'linux' }

Node

node {
    checkout scm
    sh 'mvn test'
}

// choose a specific agent by label
node('linux && docker') {
    sh 'docker build -t myapp .'
}

// using in declarative pipeline
pipeline {
    agent none
    stages {
        stage('Build') {
            steps {
                script {
                    node('build-node') {
                        echo 'Building on build-node...'
                    }
                }
            }
        }
    }
}

Agent

pipeline {
    agent any
}

Tools

mention the tools and configurations used by defining them in the pipeline script itself

pipeline {
    agent any
    tools {
        // Define the tools and their configurations here
        maven 'MavenTool' // Name of the tool and the tool installation name
        jdk 'JDKTool'    // Name of the tool and the tool installation name
    }
    stages {
        // Define your pipeline stages here
        stage('Build') {
            steps {
                // Use the configured tools in your pipeline stages
                script {
                    sh '''#!/bin/bash
                    echo "Building with Maven"
                    mvn clean package
                    '''
                }
            }
        }
    }
}

Options

buildDiscarder(logRotator(numToKeepStr: '30', artifactNumToKeepStr: '10')):
- Discards old builds to save disk space.
disableConcurrentBuilds:
- Prevents multiple versions of the same pipeline from running simultaneously.
retry:
- Retries the entire pipeline or a specific stage a set number of times if it fails.
timeout:
- Sets a maximum execution time for the pipeline or stage.
timestamps:
- Prepends the time of execution to each line in the console output.
skipStagesAfterUnstable:
- Skips all remaining stages once the build status becomes “unstable”.

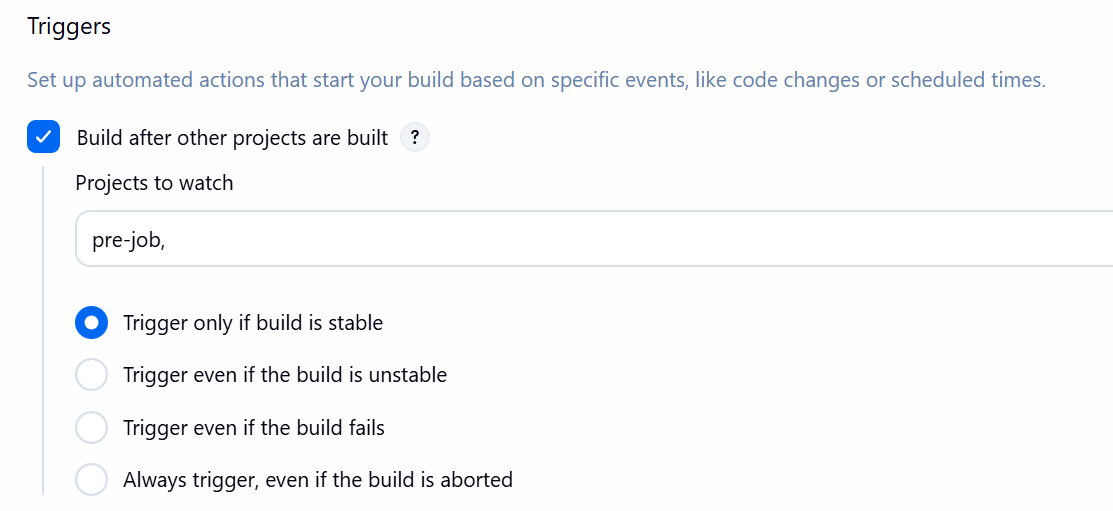

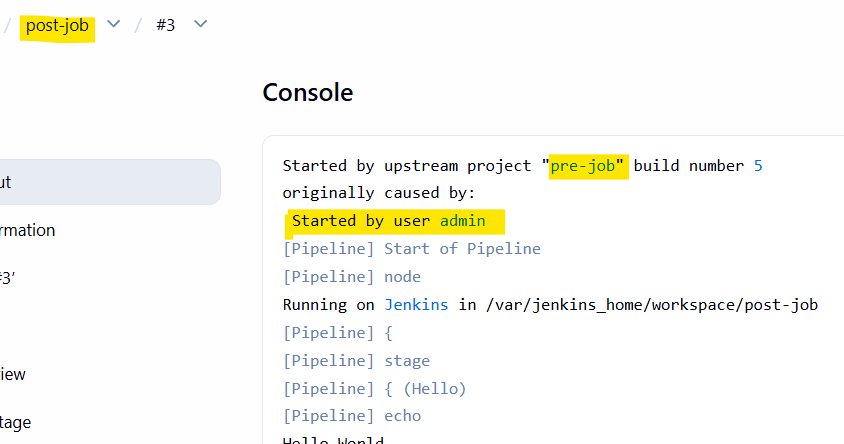

Upstream and Downstream projects

Upstream projects trigger downstream projects
how to configure:
- downstream projects: “Build after other projects are built?”

Throttle Concurrent Builds

plugin: Throttle Concurrent Builds
- limits the number of concurrent executions of a job to prevent resource overload.

Steps

Handle Credentials

Jenkins provides a credentials store
- secret text,
- username/password,
- secret files,
- SSH keys,
- and certificates
scope secrets:
- withCredentials

// scope secrets as narrowly as possible
stage('Call API') {
    steps {
        withCredentials([string(credentialsId: 'my-api-token', variable: 'API_TOKEN')]) {
            sh '''
              set +x
              curl -H "Authorization: Bearer $API_TOKEN" https://api.example.com
            '''
        }
    }
}

Milestone

Milestones
- ensure that older builds don’t override newer builds, especially useful with concurrent builds.
Example:

pipeline {
    agent any
    stages {
        stage('Deploy') {
            steps {
                // Ensure no older build deploys after this point
                milestone 1
                echo "1111"
                milestone 2
                echo "2222"
            }
        }
    }
}

Script Block

script block
- a specific step used within a Declarative Pipeline to execute Scripted Pipeline syntax.

pipeline {
    agent any
    stages {
        stage('demo') {
            steps {
                // Standard declarative step
                echo 'Starting...'

                script {
                    // Scripted Groovy logic begins here
                    def browser = 'chrome'
                    if (browser == 'chrome') {
                        echo 'Running tests in Chrome'
                    } else {
                        echo 'Running tests in default browser'
                    }
                }
            }
        }
    }
}

Common workflow controls

timeout(time: 20, unit: 'MINUTES') {}:
- Stops a block if it runs too long
- Finished: ABORTED
retry(3) {}:
- Retries a failing block a fixed number of times.
try {} catch (err) {throw err} finally {}:
- failure handling
when {branch 'main'} steps {}:
- Controls whether a stage should run.
input { message 'Deploy to production?' ok 'Deploy'} steps {}
- Pauses the pipeline and waits for human approval
post {success {} failure {} always {} }:
- define behavior after execution
parallel run

pipeline {
    agent any
    options {
        parallelsAlwaysFailFast()   // fail-fast behavior
    }
    stages {
        stage('Test') {
            parallel {
                stage('A') {
                    steps { sh './test-a.sh' }
                }
                stage('B') {
                    steps { sh './test-b.sh' }
                }
            }
        }
    }
}

Shared Library

Shared Library
- a centralized repository of reusable Groovy code that can be shared across multiple Jenkins Pipelines.
best practices:
- unit testing and code documentation, ensuring that the shared code is robust and well-documented.
- standardize their CI/CD practices, reduce duplication of code

@Library('my-shared-library') // Reference the Shared Library

// Import custom steps
import com.example.CustomPipelineSteps

pipeline {
    agent any
    stages {
        stage("Build") {
            steps {
                script {
                    CustomPipelineSteps.build() // Use a custom step from the Shared Library
                }
            }
        }
        stage('Test') {
            steps {
                script {
                    CustomPipelineSteps.test() // Another custom step
                }
            }
        }
    }
}

Sample: Docker build and push

pipeline {
  agent any
  stages {
    stage('Build') {
      steps {
        script {
          docker.build("my-app:${env.BUILD_ID}")
        }
      }
    }
    stage('Push') {
      steps {
        script {
          docker.withRegistry('https://www.docker.com/', 'docker-hub-credentials') {
            docker.image("my-app:${env.BUILD_ID}").push()
          }
        }
      }
    }
  }
}

Sample: Deploy pipeline

pipeline {
    agent any

    options {
        disableConcurrentBuilds()
        timeout(time: 30, unit: 'MINUTES')
    }

    stages {
        stage('Plan') {
            steps {
                retry(2) {
                    sh 'terraform plan'
                }
            }
        }

        stage('Approval') {
            input {
                message 'Apply infrastructure changes?'
                ok 'Apply'
            }
            steps {
                echo 'Approved'
            }
        }

        stage('Apply') {
            steps {
                sh 'terraform apply -auto-approve'
            }
        }
    }

    post {
        success {
            echo 'Success!'
        }
        failure {
            echo 'Failed!'
        }
    }
}

Sample: Fast CI pipeline

pipeline {
    agent any
    options {
        parallelsAlwaysFailFast()
    }

    stages {
        stage('Checks') {
            parallel {
                stage('Lint') {
                    steps { sh 'npm run lint' }
                }
                stage('Unit Test') {
                    steps { sh 'npm test' }
                }
                stage('Security Scan') {
                    steps { sh './scan.sh' }
                }
            }
        }
    }
}

Lab: Create Pipeline

Create item:
- name: mypipeline
- type: pipeline
Pipeline:
- Definition: pipeline script

pipeline {
    agent any

    stages {
        stage('Build') {
            steps {
                echo 'Build ...'
                sh """
                    echo 'multiple steps:'
                    pwd
                    date
                    hostname
                """
            }
        }

        stage('Test') {
            steps {
                echo 'Testing ...'
            }
        }

        stage('Deploy') {
            steps {
                echo 'Deploy ...'
            }
        }
    }

    post {
        success {
            echo 'Success!'
        }
        failure {
            echo 'Failed!'
        }
    }
}

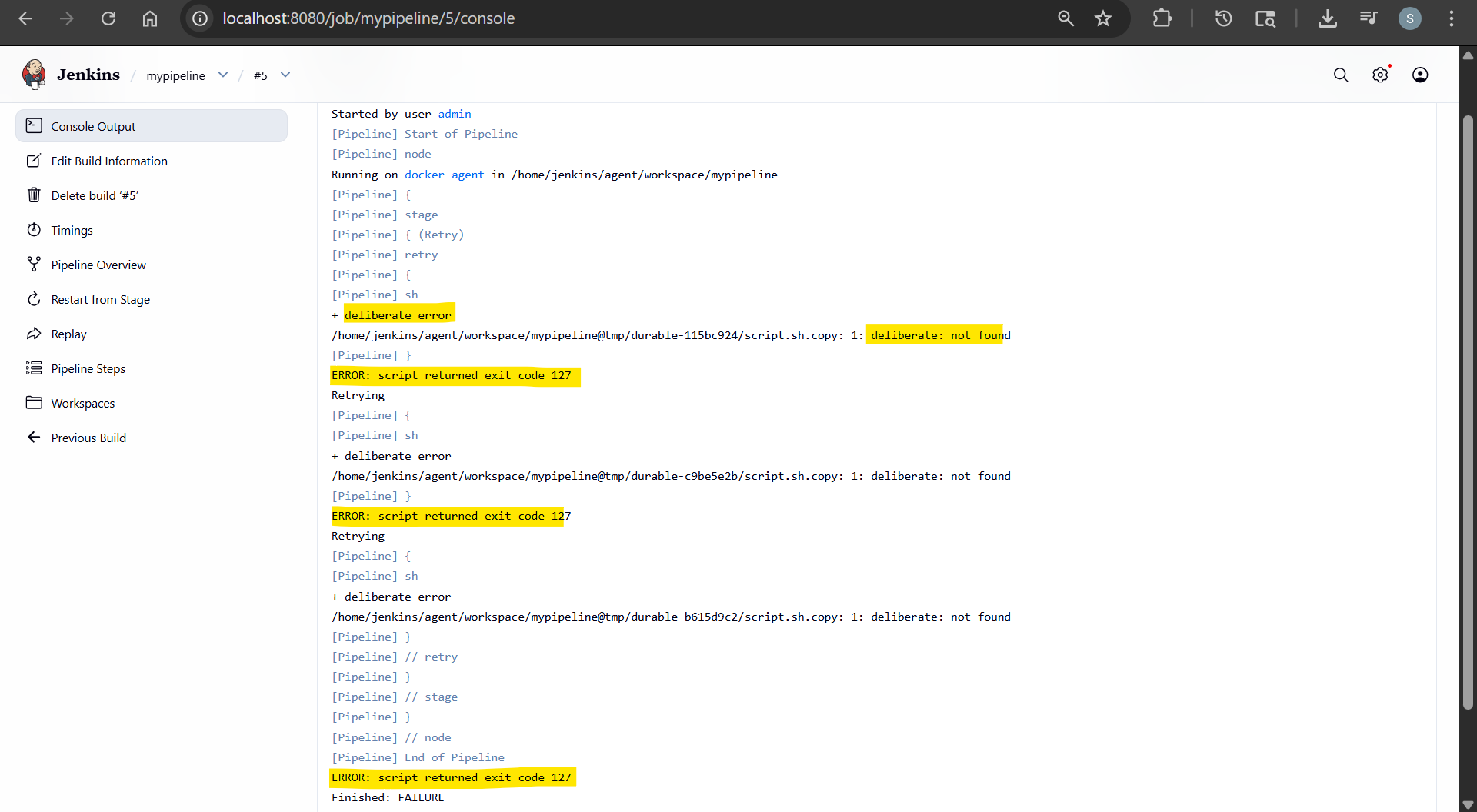

Lab: Demo Retry

pipeline {
    agent any

    stages {
        stage('Retry') {
            steps {
                retry(3){
                    sh 'deliberate error'
                }
            }
        }
    }
}

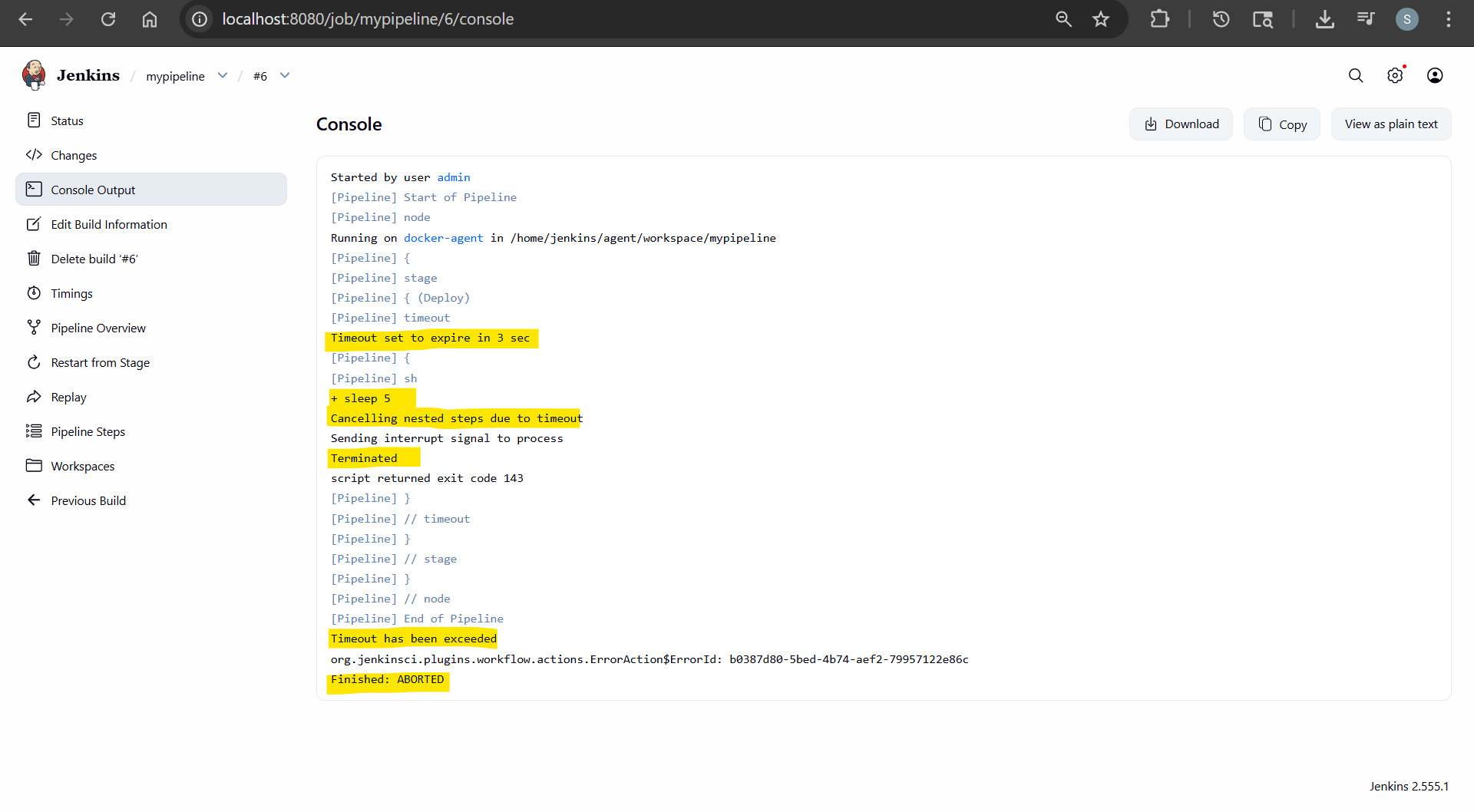

Lab: Demo Timeout

pipeline {
    agent any

    stages {
        stage('Deploy') {
            steps {
                timeout(time: 3, unit: "SECONDS"){
                    sh 'sleep 5'
                }
            }
        }
    }
}

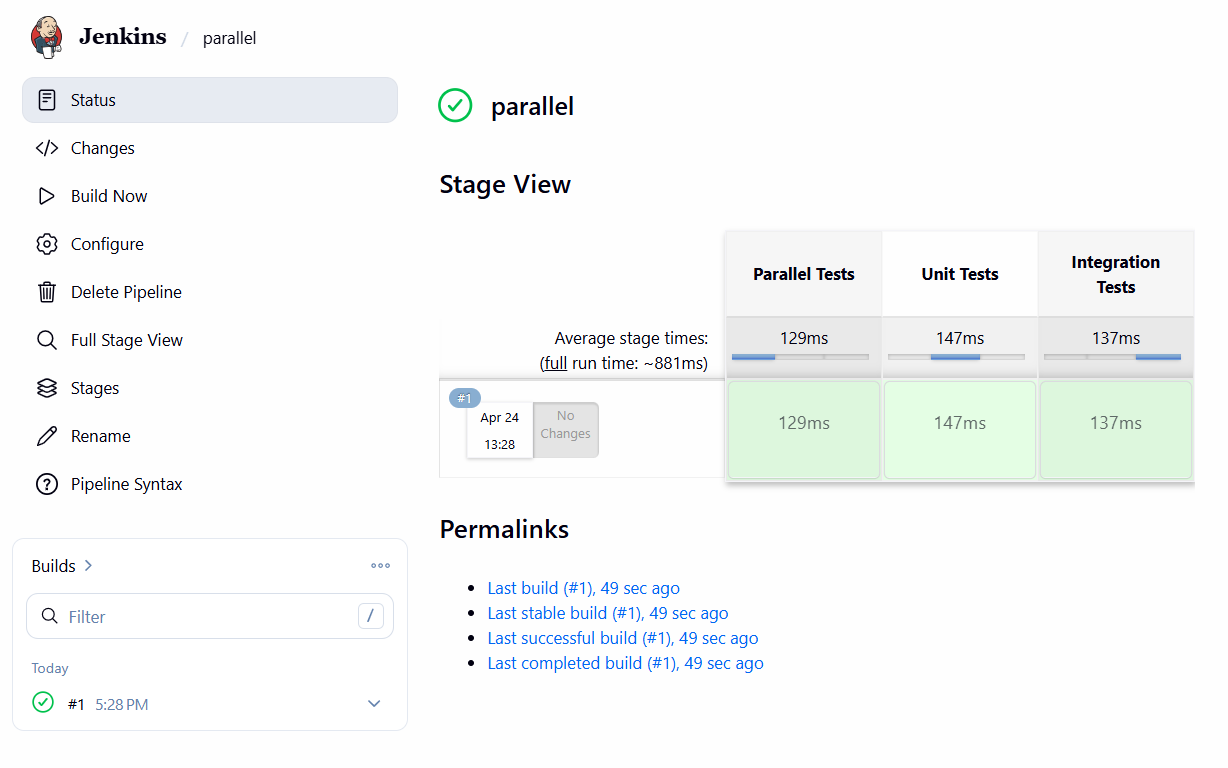

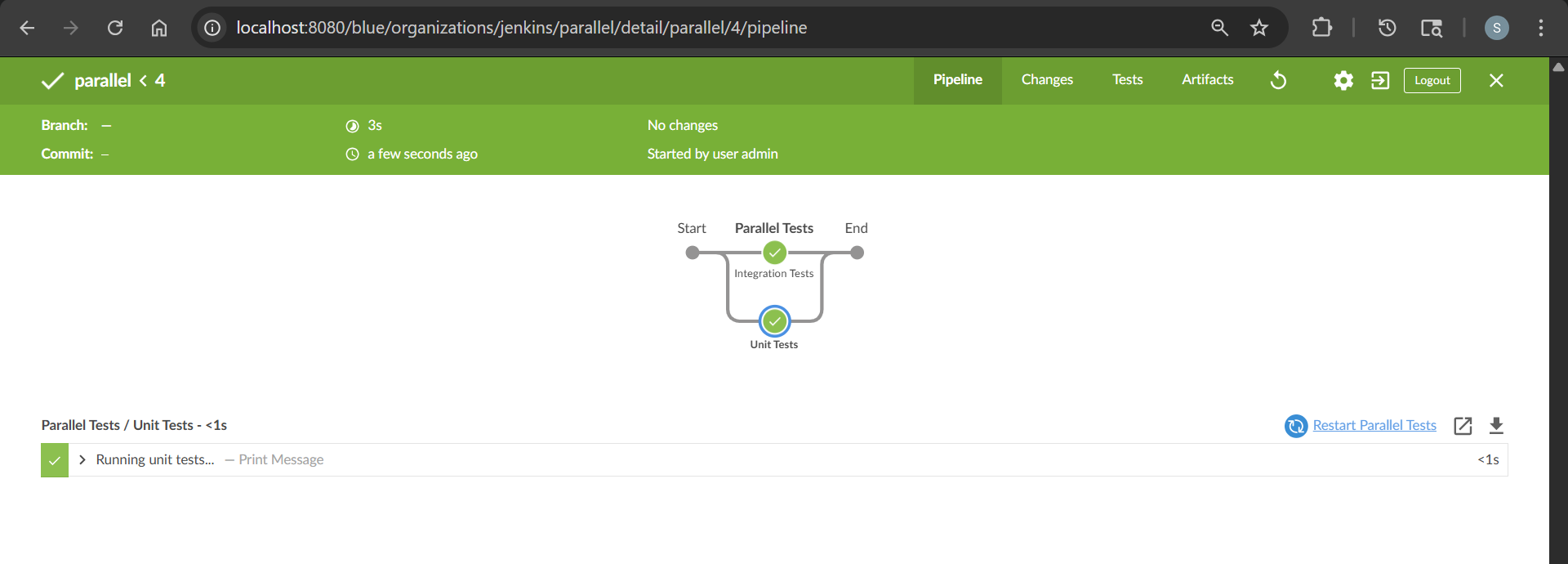

Lab: Parallel statge pipeline

pipeline {
    agent any
    stages {
        stage('Parallel Tests') {
            parallel {
                stage('Unit Tests') {
                    steps { echo "Running unit tests..." }
                }
                stage('Integration Tests') {
                    steps { echo "Running integration tests..." }
                }
            }
        }
    }
}
