Prometheus - Grafana Loki

Grafana Loki

Loki:
- a log aggregation system designed to work with Grafana.
features:
- Log Aggregation: Collecting, storing, and querying large amount of logs.
- Prometheus-inspired design: Users similar query language as Prometheus.
- Intergration with Grafana: Users can visualize log data in Grafana dashboards, allowwing for correlation of log events with other observability metrics.
- Distributed Architecture: It can scale horizontally.
- Cost-effective storage: Chrunk-based storage mechanism
How to collect log file from app to grafana
- opt1:using Promtail, recommended
  - application: generate log files (/var/logs)
  - Promtail: an agent to collect log file and push log files to Loki
  - Loki: a data source in Grafana
  - Grafana: visualize log
- opt2: not recommended, creating dependency with Loki
  - application: push log file Loki using API
- opt3: Alloy
  - application: generate log files (/var/logs)
  - Alloy: ingest log files then push to Loki; not just log file, can collect info of process signal.
  - Loki: a data source in Grafana
  - Grafana: visualize log

Install - Ubuntu

ref: https://grafana.com/docs/loki/latest/setup/install/
Loki server:
- install Loki
- port: 3100
Application server:
- install Promtail

Loki Server

sudo apt update
sudo apt install unzip -y
# install loki
sudo wget https://github.com/grafana/loki/releases/download/v3.4.5/loki-linux-amd64.zip

sudo unzip loki-linux-amd64.zip
sudo mv -v loki-linux-amd64 /usr/local/bin/loki
sudo chmod +x -v /usr/local/bin/loki

# create config
sudo mkdir -pv /etc/loki
sudo tee /etc/loki/loki-local-config.yaml <<EOF
# This is a complete configuration to deploy Loki backed by the filesystem.
# The index will be shipped to the storage via tsdb-shipper.

auth_enabled: false

server:
  http_listen_port: 3100

common:
  ring:
    instance_addr: 127.0.0.1
    kvstore:
      store: inmemory
  replication_factor: 1
  path_prefix: /tmp/loki

schema_config:
  configs:
  - from: 2020-05-15
    store: tsdb
    object_store: filesystem
    schema: v13
    index:
      prefix: index_
      period: 24h

storage_config:
  filesystem:
    directory: /tmp/loki/chunks

EOF

# create a loki service
sudo tee /etc/systemd/system/loki.service <<EOF
[Unit]
Description=Loki service
After=network-online.target
Wants=network-online.target

[Service]
Type=simple
User=loki
ExecStart=/usr/bin/loki -config.file /etc/loki/loki-local-config.yaml
TimeoutSec = 120
Restart = on-failure
RestartSec = 2

[Install]
WantedBy=multi-user.target
EOF

sudo systemctl daemon-reload
sudo systemctl enable --now loki

sudo systemctl status loki

# test
curl http://localhost:3100/ready
# ready

App Server
Download url:
- https://github.com/grafana/loki/releases/
- promtail-linux-amd64.zip

sudo apt update

# download zip file
wget https://github.com/grafana/loki/releases/download/v3.4.5/promtail-linux-amd64.zip
# unzip
unzip promtail-linux-amd64.zip

# move files
sudo mv -v promtail-linux-amd64 /usr/local/bin/promtail
sudo chmod +x -v /usr/local/bin/promtail

# create cf
sudo mkdir -v /etc/promtail

# create cf
sudo tee /etc/promtail/promtail-config.yaml <<EOF
server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
  - url: http://172.27.224.217:3100/loki/api/v1/push

scrape_configs:
- job_name: system
  static_configs:
  - targets:
      - localhost
    labels:
      job: varlogs
      __path__: /var/log/*log
      stream: stdout
EOF

# create a promtail service
sudo tee /etc/systemd/system/promtail.service <<EOF
[Unit]
Description=Promtail service
After=network.target

[Service]
Type=simple
ExecStart=/usr/local/bin/promtail -config.file=/etc/promtail/promtail-config.yaml
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF

# start service
sudo systemctl daemon-reload
sudo systemctl enable --now promtail

sudo systemctl start promtail
sudo systemctl status promtail

Query Log

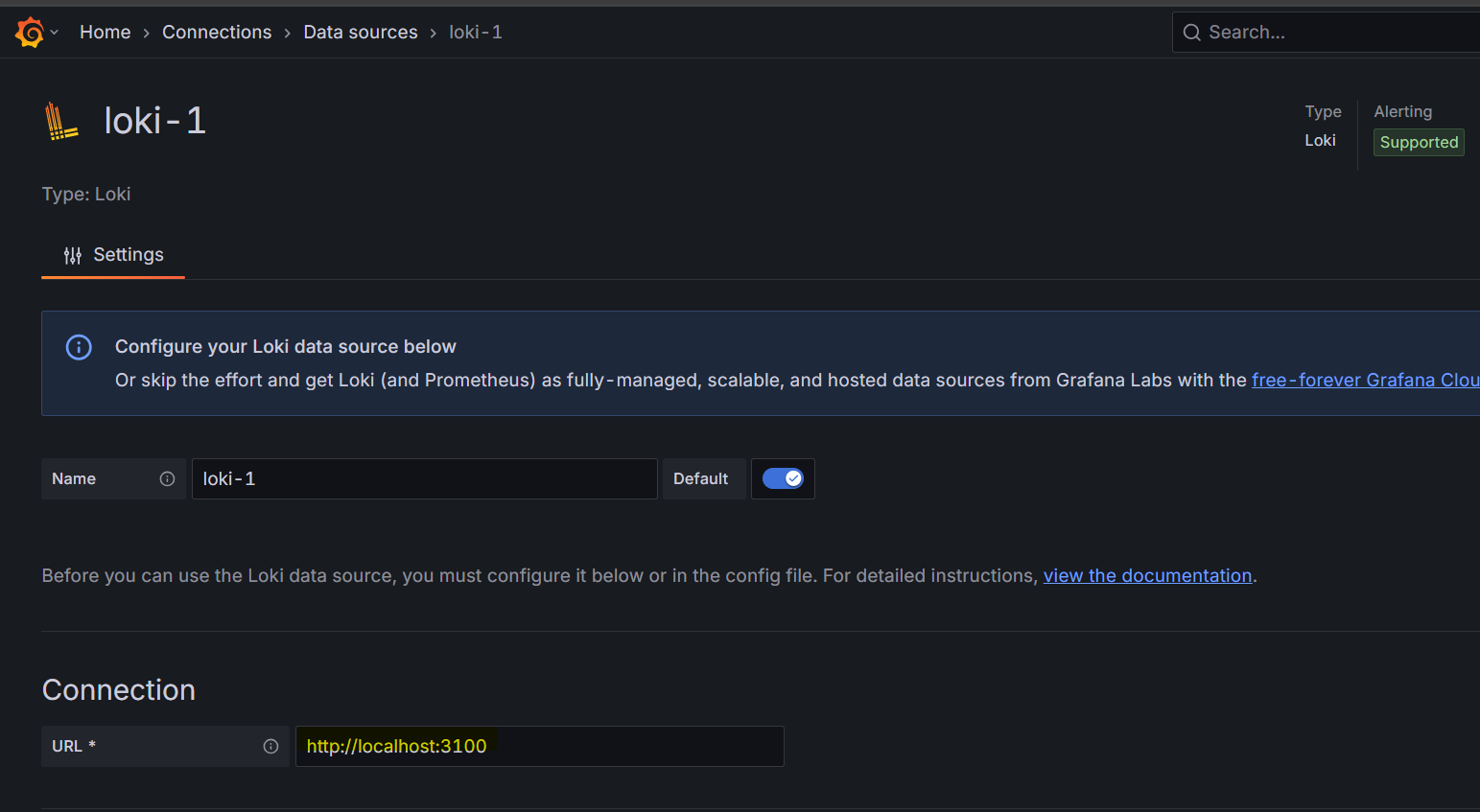

Create Data Source

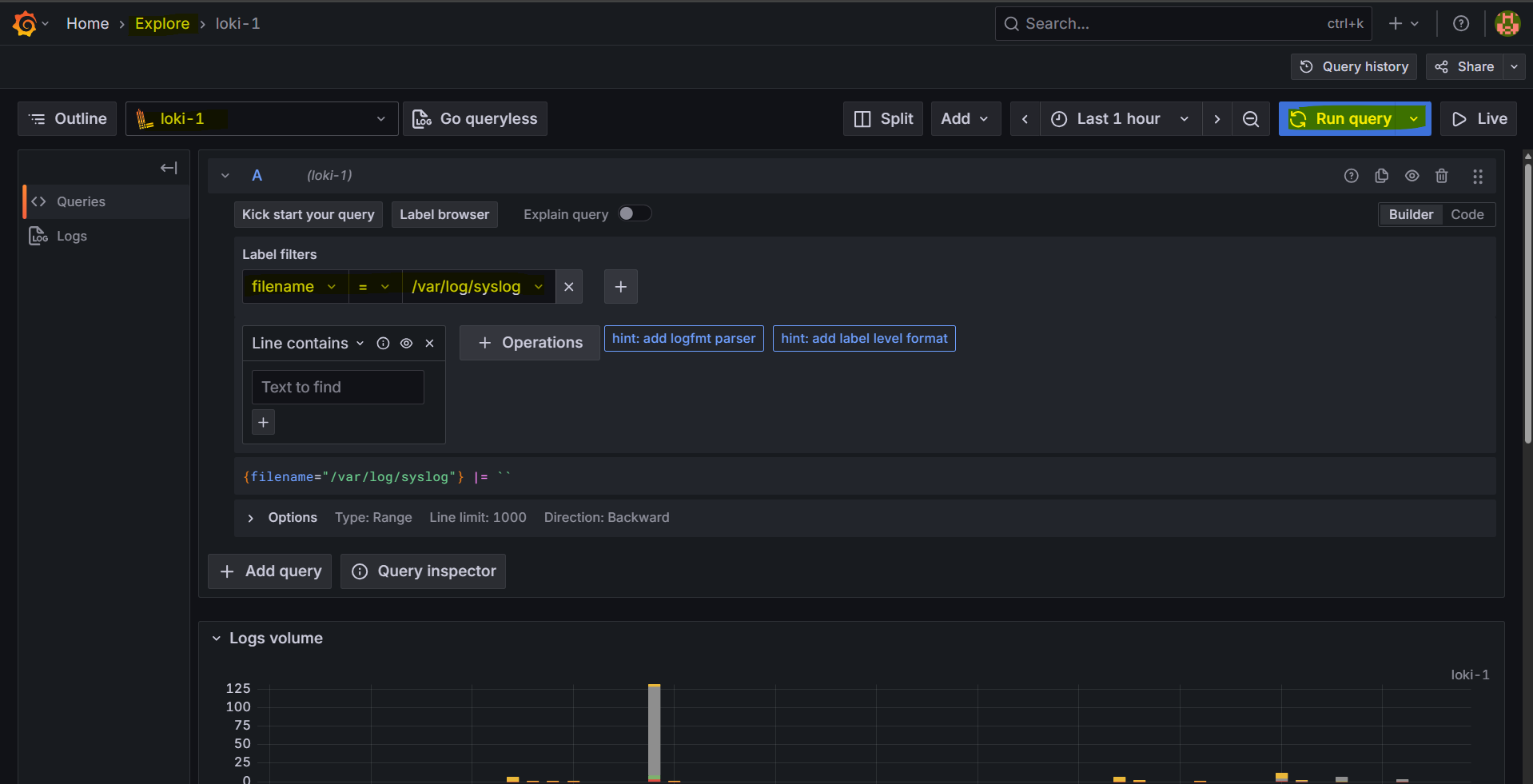

Query by file

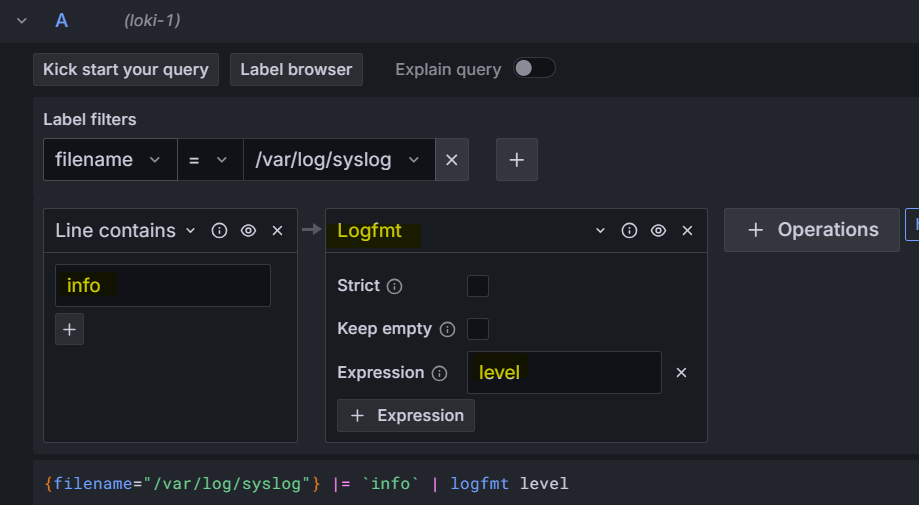

Query by Logfmt
- Filter level=info

Configure Static Labels

Static Labels: can be configured in the client server and used to filter log in Loki server
Update the promtail cf

sudo tee /etc/promtail/promtail-config.yaml <<EOF
server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
  - url: http://172.27.224.217:3100/loki/api/v1/push

scrape_configs:
- job_name: system
  static_configs:
  - targets:
    - localhost
    labels:
      job: varlogs
      __path__: /var/log/*log
      stream: stdout
      team: DevOps
      env: prod
EOF

sudo systemctl daemon-reload
sudo systemctl restart promtail
sudo systemctl status promtail

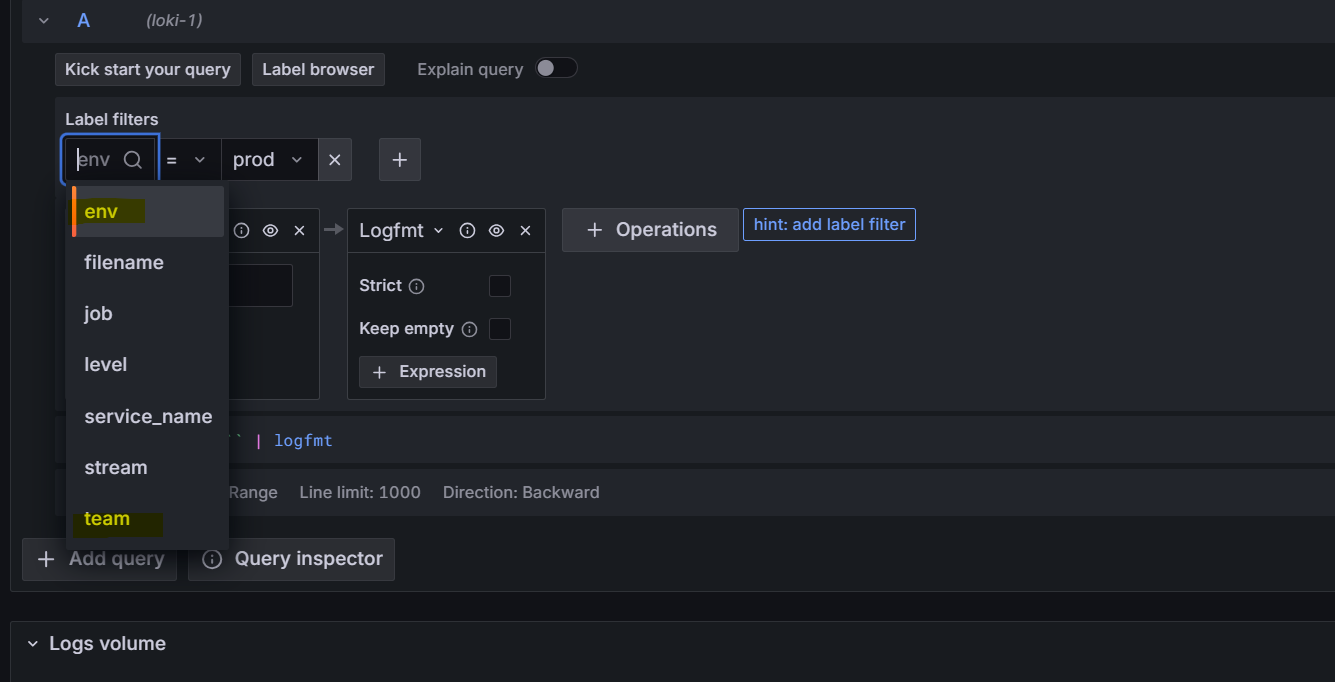

Confirm in grafana
- log can be filtered by label

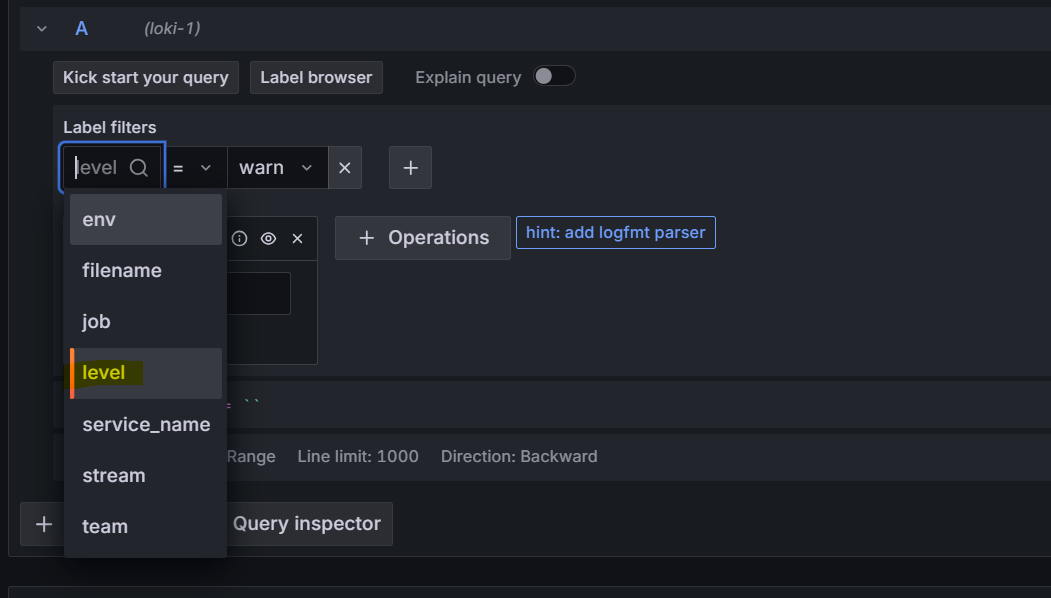

Dynamic Labels

Update the promtail cf

sudo tee /etc/promtail/promtail-config.yaml <<EOF
server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
  - url: http://172.27.224.217:3100/loki/api/v1/push

scrape_configs:
- job_name: system
  static_configs:
  - targets:
    - localhost
    labels:
      job: varlogs
      __path__: /var/log/*log
      stream: stdout
      team: DevOps
      env: prod
      level:
  pipeline_stages:
  # logfmt must go before labels
  - logfmt:
      mapping:
        level:
  - labels:
      level:
EOF

sudo systemctl daemon-reload
sudo systemctl restart promtail
sudo systemctl status promtail

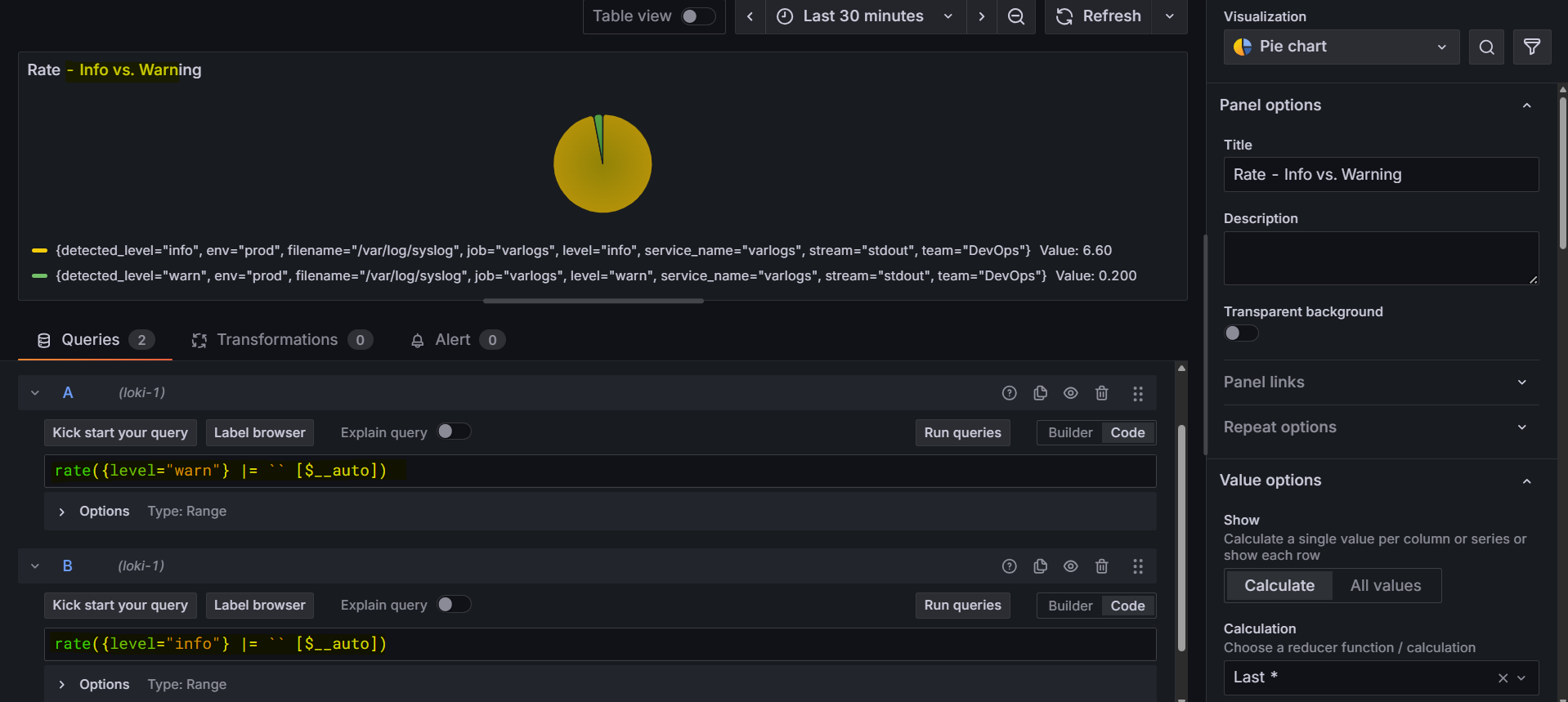

Visualize log

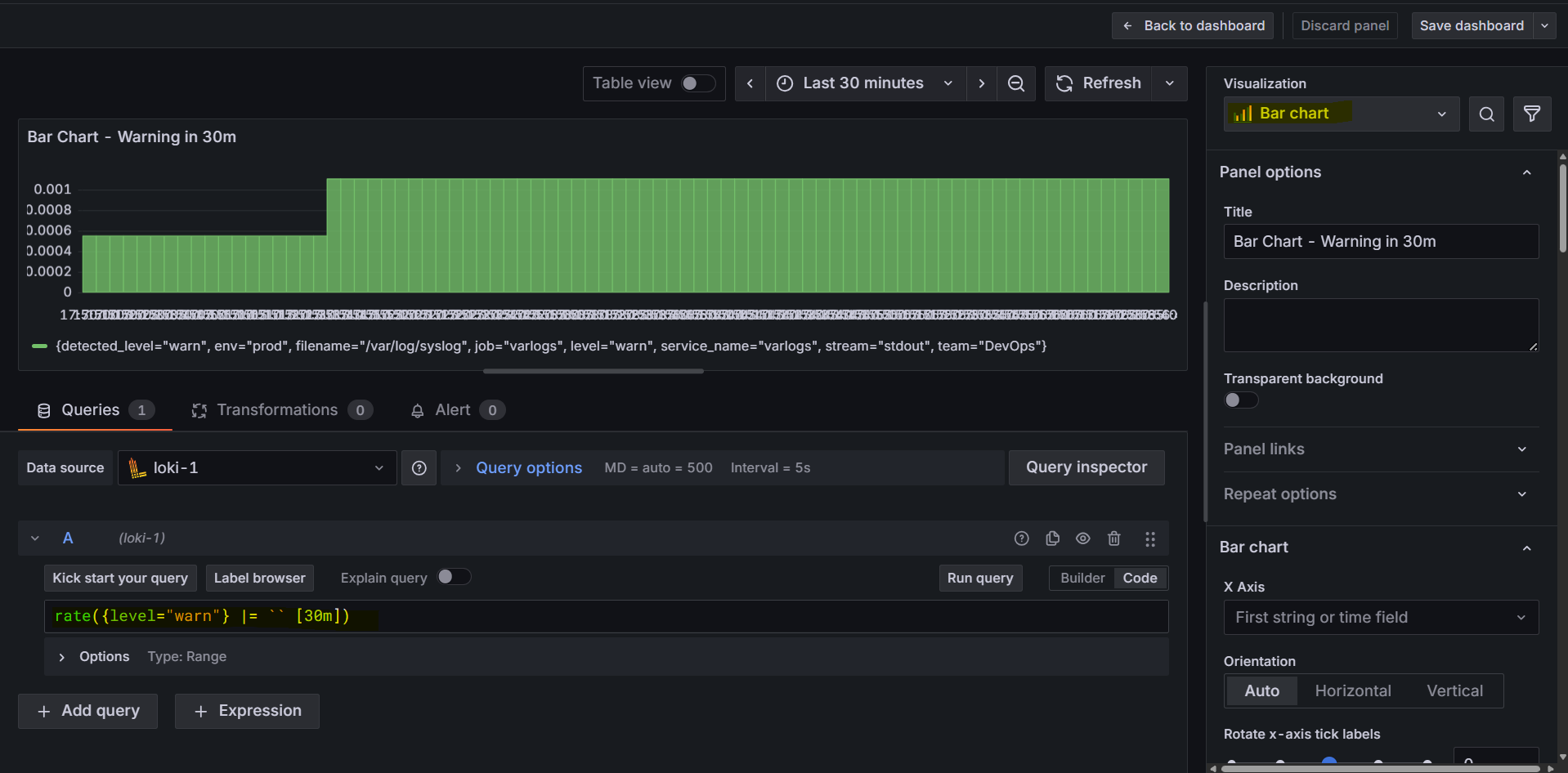

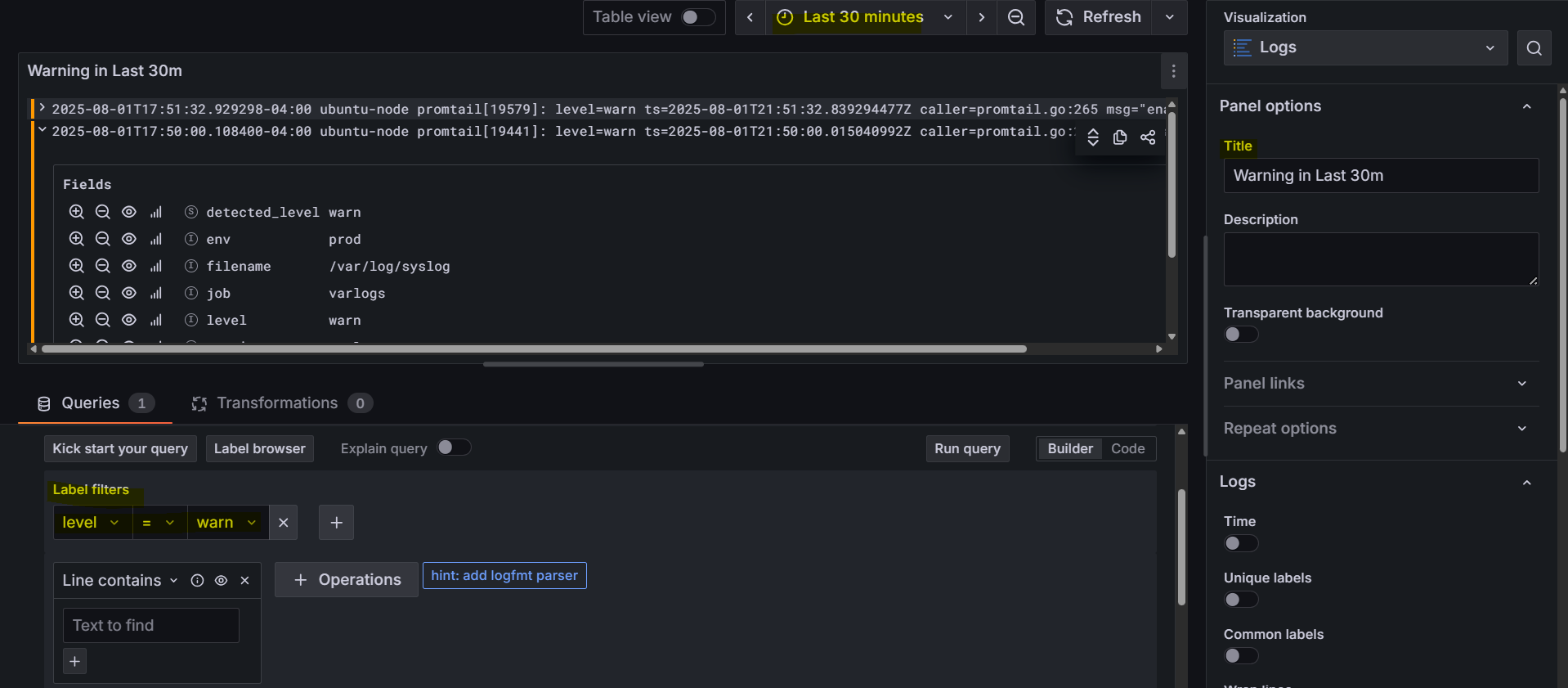

List Warning

Install - Docker

ref:
- https://grafana.com/docs/loki/latest/setup/install/docker/
Assume Docker has been installed
Using compose file: https://raw.githubusercontent.com/grafana/loki/v3.4.1/production/docker-compose.yaml

# get the docker compose file
sudo wget https://raw.githubusercontent.com/grafana/loki/v3.4.1/production/docker-compose.yaml -O docker-compose.yaml

sudo docker compose up -d
