Prometheus - Tempo

Back

• Prometheus - Tempo
  • Tracing and Distributed Systems
    • Terminologies
  • Grafana Tempo
    • Architecture
  • !Install - Ubuntu

---

Tracing and Distributed Systems

• Tracing
  • the tracking and monitoring the flow of requests as they propagate through various services within a distributed system.
  • help understand
    • which services the request interacted with.
    • how long each step took
    • any errors encountered along the way.

• Benefit:

  • identify bottelnecks and performance issues
  • debug distributed systems
  • understand dependencies
  • monitor service health
• Common Tracing system
  • Instrumentation
    • Zipkin
    • OpenTelemetry
    • NewRelic
  • Capture, store, analyse, and visualize
    • Zipkin
    • NewRelic
    • Jaeger
    • Grafana Tempo

---

Terminologies

• trace

  • represent the overall flow or a request as it traverses through multiple services.
  • consist of one or more spans.
  • has trace id

• Span:

  • a single unit of work within a Trace.
  • information about specific action or operation. ie. execute a database query.
  • has a Spen ID

• Trace Context

  • metadata of each trace. ie., trace id and spen id

• sampling

  • which request to trace?
  • reduce the volume of captured trace data.

---

Grafana Tempo

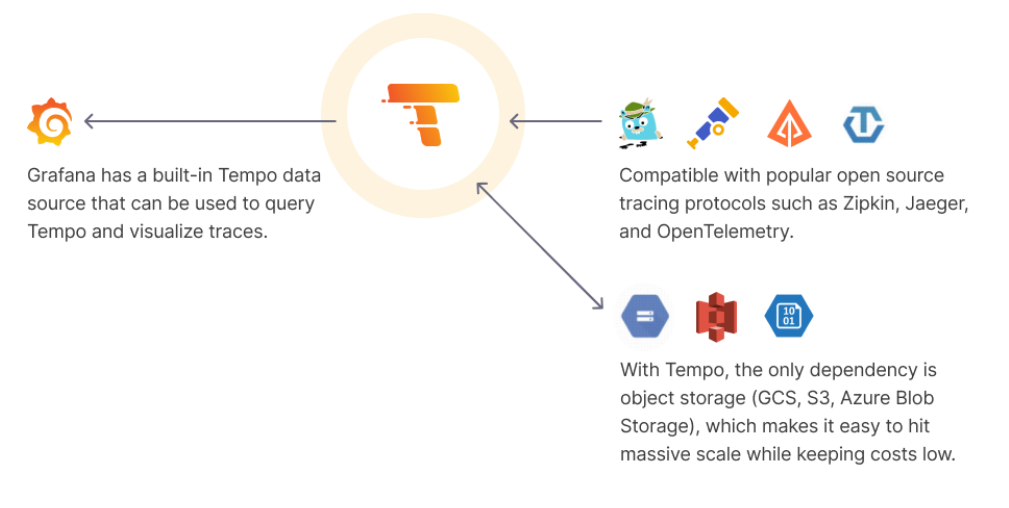

• Grafana Tempo
  • an open-source and high-scale distributed tracing backend.
  • used by Grafana as a data source to visualize Trace data.
  • suppots a query language called TraceQL
  • not need a database,but support:
    • local storage(disk)
    • AWS S3
    • GCP
    • AZure Blob

---

Architecture

• Microservices send traces using OTLP
• Alloy forward traces
• Tempo collects traces
• TraceQL querys traces

---

!Install - Ubuntu

• ref:
  • https://grafana.com/docs/tempo/latest/setup/linux/

# download
curl -Lo tempo_2.2.0_linux_amd64.deb https://github.com/grafana/tempo/releases/download/v2.2.0/tempo_2.2.0_linux_amd64.deb
echo e81cb4ae47e1d8069efaad400df15547e809b849cbb18932e23ac3082995535b \
  tempo_2.2.0_linux_amd64.deb | sha256sum -c

# install
sudo dpkg -i tempo_2.2.0_linux_amd64.deb

# start service
sudo systemctl enable --now tempo
