Prometheus - Node Exporter

Back

Prometheus - Node Exporter
- Node Exporter
- Lab: Node Exporter - Ubuntu

Node Exporter

Every Unix-based kernel is called a Node.
Node Exporter
- an official Prometheus exporter to collect metrics that are exposed by Unix-based kernel.
Metrics:
- CPU
- Disk
- Memory
- Network I/O
Node Exporter can be extended with pluggable metric collectors.

Lab: Node Exporter - Ubuntu

Architecture
- Unless required, never put node server on Prometheus server
- Prometheus server, where prometheus installed
- Node server, from which data is collected.
Security configuration:
- allow inbound port 9100/TCP and IP of the Prometheus server
Url for node exporter package
- https://prometheus.io/download/#node_exporter
- https://github.com/prometheus/node_exporter/releases/download/v1.9.1/node_exporter-1.9.1.linux-amd64.tar.gz

Client Node Configuration

sudo apt update && sudo apt upgrade -y

# download node exporter
sudo wget https://github.com/prometheus/node_exporter/releases/download/v1.9.1/node_exporter-1.9.1.linux-amd64.tar.gz

# confirm
ls -lh
# total 12M
# -rw-r--r-- 1 root root 12M Apr  1 11:24 node_exporter-1.9.1.linux-amd64.tar.gz

# unzip
sudo tar -xvf node_exporter-1.9.1.linux-amd64.tar.gz
# node_exporter-1.9.1.linux-amd64/
# node_exporter-1.9.1.linux-amd64/LICENSE
# node_exporter-1.9.1.linux-amd64/NOTICE
# node_exporter-1.9.1.linux-amd64/node_exporter

# confirm
ls -l
# total 11316
# drwxr-xr-x 2 1001 1002     4096 Apr  1 11:23 node_exporter-1.9.1.linux-amd64

# test node exporter
cd node_exporter-1.9.1.linux-amd64
./node_exporter
# check for msg="Listening on" address=[::]:9100

Confirm 9100 port
- http://client_node:9100

Prometheus Node Configuration

update cf

# scrape_configs section
scrape_configs:
  # default job to scrape metrice from prometheus node
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]
      - job_name: "prometheus"

  # add job to scrape from node exporter
  - job_name: "app_server"
    static_configs:
      - targets: ["192.168.100.105:9100"]
        labels:
          app: "app_server"

# restart prometheus
sudo systemctl restart prometheus

Confirm: Prometheus server UI > Status > Target health

Reconfigure Client Node: Create a node export service

# create user and group
sudo groupadd --system prometheus
sudo useradd prometheus -s /sbin/nologin --system -g prometheus

# move node_exporter binary
sudo mkdir -pv /var/lib/node/
# mkdir: created directory '/var/lib/node/'
sudo mv -v ./node_exporter /var/lib/node/
# renamed './node_exporter' -> '/var/lib/node/node_exporter'

# set permission
sudo chown -Rv prometheus:prometheus /var/lib/node/
# changed ownership of '/var/lib/node/node_exporter' from 1001:1002 to prometheus:prometheus
# changed ownership of '/var/lib/node/' from root:root to prometheus:prometheus
sudo chmod -Rv 775 /var/lib/node/
# mode of '/var/lib/node/' changed from 0755 (rwxr-xr-x) to 0775 (rwxrwxr-x)
# mode of '/var/lib/node/node_exporter' changed from 0755 (rwxr-xr-x) to 0775 (rwxrwxr-x)

sudo tee /etc/systemd/system/prometheus_node_exporter.service <<EOF
[Unit]
Description=Prometheus Node Exporter
Documentation=https://prometheus.io/docs/introduction/overview/
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
User=prometheus
Group=prometheus
ExecReload=/bin/kill -HUP $MAINPID
ExecStart=/var/lib/node/node_exporter

SyslogIdentifier=prometheus_node_exporter
Restart=always

[Install]
WantedBy=multi-user.target
EOF

# start service
sudo systemctl daemon-reload
sudo systemctl enable --now prometheus_node_exporter

# confirm
sudo systemctl status prometheus_node_exporter

Confirm: Prometheus server UI > Status > Target health

Lab: Exporter for Windows

There is no official Prometheus exporter for Windows
WMI(Windows Management Instrumentation)
- 3rd party exporter
- Infrastructure for management data and operations on Windows-based operating systems.
Url: https://github.com/prometheus-community/windows_exporter
- release: https://github.com/prometheus-community/windows_exporter/releases
- Read the document for port, :9182
Run exe

level=INFO source=tls_config.go:347 msg="Listening on" address=[::]:9182

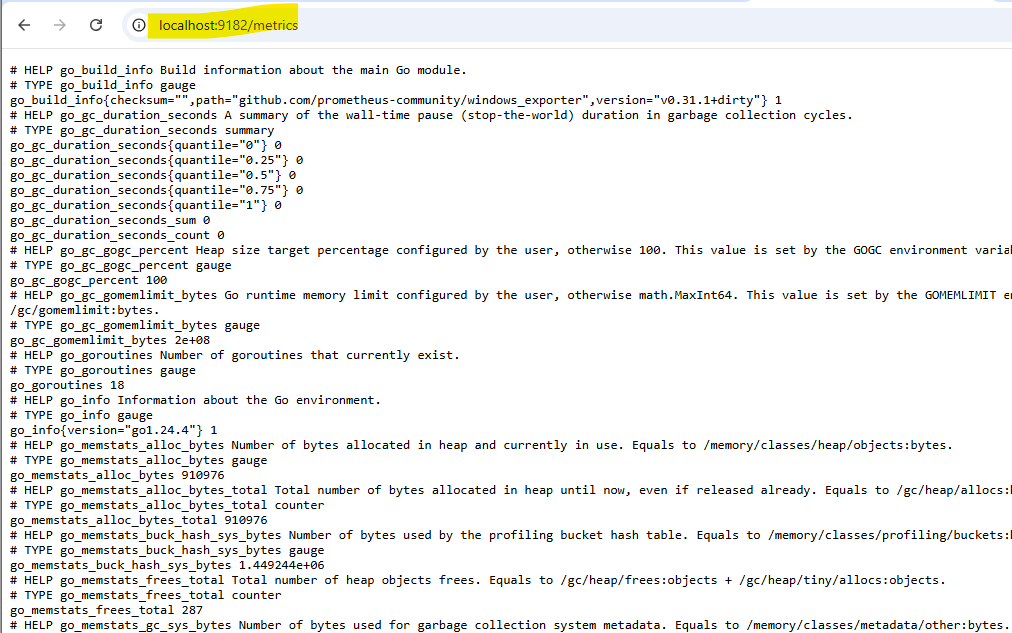

Confirm
- http://ip_add:9182

Update Prometheus cf
